Panamorph CineVista
Anamorphic Lens System
For Ceiling and Shelf/Table Mount Installations
SUMMARY
The CineVista is a high performance anamorphic lens system designed
for both ceiling mounted and shelf mounted projectors to provide the
ultimate in true ultra wide entertainment. It is designed to be very easy to
install and is used with your projector's aspect modes to display ultra wide
movies and PC games on a 2.35:1 or 2.40:1 aspect ratio screen.
CONTENTS AND HARDWARE LIST:

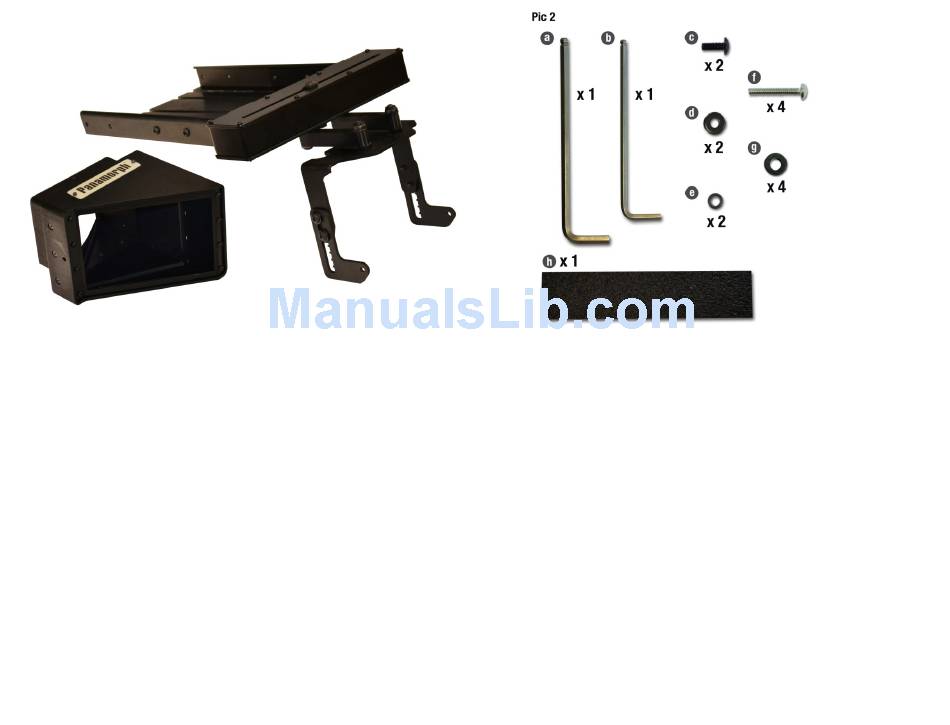

Pic 1:
One CineVista Anamorphic Lens
One CineVista Lens Mount with Lens Bracket attached
Pic 2:
a) Qty 1 - 5/32" Gold Hex Key
b) Qty 1- 1/8" Gold Hex Key
c) Qty 2 - #10-32 ½" Black Hex Screw
d) Qty 2 - #10-32 ½" Black Metal Washer
e) Qty 2 - #10-32 ½" Knurled Washer
h) Qty 1 – 9" x 2" x1/2" Foam Spacer
Hardware for Chief SLB installation (bent sides)
f) Qty 4 - 3/8" Plastic Spacer
g) Qty 4 - #10-24 1 ½" Stainless Steel Screw
1
Advertisement
Related Manuals for Panamorph CineVista
Summary of Contents for Panamorph CineVista
- Page 1 Qty 2 - #10-32 ½” Black Metal Washer e) Qty 2 - #10-32 ½” Knurled Washer The CineVista is a high performance anamorphic lens system designed h) Qty 1 – 9” x 2” x1/2” Foam Spacer for both ceiling mounted and shelf mounted projectors to provide the ultimate in true ultra wide entertainment.
-
Page 2: Equipment Requirements
The only additional piece needed to complete the lens system installation is to attach • the CineVista Lens to the Lens Bracket once the projector and lens mount are both ceiling mounted. Range of focal distance from screen to projector: 8 - 18 feet (2.4 to 5.4 meters). - Page 3 Adjust the image if necessary. Swing the CineVista lens bracket all the way in so that it is close to the projector. Then, bracing the projector from the back, insert the CineVista mount between the top and bottom halves of the Chief mount and slide it back until the back edge of the lens bracket rests 1/2”...
- Page 4 INSTALLING THE CINEVISTA LENS Once the CineVista Lens is installed, swing it into place in front of the projector’s lens. The CineVista Lens should be centered horizontally on the projector’s lens and should have approximately ¼” between the back of the CineVista lens and the front of the Swing the arms that hold the CineVista Lens Bracket back out to their fullest extension projector’s lens or housing.
- Page 5 Adjust the rotation of the CineVista so that the left and right sides of the image are an For optimum multiple aspect ratio performance, adjust the projector’s zoom so that a equal distance from their respective screen borders. Now tighten the Pivot Screw (B) 1.85:1 aspect ratio movie is just masked by the top and bottom of the screen border.
-
Page 6: Limited Warranty
During this period, a defective unit may be repaired or replaced, at the discretion of Panamorph, Inc., by returning it in its original packaging with a copy of your receipt.
