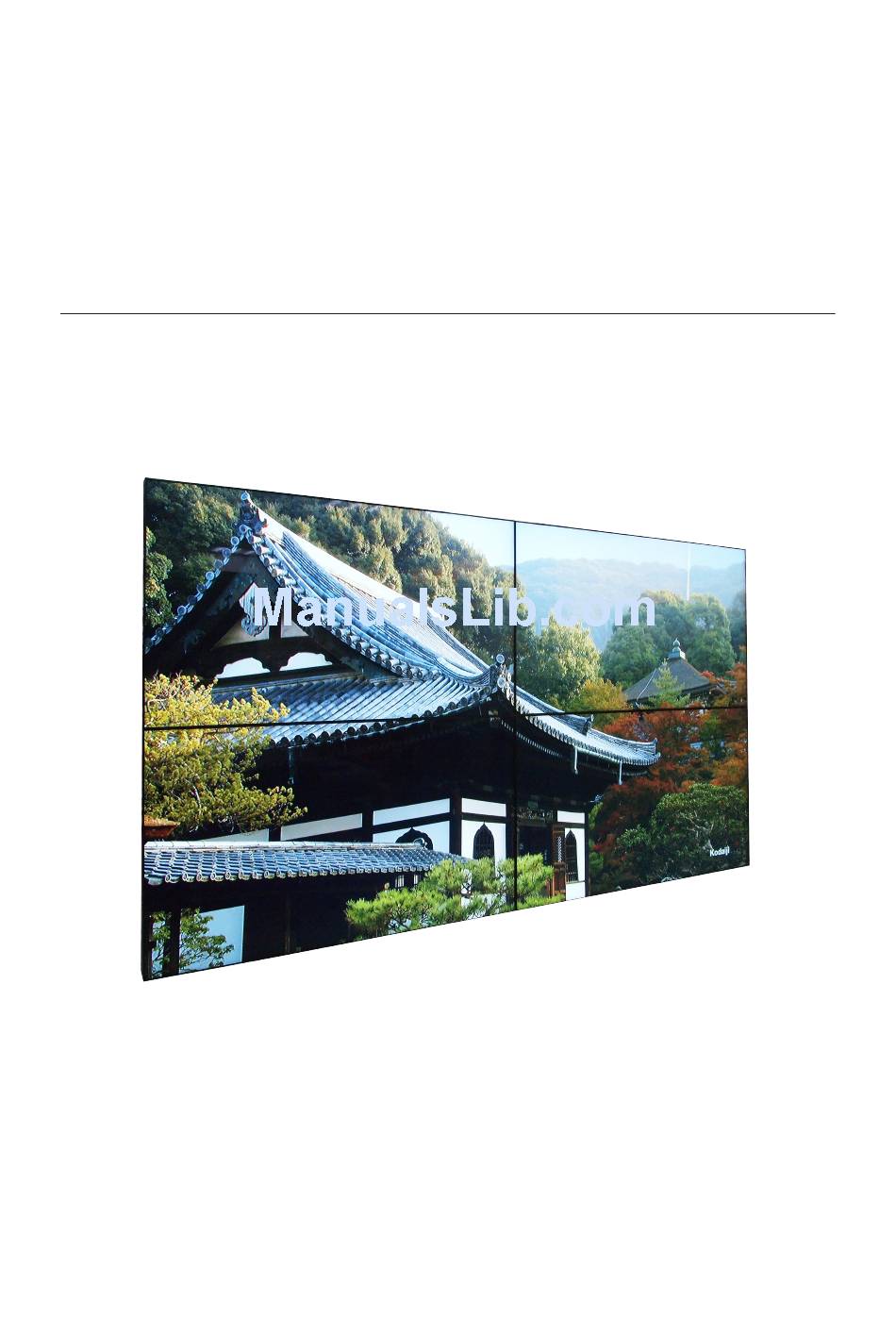

High Definition Digital
Video Wall LED Monitor
Operating Instructions
Model No.: CVW-47SDI2
Operation Instructions
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully.
Before connecting, operating or adjusting this product, please read these
instructions completely. Please keep this manual for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cypress CVW-47SDI2
Summary of Contents for Cypress CVW-47SDI2
-
Page 1: Operating Instructions
High Definition Digital Video Wall LED Monitor Operating Instructions Model No.: CVW-47SDI2 Operation Instructions Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully. Before connecting, operating or adjusting this product, please read these... -
Page 2: Table Of Contents
Table of Contents 1. Specifications ..............1 2. Remote Control ..............2 3. Signal Input / Output Terminals ........2 4. Using Your LED Display ...........3 5. Using the OSD menu............4 5.1 Picture Menu ..............5 5.2 Setup Menu ..............5 6. RS-232 Protocol ...............6 6.1 Piin Definition .............6 6.2 Command ..............6 7. -
Page 3: Copyright Notice
Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. - Page 4 Do not intertwine, pull or compress the power cable when placing the product, otherwise the power cable or plug may be worn out and damaged. And do not presses the power cable beneath the product, otherwise electric shocks, short circuits or flash over may occur. WWW.CYPRESS.COM.TW...
-
Page 5: Specifications
1. Specifications Model. No CVW-CVW-47SDI2 SPECIFICATION Screen Size (inches) Aspect Ratio 16:9 Contrast Ratio 1400:1 Viewing angle range 178° Panel Resolution 1366*768 Response Time (ms) Brightness 800cd/M VIDEO HDMI Compatibility 480p/576p/720p/1080i/1080p HDTV Compatibility Up to 1080P 640x480@60,72,75 800x600@56,60,72,75 1024x768@60,70,75 PC Resolution... -
Page 6: Remote Control
⑦ SDI OUT: Connect the SDI cable to the next video/TV wall panel's(suggest using the same family type) SDI IN for unit signal distribution and displaying. ⑧ SDI IN: Connect the SDI cable from the SDI source equipment for signal input. WWW.CYPRESS.COM.TW... -
Page 7: Using Your Led Display
Do not use caustic cleaners (Porcelain, stainless steel, toilet, or oven cleaner etc.) on the remote, as it may suffer damage. 3. Press the [POWER] button on the remote to turn on the LED Display. Monitor 30 ° 30 ° Monitor WWW.CYPRESS.COM.TW... -
Page 8: Using The Osd Menu
ON/OFF, when slelct to ON the system will go back to initial setup Colour To adjust the color saturation. Tint To adjust picture hue (NTSC only). Sharpness Sharpen of soften the picture. Contrast To increase or decrease picture contrast. Brightness To adjust for brighten or darken the picture. WWW.CYPRESS.COM.TW... -
Page 9: Setup Menu
TV Position Height line of the TV wall. This function is to set the back light of the TV panel from the highest figure of Back Light 0 with the brightest light to the lowest figure of 230 with darkest light. WWW.CYPRESS.COM.TW... -
Page 10: Rs-232 Protocol
0x23 0x43 0x52 0x43 0x00 0x23 0xEF 0x05 0x00 0xC0 0x22 0xEE Change to HDMI 1 0xEF 0x05 0x01 0xC0 0x22 0xEE Change to HDMI 2 0xEF 0x05 0x03 0xC0 0x22 0xEE Change to PC 0xEF 0x05 0x02 0xC0 0x22 0xEE Change to SDI WWW.CYPRESS.COM.TW... -
Page 11: Connection And Installation
S D I O U S D I IN POWER POWER OFF SINGLE FULL RETURN MENU IR線 HDMI1/2 U/OVER OPTION CR-107 S D I O U S D I IN S D I O U S D I IN WWW.CYPRESS.COM.TW... - Page 12 A. Prepare the TV / Panel Keep all the parts properly for future installation purpose. 1.Separate the fi xed rack from both side * To avoid scratch or demage of the panel, it is suggested to place the panel on a fl at table that is covered with soft cotton pad.
