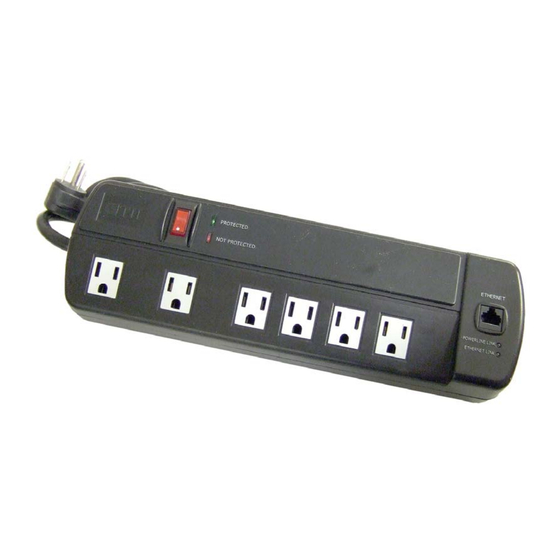

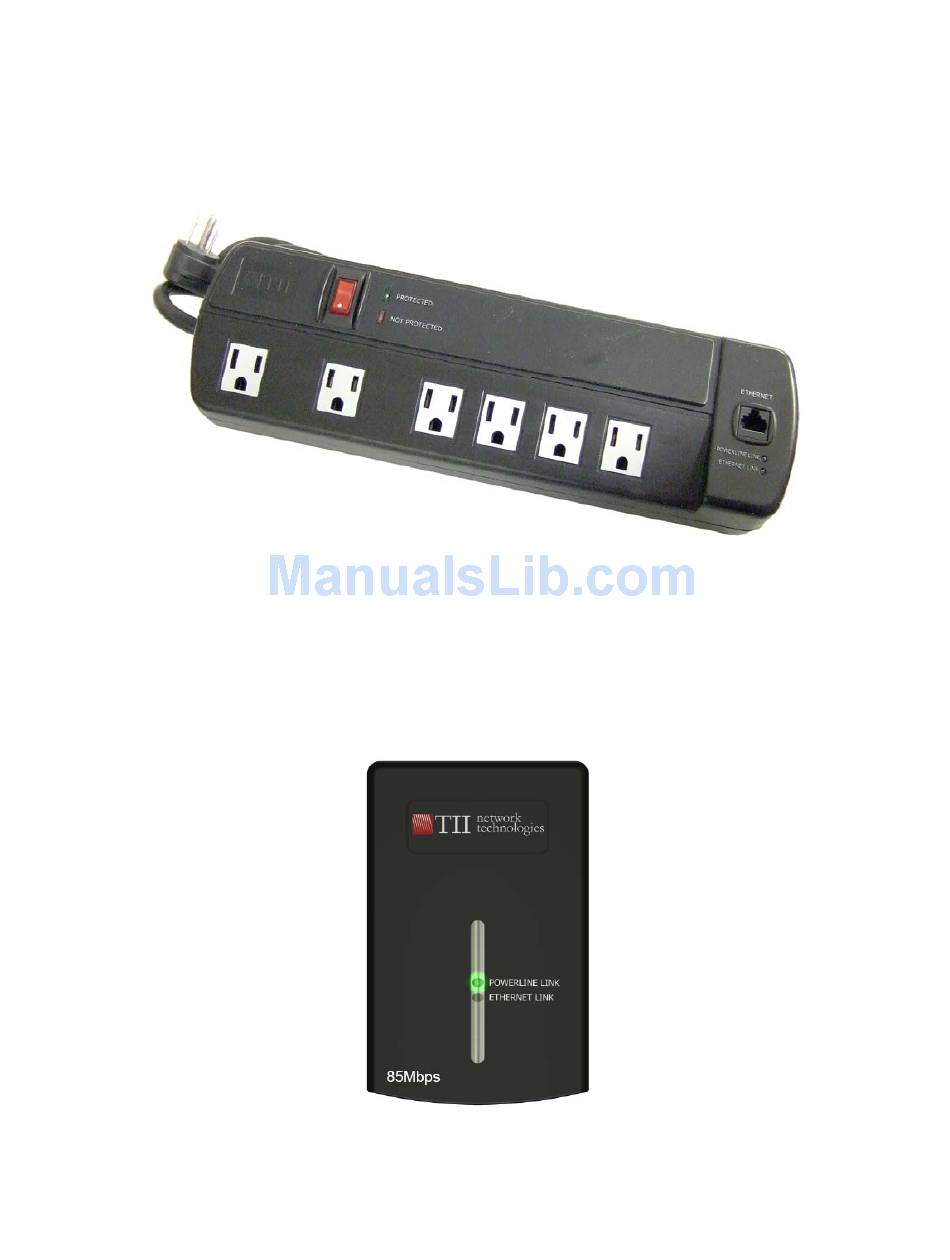

- Page 1 HPTurbo1 85 Mbps High Speed HomePlug Ethernet Embedded Transient Voltage Surge Suppressor HPTURBOWALL 85 Mbps High Speed HomePlug Ethernet Bridge P/N: 922xxx01 Rev A 4/07...
-
Page 2: Table Of Contents
1.3 Package Contents……………………………………………………………….…….9 Chapter2 – Installation & Connection…………………………………………………….……..10 2.1 System Requirements………………………………………………………….…….10 2.2 Installation & Un-installation of Configuration Utility………………………….10-13 ..…………….……..15 HPTurbo1 and HPTURBOWALL Connection & Indicator Lights Chapter3 – Configuration Utility Software Features…..…………………….………………….16 3.1 Main Screen…………………………………………………………………………17 3.2 Network Security…………………………………………………………………18-20 3.3 Privacy Screen……………………………………………………………………20-21 3.4 Diagnostic Screen…………………………………………………………………...22... -
Page 3: Safety Messages
Safety Messages WARNING HIGH VOLTAGE is used in the equipment. No user repairable parts, user is never to open device. Failure to observe safety precautions may result in electric shock to user. Note… Check voltages before connecting equipment to power supplies. Applying incorrect voltage may result in damage to equipment. -
Page 4: Important Safety Instructions
Use a damp cloth for cleaning. 2) Do not use the HPTurbo1 or HPTURBOWALL near water. 3) The HPTurbo1 or HPTURBOWALL should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation provided. -
Page 5: Chapter1 - Introduction
Chapter 1 – Introduction The HPTurbo1 is a combination HomePlug Ethernet Adapter and Home Networking Protector providing total surge protection for the computer system including its peripherals such as modems, scanners, monitors, printers and routers. The HPTurbo1 also incorporates an Ethernet HomePlug®... -
Page 6: Networking Application Examples
1.1 Networking Application Examples • Workstation with Internet connection over an ADSL/Cable modem INTERNET ADSL/CABLE MODEM HPTURBOWALL HPTURBO1 HPTURBOWALL HPTURBO1 P/N: 922xxx01 Rev A 4/07... - Page 7 • Networking for Online Gaming. INTERNET ADSL/CABLE MODEM HPTURBOWALL HPTURBO1 HPTURBOWALL HPTURBO1 GAMING SYSTEM P/N: 922xxx01 Rev A 4/07...
- Page 8 • Networking for several work stations with IP- STV and one Internet connection over an ADSL/Cable modem router. INTERNET IP-STV ADSL/CABLE MODEM HPTURBOWALL ADSL/CABLE ROUTER HPTURBO1 HPTURBOWALL HPTURBO1 P/N: 922xxx01 Rev A 4/07...
-
Page 9: Maximum Homeplug Devices In Network
1.2 Maximum HomePlug Devices in Network The maximum number of HPTurbo1 and HPTURBOWALL products in a single-family house is theoretically 253 connections, but in practice no more than 10 devices should be transferring data simultaneously. 1.3 Package Contents Make sure that you have the following items. If any of the items is damaged or missing, please contact your dealer immediately. -
Page 10: Chapter2 - Installation & Connection
Chapter 2 – Installation & Connection System Requirements HPTurbo1 and HPTURBOWALL products are compatible with all operating systems with an Ethernet port. Drivers are not required for this adapter. The supplied software configures the network password and operates only with Windows operating systems. - Page 11 4. Follow the installation wizard on screen instructions to install the utility drivers. Select the appropriate operating system on your computer. P/N: 922xxx01 Rev A 4/07...
- Page 12 If you select to install with windows XP/2000, follow the installation wizard below. P/N: 922xxx01 Rev A 4/07...
- Page 13 If you select to install with windows Vista 32 bit or Vista 64 bit, follow the installation wizard below. P/N: 922xxx01 Rev A 4/07...
- Page 14 Note… 1. Before connecting the HomePlug Ethernet Adaptor, please note its Security ID / Device Password and keep it available for configuration of the network. 2. No drivers are required for installation of the HomePlug Ethernet Adaptor. Note… If there is no connection/link among the HomePlug adaptors with the Ethernet cable inserted or ping test between the HomePlug adaptors is not successful, please power the HomePlug adaptors off and on again.
-
Page 15: Hpturbo1 And Hpturbowall Connection & Indicator Lights
2.3 HPTurbo1 and HPTURBOWALL Connections & Indicator Lights The HomePlug Ethernet Adaptors have two indicator (LEDs) and an Ethernet port. See Figures below. POWERLINE LINK ETHERNET LINK 85Mbps HPTurbo1 HPTURBOWALL ITEM NO. FEATURE DESCRIPTION Reset Fuse Self restoring line surge suppresser fuse. -
Page 16: Chapter3 - Configuration Utility Software Features
Chapter 3– Configuration Utility Software Features Running the Utility with Windows XP/2000: To run the utility, double click the Homeplug PowerPacket icon on your desktop as in Figure 1. Figure 1 Running the Utility with Vista: If you installed the configuration utility with Vista, go to start all programs and click on HomePlug PowerPacket. -
Page 17: Main Screen
Main Screen The Main screen essentially provides a list of all HPTurbo1 devices logically connected to the computer where the utility is running. (If the status is not updated, please close and open the utility again). The top panel shows the local HPTurbo1 device found connected to the computer’s NIC (Network Interface Card). -
Page 18: Network Security
Normally the electric meter forms a physical barrier, i.e. only devices connected to this meter can be part of the network and benefit from the phase coupling. We strongly recommend that you use the HPTurbo1 and HPTURBOWALL internal device encryption. It is configured with the Homeplug PowerPacket Configuration Utility software. - Page 19 Figure 3 A dialog box will appear as shown in Figure 4 to type the password. The selected device name is shown above the field for entering the password. Hit OK after entering the password. A confirmation box will appear if the password was entered correctly. If a device is not found, the user will be notified and suggestions to resolve common problem swill be presented.
-
Page 20: Privacy Screen
The Add button is used to add a remote device to your network that is not on the displayed list in the lower panel, for example, a device currently on another logical network. Users are advised to locate the Device Passwords for all devices they wish to manage and add them to the local logical network by clicking on the Add button. - Page 21 Note… Changing the network name to any other name other than “HomePlug” will show the network type on the main screen as Private. The Network Name is between 4 to 24 characters. Figure 6 The “Set Local Device only“button is used to change the network name (network password) for the local device only.
-
Page 22: Diagnostic Screen
Diagnostics Screen The Diagnostics screen shows system information and a history of all devices seen. See Figure 7 The upper panel shows technical data concerning software and hardware on the host computer used to communicate over HomePlug. It shall include the following: •... -
Page 23: About Screen
About Screen The “About” screen shows the software version. Users are also able to activate or de-activate the “Autoscan” feature by clicking on the check-box under the “Preferences” column. See Figure 8. Figure 8 P/N: 922xxx01 Rev A 4/07...
