Back Panel of the Barracuda Load Balancer

Figure B.3 illustrates the back panel for all models.

Barracuda Load Balancer, all models

Figure B.3 shows the back components as described in Table B.3.

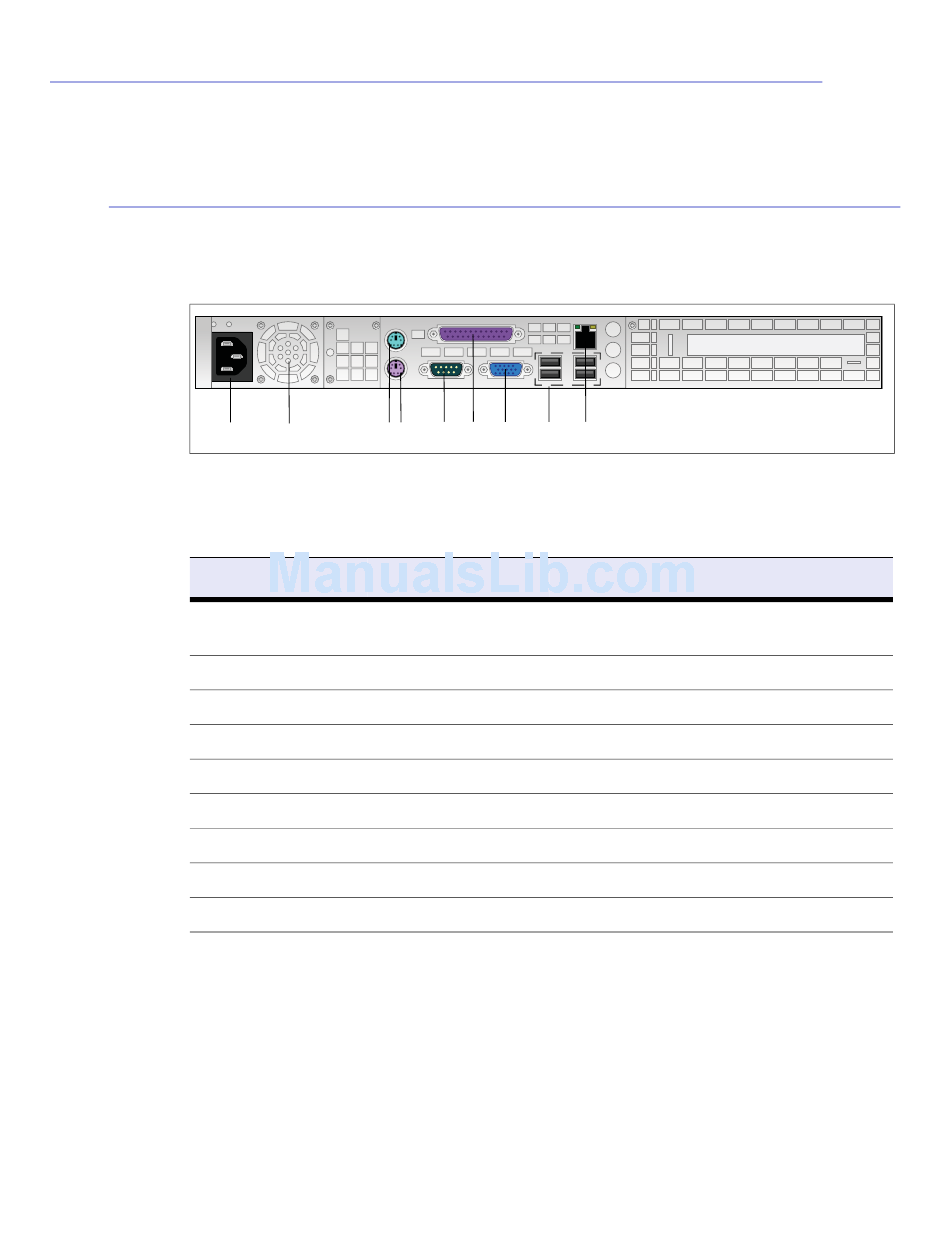

Figure B.3: Barracuda Load Balancer Back Panel
1
Table B.3 describes the back components on all models of the Barracuda Load Balancer.
Table B.3: Barracuda Load Balancer Back Component Descriptions
Diagram Location
60 Barracuda Load Balancer Administrator's Guide
2 3 4
5
Component Name
1 Power Supply
2 Fan
3 Mouse Port
4 Keyboard Port
5 Serial Port
6 Parallel Port
7 Monitor Port
8 USB Ports (4)
9 Ethernet Port
8 9
6 7
Description
Connection for the AC power cord; standard
power supply
Location of the fan
Connection for the mouse
Connection for the keyboard
Connection for the serial console cable
Connection for the parallel cable
Connection for the monitor
Connection for USB devices
Not used
