Instruction Manual 5.8GHz Transmitter & Receiver - weatherproof

Connections - general:

- Transmitter and receiver are pre-set on one channel. The sticker on the transmitter
casing contains the pre-set transmission channel, at the receiver the set channel is indicated by the
channel selection switch (description below).
Both the transmitter and receiver are connected to via the strip terminal inside the weatherproof casing.
The allocation of strip terminal is described inside the casing.
The weatherproof casing must be mounted in such way that the three M-ducts (cable-glands) will be
facing downwards – Note that the right hand side M-duct / gland is reserved for the omni-directional
antenna or antenna cable for external antenna connection. The remaining two M-ducts / glands are free
to be used for other cable feeds as required.

Power Supply:

You should only use a regulated power supply with an output voltage of 12 VDC.
The power consumption of the individual components are:
Transmitter approx. 200mA,
Receiver approx. 320mA
Important:
Before switching on the power supply ensure that you first connect the power supply and
antenna to the Sales Mark unit. Only then switch on the power supply.

Channel selection receiver:

The rotary switch is situated left in the centre of the receiver printed circuit board.
Channel 1 – 9 as per number display, A – F is equal to 10 – 15

Channel selection transmitter:

To operate the internally mounted rotary switch the upper cover of the transmitter must be removed. The
rotary switch is behind the 4-pole panel mounted connector. The
selection is the same as per receiver channel selector.

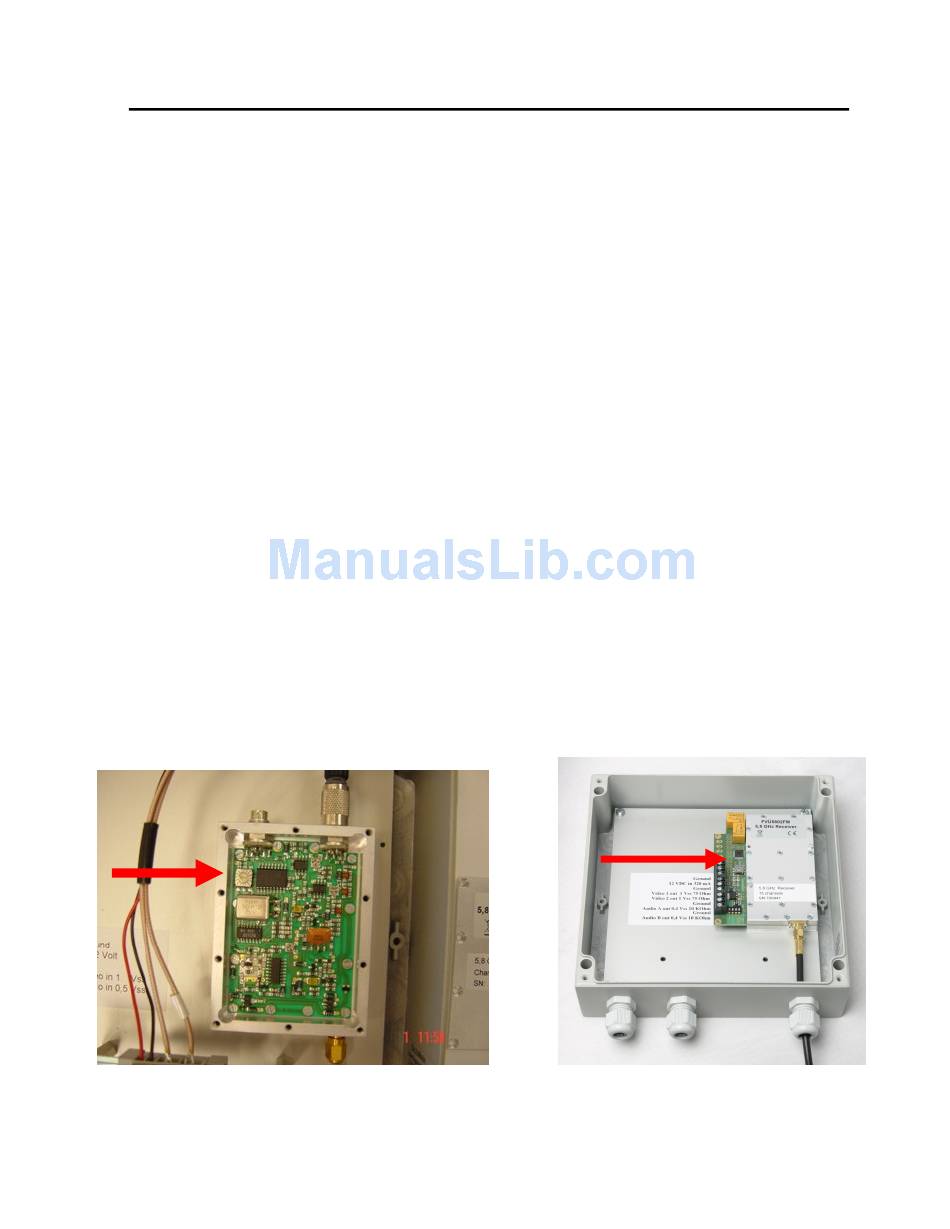

Transmitter – channel selection Receiver – channel selection
