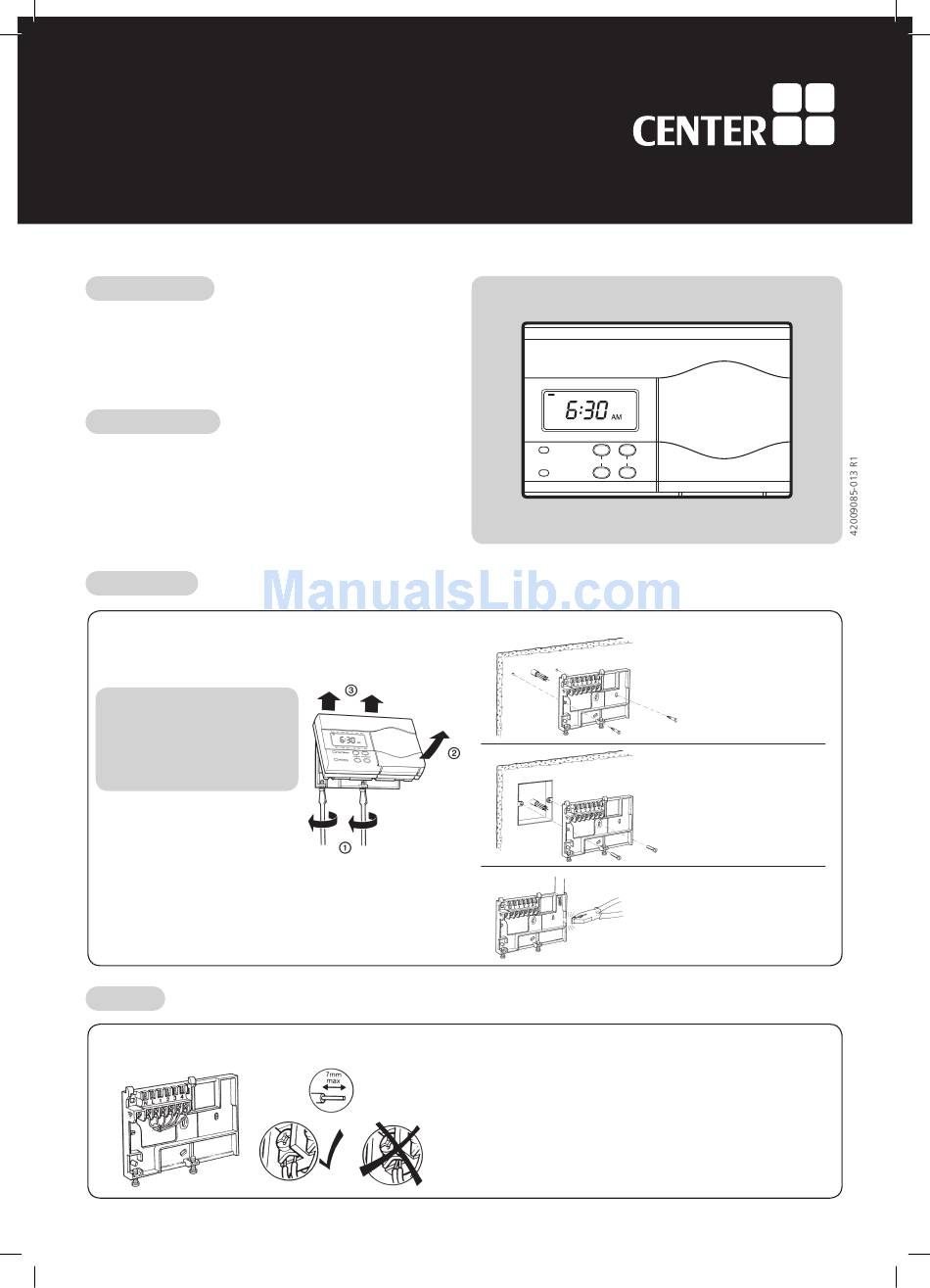

Installation Guide
for EHE0200160 Programmer
Introduction
EHE0200160 is an Electronic Full Programmer providing accurate
time control for central heating installations with separate
programmes for heating and hot water. It can be used to
program a heating schedule for weekdays (Monday – Friday) and
weekends (Saturday and Sunday) independently.
Specification
Power Supply :
230V~, 50...60Hz, 8VA
Switch Action :
2 x SPDT
Switch Rating :
230V~, 50...60Hz, 3(3)A
Timing Accuracy :
±1min./month
Power Reserve :
typically 4 days
Approvals :
CE marked
Mounting
The Programmer should be mounted at a level where the
display can be seen clearly and the ambient temperature is
within the range of 0 to 45°C. The unit is for use in normal
domestic environments.
CAUTION: Isolate power supply and
make safe before wiring the unit to
prevent electric shock and equipment
damage. Installation should be
carried out by a qualified electrician
or competent heating engineer.
To remove the unit from the
wallplate, slacken the two securing
screws and hinge the unit up to
separate the two halves.
Replacing Other Manufacturers' Time Controls
This Programmer will mount directly onto many existing
manufacturers' back-plates, without the need for re-wiring.
However, it is also supplied complete with a wiring
back-plate, should this not be the case.
Wiring
ALL WIRING MUST BE IN ACCORDANCE WITH I.E.E.
REGULATIONS. THIS UNIT IS FOR FIXED WIRING ONLY.
Mon
Tue
Wed
Thu
Fri
Sat
Sun
ON-OFF
ON-OFF ON-OFF
Hot Water
OVERRIDE EXTRA HOUR
Heating
Mounting Options
A switch, having contact separation of at least 3mm in all poles
(formerly Class 'A'), must be incorporated in the fixed wiring as
a means of disconnecting the supply.
The unit is a Class II (double insulated) device. An earth
terminal is provided for external earth continuity.
The system must be appropriately fused. A fuse rated at no
more than 3 Amps should be installed.
The unit has 4 knockouts for surface wiring, care must be taken
to ensure that the cable or mini-trunking completely fills the
knockout hole without leaving any gaps.
RECOMMENDED CLEARANCE DISTANCES:
ABOVE WALLPLATE:
40mm
BELOW WALLPLATE:
100mm
LEFT/RIGHT OF WALLPLATE:
10mm
a. Surface mounting
concealed wiring
b. Flush switchbox Fixing
holes are spaced to suit
BS4662 requirements
c. Surface mounting with
surface wiring in
mini trunking
