Summary of Contents for CTRing CK 1000 series

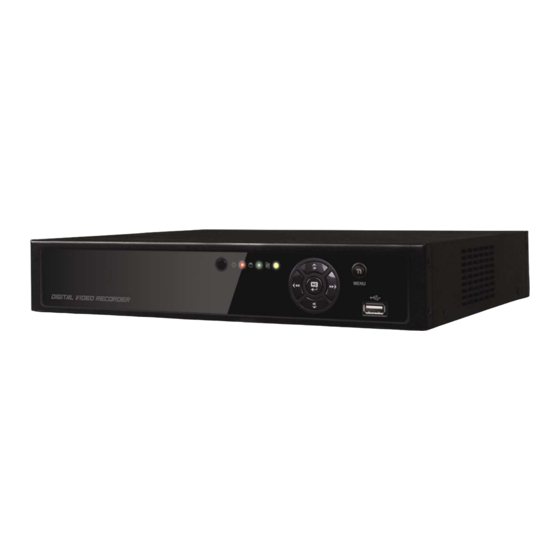

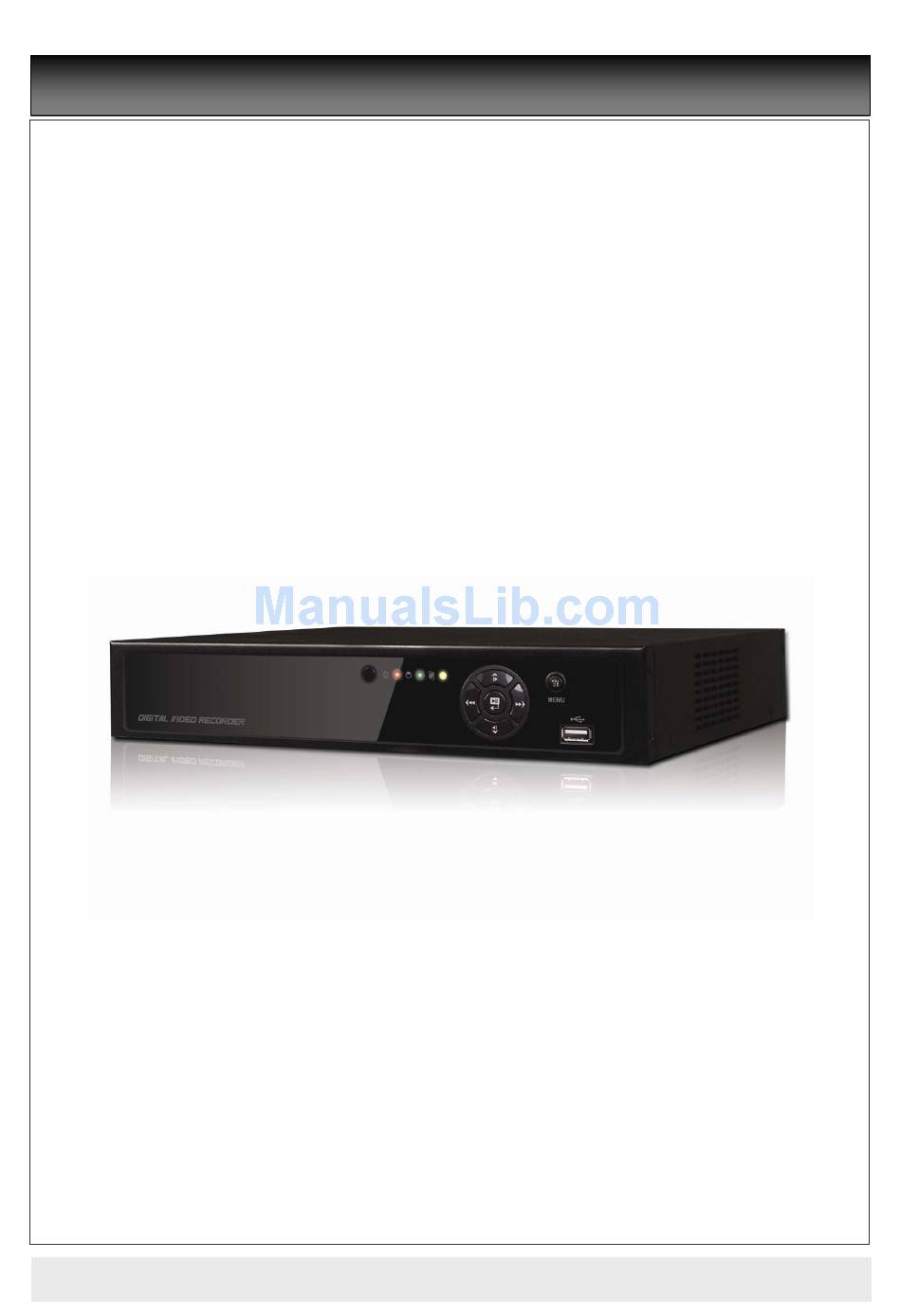

- Page 1 Stand Alone Digital Video Recorder Realtime DVR 4/8/16 Channel Models User’s Manual PDHD3-V2.08-o199 This document contains preliminary information and is subject to change without notice.
-
Page 2: Fcc Compliance Statement
FCC Compliance Statement Notice to Users This equipment has been tested and found to comply with the limits for a Class A digital device. Pursuant to Part 15 of the FCC Rules, these limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Important Safeguards
Cautions This product has multiple-rated voltages (110V and 220V). See installation instructions before connecting to the power supply. This product uses a Lithium battery. To avoid any risk of explosion, do not replace the battery on the main board by anything other than a Lithium battery. Dispose of used batteries according to the manufacturer’s instructions. - Page 4 11. Objects and Liquids Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the equipment. 12.
- Page 5 THE LIST OF CONFIGURATION DVR Set CD (Software/Manual) User’s Manual HDD Screws Remote Controller HDD Brackets Data Cable (SATA Cable) Power Cable...
-
Page 6: Operation Precautions
Operation Precautions Power Off Do not turn DVR off, or plug off the power adapter while DVR is in operation (record/playback). Otherwise, it may cause permanent damage to the equipment. Please click ( ) SETUP>SYSTEM>Shutdown sequentially and then remove the power after DVR is shutdown completely. -
Page 7: Table Of Contents
Table of Contents 4.3.1 OSD ------------------------------------------------------------- 22 Product Features ---------------------------------------- 8 4.3.2 Main Monitor -------------------------------------------------- 23 Unpacking ------------------------------------------------------ 8 Full Seq Service ---------------------------------------------------------- 8 4.3.3 System Connection Diagram------------------------------ 8 Spot Monitor ------------------------------------------------- 24 4.3.4 Spot Monitor Control on Display Mode --------------- 24 Installation DEVICES ------------------------------------------------------ 24 --------------------------------------------------- 9... - Page 8 Keyboard Controller Color Control and Position -------------------------------- 44 Alarm Out Control ------------------------------------------ 45 11.1 Connection ---------------------------------------------------- 70 11.1.1 Configuration Diagram Ⅰ---------------------------------- 70 11.1.2 Configuration Diagram Ⅱ --------------------------------- 70 Program Installation ----------------------------------- 47 11.1.3 Configuration Diagram Ⅲ --------------------------------- 70 System Recommendation--------------------------------- 47 11.2 Keyboard Setup in DVR ---------------------------------- 70 Program Installation Method------------------------------ 47...
-
Page 9: Product Features
Product Features Unpacking This equipment is an electronic appliance, so it should be handled with special care. After unpacking, please check if all the following items are included. DVR Main body Power Supply Adapter (DC 12V, 3.33A) and Power Supply Cable Installation CD (CMS Software &... -
Page 10: Installation
2. Installation Hard disk Installation 2.1.1 SATA Port Main substrate of this DVR has one SATA port: it is indicated as SATA 1. Only one SATA device (hard disk) is possible to connect in Serial to the SATA port. Storage SATA Port 4 / 8 / 16 Channel DVR 2.1.2... -
Page 11: Alarm Connections
2.2.5 Alarm Connections Connect Alarm Input (Sensor) to ‘AI 1~AI 2’ connectors and connect Sensor Common to ‘G’ connector. Connect Alarm Output (buzzer, siren, etc.) to ‘AO 1’ connectors and connect Common to ‘G’ connector. Connect Pan/Tilt receiver (or Pan/Tilt camera) to ‘RS-485/422’ connector. Please observe proper (+) and (-) polarity. 2.2.6 RS-485/422 Connections PTZ Camera connector... -
Page 12: Input Device And Screen Icons
3. Input Device and Screen Icons Front Button and LEDs 4 / 8 / 16 Channel DVR KEYS Operating mode Setup mode • Up/Down/Left/Right on ▲, ▼, ◄, ► • Control Pan/Tilt rotation of up/down/left/right in PTZ mode screen cursor control Power LED •... -
Page 13: Setup
4. Setup Login/Logout At the default setting of DVR, users have to input the password to enter the set up menu. Please press SETUP key to enter the setup menu and the following screen will appear. In order to use all functions and privileges, login is required as ID: admin. Default Password is “1111”. -
Page 14: System
(NOTE) Press AUDIO/ESC in the setup screen, start operation alike CANCLE (ESC). It will not operate live or playback mode but only in the setup menu. SYSTEM 4.2.1 Information Please click ( ) SYSTEM>Information and the following screen will appear. Status Site Description Decide name of DVR. -
Page 15: Version
Import: Copy the Menu setup stored in USB memory stick into DVR. Please plug in the memory stick and then click ( ) Import. Export: Store the Menu setup of DVR in USB memory stick. Please plug in the memory stick and then click ( ) Export. When user is on Default, Import or Export process, a message box will ask the progress and click the confirmation icon, then a message box will show whether its success or failure. - Page 16 Overwrite Setting Click( ) Overwrite Setting button and the following screen will appear. User may set for beeping or notifying messages that notify the used percentage of disk. Check Disk Overwrite and user may activate the overwrite function. This function makes restart the recording from the beginning when the HDD is full. The previous recorded data will be erased from the first one.
-
Page 17: Admin
4.2.2 Admin Please click ( ) SYSTEM>Admin and the following screen will appear. Date/Time Date This menu will allow user to adjust the settings. Please follow the procedure below for time adjustment. ① Click ( ) items (Y, M, D) to change. A designated item will be highlighted in a box (Y: Year, M: Month and D: Date). ②... -
Page 18: Ntp
Date Format Set date indication format. Please click ( ) Date Format frame to select a format from the list. Time Format Set time indication format. Please click ( ) Time Format frame to select a format from the list. When user complete Date/Time input, please click ( ) NTP and the following screen will appear. - Page 19 Four rows will show as follows: – 1: SATA 1 Port Format User must format when: – install new HDD – add another HDD – replace HDD – move HDD (change installation port) – remove HDD Click ( ) Add/Remove frame in Format column and choose ‘OK’ on the dialogue box to start formatting. Following format, DVR will auto-reboot.
-
Page 20: Account
Click ( ) ▲, ▼ direction buttons on the right-hand side of Temperature frame to adjust to maximum temperature for the HDD used in DVR. In general, it is 55℃. Click ( ) ▲, ▼ direction buttons on the right-hand side of HDD Damage frame to set the permissible level of HDD damage (%). -
Page 21: New User
New User Please click ( ) New User and the following screen will appear. Click ( ) the keyboard icon on the right-hand side of User Name frame and the virtual keyboard will appear. Click desired characteristics (up to 8 characteristics) on the virtual keyboard. Input Password and Confirm. -
Page 22: System Log
This is a screen for password resetting Input password by clicking the keyboard icon on the right-hand side of the frame. key if wish to erase password on keyboard. 4.2.4 System Log Please click ( ) SYSTEM>System Log and the following screen will appear. System Log System Log displays diverse events. -
Page 23: Shutdown
4.2.6 Shutdown Shutdown is a function to help user safely turn the DVR off. Please use the proper shut down procedure to avoid damaging to our DVR system. Do not remove the power during shut down. CAUTION DO NOT TURN DVR OFF WITHOUT USING THE PROPER SHUT DOWN PROCEDURE. OTHERWISE, IT MAY CAUSE DAMAGE TO DVR. -
Page 24: Main Monitor
Transparency The Transparency menu will allow user to alpha-blending of OSD menu on the monitor. Transparency is the quality that an object or substance has when user can see through it. Transparency range is between 0 and 100, with a larger number representing can see through it. (default 0) While pressing (+) or (-) button, a target value increases or decreases by 10 units. -
Page 25: Spot Monitor
4.3.3 Spot Monitor Please click ( ) DISPLAY>Spot Monitor and the following screen will appear. This menu will allow adjust interval of channel sequencing of Spot monitor. Click ( ) Spot Select to choose Spot monitor to be set up. Check (check box next to the camera that wish to include in sequencing. -
Page 26: Lan
Network Type Please click ( ) Network Type. Every time click ( ), it changes to Static (fixed IP) and DHCP (floating IP). In Static, user must manually set the static IP address for use. – Set IP Address, Subnet Mask and Gateway. Please ask your network administrator for more details. –... -
Page 27: Port
When user press Get Domain Name button, Domain Name and MAC Address value will automatically display after 10 seconds. Choose ‘OK’ to confirm the setting. Port Please click ( ) Port and the following screen will appear. Transfer Speed is used for setting a mean transfer speed per unit of time between a client and a DVR. Set a proper Transfer Speed for a current configuration state of the network for the client to be able to playback DVR screen in optimum state. -
Page 28: Notification
Notification Please click ( ) Notification and the following screen will appear. The Notification menu will allow user to set transmission of Event occurred in DVR via E-Mail. Click ( ) the keyboard icon on the right-hand side of Add E-Mail item then the virtual keyboard will appear. Please register E-Mail address. -
Page 29: Audio
If user click (Default), proper number of selected PTZ will appear automatically. Please choose ‘OK’ to confirm the setting. Menu, Tour and Pattern help user to use OSD function of PTZ camera. PTZ camera itself supports OSD menu, use the setup value to more easily enter and use the OSD menu even in DVR. If OSD enter command is 95 + PSET for example, designate 95 for Menu item, if shortcut key to use Tour function is 71 ~79 + PSET, designate 70 for Tour item and if shortcut key to use Pattern function is 81 ~ 89 + PSET, designate 80 for Pattern item. -
Page 30: Alarm Out
The Alarm In menu will allow user to give title and to select the type of Alarm input. Click ( ) the keyboard icon on the right-hand side of each frame on Title column and the virtual keyboard will appear. Then, please register the title of Alarm input. -
Page 31: Settings
4.5.1 Settings Please click ( ) RECORD>Settings and the following screen will appear. There are three kinds of recording mode. – Continuous: record continuously. – Event: record only when Sensor or Motion calls. – Emergency: record when press EMERGENCY key. Continuous The Continuous menu will allow user to set recording mode. -
Page 32: Emergency
Click ( ) each frame on Frames column to select recording rate of a corresponding camera. Recording rate varies by camera. Below lists the maximum recording rate of each camera. NTSC(PAL) 360x240 720x240 720x480 4 Channel DVR 120(100) 120(100) 60(50) 8 Channel DVR 240(200) 120(100) -
Page 33: Pre Alarm
Repeat the procedure for Camera Nos. 2 to 16. If user wants every camera to have the same mode, please click ( ) Copy to All Camera. Below lists symbols of the respective recording modes. Continuous Alarm In Alarm In / Continuous Alarm In / PreAlarm Motion Motion / Continuous... -
Page 34: Motion Detection
NTSC(PAL) 360x240 720x240 720x480 4 Channel DVR 120(100) 120(100) 60(50) 8 Channel DVR 240(200) 120(100) 60(50) 16 Channel DVR 480(400) 240(200) 120(100) Click ( ) each frame on Quality column to select recording quality of a corresponding camera. User may select one of Super, High and Std. -
Page 35: Link
The Holiday menu will allow user to register holidays. Please follow the registration procedure below. ① Use arrow buttons in the Month Calendar to select Year and Month of holiday to be registered. – : search subsequent ‘Year’ – : search previous ‘Year’ –... -
Page 36: Motion Event
4.6.2 Motion Event Please click ( ) LINK>Motion Event and the following screen will appear. Select cameras for recording while the motion sensor is in operation and alarm outputs and set up E-mail addresses for notification. Link Notification displays E-mail addresses registered in DEVICES>Network>Notification. Please follow the setup procedures below. -
Page 37: System Event
4.6.4 System Event Please click ( ) LINK>System Event and the following screen will appear. Select recording cameras and alarm outputs while Emergency recording using EMERGENCY key and set E-mail addresses for notification. Link Notification displays E-mail addresses registered in DEVICES>Network>Notification. Please follow the setup procedures below. -
Page 38: Operation Instruction
5. Operation Instructions Viewing 5.1.1 First Image Power on DVR and the following live video will appear, while viewing and recording at the same time. The screen will display date/time and icons below. Icon Description Continuous recording mode Event recording mode (Alarm In/Motion) In recording PTZ registration/PTZ mode In Audio recording... -
Page 39: Digital Zoom
– Split Screen: Please press DISPLAY key and the available split screens (or multi-window view formats) will display alternately (i.e., 2x2, 3x3 and 4x4). – Channel Sequencing: Please press SEQUENCE key to display images in sequencing view format periodically. This automatic sequence function is not limited to the full screen format, but can be used in any view mode. -
Page 40: System Log
To use a mouse in Pan/Tilt mode, please move the cursor to the lower portion near the center of the screen. To use front button in Pan/Tilt mode, please push setup button. A key pad control will show as follows: To save current camera number, select Preset No and button click. -
Page 41: Emergency Recording
5.1.7 Emergency Recording Click “Emergency” in item menu, then recording starts right away regardless of preset recording mode. Emergency recording is not operated while SETUP. Press Emergency key one more time to stop the emergency recording. Search This involves searching recorded video to playback the wanted video of a specific date and time. Press SEARCH key on the viewing screen, or Click Search menu at “Function Keys”... -
Page 42: Event Search
5.2.2 Calendar Search Please click ( ) Calendar Search in SEARCH menu and the following input box will appear. Dates and Time with recorded data available will be high-lighted. Follow the procedure below to search video by calendar. ① Select Year and Month by using the arrow buttons in the calendar. –... -
Page 43: Playback
① Designate Event Search start time. ② Designate Event Search end time. ③ Select camera (video) to search data. ④ Check a check box (Motion / Alarm In / Emergency / Serial In) Check box. ⑤ Click on Search Index button to recorded search event data. Playback This involves searching recorded video to playback the wanted video of a specific date and time in search mode. -
Page 44: One-Touch Playback
(NOTE) Using a mouse: Double click to view the corresponding camera image in full view format and click one more time to back to Split Screen. Move the cursor of the mouse and the keypad control will appear at the bottom near the center of the screen. Every time user presses the PLAY/PAUSE key during playback mode, it is changed to ‘1X PLAY’... -
Page 45: Color Control And Position
② Click ( ) Format frame to select EXE or JPEG. Choose EXE for storing moving images; and JPEG for still images. ③ Click ( ) the keyboard display on the right-hand side of FROM frame to set the storage start time. ④... -
Page 46: Alarm Out Control
If user clicks (Default), proper number of Color Control or HSTART/VSTART will appear automatically. Please choose ‘OK’ to confirm the setting. Click ( ) ▲, ▼ direction buttons on the right-hand side of Brightness/Contrast/Saturation to set adjust color of the screen (i.e. -
Page 47: Cms
Stand Alone Digital Video Recorder (Central Monitoring Station) User’s Manual V2.08-o199 This document contains preliminary information and is subject to change without notice. -
Page 48: Program Installation
6. PROGRAM INSTALLATIONS System Recommendations The followings are our recommendations for system configurations/specifications used with CMS. Processor: Intel Pentium(R) (at 2.8GHz or higher) Memory: 1.00GB or more Video: 128 MB AGP VGA card, 1024 x 768 Resolution, 32-bit Color, DirectX® 8.1 version or later HDD Space: 500 MB of space Monitor: SVGA or XGA, 1024 x 768 Resolution, 32-bit Color OS: Windows®... -
Page 49: Login
⑥ When the following screen appears, mark additional icons that wish to make and click Next. ⑦ When the following screen appears, click Install. ⑧ When the following screen appears, click Finish to complete the installation. Login After install CMS software, CMS icon below appears on desktop. Please double click on the icon to execute the program. -
Page 50: Function And Instructions
7. FUNCTION AND INSTRUCTIONS Below lists are functions of the program. ICON ICON NAME WATCH MODE SEARCH MODE REMARKS System Log DVR System Log PTZ Control DVR PTZ Control System Health Check DVR System Health Check DVR Data Playback DVR Data Playback CMS(PC) Data Playback CMS(PC) Data Playback DVR Event Record Data... -
Page 51: Watch Mode
WATCH MODE Login Screen When user login CMS, the following screen will appear. This screen is of Watch mode. Because it is not connected to DVR, images do not show. Please do Local Setting first before connecting to DVR. Local Setting Please click LOCAL SETTING button of Toolbar and the following screen will appear. -
Page 52: Remote Site
Manager/User: allow user to authority. Save Option: allow user to select Drive(C, D) and folder to save data. Choose ‘OK’ to confirm the setting. 8.2.2 Remote Site This menu is for Network setup. Make CMS IP address and Port coincide with DVR. Remote Site Connection Setup Site Name: input DVR site name to be displayed on the right-hand side of DVR icon. - Page 53 Click “Scan DVR” button then IP address of DVR will be listed which is currently connected with PC in the network. Select the IP address and click “Add site” then the connected DVR is automatically registered in the CMS. Camera Name It helps to set the camera name in CMS program other than DVR camera name.
-
Page 54: Live Video
Live Video 8.3.1 Network Connection As the setup is completed, user should connect CMS to DVR over Network. Please click in REMOTE DVR on the screen. It will turn to blue, while being activated. Please click REMOTE CONNECT button. If a popup window for ID/Password appears, please input ID/Password. The window may not show up at all depending on Remote Site Login Setup. -
Page 55: Watch Mode
The list below describes functions of each part of the screen. Tool Bar Watch Mode Date/Time LED Site Tree (DVR and Channels) Color Control Bar Instant Record Button System Log Alarm Out Channels Audio Channels Two way Audio Video Display Screen Network Connect/Disconnect Button/Exit CMS 8.3.2 Watch mode... -
Page 56: Multi Screen
8.3.3 Multi Screen CMS supports multi remote site connections simultaneously. Server Drag & Drop: Drag & Drop Remote Site of site tree to any screen. Then all cameras of the site will display sequentially. Camera Drag & Drop: Drag & Drop a camera of Remote Site to any screen. Then the camera will display. 8.3.4 Screen Color Adjustment Adjust color of the screen using three bars (Brightness / Contrast / Saturation). -
Page 57: System Log
8.3.6 System LOG Click on LOG button on Watch screen. This will allow user to check System Log of Remote Site (DVR). 8.3.7 Alarm Out This is for operating Alarm Out of a selected DVR from a remote distance. Click a channel number and Alarm Out of the corresponding channel will operate. If user sees an intruder, use this function to turn on a siren in an area where the DVR is installed. -
Page 58: Health Check
② Zoom/Focus/Iris Control buttons Zoom Out/ In Focus Near / Far Iris Close / Open Preset Control / Go to Preset ③ Preset Control button The completed Preset Click on Preset Control button and the following screen will appear. Please input Title and Preset Number. When user completes the inputting, please choose ‘OK’... -
Page 59: Camera Connection And Operating Status
The list below describes functions of each part of the screen. CMS connections (up to 4) Camera connections and operating status HDD connection and its operating status Recording status Motion recording status Alarm In connection and operating status Alarm Out connection and operating status Version Recording start/end date and time 8.5.1... -
Page 60: Remote Setting
Remote Setting User may change DVR’s Menu setup through CMS. Remote Setting works only in Watch mode. Click on REMOTE SETTING button in Watch mode and the following SETUP menu same as DVR’s will appear on CMS screen. The setup procedure is same as that of DVR. When the setup is completed, do not click Exit button on the SETUP screen, but click OK or Cancel button on the Remote Setup screen. -
Page 61: Search Mode
9. SEARCH MODE Search screen This menu is for playing back recorded data. Click on REMOTE SEARCH button in Watch mode and the following Screen mode screen will appear. Search mode provides three search functions. One is for searching DVR video by clicking REMOTE SEARCH button and another is for searching video stored in CMS (HDD of PC) by clicking LOCAL SEARCH button and the other is for searching event recorded data stored in DVR by clicking REMOTE EVENT button. -
Page 62: Local Search
Search previous ‘Year’ Search subsequent ‘Year’ Search previous ‘Month’ Search subsequent ‘Month’ ① ⑥ ④ ② ③ ⑤ Fast Forward/Backward & Playback (Click to increase the speed by x1, x2, x4, x8, x16, x32, x64 and Extreme) Select Camera to be played back Time LED (24 Hour) Data Bar (Recorded data) Time Select Bar... -
Page 63: Playback
① Designate Event Search start time. ② Designate Event Search end time. ③ Select camera (video) to search data. ④ Check a check box (Motion/Alarm In/Emergency/Serial in) Check box ⑤ Click on Search Index button to recorded search event data. Playback 9.5.1 Playback Control Button... -
Page 64: Save
9.5.3 Save This is for saving still image(s) in Bitmap or JPEG file. Click IMAGE SAVE button and the following screen will appear. Input the name of the file to save and execute Save. CAUTION If images are not saved properly, click UNDO button and save again. 9.5.4 Archive This is to back up the DVR’s moving image data to EXE file in PC(CMS). - Page 65 ② Designate Archive end time. ③ Designate file name. ④ Select camera (video) to save. ⑤ Click on Start button to begin Archive.
-
Page 66: 10. Others
10. Others 10.1 Viewer The Format of archive file is .exe(executable file). Please double click on the icon to execute the program. PLAY • Playback mode: 1X PLAY • Playback mode: PAUSE PAUSE • Frame-by-frame backward still image BACKWARD playback •... -
Page 67: E Map
10.2 E MAP User can find emap.exe program following directory (Default: C:\Program Files\CMS\emap.exe). Please double click on the emap.exe to execute the program. Please click on the icon to load the image file. To move the icon just drag and drop. User can also rotate the icon. -
Page 68: Watermark Check System
10.3 Watermark Check System Mouse double click WCS.exe program in the CMS program folder (Default: C:\Program Files\CMS\WCS.exe). To open the check .exe or .jpg or .bmp file just click Load File button. To click the check button, user will get following message; Result: Verification OK ! Corrupted or Modified... -
Page 69: Exe To Avi Converter
10.5 EXE to AVI Converter Users are able to convert Archived file(EXE format) to AVI format. Users will be required a converting codec between “ Microsoft MPEG-4 codec” and “DIVX MPEG-4 codec” or able to use both. Both are able to download freely in many web-sites. Select “Start>Programs>CMS>EXE to AVI”... -
Page 70: Keyboard Controller
Keyboard Controller Keyboard Controller CP1200A User’s Manual V2.08-o199 This document contains preliminary information and is subject to change without notice. -
Page 71: Connection
11.1 Connection User may connect cameras and Keyboard through DVR in various ways. Below shows the major probable connection methods through RS-485; 11.1.1 Configuration Diagram I – Single System Configuration (1 Camera, 1 DVR) DVR PTZ Port RS485 RS485 Tx+ Tx- Rx+ Tx1+ Tx1- Tx2+ Tx2- Tx3+... - Page 72 11.1.3 Configuration Diagram III – Multiple System Configuration (Multi Cameras, Multi DVRs) Max 16 camera RS485 RS485 RS485 RS485 … … … … Multi port Max 16 DVR DVR 1 DVR 2 … … Multi port Please make sure to connect “Tx to Rx “or “Rx to Tx” with positive polarity. (+ to +) and (- to -) 11.2 Keyboard Setup in DVR Enter “Setup>SYSTEM>Information: System ID”...
-
Page 73: Keyboard Configuration
11.3 Keyboard Configuration 11.4 Operation 11.4.1 DVR / PTZ Mode Conversion Press System ID number (For example, ID: 001 press Num Pad ) with button. OSD will show “KBD:1” in right-bottom side that the keyboard is on DVR mode as below picture; Then, user should be able to operate the DVR functions by the keyboard controller. - Page 74 EMERGENCY: turn on/off Emergency record function. EVENT: pop up a window to see System Log. PIP: turn on/off PIP screen in case of 1 channel screen. If PIP function is on, user number key(s) + ENT key to change the PIP channel. In case of 4 or 9 channel screen, it changes the screen to a next one in the sequence. FREEZ: freeze a current image.
-
Page 75: Serial Ln
Serial In (POS / ATM) Serial In (POS / ATM) User’s Manual V2.08-o199 This document contains preliminary information and is subject to change without notice. -
Page 76: Usage Of Serial-In Function
12.1 Usage of Serial-In Function Enables to record/search/display all transactions on monitoring screen by connecting POS/ATM/Cash Register. User can choose the data whether to record/display on their taste without limitedly designated protocols 12.2 Connection method This model has one ATM/POS channel and it is available to expand its connections up to four channels(Optional). Connect the RS232 port of Serial-in application to USB slot of DVR by using USB to RS-232 Converter Cable and it is available to connect up to 4 serial-in devices by using the converter. -
Page 77: Link
12.4 Link 12.4.1 Link Setup Click “Setup>Link>” then shows as below (Note) The above menu is only available on the DVR model with Serial-In function. Click “Serial In” to appear following screen. Select POS/ATM port by clicking ‘Serial In’ button. Assign the port to display/record channel by clicking a “Link Camera”. -
Page 78: Setup
Tick the box(□) item AlarmIn Click the Time/Date that wish to activate ATM/POS function on schedule. It is possible to activate all the time by clicking top-right side of table. Click “OK” to save the schedules. 12.5 Setup Please click ( ) “System>Devices>Serial-In”, then user will see the display below. (Note) This [Serial In] section does not show without additional Serial-in option. -
Page 79: Osd Display
12.5.3 OSD Display OSD items are to decide whether to display the information from the serial port connected to the rs232 port on OSD screen. They have 4 menus as followings: - None: displays nothing on the OSD screen. - Live: displays incoming information from the serial port in real time on the OSD screen. - Playback: displays the saved information on the OSD screen during replay. - Page 80 Example) When it firstly connected, the data will be displayed as below Input a certain repeated string to “Line Delimiter”. Decide the number of minimum characters in “MCPL” item to hide data under the designated number of characters. Input the pattern of dummy data to Discard Pattern.
-
Page 81: Search
Choose the data which willing to display and enter the Start Pattern and End Pattern. Then tick the Auto box off in order to make the DVR recognizes the data between the Start and End patterns. Finally, test again and adjust data to remove missed dummy data. 12.6 Search Using event search function. -
Page 82: Cms Web Client
CMS Web Client CMS Web Client User’s Manual V2.08-o199 This document contains preliminary information and is subject to change without notice. -
Page 83: Setup And Login
13.1 Setup and Login MS Explorer web browser is required for installation and using this program. Open a browser and type the IP address of DVR. It is required to install ActiveX in the first connection. Basically, Explorer limits automatic ActiveX installation. Click the message above in the screen, then following menu box will appear. -
Page 84: Live Display
13.2 Live Display. After Login, following screen will appear. ① ④ ③ ② ⑤ The screen contains following features: 1. Display current live video 2. Setting display mode Playback : Transferring search mode. Freeze : Pause current display. Resume : Resume paused display. Quit : Finish program and close browser. -
Page 85: Playback Screen
13.3 Playback Screen Click [Playback] then following screen will appear. ① ⑤ ③ ④ ⑥ ② The screen contains following features: 1. Searched playback video displays 2. Transferring Live mode 3. Setting Date/Time to search Click a date in calendar, then recorded data will be showed up in Time bar Start Time : Setting start time Camera : Choosing camera number from 1~16 individually or all channels. -
Page 86: Mobile Cms
Mobile CMS Mobile CMS User’s Manual V2.08-o199 This document contains preliminary information and is subject to change without notice. -
Page 87: Setup And Login
14.1 Requirements : Windows Mobile 6.1 or higher version. Memory : 512Kb or Higher. Device : Smartphone Network : Available all wireless networking method. I.e. Wi-fi, HSDPA, Wibro. 14.2 Installation Prepare ActiveSync program to user’s PC. Available download at following link. http://www.microsoft.com/downloads/details.aspx?FamilyID=9e641c34-6f7f-404d-a04b-dc09f8141141&DisplayLang=en ActiveSync enable users manage documents, calendars, contact lists and email between their PC and mobile device through a Cradle or a USB connection. - Page 88 Installation box will appear Click [OK] to start installation. When installation completed, following pop-up will appear. Click [OK]. If following message appeared, it has successfully installed. (Note) Depending on mobile device, successful installation message may not appear. Click [OK] when license agreement message appear. Move to [Programs] page to check whether CMS has installed.
-
Page 89: Site Configuration
14.3 Site configuration Start CMS, following screen will appear. Click [Add] to appear following screen. Fill in correct information. Site Name : Insert the name of site. IP/Domain : Insert the IP address or Domain name of the site. : Input the registered ID of the site. Password : Input the password of the registered ID. -
Page 90: Connect
Edit Select a site and click [Edit] then following screen will appear. Correct items then click [Save]. Delete Select a site and click [Del]. Confirmation message will pop up. Click [Yes] then the site information will be removed. 14.4 Connect Select a site then click [Connect]. -
Page 91: Uninstall
14.5 Uninstall Move to [Program Menu> System] then click [Remove Programs]. The currently installed list will show up. Choose Mobile CMS on the list and click [Remove]. Confirmation message will pop up Click [Yes] to complete uninstall then program will be removed.
