I-Michealth HL168JC Instruction Manual

Automatic wrist blood pressure monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

I
n
s
t
r
u
c
t
i
o
n
M
a
n
u
a
l
I
n
s
t
r
u
c
t
i
o
n
M
a
n
u
a
l

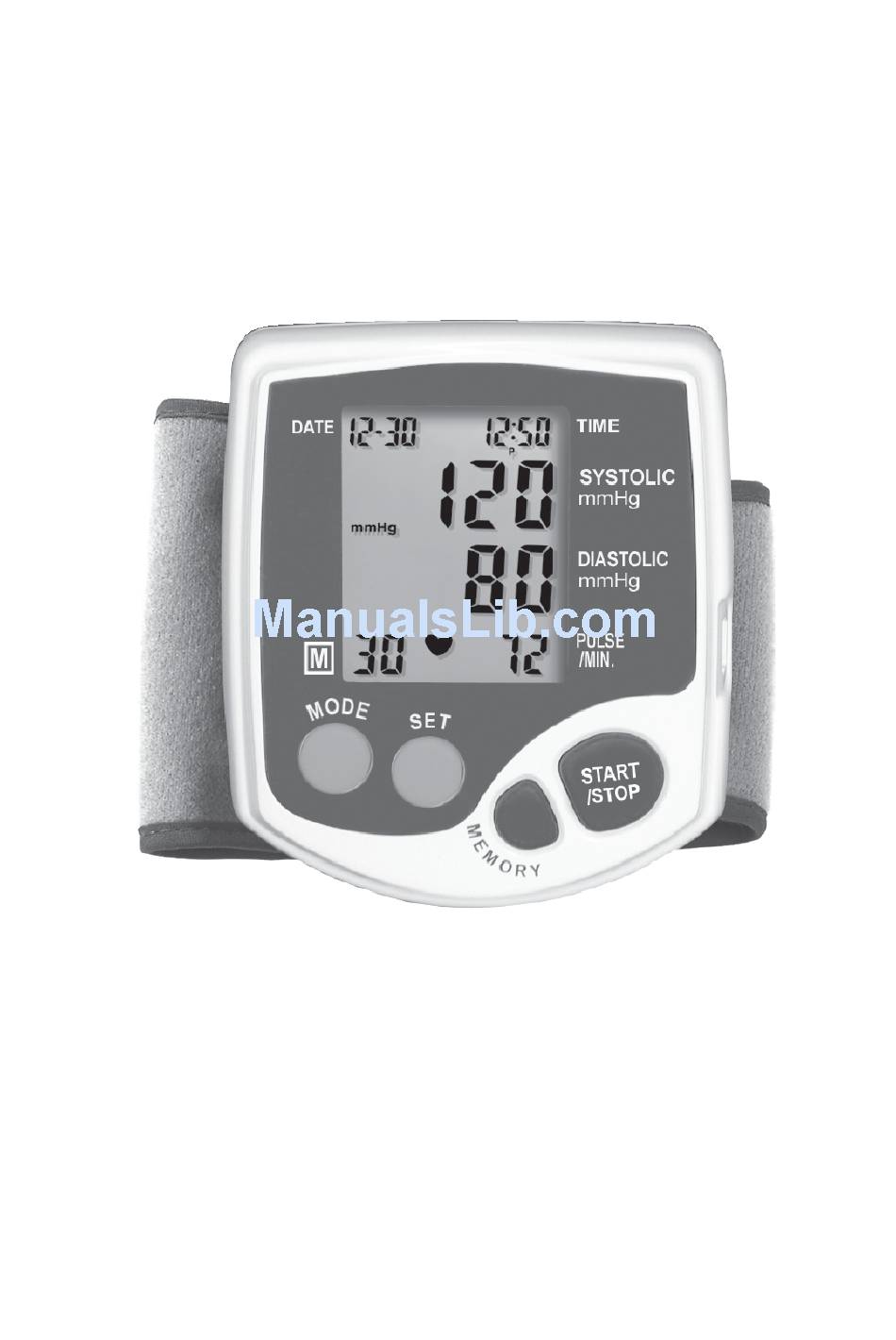

Automatic
Wrist Blood Pressure Monitor
M
o
d
e
l
N
o
.
H
L
1
6
8
J
C
M
o
d
e
l
N
o
.
H
L
1
6
8
J
C
1

Advertisement

Table of Contents
loading

Summary of Contents for I-Michealth HL168JC

  • Page 1 Automatic Wrist Blood Pressure Monitor...

  • Page 2: Table Of Contents

    Table of Contents Medical Disclaimer……………………………………………………………………………03 Intended Use………………………………………………………………………………..…03 About Blood Pressure………………………………………………………………………04 Precautions…………………….…………………………………………………………………06 Device Overview……………………………………………………………………………….08 Symbol Definitions………………………………………………………………………….10 Installing Batteries………………………………………………………………………….11 Applying the Cuff…………………………………………………………………………….12 Positioning Guide………….………………………………………………………………….13 Measurement Procedure………….…………………………………………………….14 Memory Function………………………………………………………………………………16 Storage and Maintenance……………………………………………………………….17 Troubleshooting……………………………………………………………………………….18 Limited Warranty…………………………………………………………………………….19 Specifications………………………………………………………………………………….20 Note………………………………………………………………………………………….…….21 Appendix…………………………………………………………………………………….…….22 Blood Pressure Diary……………….……………………………………………….…….24...

  • Page 3: Medical Disclaimer

    Medical Disclaimer This manual and product are not meant as a substitute for advice provided by your doctor. You are not to use the information contained herein, or this product for diagnosing or treating a health problem or prescribing any medication.

  • Page 4: About Blood Pressure

    About Blood Pressure 1. What is blood pressure? Blood pressure is the measurement of the force of blood pushing against the walls of the arteries. Arterial blood pressure is constantly fluctuating during the course of the cardiac cycle. The highest pressure in the cycle is called the systolic blood pressure, and represents the pressure in the artery when the heart is beating.
  • Page 5 About Blood Pressure A. WHO blood pressure classifications: Standards for assessment of high or low blood pressure without regard to age, have been established by the World Health Organization (WHO), as shown in the chart. However this chart is not exact for classification of blood pressure and it's intended to be used as a guide in understanding non-invasive blood pressure measurements.

  • Page 6: Precautions

    Precautions *Do not use this manual and product as a substitute for advice, diagnosing or treating a health problem or prescribing any medication by your doctor. If you have a medical problem, promptly consult your healthcare provider. *Read the Instruction Manual thoroughly before measuring and keep it at hand for your reference at any time.
  • Page 7 Precautions Keep in mind that blood pressure naturally varies from time to time through out the day and is affected by lots of different factors such as stress, eating, smoking, alcohol consumption, medication, and physical activity, etc. Normally the blood pressure rises while at work and is at its lowest during sleeping period.

  • Page 8: Device Overview

    Device Overview Part names and product components LCD DISPLAY WRIST CUFF MODE START/STOP BUTTON BUTTON MEMORY BUTTON BUTTON STORAGE CASE AAA (1.5V) ALKALINE BATTERY X 2 *Caution！ Substitution of a component different from that supplied might result in measurement error.

  • Page 9: Unit Display

    Device Overview Unit display YEAR DATE TIME MINUTE AFTERNOON TIME MEASURING SYMBOL SYSTOLIC RATE BLOOD PRESSURE UNIT LOW BATTERY DIASTOLIC SYMBOL RATE ERROR SYMBOL MEMORY HEART RATE RECORD NUMBER PULSE SYMBOL...

  • Page 10: Symbol Definitions

    Symbol Definitions SYMBOLS Definitions This symbol appears when the battery power is excessively low or the polarity reverses. We suggest you replace all batteries with new ones, Low Battery Symbol and make sure the +/- polarities are properly positioned. Once pulse is detected, the symbol flashes with each pulse beat.

  • Page 11: Installing Batteries

    Installing Batteries When the LOW BATTERY SYMBOL appears on the display, or nothing appears on the display when the power is switched on, please change the batteries. Replace all the batteries with new ones and do not mix new and old batteries.

  • Page 12: Applying The Cuff

    Applying the Cuff Do not place the pressure cuff over a jacket or sweater sleeve. Wrap the pressure cuff around the bare wrist with the monitor facing you. Wrap the cuff snugly. Do not make it too tight. Fold the remaining part of the cuff back out of the way.

  • Page 13: Positioning Guide

    Positioning Guide It is extremely important that the cuff be at the same height as the heart. Having the cuff higher or lower may cause inaccurate results. 1. Sit down comfortably with your feet flat on the floor. 2. Position the blood pressure monitor on your wrist.

  • Page 14: Measurement Procedure

    Measurement Procedure Switching on the monitor A. Switch on the monitor by pressing START/STOP button. B. All segments will appear on the screen for 3 seconds. Setting date and time A. Press MODE button ("MONTH" starts flashing). Press SET button to set the current MONTH (1, 2, 3,………, 12). B.
  • Page 15 Measurement Procedure C. After the initial inflation of the cuff, the pressure will slowly decrease. And when a pulse is detected, the PULSE SYMBOL will start flashing. *Note ！ If the cuff does not stop inflating, remove the cuff at once. To stop measurement, you may press START/STOP button.

  • Page 16: Memory Function

    Memory Function Storing data After each measurement, the systolic and diastolic pressure, heart rate with the time and date will be automatically stored. The monitor features a 3 user memory capability. Each user holds the last 30 measurements, replacing the oldest data with new one. Recalling data A.

  • Page 17: Storage And Maintenance

    Storage and Maintenance General Use Do not in any way twist the cuff. Do not press START/STOP button if the cuff is not wrapped around the wrist. Do not drop the product and avoid any strong impacts. Maintenance Use a piece of cloth with water or mild cleansing agent to wipe the device and dry it immediately with a dry cloth.

  • Page 18: Troubleshooting

    Troubleshooting SYMBOLS/SYMPT INDICATION/C CONDITIONS/CAUSES ORRECTION Replace them with 2 new AAA Worn-out batteries. alkaline power-on batteries. pressing START/STOP Re-insert Battery polarities have been batteries in the button. positioned incorrectly. correct positions. Wrap cuff Cuff been placed properly so that it incorrectly.

  • Page 19: Limited Warranty

    Limited Warranty To ensure continued measurement precision, all digital blood pressure monitors require recalibration regularly. After 2 years from the manufacturing date, we recommend you have your monitor recalibrated at the local distributor or importer. Please contact your distributor/importer for the details about the recalibration service and the charge of shipping and handling.

  • Page 20: Specifications

    Specifications Model number HL168JC Measurement Oscillometric method Measurement Pressure: 0 ~ 300 mmHg range Pulse: 40 ~ 199 beats/minute Pressure: ±3 mmHg Accuracy Pulse: ±5% Max. Automatic inflation (air pump) Inflation Automatic air release control valve Deflation Liquid Crystal Display...

  • Page 21: Note

    Note 0197 This blood pressure monitor complies with the EC Directive and bears the CE mark This blood pressure monitor also complies with mainly following standards (included but not limited): Safety standard: EN 60601-1 Medical electrical equipment part 1: General requirements for safety EMC standard: EN 60601-1-2 Medical electrical equipment part 1-2: General requirements for safety- Collateral standard: Electromagnetic compatibility- Requirements and tests...

  • Page 22: Appendix

    Appendix Guidance and manufacturer’s declaration – electromagnetic emissions The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Electromagnetic environment – Emissions test Compliance guidance RF emissions RF energy is used only to maintain device’s operation.
  • Page 23 Appendix Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environments listed below, and should only be used in such environments: Immunity test IEC 60601 test Compliance – Electromagnetic environment guidance level level Portable and mobile RF communications equipment should be used no closer to any part of the device, including cables, than the...

  • Page 24: Blood Pressure Diary

    Blood Pressure Diary □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □ After Systolic / Diastolic： Pulse： □ Before Date： Time： Meal □...
