Summary of Contents for Profibus PROFIBUS DPV0

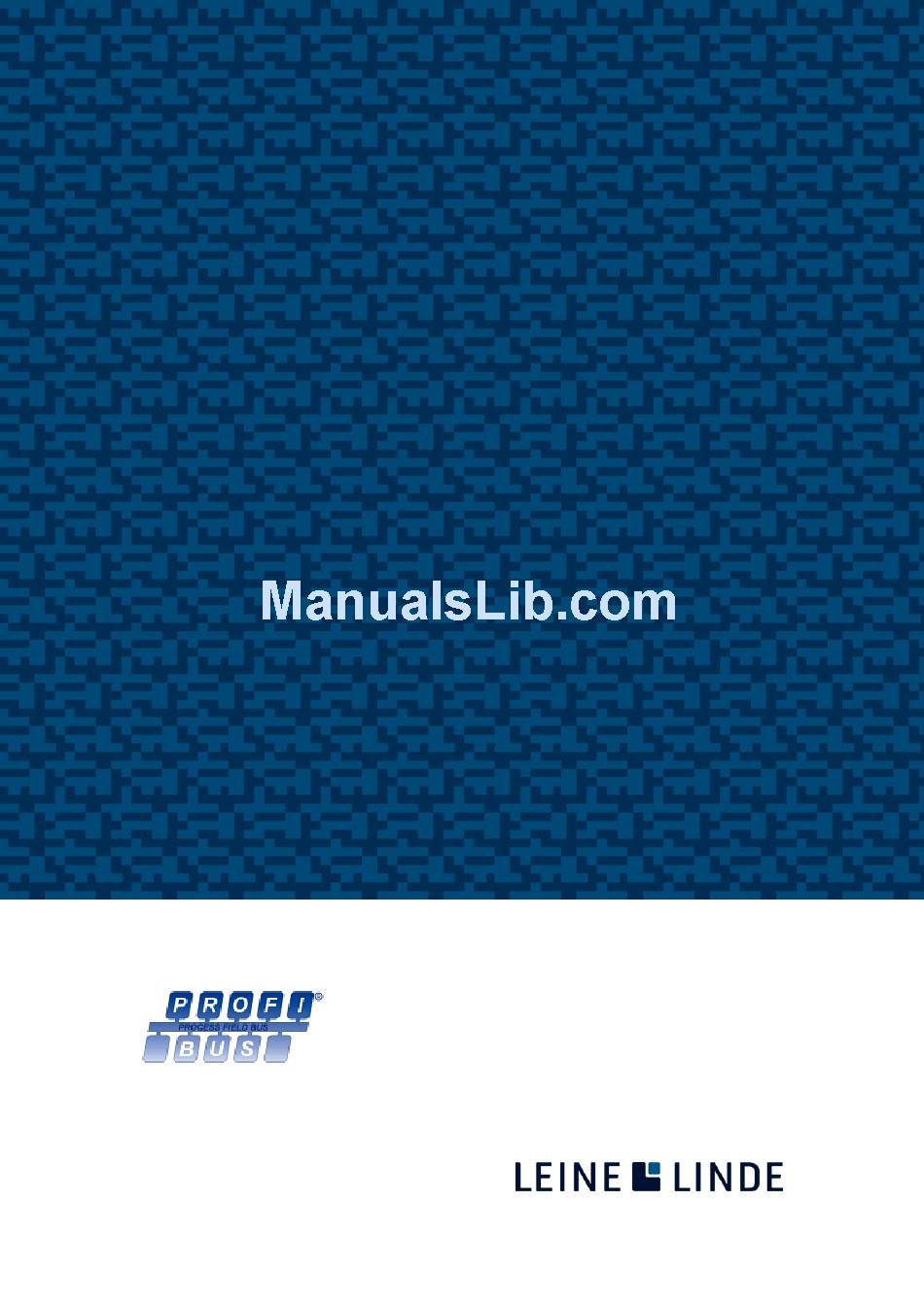

- Page 1 PROFIBUS DPV0 Manual / Users Guide Gateways & Encoders Part No 740590-01, Doc. No 740590 Ver. 01...
-
Page 2: Table Of Contents
PROFIBUS USER MANUAL Leine & Linde AB Content List of tables ........................... 3 List of pictures ........................4 1 General information ......................5 1.1 PROFIBUS G ........................5 ATEWAY 1.2 A ........................5 BSOLUTE ENCODERS 1.3 PROFIBUS ....................... -
Page 3: List Of Tables
PROFIBUS USER MANUAL Leine & Linde AB 5.6.1 D ......................... 29 IAGNOSTIC EADER 5.6.2 A ............................. 30 LARMS 5.6.3 O ........................30 PERATING TATUS 5.6.4 E ........................... 31 NCODER TYPE 5.6.5 S ................. 32 INGLETURN RESOLUTION OR MEASURING STEP 5.6.6 N ................ -
Page 4: List Of Pictures
PROFIBUS USER MANUAL Leine & Linde AB Table 37 Diagnostics, encoder serial number ..............37 List of pictures Picture 1 Placement of screws ....................7 Picture 2 PCB-view of a cable gland PROFIBUS gateway ............ 8 Picture 3 Orientation of M12 power supply connector ............9 ... -
Page 5: General Information
In view of the certification by PNO (PROFIBUS user organization) all products can be used in all PROFIBUS DPV0 systems without restrictions. Among other things this means that all possible baud rates, the complete address range and the device characteristics are supported according to the PROFIBUS device profile for encoders. -
Page 6: Technical And Commercial Support
PROFIBUS USER MANUAL Leine & Linde AB Leine & Linde can meet very specific individual demands. The encoders are easily adopted due to a modular design in the collection exactly to the customer’s needs with respect to resolution, electrical connections and interfaces, voltage, casings, etc. That is due to the fact that tomorrow’s technology already is used today in Leine &... -
Page 7: Gateway Installation
PROFIBUS USER MANUAL Leine & Linde AB 2 Gateway Installation 2.1 Settings inside the gateway The gateway addressing switches and bus termination must be configured during commissioning of the device. This is done by removing the back cover, i.e. screwing off the three screws at the rear of the gateway. -
Page 8: Bus Termination
PROFIBUS USER MANUAL Leine & Linde AB Screw terminals Bus termination switch (on/off) Node address switches (x100 to the left, x10 in the middle and x1 to the right) Picture 2 PCB-view of a cable gland PROFIBUS gateway Example: To set the node address to 115, the switch to the left (x100) shall be set to 1, the switch in the middle(x10) should also be set to 1 and the switch to the right(x1) shall be set to 5. -
Page 9: Power Supply
PROFIBUS USER MANUAL Leine & Linde AB 2.2.1 Power supply The power supply connection of M12 equipped gateways are constituted by a male A- coded 4 pin M12 connector. Power supply Power supply M12 version Function +E Volt (9-36Vdc) Not connected 0 Volt Not connected Table 2 Pinning M12 power supply connector... -
Page 10: Bus Lines
PROFIBUS USER MANUAL Leine & Linde AB 2.2.1 BUS lines The PROFIBUS bus line connections of the M12 equipped devices are constituted by a male B-coded 5 pin M12 connector (bus in), and a female B-coded 5 pin M12 connector (bus out). -
Page 11: Shielding Philosophy
PROFIBUS USER MANUAL Leine & Linde AB 2.3 Shielding philosophy To achieve the highest possible noise immunity and resistance against other EMI related disturbances the bus and power supply cables shall always be shielded. The screen should be connected to ground on both ends of the cable. In certain cases compensation current might flow over the screen. -
Page 12: Led Indication
PROFIBUS USER MANUAL Leine & Linde AB 2.5 LED indication In order to determine the status of the gateway two LEDs are visible on the front of the gateway. The module LED indicates status of the module itself. The bus LED indicates the status of the bus. -
Page 13: Rsa/Rha 6X8, Encoder Installation
PROFIBUS USER MANUAL Leine & Linde AB 3 RSA/RHA 6X8, Encoder Installation 3.1 Settings inside the encoder The encoder node address and bus termination must be configured during commissioning of the device. This is done by removing the back cover, i.e. screwing off the three screws at the rear of the encoder. -
Page 14: Connecting The Encoder
PROFIBUS USER MANUAL Leine & Linde AB Bit 1 Bit 2 Effect There is a 220 ohm resistor between bus-A and bus-B line. Not a valid setting. Not a valid setting. There is no resistor between bus-A and bus-B line. Table 6 Terminating switch settings When encoders with M12 connectors are used the termination can also be done using a terminating resistor plug. -
Page 15: Bus Lines
PROFIBUS USER MANUAL Leine & Linde AB 3.2.1 BUS lines The PROFIBUS bus line connections of the M12 equipped devices are constituted by a male B-coded 5 pin M12 connector (bus in), and a female B-coded 5 pin M12 connector (bus out). -
Page 16: Gsd-Files
PROFIBUS USER MANUAL Leine & Linde AB 3.4 GSD-files Absolute encoders with PROFIBUS can be configured and parameterized corresponding to the requirements of the user. When the system is started, the PROFIBUS devices are set and configured in DDLM_Set_Prm mode, i.e. the encoder class set by means of the GSD file in the configuration tool and the operating parameters are transferred to the respective slave. -
Page 17: Led Indication
PROFIBUS USER MANUAL Leine & Linde AB 3.5 LED indication In order to determine the status of the encoder two LEDs are visible from the rear end of the encoder. The module LED indicates status of the module itself. The bus LED indicates the status of the bus. -
Page 18: Profile Overview
PROFIBUS USER MANUAL Leine & Linde AB 4 Profile overview Encoder Profile for DPV0, version 1.1, Order no 3.062. The operating functions in this profile are divided into two device classes named Class 1 and Class 2. Class 1 encoders offer basic functions that all PROFIBUS-DP encoders must support. -
Page 19: Dpv0 Encoder Classes
PROFIBUS USER MANUAL Leine & Linde AB 4.1 DPV0 encoder classes The device can be configured as a class 1 or class 2 PROFIBUS slave device. Class 2 configuration is extended to optionally access velocity information from the encoder. CLASS 1 In the CLASS 1 configuration, only input data are assigned. -
Page 20: Encoder And Gateway Functionality, Dpv0
PROFIBUS USER MANUAL Leine & Linde AB 5 Encoder and Gateway functionality, DPV0 5.1 Basic functionality The Picture below gives an overview of the basic encoder and gateway functions and how the functionality is conducted within the device. Picture 13 Basic functionality 5.2 PROFIBUS data transfer principle The PROFIBUS-DP devices can be configured and parameters can be set according to the user's needs. -
Page 21: Parameterization, Dpv0
PROFIBUS USER MANUAL Leine & Linde AB 5.4 Parameterization, DPV0 The PROFIBUS-DPV0 device is parameterized by means of the operating parameters. The values selected in the configuration tool are saved in the DP master and are transferred to the PROFIBUS-DP slave each time the network is started. The following table lists all available parameters: Parameters Data type... -
Page 22: Class 2 Functionality
PROFIBUS USER MANUAL Leine & Linde AB 5.4.2 Class 2 functionality This bit enables or disables class 2 functionality. The Class 2 functionality bit for PROFIBUS-DP devices is by default disabled (0). This means that this control bit must be activated during parameterization in order to support the class 2 functions. Note: If a class 1 device uses some optional class 2 functions, the class 2 control bit must be set. -
Page 23: Measuring Units Per Revolution
PROFIBUS USER MANUAL Leine & Linde AB 5.4.5 Measuring units per revolution The total measuring range is calculated by multiplying the singleturn resolution with the number of distinguishable revolutions. The default settings for multiturn encoders RXA 607 are: Measuring units per revolution= 8192 Total measuring range in measuring units= 8192 The default settings for multiturn encoders RXA 608 are: Measuring units per revolution= 8192... -
Page 24: Total Measuring Range (Units)
PROFIBUS USER MANUAL Leine & Linde AB 5.4.6 Total measuring range (units) The total measuring range is defined by the parameter "Total measuring range in measuring units." The device has two different operating modes, depending on the specified measuring range. When the device receives a parameter message, it checks the scaling parameters if a binary scaling can be used. -
Page 25: Picture 15 Non-Cyclic Scaling
PROFIBUS USER MANUAL Leine & Linde AB B. Non-cyclic operation If the measuring range is used to limit the encoder value range to a value not equal to the specified singleturn resolution * 2 , the output position value is limited within the operating range. -
Page 26: Velocity Control
PROFIBUS USER MANUAL Leine & Linde AB 5.4.7 Velocity control The velocity data can be accessed if class 2 32-bit + velocity configuration is used. In this case the input data consists of 32-position data plus 16-bit signed velocity data. The input velocity value is negative in CCW direction if code sequence is set to CW. -
Page 27: Data Transfer In Normal Operation (Ddlm_Data_Exchange)
PROFIBUS USER MANUAL Leine & Linde AB 5.5 Data transfer in normal operation (DDLM_Data_Exchange) The DDLM_Data_Exchange mode is the normal status of the device when operated. In this mode the position value is transmitted from the device in a cyclic manner. Output data can also be sent to the device i.e. -
Page 28: Preset Function
PROFIBUS USER MANUAL Leine & Linde AB 5.5.2 Preset function The preset function enables adaptation of the position value from the encoder to a known mechanical reference point of the system. The preset function sets the actual position of the encoder to zero or to the selected preset value. The preset value is written to the encoder as output data in the Data_Exchange function. -
Page 29: Diagnostics
PROFIBUS USER MANUAL Leine & Linde AB 5.6 Diagnostics The diagnostic information contains diagnostic data which are defined in the PROFIBUS-DP specification (octets 1 to 6) but also encoder-specific diagnostic data: DDLM_Slave_Diag Diagnostic function Data type Diagnostic. Device octet number class Station status 1 Bits... -
Page 30: Alarms
PROFIBUS USER MANUAL Leine & Linde AB DDLM_Slave_Diag Octet Bits 5 – 0 Data Set to 00 Length incl. header Extended diagnosis Table 21 Diagnostic header 5.6.2 Alarms Alarm is generated by the device when failure occurs which effects the position value. Octet 8 in the diagnostic function (DDLM_Slave_Diag) indicates the status of the alarms. -
Page 31: Encoder Type
PROFIBUS USER MANUAL Leine & Linde AB DDLM_Slave_Diag Octet Bits 7 – 0 Operating Status Bits Definition Code sequence Increasing position values Increasing position values for clockwise revolutions for counter clockwise (seen from flange side) revolutions (seen from flange side) Class 2 functionality No, not supported Commissioning... -
Page 32: Singleturn Resolution Or Measuring Step
PROFIBUS USER MANUAL Leine & Linde AB 5.6.5 Singleturn resolution or measuring step The singleturn resolution in the diagnostic function has different meanings depending on the type of encoder. For rotary or angle encoders, the diagnostic octets 11 to 14 indicate the physical resolution in number of measuring steps per revolution which is transferred for the absolute singleturn position value. -
Page 33: Supported Alarms
PROFIBUS USER MANUAL Leine & Linde AB 5.6.8 Supported Alarms The diagnostic octets 18 and 19 contain information on the supported alarms. DDLM_Slave_Diag Octet Bits 15 – 8 7 – 0 Supported alarms Bits Definition Position error Not supported Supported Voltage supply error Not supported Supported... -
Page 34: Supported Warnings
PROFIBUS USER MANUAL Leine & Linde AB DDLM_Slave_Diag Octet Bits 15 – 8 7 – 0 WARNINGS Bits Definition Frequency exceeded Temperature exceeded Light control reserve Not reached Reached CPU monitoring status Reset Maximum operating time exceeded Battery charging Too low Reference point Reached Not reached... -
Page 35: Profile Version
PROFIBUS USER MANUAL Leine & Linde AB 5.6.11 Profile Version Octets 24 and 25 of the diagnostic function provide the PROFIBUS-DP encoder profile version that is implemented in the device. The octet’s revision number and index are combined. Example: Profile version: 1.40 Octet no. -
Page 36: Offset Value
PROFIBUS USER MANUAL Leine & Linde AB DDLM_Slave_Diag Octet Bits 31 – 24 23 – 16 15 – 8 7 – 0 Data 2 31 – 2 24 2 23 – 2 16 2 15 – 2 8 2 7 – 2 0 Operating time Table 33 Diagnostics, operating time 5.6.14 Offset Value... -
Page 37: Encoder Serial Number
PROFIBUS USER MANUAL Leine & Linde AB Values preset by the manufacturer of the encoder: Measuring units per revolution = singleturn resolution. Total measuring range in measuring units = singleturn resolution x number of distinguishable revolutions. The data type for both values is unsigned 32 bits. DDLM_Slave_Diag Octet Bits... -
Page 38: Encoder Commissioning Example, Dpv0
PROFIBUS USER MANUAL Leine & Linde AB 6 Encoder commissioning example, DPV0 This example uses a Siemens master and the SIMATIC NCM PC configuration software. The example is intended to illustrate the commissioning of a PROFIBUS- DPVO encoder with a 25 bit absolute rotary encoder and velocity information. Copying the GSD file First, copy the GSD file and bitmap file into the corresponding directory in the configuration software,...\GSD. - Page 39 PROFIBUS USER MANUAL Leine & Linde AB Assigning parameters to the DPV0 slave By “double-clicking” on the configuration row in the configuration view the parameterization view will be opened Add or change the data in the “value” field to the desired parameter values. Chapter 5.4 describes the functionality and possibility of each parameter.
- Page 40 PROFIBUS USER MANUAL Leine & Linde AB Assigning parameters to the DPV0 slave Save and compile the settings by clicking on the Station Tab and then choose Save and compile. Part Id: 740590-01 Document Id: 740590 Ver. 01 Publication date: 2010-06-01...
- Page 41 PROFIBUS USER MANUAL Leine & Linde AB Update Database Start the “Station Configuration Editor” and click on the Import Station button. The “import XDB file” window below will open. Browse to the location where the *.xdb file was saved and choose the *.xdb file and click on the open button.
-
Page 42: Appendix A History
PROFIBUS USER MANUAL Leine & Linde AB Appendix A History Revision Date Changes Rev. 1.0 2010-06-01 First release Part Id: 740590-01 Document Id: 740590 Ver. 01 Publication date: 2010-06-01...
