Summary of Contents for Au by Kiddi E09F

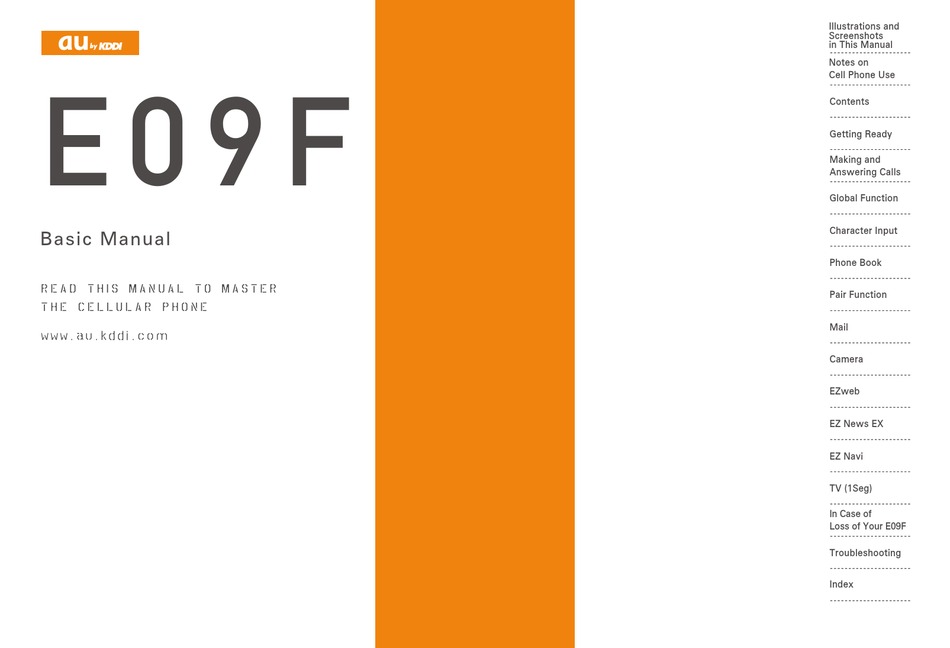

- Page 1 E 0 9 F read this manual to master the cellular phone...
- Page 2 Introduction Thank you for purchasing the E09F. Before using your E09F, be sure to read the E09F Basic Manual (this PDF manual) to ensure correct usage. After you have finished reading this manual, store this PDF manual and the printed manuals in safe places so you can retrieve them whenever you need them.
-
Page 3: Illustrations And Screenshots In This Manual
Illustrations and Screenshots in This Manual Note on Illustrations The illustrations in this manual may look different from the actual cell phone in shape, color and typeface. The key illustrations are also simplified as shown below. Key Illustration Key Illustration Note on Screenshots The screenshots in this manual are simplified and may look different from the actual cell phone screens. -
Page 4: Notes On Cell Phone Use
Notes on Cell Phone Use • Obtain the permission of other people before you take their photos with the cell phone's camera. • Do not record information with the cell phone's camera Cell Phone Etiquette in bookstores and other locations where taking photos The cell phone always emits weak radio waves when power is not permitted. -
Page 5: Disaster Message Board Service
Disaster Message Board Service • Registered information is stored until the service set up for the disaster ends. When a large scale disaster occurs, you can register • The maximum available number of registrations is 10 your safety information from EZweb. The registered per phone number. -
Page 6: Table Of Contents
Returning a Call (Outgoing History/Incoming History) … 16 Contents One-ring Calls …………………………………………… 16 Adjusting the Earpiece Volume during a Call ……… 17 Introduction Turning On Manner Mode ……………………………… 17 Changing the Incoming Ring Tone …………………… 17 Illustrations and Screenshots in This Manual Adjusting the Incoming Ring Tone Volume ……………... - Page 7 About Photo Modes …………………………………… 32 Setting Conditions for Activating the Remote Ctrl Lock … 45 Taking a Photo ………………………………………… 33 Remotely Activating the Remote Ctrl Lock on Your E09F … 45 Viewing Photos ………………………………………… 33 Activating the Remote Ctrl Lock EZweb by the Security Lock Service …………………………...
-
Page 8: Getting Ready Checking The Contents Of The Box
Getting Ready Checking the Contents of the Box The box contains the cell phone and accessories. • Cell phone • Battery pack • Instruction Manual (Japanese) • Warranty (Japanese) • Safety Precautions (Japanese) • Global Passport Owner’s Guide (Japanese) • au International Call Guide (Japanese) •... -
Page 9: Names Of Parts
Names of Parts Open Position Closed Position From the Front From the Back Earpiece Earpiece Lux Sensor Lux Sensor Charge Charge Antenna Antenna indicator indicator Camera lamp Camera lamp Speaker Speaker Mobile light Mobile light Incoming Incoming Infrared port Infrared port Camera (lens) Camera (lens) Display... -
Page 10: Charging The Battery Pack
Charging the Battery Pack • Be sure to close the cover of the external connection jack when charging is finished. The battery pack is not fully charged at the time of purchase. • Do not pull or twist the cover of the external Be sure to charge the battery pack before using the cell connection jack forcibly. -
Page 11: Learning The Basics
Learning the Basics Key Assignments : Display Incoming History. : Display Incoming History. : Display the ticker field and info pane. : Display the ticker field and info pane. B : Display Notification B : Display Notification : Display Outgoing History. : Display Outgoing History. -
Page 12: Turning On Power
Use G to select Notification window Notification window Hiding/Redisplaying the (Screen Display) and then press [ ( [Select]). Notification Window Use G to select Set Language and then press When the Notification window is [Select]). displayed on the standby screen, you can temporarily hide it by pressing Use G to select English and then press K (Back) and then display the Main... -
Page 13: Display Indicators
Display Indicators Display indicators inform you of mail arrival, current settings, etc. Display Indicator Description Signal strength Battery level Overseas GSM network available Overseas CDMA network available Packet communication available A microSD memory card (commercially available) inserted During a call au Media Tuner activated EZapps activated Connecting to EZweb... -
Page 14: Using Main Menu
Sub-display Using Main Menu You can access various functions from the Main menu. Each Main menu pattern has a different set of items. Standard Carat Indicator Description Signal strength Battery level Current date and time Manner mode set Auto Lock activated au Media Tuner activated BusinessEZ Infrared... -
Page 15: Changing Your E-Mail Address
Use G to select (Accept) and then Changing Your E-mail Address press [ (Select). You can change the account E-mail address E-mail address Use G to select the entry box, press [ (Input), name of your e-mail address. enter an e-mail address using single-byte @ezweb.ne.jp @ezweb.ne.jp alphanumeric characters, and then press... -
Page 16: Security Code And Passwords
EZ Password Security Code and Passwords Usage Subscribing or canceling subscriptions to You can use a security code and other passwords Example EZweb fee-based contents described below. Take care not to forget your security code and passwords, The four-digit number you wrote on your Initial Setting because they are required for performing various subscription form... -
Page 17: Making And Answering Calls Making A Call
Making an International Call Making and Answering Calls 001 International Call Service Making a Call Available without any additional application Example: To call 212-123- in the USA When the standby screen is displayed, use 0 to 9 to enter a phone number. Enter the access code, a country code, area code and phone number, and then press Q. -
Page 18: Answering A Call
Answering a Call Returning a Call (Outgoing History/ Incoming History) To answer a call, press Q. To end the call, press S. • Example: Returning a call to a phone number in the incoming history Display When a Call is Received When the standby screen is displayed, press D. -
Page 19: Adjusting The Earpiece Volume During A Call
One-ring Indicator • Even in manner mode, the cell phone still emits an (Red) indicator on the Incoming History screen indicates autofocus lock sound and shutter sound when you you have received a one-ring call (a call rang for three take a photo. -
Page 20: Adjusting The Incoming Ring Tone Volume
Adjusting the Incoming Ring Turning On the Answer Memo Tone Volume When the standby screen is displayed, hold down R for at least one second. When the standby screen is displayed, press [. is displayed on the standby screen. Use E to select Function and then press [ (Select). - Page 21 Deleting a Message When the standby screen is displayed, press R. Use G to select Answer Memo and then press [ (Select). Use G to select Answer Memo List and then press [ (Select). Use G to select the message you want to delete and then press J (SubMenu).
-
Page 22: Global Function
Global Function (Preferred Roaming List) The E09F supports Global Passport GSM and Global Passport CDMA services. You can use your E09F overseas Manually update and set the PRL (preferred roaming list) without any additional application. before traveling abroad. The PRL setting is necessary for using the E09F in CDMA network areas. -
Page 23: Calling Japan From Overseas
Calling Japan from Overseas When the standby screen is displayed, use 0 to 9 to enter a phone number. Press [ (Call). Use G to select Voice Call and then press [ (OK). Use G to select Call to Japan and then press [ (OK). -
Page 24: Character Input Character Entry Modes
Character Input Number of Times to Press the Key 10 11 12 Character Entry Modes When a character entry screen is displayed, you can select a character entry mode if you press K (ChrTyp). Menu Items : Kanji conversion mode : Double-byte katakana mode : Double-byte alphanumeric mode : Double-byte number mode... -
Page 25: Entering E-Mail Addresses
Entering Two or More Characters How to Enter E-mail Addresses Assigned to the Same Key Example: Entering "taro.23@kddi.co.jp" After you enter the first character, press C and then enter Enter "taro.23". t : Press 8 once. the next character. a : Press 2 once. r : Press 7 three times. -
Page 26: Entering Pictograms
Entering Pictograms When a character entry screen is displayed, press K (ChrTyp). Press J (List). Use E to select and then press [ (Select). Use E to select the pictogram you want to enter and then press [ (OK). • You can enter pictograms consecutively if you press J (Repeat) instead of [ (OK). -
Page 27: Phone Book
Phone Book • The phone book can store up to 1,000 entries. • The cell phone automatically saves an entry to the lowest available memory number from 000 to 999. Saving a Phone Book Entry • You can save five phone numbers and five e-mail addresses for each phone book entry. -
Page 28: Saving A Phone Number From The Incoming Or Outgoing History
Saving a Phone Number from the Incoming or Outgoing History Example: Saving a phone number from the incoming history to the phone book When the standby screen is displayed, press D and use G to select the phone number you want to save. -
Page 29: Pair Function
Making a Call to a Pair Partner Pair Function When the standby screen is displayed, press Q. You can register a maximum of five pair partners you contact often to easily call or send mail. Use F to select the person you want to call. Use G to select Call and then press [ (Select). -
Page 30: Mail
Creating and Sending E-mail Messages Mail When the standby screen is displayed, press L. Using E-mail Use E to select Create New and then press To use e-mail, you need to apply for an EZweb subscription. [ (Select). If you did not apply for an EZweb subscription at the time Use G to select Address and then press of purchase, contact an au shop or the Customer Service [ (Select) twice. -
Page 31: Reading Received E-Mail Messages
Use G to select the file name and then press Reading Received E-mail Messages [ (Receive). When you receive an e-mail message, E-mail Press [ (Play). appears on the standby screen. [ (Receive) • Selecting the file name or pressing Use E to select E-mail and then press may be unnecessary for some files to be displayed, [ (Select). -
Page 32: Rejecting Spam
Rejecting Spam Using C-mail Setting mail filters to reject spam is recommended. C-mail is a service that uses phone numbers as addresses The recommended settings help you to set mail filters to exchange messages between au cell phones that easily. support C-mail. -
Page 33: Creating And Sending C-Mail Messages
Creating and Sending C-mail Messages Reading Received C-mail Messages When the standby screen is displayed, hold down When you receive a C-mail message, C-mail L for at least one second. appears on the standby screen. Use G to select Create New and then press Use E to select C-mail and then press [ (Select). -
Page 34: Camera
Landscape Position Camera Display Display Your cell phone has a CMOS camera with 3.19 effective megapixels for shooting photos and movies. You can use the self-timer and autofocus. Shot images can be used for the standby screen, and attached to e-mail messages. Photo Taking Tips Lux sensor Lux sensor... -
Page 35: Taking A Photo
Use G to select a folder and then press Taking a Photo [ (Select). When the standby screen is displayed, hold down Use E to select the photo you want to view N for at least one second. and then press [ (Select). The monitor screen appears. -
Page 36: Ezweb
EZweb EZweb Subscription Required EZweb Subscription Required EZweb is an information service that allows you to enjoy browsing the Internet on your cell phone. You can also download Chaku-Uta-Full-Plus ® , Chaku-Uta-Full ® , Chaku- ® , news, and other contents from web pages. To use EZweb, you need to apply for an EZweb subscription. -
Page 37: Accessing Sites
Accessing Sites Viewing the au one Top You can access EZweb from the au one Top. A variety of useful and fun sites are available on EZweb. When the standby screen is displayed, press M, use F to select EZweb, use G to select au one Top and then press [ (Select). •... -
Page 38: Bookmarking Frequently Accessed
Basic Operations Bookmarking Frequently Use G to select the site you want to access and then Accessed Pages press [ (Select). Press L or R to return to the previous screen. Hold When the page you want to bookmark is down either key for at least one second to return to the au displayed, press J (Browser Menu). -
Page 39: Checking Charges
Use G to select the site you want to access Checking Charges and then press [ (Select). When the standby screen is displayed, press [. The download instructions appear. • Fee-based information sites require entry of EZ Use E to select Function and then press password or Premium EZ password. -
Page 40: Ez News Ex
Setting EZ News EX EZ News EX EZweb Subscription Required EZweb Subscription Required The EZ News EX is available free of charge. You have only Use the EZ News EX to display on the standby screen the to make a few simple settings. After following the procedure latest news, weather forecast, horoscope and others that in “Initial Setup of E-mail and EZweb”... - Page 41 Canceling EZ News EX When the standby screen is displayed, select the ticker field and then press [ (News). Press J ( [Submenu]), use G to select (Service Settings/Cancellation) and then press [Select]). Use G to select (Service Cancellation) and then press [ ( [Select]).
-
Page 42: Ez Navi
Security Navi to Check Where EZ Navi EZweb Subscription Required EZweb Subscription Required Your Kids Are Using GPS (Global Positioning System), EZ Navi provides The Security Navi application is made up of the following useful positional information services. three functions: When the standby screen is displayed, press M (Auto Position Search [monthly charge]), and then use F to select the EZnavi. -
Page 43: Ez Navi Walk For When You Go Out
EZ Navi Walk for When You Go Out • Some of the menu options require a monthly charge. Displays various useful menu items for when you are out. The Map of Your Current Location There are two menu modes: the Full Mode menu for those who want to use all the convenient functions including the latest features, and the Simple Mode menu with limited functions represents your initial location. -
Page 44: Evacuate Navi To Guide You Home Or To Nearby Evacuation Areas During Disasters
Nearby Evacuation Areas during Disasters Nearby public evacuation areas or the direction to your home can be determined using the map data pre-installed on the E09F ( [Evacuate Area Map] ). Other useful contents can be downloaded from the (Evacuate Navi) section of the EZweb site. -
Page 45: Tv (1Seg)
From a cell phone http://www.dpa.or.jp/1seg/k/ Using the TV Antenna The E09F has a built-in TV antenna. When watching TV Initial Setup of au Media Tuner (1Seg), do not cover the cell phone with your hands for better signal reception. -
Page 46: Watching Tv (1Seg)
Watching TV (1Seg) Basic Operations Launch TV (1Seg) to start receiving data broadcasts. When the standby screen is displayed, press [. The data operation screen appears when a data broadcast Use E to select TV and then press [ (Select). is received. -
Page 47: In Case Of Loss Of Your E09F
This sets the time limit for receiving the set number of calls after the first call is received. You can activate the Remote Ctrl Lock by calling your E09F • You can set a time from one to ten minutes. -
Page 48: Activating The Remote Ctrl Lock By The Security Lock Service
Login to au Customer Support (https://cs.kddi.com/) and complete the application process by following the on- screen instructions. • The Remote Ctrl Lock cannot be activated when the E09F is turned off or out of the service area, or Emission OFF is set to ON. -
Page 49: Troubleshooting
Troubleshooting Symptom Possible Cause Remedy Page Charge the battery pack. Is the battery pack charged? Cannot turn on Did you hold down S for at least one Hold down S for at least one second. power. second? Hold down S for at least one second. Is power turned on? Move to a location where (out of range... - Page 50 Symptom Possible Cause Remedy Page Press A during a call to increase the Cannot hear the Is the earpiece volume too low? other party. earpiece volume. When making a call, (out of range indicator) displayed? Move to a location where (out of range a beeping sound 10, 20...
-
Page 51: Index
C-mail Index C-mail safety block Creating and sending Numeric Reading Received mail 1Seg Contents Accessories Disaster Message Board Service Answer memo Display 7,11 Playback Domain Turning off Downloading Chaku-Uta ® Turning on Downloading Chaku-Uta-Full ® Video Clip Downloading Chaku-Uta-Full-Plus ® Battery level Battery pack Earpiece volume... - Page 52 EZ Navi Walk EZ News EX Key assignments Canceling Changing the Reception Settings Info pane Setting Language Ticker field Learning the basics EZ password Lock No. EZweb Accessing sites au one Top Mail Basic operations C-mail Initial settings E-mail Mail filters Recommended settings Global Function Main menu...
- Page 53 Ring tones Changing the type Pair Function Changing the volume Making a call to a pair partner Registering a pair partner Sending mail to a pair partner Security code Passenger Seat Navi Security Lock Service Passwords Security Navi Phone (call) Signal strength 184/186 Sites...
-
Page 54: Fcc Notice
FCC Notice FCC RF EXPOSURE INFORMATION This device complies with part 15 of the FCC Rules. Operation is subject Warning! Read this information before using your phone. to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, In August 1996, the Federal Communications Commission (FCC) of the including interference that may cause undesired operation. - Page 55 European RF Exposure Information Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.
-
Page 56: Declaration Of Conformity
Declaration of Conformity... - Page 57 In case above numbers are not available, FUJITSU TOSHIBA MOBILE COMMUNICATIONS LIMITED...
