Ascale AS-0155 User Manual

5x5 vga matrix with audo
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Designed and Manufactured by GoMax Electronics, Inc.
The AS-0155 5x5 VGA Matrix has been tested for conformance to safety regulations
and requirements, and has been certified for international use. However, like all
electronic equipments, AS-0155 should be used with care. Please read and follow the
safety instructions to protect yourself from possible injury and to minimize the risk of
damage to the unit.
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where explained in this manual.
Provide proper ventilation and air circulation and do not use near water.
Keep away the objects that might damage the device and assure that the placement
of this unit is on a stable surface.
Use only the power adapter, power cords and connection cables designed for this
unit.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.

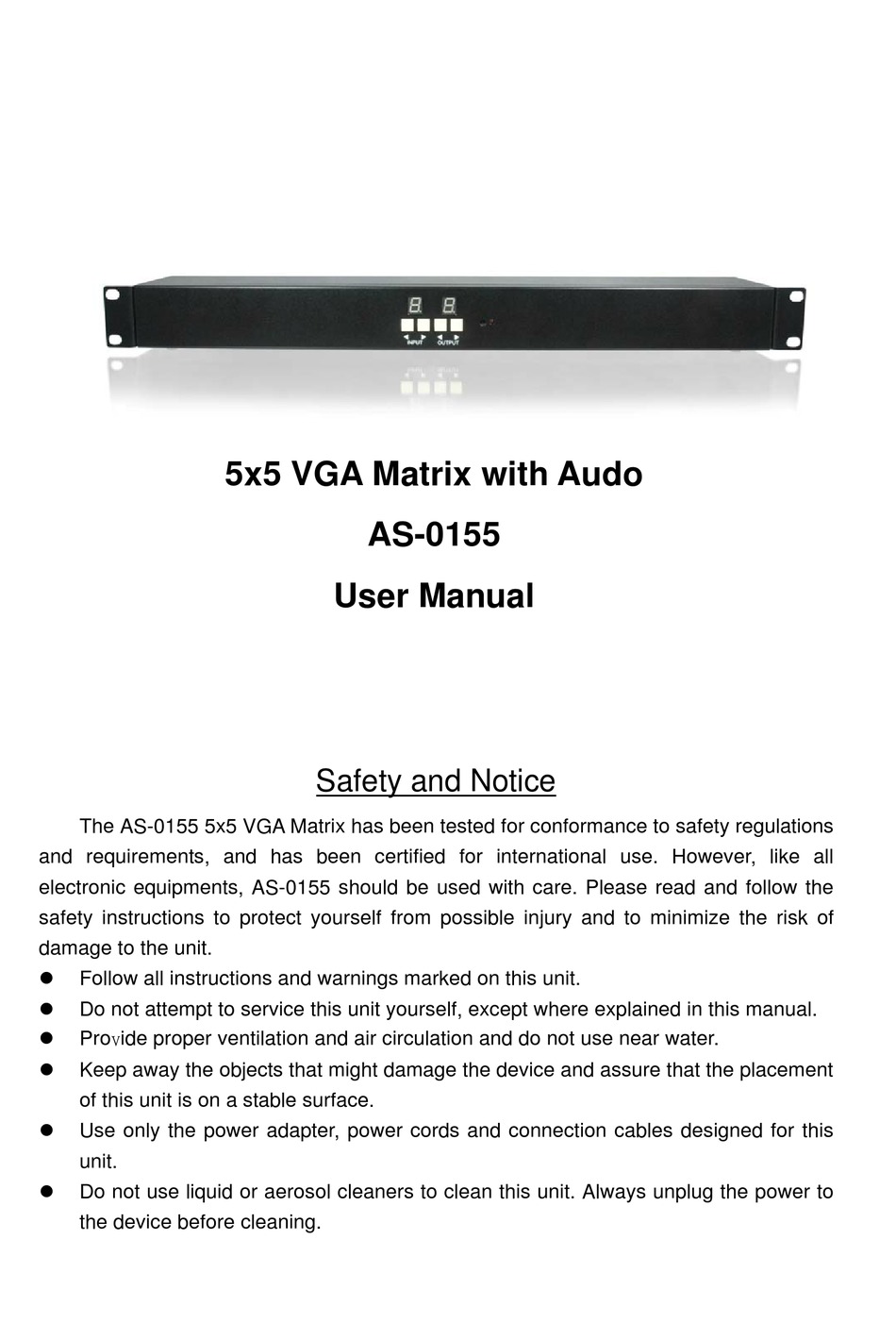

5x5 VGA Matrix with Audo
AS-0155
Your best ODM partner!

User Manual

Please explore us at
http://www.gomax-electronics.com/
Safety and Notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-0155 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ascale AS-0155

  • Page 1: User Manual

    Safety and Notice The AS-0155 5x5 VGA Matrix has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, AS-0155 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 2 PC graphics and HDTV videos with crystal clear audio in the market. With equipped audio matrix, AS-0155 is ready to be as YPbPr matrix with stereo audio and ideally for boardroom, showroom, and exhibition.

  • Page 3: Package Contents

    Package Contents 1x AS--0155 1x power adapter 1x IR Remote 1x User Manual Technical Specifications Input connector............9x 15 pin VGA DSUB Output connector............ 1x 15 pin VGA DSUB Video Bandwidth……………………….......... 400MHz Power Supply...................5V DC Operation temperature..........0°C~ 55°C/32°F~131°F Dimensions……………..187mm/7.4”x 125mm/4.9”x 43mm/1.7” (Lx Wx H) Weight…………………………..…………………………………890g/31.4oz...

  • Page 4: Panel Descriptions

    Panel Descriptions Front View 1. Input Indicator 5. Output Ch Decrease 2. Input Ch Increase 6. Output Indicator 3. Input Ch Decrease 7. IR Receiver 4. Output Ch Increase 8. Power Indicator Rear Panel 10 11 12 7. Audio Inputs 10.

  • Page 5: Rs-232 Serial Port Control

    RS-232 Serial Port Control Scan: Push this button will trigger the automatic search over all the available COM ports (1-255). If the matrix is detected, the message window below will show Otherwise, an error message as following shows up to indicate there is no legal device found.
  • Page 6 Open: Open the COM port after scan to establish the connection between PC and the matrix.. Close: Release the COM port after scan. Quick Setup Buttons: Provide the fast setup between inputs and outputs of the matrix. “Default” button makes input 1, 2, 3, 4, 5 mapped to output 1, 2, 3, 4, 5 respectively.
  • Page 7 Input Channel: Select the input channel to do bitmap and label change. Bitmap Path: Select the figure for each channel. Notice that only pictures in BMP format are supported. Description: Channel description.

  • Page 8: Remote Control

    Remote Control : Reserved : CH Decrease : All Outputs see CH3 : CH Increase : Input CH Change : All Outputs see CH4 : Reserved : Output CH Change : All Outputs see CH5 : CH Decrease : All Outputs see CH1 : CHx sees CHx : CH Increase : All Outputs see CH2...

  • Page 9: Hardware Installation

    Hardware Installation 1. Connect VGA enable equipments to the output of AS--0155. 2. Connect the VGA input sources to the inputs of AS--0155. 3. Plug power adapter cable into 5V DC power jack. 4. Use IR Remote, RS-232 serial commands, or front panel push button to switch between inputs.

  • Page 10: Limited Warranty

    Limited Warranty Ascale warrants the AS-0155 5x5 VGA Matrix to be free from defects in the material and workmanship for 1 year from the date of purchase from Ascale or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period,...
