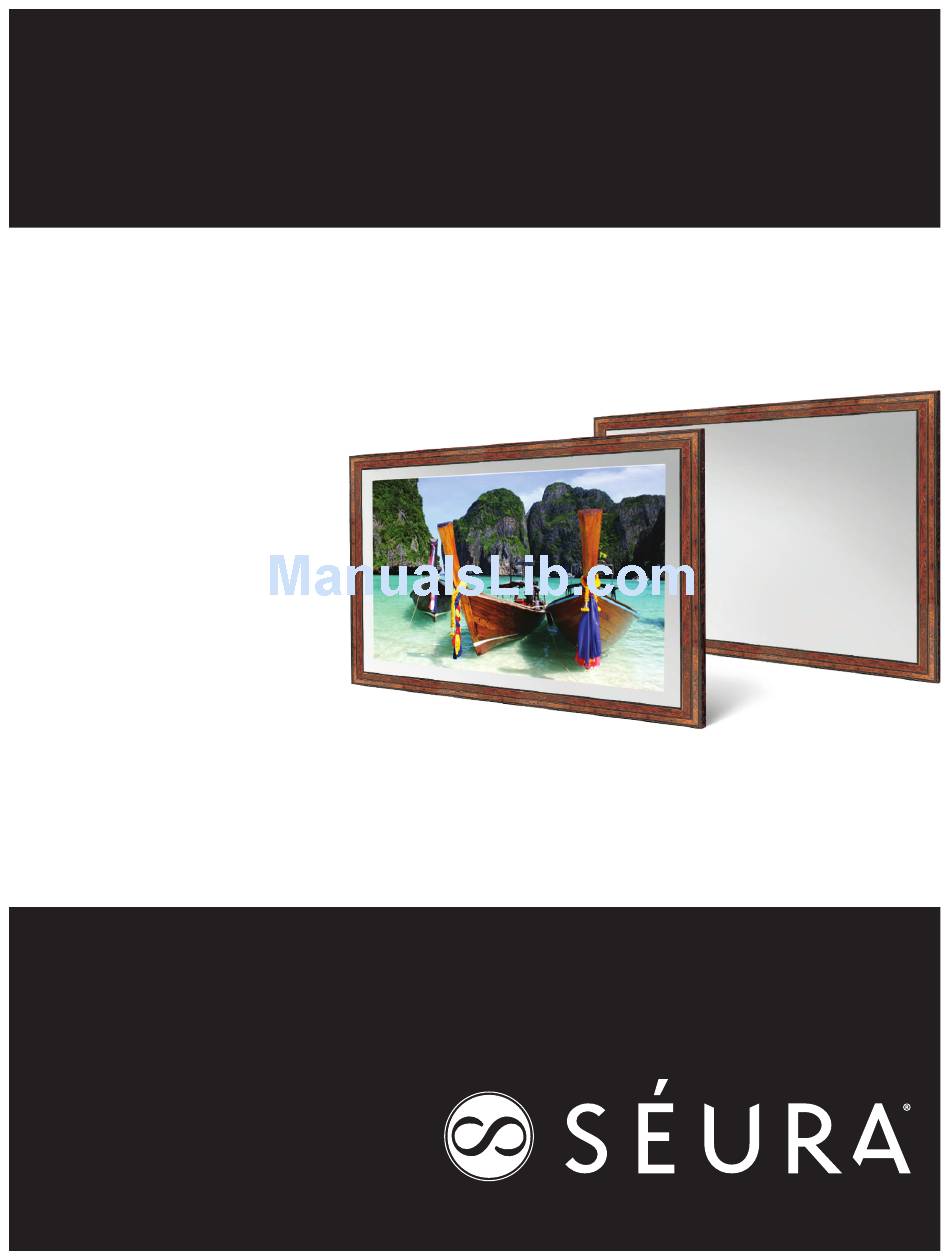

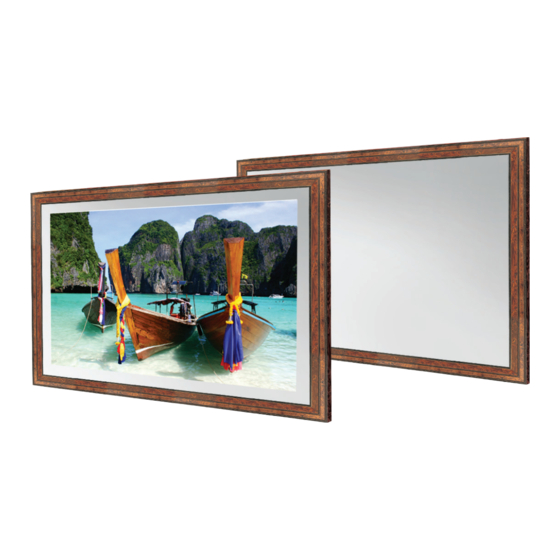

- Page 1 S 1 3 2 " - 6 5 " U S E R M A N U A L Premier Series ™ V A N I S H I N G M I R R O R D I S P L AY w w w.
- Page 2 Thank you for selecting a Séura Mirror Display. This product has been inspected and packaged carefully before shipment. Please read this guide before beginning installation. Please keep this manual for future reference. Information in this manual is subject to change without prior notice. FCC Information This equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 3 Before Installation WARNING: READ ALL INSTRUCTIONS AND REVIEW ALL DRAWING SHEETS BEFORE ATTEMPTING TO INSTALL OR SERVICE THIS PRODUCT. When installing and during use of this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/or injury to persons including the following: • I nspect the desired location for installation and be aware of all electrical wiring pathways, water pipes, gas lines, or other potentially hazardous conditions that may exist to protect from accidental damage during creation of on-site conditions.
-
Page 4: Table Of Contents
Contents B E F O R E U S E Lighting and TV Performance ...................... 5 Care and Maintenance ......................... 5 I N S T A L L A T I O N A N D S E T U P Display Requirements ........................ -
Page 5: Lighting And Tv Performance
Lighting and Performance The environment in which the mirror display is installed will affect the product performance. The key factors to consider for proper installation are surroundings and ambient light. Use the following guidelines to maximize the performance of the Séura product: Type of Lighting Avoid direct natural sunlight and excessive fluorescent lighting. These conditions will diminish the television brightness and hinder its performance. Light Direction Avoid directing light toward the mirror. -
Page 6: I N S T A L L A T I O N A N D S E T U P Display Requirements
Display Requirements Operation and Storage Requirements The ambient temperature for operating the device is between 41 to 122 degrees Fahrenheit. Do not install the device in the proximity of heat sources, such as heating pipes, heaters, furnaces or other devices that radiate heat. Mount the device in such a way that it is protected against moisture. Trouble free operation is ensured up to 75% air humidity. -
Page 7: In The Box
Other Remote Location PLUG - 3.5mm 50.3mm X 10.7mm NOTE: PLEASE SIGN AND DATE THIS PAGE BEFORE RETURNING TO SEURA. ONLY THIS PAGE NEEDS TO BE SOCKET DIMENSIONS ARE IN INCHES PROPRIETARY AND CONFIDENTIAL Power Supply RETURNED. BY RETURNING THIS SHEET, YOU ARE AGREEING TO ALL DIMENSIONS SHOWN ON ALL DRAWING... -
Page 8: Input/Output Overview
Set Up Input/Output Overview (Top View) Locking HDMI (x3) RS232 Component Line Audio Speaker IR Output DC Power Input Input YPbPr Input Output (Cable) Input IR Input IR Output (Receiver) (LED) Cable Management Channel Allows for Flush Mount to Wall 2010 Remote Redesign Final Remote Functions Power On / Off... -
Page 9: Installation
SIGNATURE: DATE: brackets are securely fastened using wood framing members where NOTE: PLEASE SIGN AND DATE THIS PAGE BEFORE RETURNING TO SEURA. ONLY THIS PAGE NEEDS TO BE PROPRIETARY AND CONFIDENTIAL DIMENSIONS ARE IN INCHES SHEET 1 RETURNED. BY RETURNING THIS SHEET, YOU ARE AGREEING TO ALL DIMENSIONS SHOWN ON ALL DRAWING... -
Page 10: Making Connections
Making Connections Connecting Video The Mirror Display features one Component and three HDMI inputs. We recommend using the HDMI inputs for best video and sound quality. Connecting Audio Euroblock Connector Two passive loudspeakers can be connected to the speaker output socket with speaker cables. -
Page 11: M E N U S A N D S E T T I N G S On Screen Display Menu (Osd)
2010 Remote Redesign 2010 Remote Redesign Final Final 2010 Remote Redesign Final On Screen Display Menu (OSD) 2010 Remote Redesign guide last 2010 Remote Redesign Final Final mute 2010 Remote Redesign Input Source Selection guide last Final sleep guide last In the Input Source menu, you may select from the available input sources. -
Page 12: Display Settings
OSD (cont.) Display Settings The Display Settings menu offers options to adapt the display characteristics of your Séura Mirror Display based on personal preferences. Adjustment options include: Sleep Timer 2010 Remote Redesign Final Aspect Ratio Backlight. SLEEP TIMER guide last Within the Sleep Timer menu you can determine a timespan after which the Séura Mirror Display will turn off automatically. -
Page 13: Osd Settings
OSD (cont.) OSD Settings The OSD Settings menu offers options to adapt the OSD characteristics of your Séura Mirror Display based on personal preferences. Adjustment options include: OSD Language OSD Time Out OSD Transparency OSD LANGUAGE Within the OSD Language menu you can select the language for the OSD menu. -
Page 14: Service Settings
OSD (cont.) Service Settings The Service Settings menu offers options to determine fundamental settings of your Séura Mirror Display based on personal preferences. Adjustment options include: Boot Power Option Volume Limit OSD Access HDMI CEC Start Logo RS-232 Access IR Address Code Baud Rate Input Scan Change Password... -
Page 15: Usb Media Player
RS-232 ACCESS With the RS-232 Access setting you can (de-)activate the RS-232 functionality. With RS-232 commands the Mirror Display can be controlled by interactive multimedia solutions like home automation or hospitality TV systems. For more details see the following link: www.seura.com/Resources/Technical/Seura-RS232Control-4-10-13.pdf BAUD RATE Set the Baud Rate to your preferred setting. It has to be equal to the value of your external device. Your options: 9600, 19200, or 38400. Default is 38400. -
Page 16: I N T E G R A T I O N A N D C O N T R O Lrs-232
RS -232 Control Introduction The Séura S1 Series LCD displays can be controlled with RS-232 commands from a host (computer, system controller such as Crestron, Control4, Savant, etc.). This document describes the details of this protocol. RS-232 Communication Protocol This section describes the communication protocol used to control the Séura S1 Series remotely. Note: Some commands will generate OSD feedback. Note: IR Commands will generate serial feedback. Connect a Host to the S1 Connect the S1 to the host controller using a crossed (null modem) serial cable or a straight-through cable with a null modem adapter. -
Page 17: Error Messages
RS -232 Control (cont.) Acknowledgement Structure The S1 shall confirm each command it receives with an acknowledgement automatically. Acknowledgement is ON by default. Acknowledgement can be turned ON and OFF with the ECHO command. An acknowledgement consists of a header, an identifier, a Field Description Length Comment separator, a value and a terminator. Header ASCII character % (percent) 1 byte... -
Page 18: Rs-232 Command Table
RS-232 Commands S1 Premier Series Function Command (Tx) ACK (Rx) Function Command (Tx) ACK (Rx) Power Toggle &PWR:TOG %PWR:TOG OSD Toggle &OSD:TOG %OSD:TOG Power ON &PWR:ON* %PWR:ON* OSD ON (open) &OSD:ON* %OSD:ON* Power OFF &PWR:OFF %PWR:OFF OSD OFF (close) &OSD:OFF %OSD:OFF Get Power Status &PWR?*** Get OSD Status &OSD?***... -
Page 19: Discrete Ir Codes
000A 0047 000A 0048 000A 0047 000A 001F 000A 0048 000A 065B 000A 001F 000A 0047 000A 001F 000A 06C8 000A 0047 000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 001F 000A 0047 000A 001F 000A 0047 000A 0047 000A 001F 000A 0047 000A 06EE Download these codes at http://www.seura.com/IRCodes.doc... -
Page 20: T R O U B L E S H O O T I N G A N D T E C H N I C A L D E T A I L S Troubleshooting
Troubleshooting If the product is not working properly, please check the following troubleshooting hints before you contact customer service: Symptoms Possible Solution Check the status LED. If the status LED is red, the Mirror Display is in standby and the monitor is black, this is normal. If the status LED is green and the monitor is black, the Mirror Display might perform an input scan with no available signal. Please check if an input source is available and that the port of the device has been connected correctly in the Service Blank screen Settings/ Input Ports menu. -
Page 21: Ports And Media Support
Ports and Media Support Ports Input Ports LINE Audio INPUT 2 x RCA terminal, white, red Component Input 3 x RCA terminal, red, green, blue HDMI Input 3 x HDMI terminal ™ ™ 1 x USB terminal RS232 1 x D-SUB 9pin male IR Input (Infrared) 1 x mini jack 3.5mm Output Ports Speaker Output 1 x Phoenix clip 4pin IR Output (cable) 1 x mini jack 3.5mm IR Output (LED) 1 x mini jack 2.5mm Video HDMI... -
Page 22: Power Adapters
Power Adapters Display Operating Power Voltage Input Voltage Output Humidity Weight Size Temperature 32" 200W / 8.3A 100 ~ 240V AC 24V DC 32 - 104° F 20 - 90% 1.8 lbs 42" 200W / 8.3A 100 ~ 240V AC 24V DC 32 - 104° F 20 - 90% 1.8 lbs 46"... -
Page 23: Warranty
K. The improper or faulty installation, setup, or adjustment of a Product; L. A Product’s repair, attempted repair, or total or partial disassembly by any party other than a Séura authorized service representative; M. When the product occurs with pixel errors within the specified and permitted area. For more information about this, inquire directly with Seura regarding the Seura Pixel Policy. - Page 24 8 0 0 . 9 5 7. 3 8 7 2 w w w. seur a .com Séura, Inc. 1230 Ontario Road Green Bay, WI 54311 800.95.SEURA t: 920.857.9069 f: 920.857.9490 © Séura 2013 All Rights Reserved 4-10-13...
