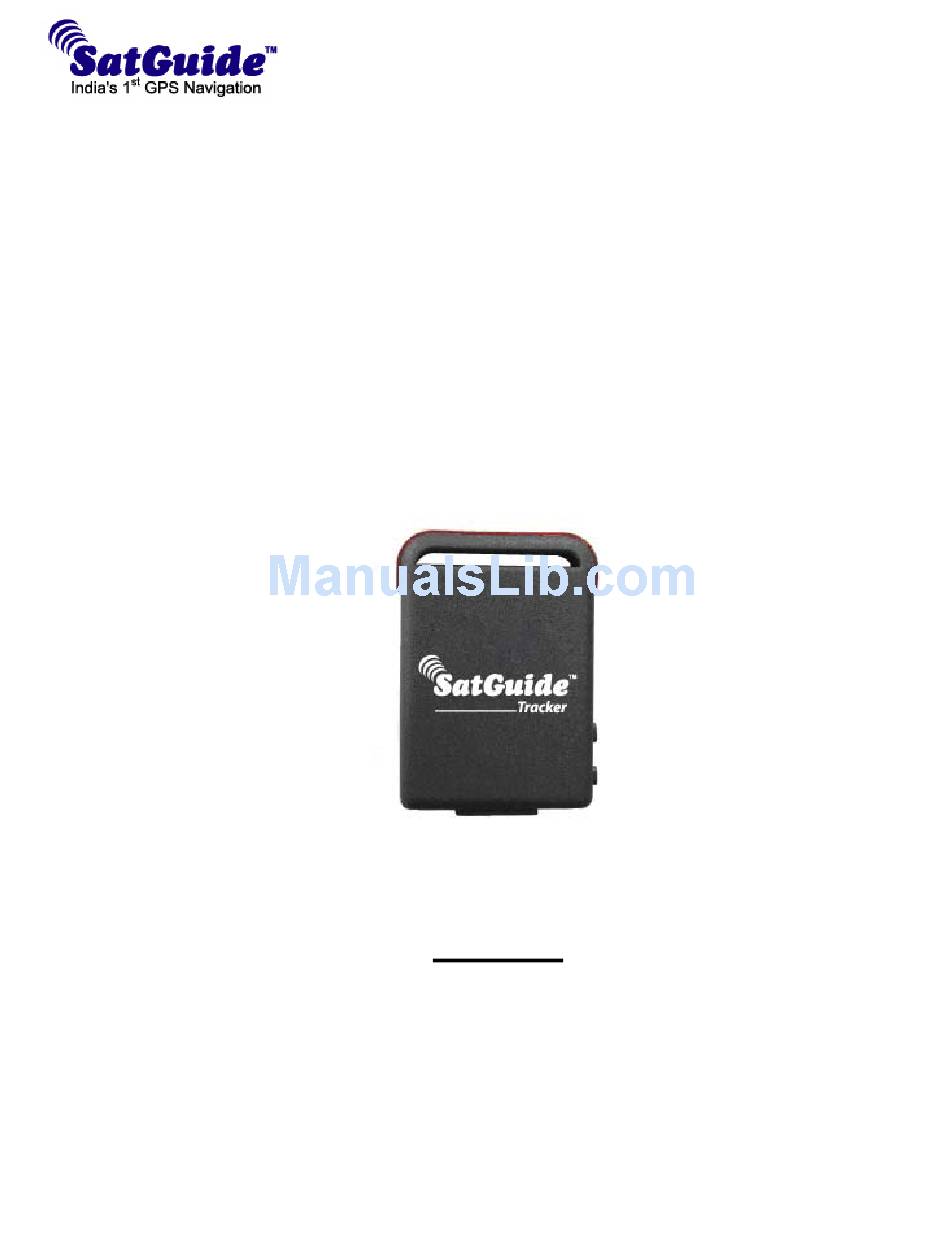

SatGuide TRACKER
GSM / GPRS / GPS
USER MANUAL
Preface
U
Thank you for purchasing SatGuide Tracker. This manual shows how to operate the device smoothly
and correctly. Make sure to read this manual carefully before using this product. Please note that
specification and information are subject to changes without prior notice in this manual. Any change
will be integrated in the latest release. The manufacturer assumes no responsibility for any errors or
omissions in this document.
Advertisement
Table of Contents
Summary of Contents for SatTracx SatGuide TRACKER
-
Page 1: User Manual
USER MANUAL Preface Thank you for purchasing SatGuide Tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual. Any change will be integrated in the latest release. - Page 2 1 Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or GPRS. 2 Applications Vehicle / Fleet management etc Protect the child / the old / the disabled / pet etc Protect businessmen Personnel management 3 Hardware Description...
- Page 3 4 Device Hard‐Wired car charger connections with Car battery: +12V –12V Attach Red cable to and White (ground) to Battery as shown below...
-
Page 4: Sim Card Installation
5 Specs: Content Specs. Dim. 64mm x 46mm x 17mm(1.8”*2.5”*0.65”) Weight Network GSM/GPRS Band 900/1800/1900Mhz or 900/1800/1900Mhz GPS chip SIRF3 chip GSM/GPRS module Simcom300/Simcom340 GPS sensitivity ‐159dBm GPS accuracy Time To First Fix Cold status 45s Warm status 35s Hot status 1s Car charger 12—24V input 5V output... - Page 5 3 Put the SIM card into the holder, and turn the foil right and fasten it in place. 6.2 Battery and Charger 8 ‐12 hours Do charge the battery to capacity in for first use. Please use the battery and charger provided by the manufacturer.
-
Page 6: Important Notes
7 Cautions Please comply with the instructions to extend the unit life: 1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry. 2. Don’t use & store the unit in dusty places. 3. As it is light weight device, needs to be handling carefully. 4. - Page 7 In Below scenarios Device will not send any reply message: 1) If there is any network problem. 2) If the SIM card doesn't have any balance. 3) If SIM card is not installed properly.
