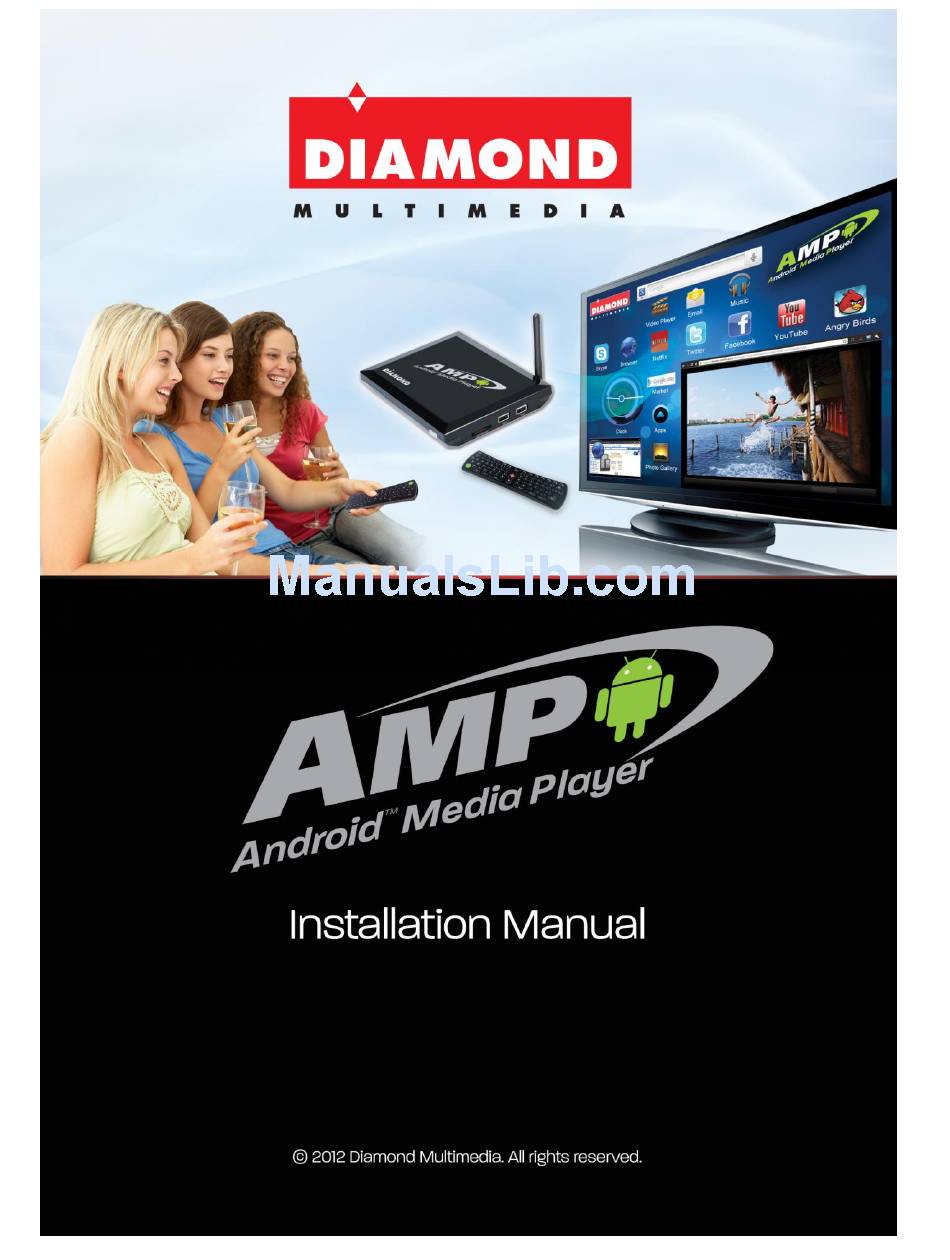

Summary of Contents for Diamond Multimedia AMP1000
-
Page 2: Power Connection
Package Includes: 1 x AMP Android Media Player 1x Quick Installation Guide (this guide you are viewing right now) 3 x AAA batteries 1 x HDMI cable 1 x Component HD video cable (Red, Blue and Green) 1 x Composite audio cable (red and white) 1 x 3 in 1 remote control Power Connection: 1. - Page 3 1. Check your TV input connection type. If your TV supports HDMI it is recommended to use the HDMI connection from your media player to your TV. HDMI will support both HD video and HD Audio through the single cable connection. 2.
-
Page 4: Turning On The Player
Example; If the Component cable is connected to the input on the TV is labeled “Component 1”, you must select “Component 1”, on your TV’s input selector. Turning on the player: 1. Press the power button located on the front panel of your media player 2. - Page 5 F12: VOL++ ] mouse navigation key(Diamond Hey: press and hold this button or double click it, the cursor will appear exactly where you point, wave your wrist around. Single click this button (in this mode, only mouse right and left buttons are workable, the other buttons are useless) ] Quick double click: active/de-active working/suspend mode.
-
Page 6: Network Connection
1. You will see the following screen when your media player is ready to use: Network Connection: We recommend you first setup your internet connection before proceeding to other configurations. See below setup instructions for wireless and wired connections. Wireless Connection: Before you start you must have the following information from your home router’s wireless network connection settings: ... - Page 7 3. By default you will see the first option to configure is Wireless. Click on the “Off” button to turn on Wi-Fi. 4. You will see that OFF status changes to on as shown below:...
- Page 8 5. A list of wireless network available in the area will be displayed as shown. Click on your Wi-FI network name. See example image below. Here in the image the Wi-Fi name we are using is “WGR7000” 6. If you have security enabled on your WiFi network enter your password as shown below and then click connect: 7.
- Page 9 You are now configured to use your media player’s online applications such as Internet Browser, Google Play Internet Radio and all other favorite on line applications. Wired Connection Ethernet: 1. Connect the Cat 5 RJ-45 Ethernet cable (not included) into the jack labeled “LAN” of the media player.
- Page 10 3. Click on “Settings” as shown below: 4. Click on Ethernet: 5. Click on the “OFF” button...
- Page 11 6. You will see the OFF status turns to ON: 7. Click on Ethernet Configuration:...
- Page 12 8. If you have DHCP enabled on your router leave the default settings as shown below, there is no need to change any configuration. If you are using Static IP select “Static IP” as shown below and enter an IP, Netmask, DNS and Gateway address. 9.
-
Page 13: Software Applications
Software Applications 1. Click on the applications icon as shown below: 2. Out of the box your AMP1000 media player provides the following default applications on the main screen:... - Page 14 Downloads: View your down load history Email: Create and existing email accounts to be used on your AMP1000 File Manager: Use to control how your files are managed by other applications such as default actions for music files File Browser:...
- Page 15 Make voice and video calls. Video calls require additional web cam hardware Upgrade: Use to upgrade your AMP1000 with future firmware releases. Wi-Fi Analyzer: Provides detailed information for Wi-Fi networks in range Wi-Fi Transfer: Wireless transfer application to other Wi-Fi devices...
- Page 16 Technical Support Diamond Technical Support staff is here to help resolve any issues that you may be experiencing with the installation of the Diamond product. Prior to contacting technical support please make sure you have the following information available. 1. Model #: (Printed on the bar code, located on the box) 2.
- Page 17 (90) ninety days from date of purchase at retail. Diamond ’s sole obligation under this warranty shall be, at Diamond ’s option, to: (i) repair the defective product or part;...
- Page 18 OF THE POSSIBLITY OF SUCH DAMAGES. DIAMOND ’S SOLE LIABILITY WITH RESPECT TO ITS PRODUCT IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, AT DIAMOND ’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL FOR ESSENTIAL PURPOSE.
