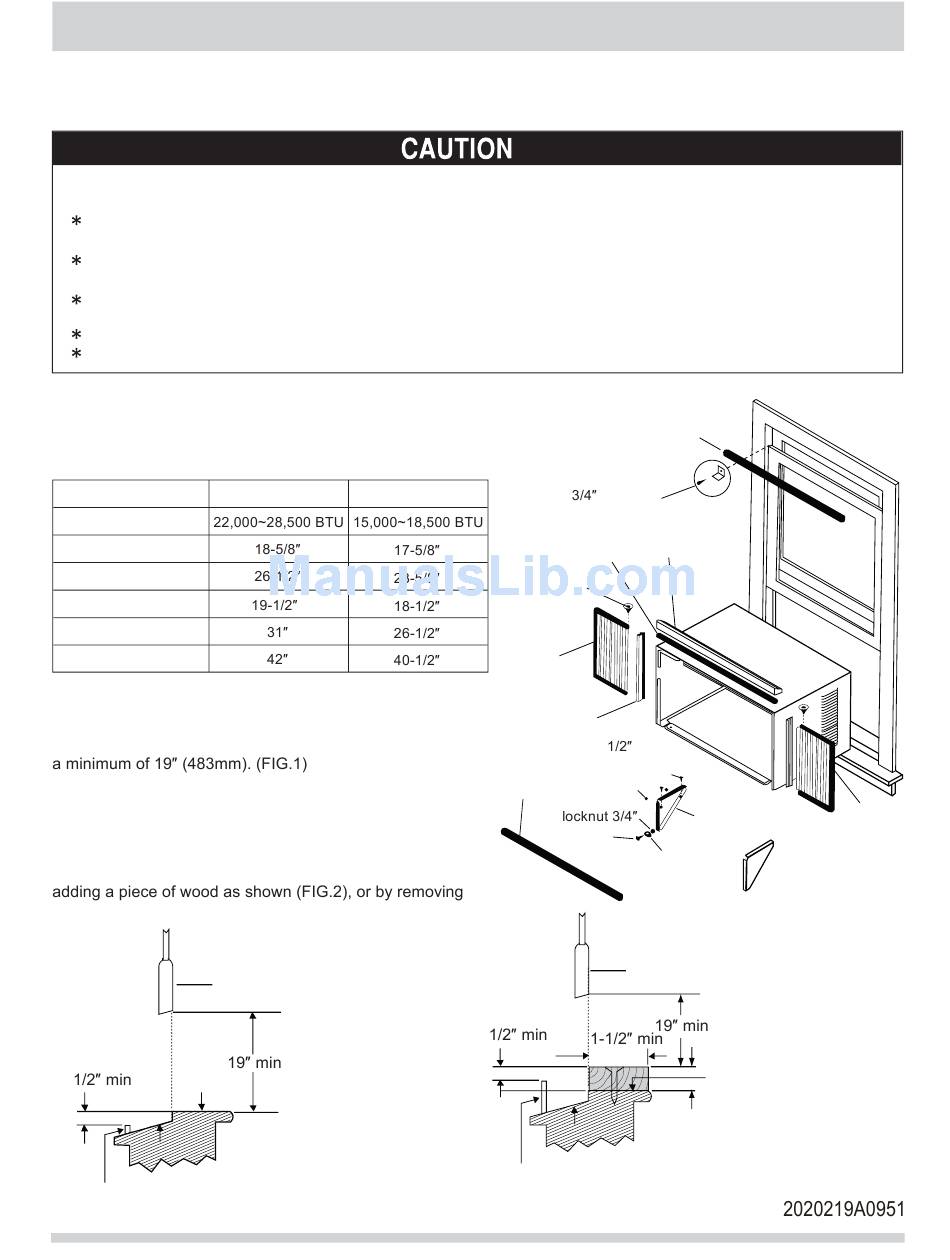

For Medium (15-18.5K) + Heavy duty (22-28.5K) Air Conditioner
To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp
edges that may be exposed:
Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to
move and install the unit. To prevent injury or strain, use proper lifting and carrying techniques when moving unit.
Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit over
an extended period of time.
Handle air conditioner with care. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp
metal fins of front and rear coils.
Make sure air conditioner does not fall during installation.
If a new electrical outlet is required, have the outlet installed by a qualified electrician before installing unit.
NOTE: DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED HERE.
Preliminary instructions:
Do the following before starting to install unit. See illustrations below.
Check dimensions of your unit to determine model type:
Capacity:
Unit Height:
Unit Width:
Min. Window Opening:
Min. Window Width:
Max. Window Width:
1. Check window opening size: the mounting parts
furnished with this air conditioner are made to install in
a wooden sill double-hung window. The standard parts
are for window dimensions listed above. Open sash to
2. Check condition of window: all wood parts of window
must be in good shape and able to firmly hold the needed
screws. If not, make repairs before installing unit.
3. Check your storm windows: If your storm window
frame does not allow the clearance required, correct by
storm window while room air conditioner is being installed.
FIG.1
sash
inner sill
outer sill
storm window frame or
other obstruction
Installation Instructions
READ BEFORE INSTALLING UNIT
Heavy duty
Medium
window sash seal
safety lock and
long hex
head screw
top angle
foam gasket
washer head
locking screw
frame
assembly
(left)
side retainer
long
screws and
locknuts
bottom rail
seal to unit
long flat
head bolt
sill angle
bracket
FIG.2
sash
outer sill
storm window frame or
other obstruction
window
support bracket
inner sill
board thickness as
required, along entire inner
window sill; fasten to inner
sill with two nails or screws.
frame
assembly
(right)
1
