CHIEF FSB-018 Quick Manual

The Flat Screen Table Stand is designed to attach directly to VESA FPMPMI standard 75mm or
100 mm mounting pattern.
(1) FSB-017 Stand Assembly
(1) 75mm Adapter Bracket
(1) 100mm Adapter Bracket
(4) 10-24x3/8" Phillips Head Screw
Unpack and check contents: Inspect the Flat Screen Table Stand carefully for shipping damage.
CAUTION:
The maximum weight to be installed on the FSB is 45 pounds (20.4 Kg).
power screwdriver to install screws. Use a hand screwdriver to prevent damage to
your monitor.
NOTE: For 75mm VESA mounting, perform Step 1 first. For 100mm VESA mounting, perform
Step 2 and Step 3 first.
For 75mm VESA Mounting Pattern
1. Secure the 75mm adapter bracket to your monitor using four M4 X 6mm Phillips head
screws (provided) (seeFigure 2).
For 100mm VESA Mounting Pattern
2. Install 100mm adapter bracket using four provided M4 X 6mm or M4 X 10 Phillips head
screws (see Figure 3).
3. Secure the 100mm adapter bracket to the 75mm adapter bracket (see Figure 4).
Figure 2. 75mm Bracket Installation
CHIEF MANUFACTURING INC.
8401 EAGLE CREEK PARKWAY, STE. 700
SAVAGE, MINNESOTA 55378 USA

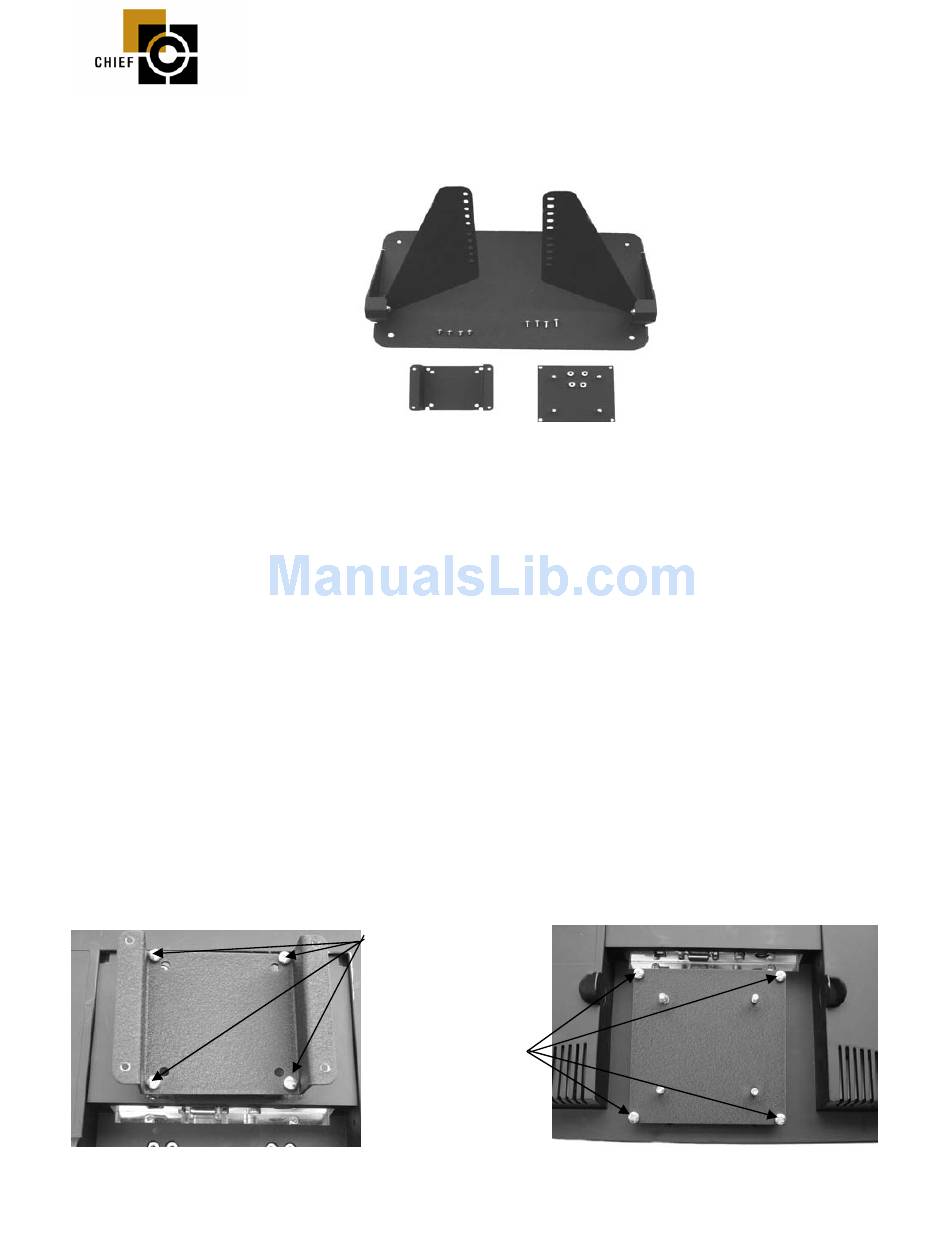

FLAT SCREEN TABLE STAND
Model FSB-018
If any damage is apparent, call your carrier claims agent.
VESA FPMPMI
Standard 75mm
VESA FPMPMI
Standard 100mm
Figure 1
(4) M4 x 10mm Phillips Head Screw
(4) M4 x 6mm Phillips Head Screw
(4) 10-24 Nylock Nut
Figure 3. 100mm Bracket Installation
1-800-582-6480 or 952-894-6280 FAX 952-894-6918
Do not use a
8804-000033 Rev. B
