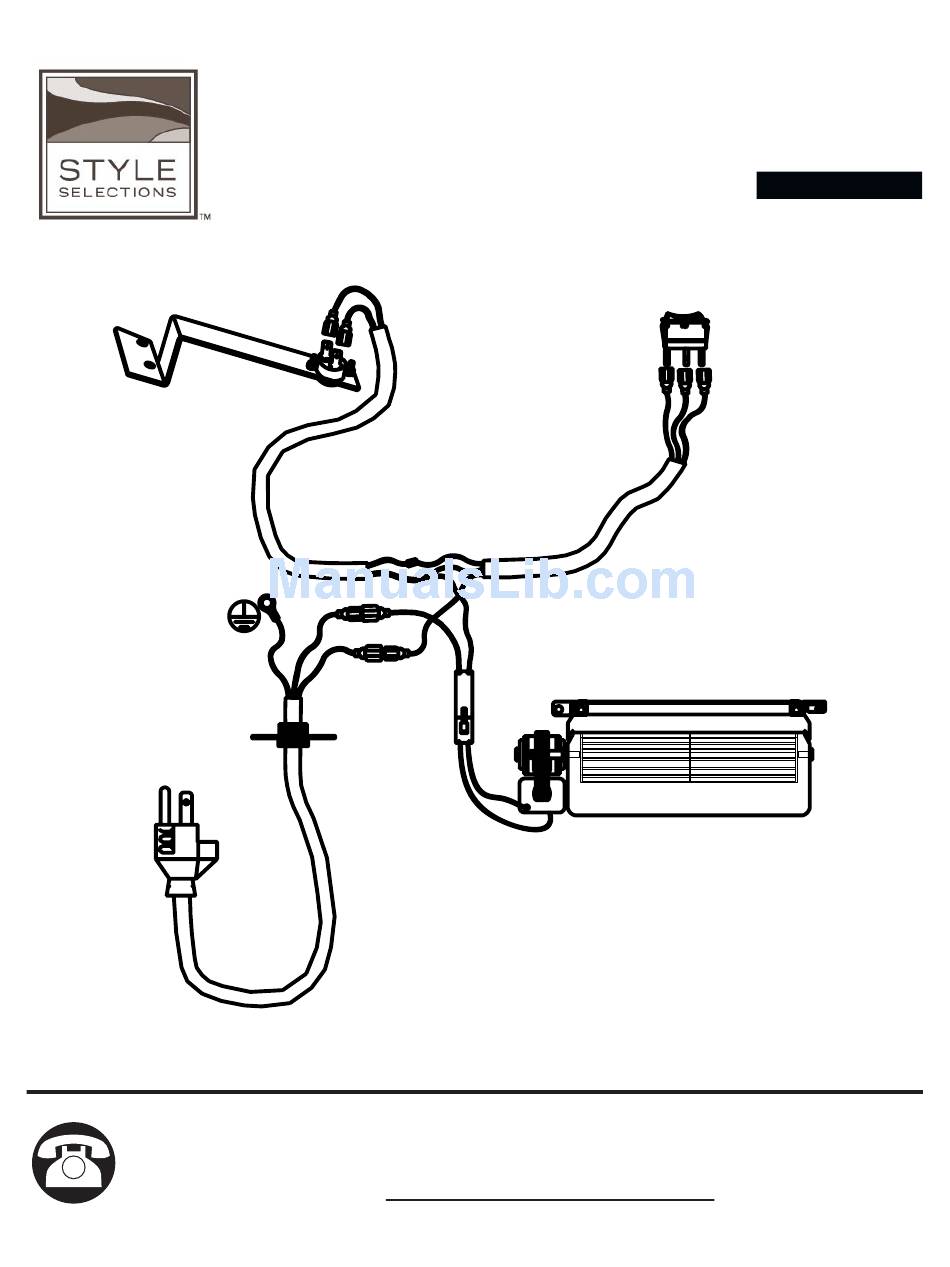

ITEM #0293810
BLOWER ACCESSORY
MODEL #SSFIB100
Español p. 24
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-866-573-0674, 8:00 a.m - 4:30 p.m., EST,
Monday - Friday or e-mail customerservice@usaprocom.com
LS-FANFIB-0901

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NAOS K4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Style selections NAOS K4

  • Page 1 ITEM #0293810 BLOWER ACCESSORY MODEL #SSFIB100 Español p. 24 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-573-0674, 8:00 a.m - 4:30 p.m., EST, Monday - Friday or e-mail customerservice@usaprocom.com LS-FANFIB-0901...

  • Page 2: Package Contents

    PACKAGE CONTENTS PART PART NUMBER DESCRIPTION Quantity XB001-01 Power Cord XB002-01F Blower XB003-01 Temperature Sensor XB004-01F Connect Wire PF06-0400-A Rocker Switch...

  • Page 3: Hardware Contents

    HARDWARE CONTENTS Picture Part Description Quantity (Shown to size) M4.2X8 Screw Cable Tie Not shown to size M4.0X8 Screw WARNINGS AND CAUTIONS WARNING • Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock, fire hazard and will void the warranty. • Read all instructions before using this appliance. • If possible always unplug this appliance when not in use.
  • Page 4 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Estimated Assembly Time: 30 minutes Tools Required for Assembly: Philips Screwdriver and Wire Cutter ASSEMBLY INSTRUCTIONS This blower contains assembly instructions for the following models and item numbers...
  • Page 5 Fig. 2 2. Unscrew two screws on heat insulation board cover and draw it out. See Fig. 2. Fig. 3 3. Affix temperature sensor (C) to heat insulation board cover with M4.2X8 screws (AA). See Fig. 3. Hardware Used M4.2X8 screw...
  • Page 6 Fig. 4 4. Insert wires into the space between wire protecting board and shell; Fix the wires to the top cover with wire fixture. See Fig. 4. Protecting Protecting Board Board Wire Wire Fixture Fixture Fig. 5 5. Connect temperature sensor (C) with connect wire (D). Install the cover according to Figure 2, then fix the upper fire box according to step 1. See Fig. 5.
  • Page 7 Fig. 6 6. Insert blower (B) into the bottom space of burner pan. Pay attention not to touch wires inside. See Fig. 6. Fig. 7 7. Set blower (B) plane and affix onto two brackets of shell board. Make sure blower (B) is installed into the slots.See Fig. 7. Install Install Blower Blower Into slots Into slots...
  • Page 8 Fig. 8 8. Affix blower with M4.0X8 screws (CC), after, manually install it into slots. See Fig. 8. Hardware Used M4.0X8 screw Fig. 9 9. Attach the power cord (A) to the fireplace with M4.2X8 screws (AA) on the top cover. See Fig. 9. Hardware Used M4.2X8 screws...
  • Page 9 Fig. 10 10. Affix the grounding terminal with M4.2X8 screw (AA). See Fig. 10. Hardware Used M4.2X8 screw Fig. 11 11. Insert the male port of blower (B) and in to the corresponding female port. See Fig. 11. Female Port Male Port Female Port Male Port 12. Connect the AUTO, OFF, MAN wires to Fig. 12 the three corresponding male tabs on the rocker switch (E). See Fig. 12 AUTO...
  • Page 10 Fig. 13 13. Push the rocker switch into the hole on the panel. See Fig. 13. Fig. 14 14. Insert the male port, which is on the black power supply wire (marked with P2), into the corresponding female port (marked with P2). See Fig. 14. Fig. 15 15. Insert the female port, which is on the white power supply wire (marked with P1), into the corresponding male port. (marked with P1).
  • Page 11 Installation blower assembly position Install wire Install wire and grounding and grounding Install blower Install blower Install rocker Install rocker switch switch...
  • Page 12 Instructions for model # SSFBD32RT (Item # 0293807). Fig. 1 Before installing the blower, be certain to turn off the unit, and allow time for unit to cool down. 1. Remove upper fire box by unscrewing left /right screws on the fire box. See Fig. 1. Fig. 2 2. Unscrew two screws on heat insulation board cover and draw it out.
  • Page 13 Fig. 3 3. Affix temperature sensor to heat insulation board cover with M4.2X8 screws (AA). See Fig. 3. Hardware Used M4.2X8 screw Fig. 4 4. Insert wires into the space between wire protecting board and shell; Fix the wires to the top cover with wire fixture. See Fig. 4. Protecting Protecting Board Board Wire Wire Fixture Fixture...
  • Page 14 Fig. 5 5. Connect temperature sensor (C) with connect wire (D. Install the cover according to Figure 2, then fix the upper fire box according to Fig. 1. See Fig. 5. Fig. 6 6. Unscrew and remove panel on the left side. See Fig. 6.
  • Page 15 Fig. 7 7. Insert blower (B) into the bottom space of burner pan. Pay attention not to touch wires inside. See Fig. 7. Fig. 8 8. Set blower (B) plane and fix it onto two brackets of shell board. Make sure blower (B) is installed into the slots.See Fig. 8. Install Install Blower Blower Into slots Into slots...
  • Page 16 Fig. 9 9. Affix blower (B) with M4.0X8 screws (CC), after, manually install it into slots. See Fig. 9. Hardware Used M4.0X8 screw Fig. 10 10. Attach the power cord (A) to the fireplace with M4.2X8 screws (AA) on the top cover. See Fig. 10. Hardware Used M4.2X8 screws...
  • Page 17 Fig. 11 11. Affix the grounding terminal with M4.2X8 screw (AA). See Fig. 11. Hardware Used M4.2X8 screw 12. Insert the male port of blower (B) and in to the corresponding female port. Fig. 12 See Fig. 12. Female Port Male Port Female Port Male Port 13. Connect the port and shell board with Fig. 13 linker (male port) into the three wires with protecting jacket (please refer to linker (female port) (red, yellow and black) with grounding label); Put protecting jacket into rocker switch (E) corresponding.
  • Page 18 Fig. 14 14. Push the rocker switch into the hole on the panel. See Fig. 14. Fig. 15 15. Insert the male port, which is on the black power supply wire (marked with P2), into the corresponding female port (marked with P2). See Fig. 15. Fig. 16 16. Insert the female port, which is on the white power supply wire (marked with P1), into the corresponding male port. (marked with P1).

  • Page 19: Electrical Connection

    Installation blower assembly position Install wire Install wire and grounding and grounding Install blower Install blower Install rocker Install rocker switch switch ELECTRICAL CONNECTION A 15 amp, 120 Volt, 60 Hz circuit with a properly grounded outlet is required. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation. Plan the installation to avoid the use of an extension cord.

  • Page 20: Grounding Instructions

    GROUNDING INSTRUCTIONS This heater is for use on 120 volts. The cord has a plug as shown at A in Fig. 22. An adapter as shown at C is available for connecting three-blade grounding-type plugs to two-slot receptacles. The green grounding lug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box.

  • Page 21: Electrical Wiring Diagram

    ELECTRICAL WIRING DIAGRAM Any electrical re-wiring of this appliance must be done by a qualified electrician. This wiring must be done in accordance with local codes and/or in Canada with the current CSA C22.1 Canadian Electrical Code, and for US installations, the National Electrical Code ANSI/NFPA NO 70. If repairing or replacing any electrical component or wiring, the original wire routing, color coding and securing locations must be followed.

  • Page 22: Replacement Parts

    REPLACEMENT PARTS NOTE: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty. PARTS UNDER WARRANTY Call Customer Service toll free at (1-866-573-0674) for referral information. When calling Customer Service or your dealer, have ready: • Your name • Your address • Model and serial number of your heater • How heater was malfunctioning •...

  • Page 23: Year Limited Warranty

    2-YEAR LIMITED WARRANTY The manufacturer warrants this product to be free from defects in workmanship and material present at time of shipment from the factory for two (2) years from the date of purchase. This warranty applies only to the original purchaser. The manufacturer agrees to correct such defect at no charge or, at our option, replace the product with a comparable or superior model. To obtain warranty service, call our customer service department at 1-866-573-0674 for return authorization and shipping instructions. You may be required to present a copy of your sales receipt as proof of purchase.
