Summary of Contents for Dotronix DOT-X SERIES

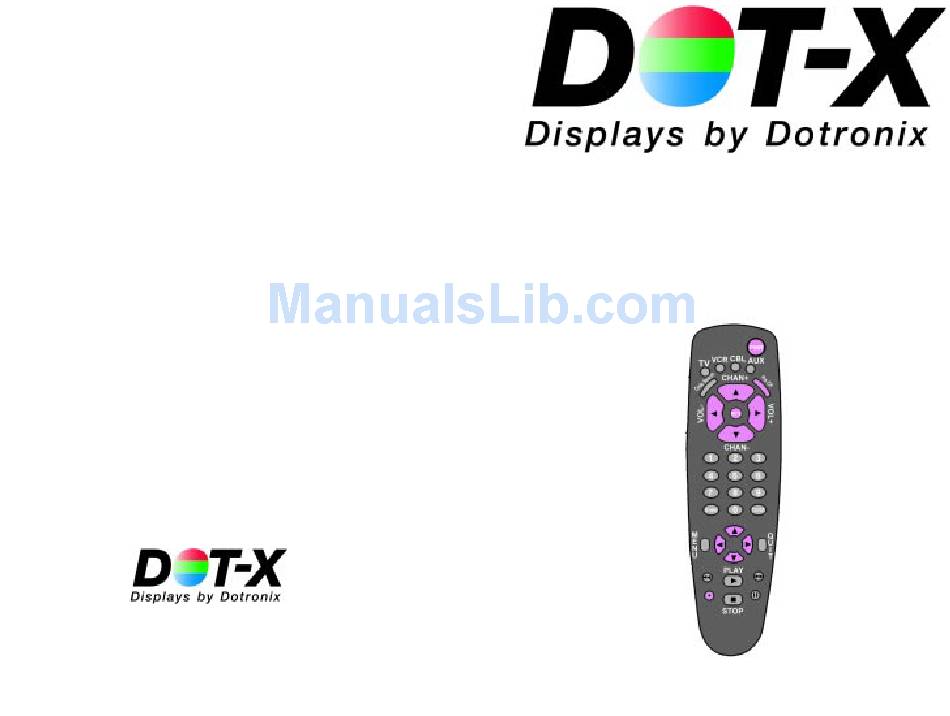

- Page 1 DOT-X SERIES Handheld Addressable Remote Controls 160 FIRST STREET S.E. ST. PAUL, MN 55112-7894 PHONE 651-633-1742 User’s Manual FAX: 651-633-1065 www.dotronix.com Publication No. 01121 Rev B...
- Page 2 PRECAUTIONS This remote control contains circuits and components designed to meet specific performance and safety requirements. No component changes Dotronix Limited Warranty may be made without the written permission of the manufacturer. Dotronix warrants that for one (1) year from date original purchase, it will, at its option, repair, replace or refund the purchase price of any product which it To prevent electrical shock, do not attempt to disassemble the monitor.
-
Page 3: Table Of Contents
Unpack the remote control and install batteries. UTILITY INFORMATION SCREEN WARRANTY The DOT-X SERIES with HARC responds to remote control inputs in a manner similar to many other remote control devices including TVs, VCRS etc. with two important differences. First, a security code is required before access to any menus is allowed. - Page 4 Typically the units are numbered in sequence from 01 upward. The DOT-X SERIES HARC will accept unit numbers up to 99. (If you need more than 99, consult the factory for a special program.) At this point, key in 01, the numbers will appear after...
- Page 5 NOTES TO ACTIVATE MENUS AND CONTROLS The following on screen display (OSD) will appear. THIS UNIT SELECTED ALL MENUS/CONTROLS ACTIVE press PREV. CH TO DE-SELECT UNIT At this point, you can use the remote to control all available functions of the unit.
-
Page 6: Remote Control
6 - 8 seconds to get security screen. Press MENU Press a left or repeatedly to choose right arrow key to between available adjust the menus. selected menu option. Press UP arrow key repeatedly until the desired option is highlighted. DOT-X... - Page 7 IR MODULE 29 AVAILABLE MENUS Your unit is menu operated. In other words, adjustments to the unit are made via a list of choices which appear on your monitor screen. To view these menus, press the MENU key on the remote. Press MENU repeatedly IR MODULE INPUTS AND CONTROL LOCATIONS to toggle through the 3 available menus.
-
Page 8: Automatic Color Balance
AVAILABLE MENUS CUSTOM OPTIONS AUTOMATIC COLOR BALANCE Selection Menu Automatic Color Balance is often referred to as Automatic Kinescope Biasing (AKB). It restores the color balance of the monitor to factory set values, compensating for aging of components within the monitor, primarily aging of the phosphors within the cathode ray tube (CRT) PURITY GUARD DISABLED... -
Page 9: Changing Security Code And Unit Number
CUSTOM OPTIONS SECURITY CODE CHANGING SECURITY CODE AND UNIT NUMBER UTILITY INFORMATION SCREEN The security code and the unit number can be changed with the remote Several useful values are displayed on the utility information screen. This control. First it is necessary to enter the current security code and unit function displays that screen. - Page 10 SECURITY CODE CUSTOM OPTIONS If you have changed the unit number from the factory setting, the current number will appear where the 01 is shown above. To change the If the entered time is not the desired time, key in the desired number number, key in the new number.
-
Page 11: Programming On/Off Timer
Then press and hold the TIMER key or 6 key until the following screen appears (typically 6 – 8 seconds). DOT-X Series HARC module KEY NEW START TIME _8:30... -
Page 12: Programming Purity Guard Timer
CUSTOM OPTIONS CUSTOM OPTIONS SETTING THE CLOCK PROGRAMMING PURITY GUARD TIMER Purity Guard activates the Degauss function and on units with HarcPlus, To set the clock, first it is necassary to enter the security code and unit the automatic color balance feature of the monitor, once each 24 hour number, refer to GETTING STARTED earlier in this manual for the period.
