Summary of Contents for Lemo MEERKAT HD

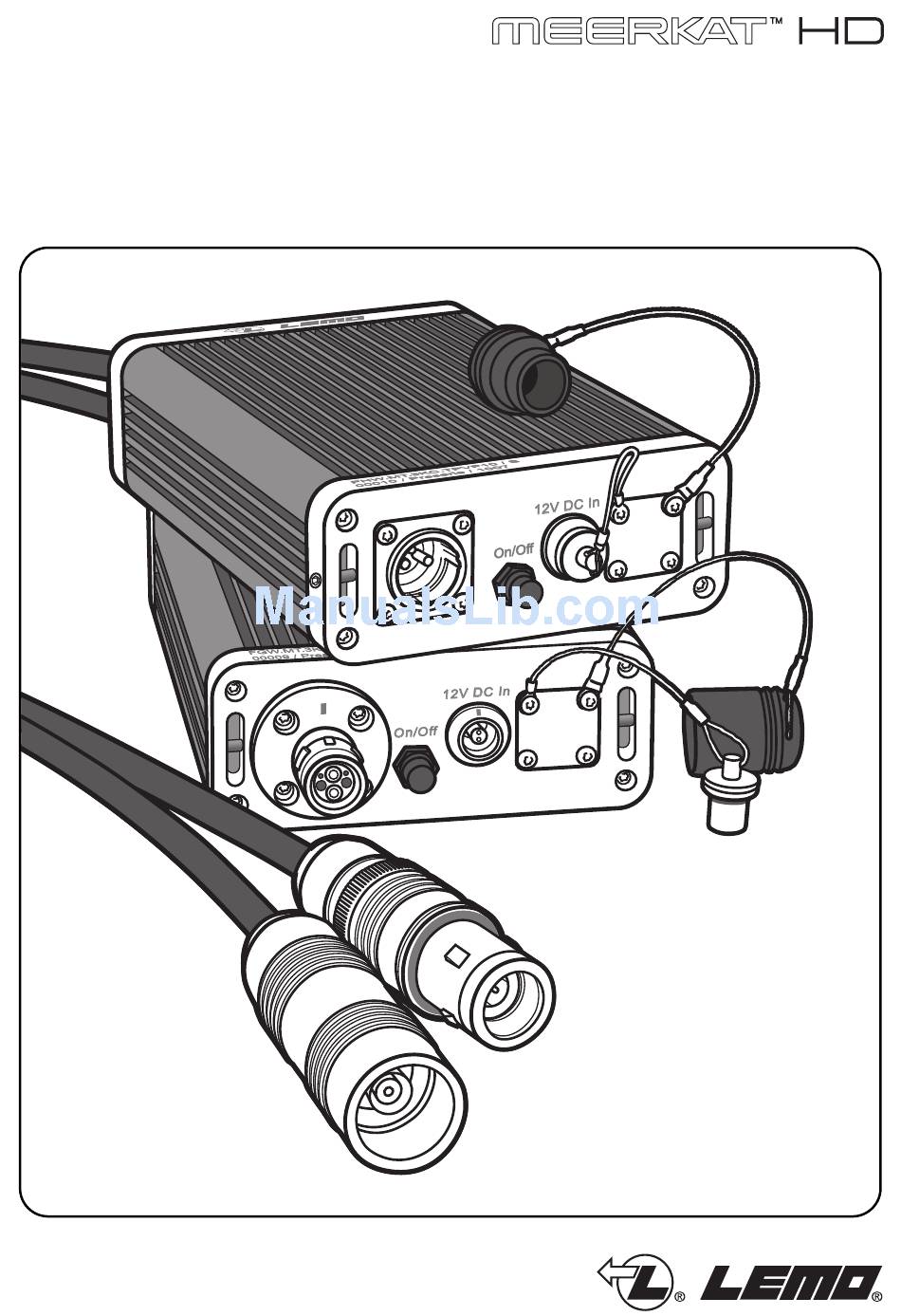

- Page 1 FULLY DIGITAL HD TRIAX-TO-FIBRE VIDEO MEDIA CONVERTER Instructions for use...
- Page 2 12V DC In On/Off MEERKAT 12V DC In On/Off MEERKAT BACK PANEL MEERKAT MEERKAT Fuse www.lemo.com...
- Page 3 ◀ Getting to know the MEERKAT (see page 2) 1 On/Off power switch 2 Power socket 3 HDTV connector (ARIB, SMPTE, EBU compatible) 4 Triax connector 5 Fuse 6 LED indicators 7 Part number and model 8 Triax cable www.lemo.com...
- Page 4 LEMO 3K.93C series HDTV connector. fibre link between HD Triax cameras and If power from the CCU / OB van is not and their CCU’s. The LEMO Media Con- required (i.e. local power is available), a verter offers mobile facility providers,...
-
Page 5: Specifications
LDK5860 LDK4506 (sport) Mohawk M95421 Notes : Do not connect any camera other than those on the list above without contacting the LEMO Technical Support Group. Specifications List of SD compatible cameras Input/outputs Connectors Triaxial connector 50 Ohms / 75 Ohms... - Page 6 Unit B to the OB van/CCU. HDTV connectors. Connect the HDTV connector (LEMO 3K.93C Series) to the appropriate HDTV compatible socket or plug. Note: as with HDTV systems ensure that the HDTV (SMPTE) cable is laid in the appropriate direction - socket at the OB van / CCU end and plug at camera end.
- Page 7 (page 8). Pressing the power button again will turn HDTV connectors. the power off. Connect the HDTV connector (LEMO 3K.93C Series) to the appropriate HDTV compatible socket or plug. Connect the two SC, or FC-PC connectors to the corresponding connectors on your dual channel fibre cable.
-
Page 8: Troubleshooting
(see chapter fuse replacement). If this fuse select a specific part number. For other configu - blows repeatedly, please contact technical support. rations that are not described in the part numbers table here below, please contact your local LEMO No light Green customer support. -
Page 9: Cleaning Instructions
Whenever calling your harmful interference to radio communications. LEMO support, you will need to refer to the part numbers located on the top the MEERKAT unit. However, there is no guarantee that interference will not occur in a particular installation. - Page 10 www.lemo.com...
- Page 11 www.lemo.com...
- Page 12 LEMO Norway A/S Tel: (+86 21) 5899 7721 Tel: (+47) 22 91 70 40 DENMARK SINGAPORE LEMO Denmark A/S LEMO Asia Pte Ltd Tel: (+45) 45 20 44 00 Tel: (+65) 6476 0672 FRANCE SPAIN / PORTUGAL LEMO France Sàrl IBERLEMO S.A.
