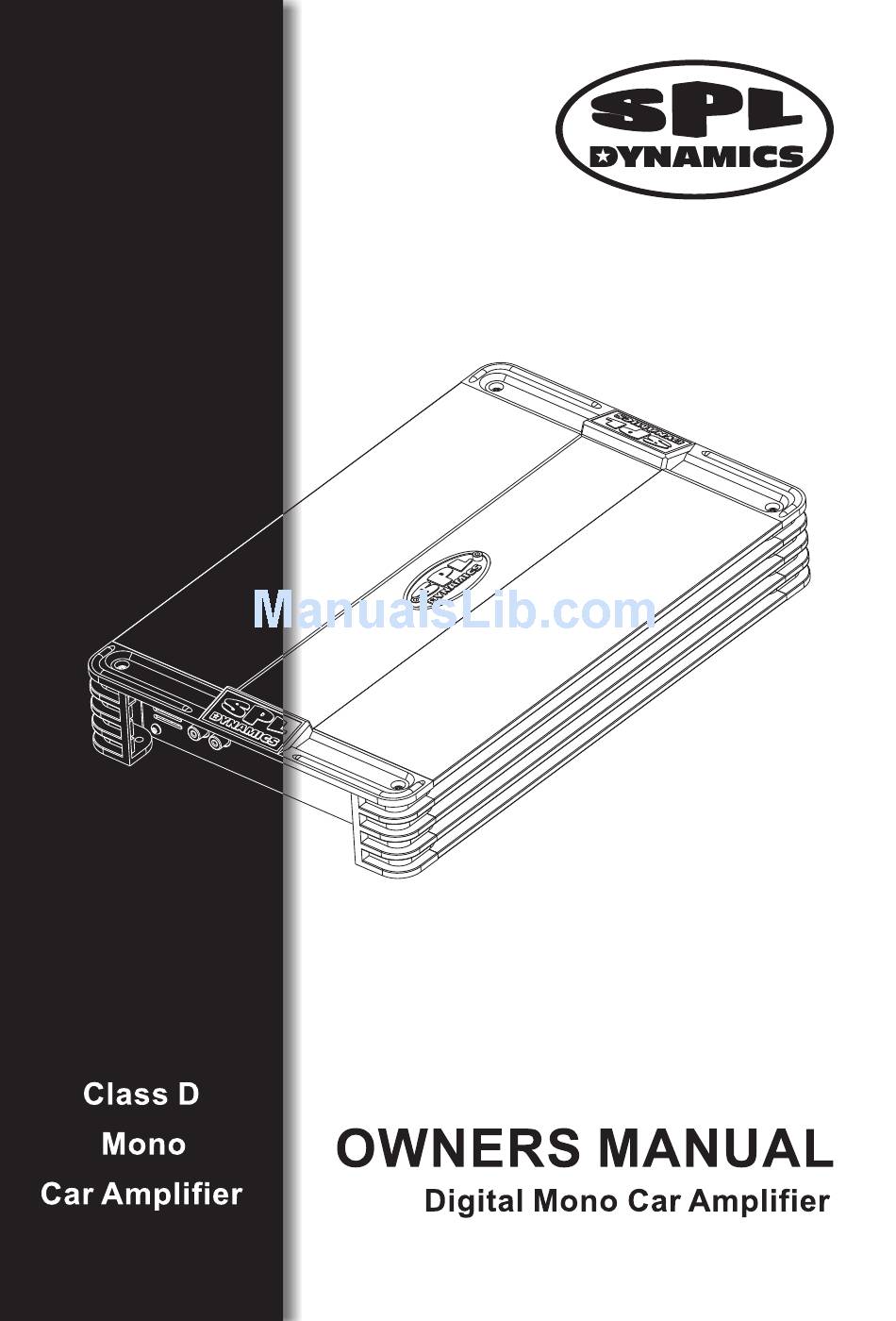

- Page 1 ICE-800D ICE-1500D ICE-3500D...
- Page 3 SPL Dynamics ICE - series Class D subwoofer amplifiers provide high performance sound reinforcement for your car audio system without compromise. To achieve optimum performance,it is highly recommended that you read this Owner’s Manual before installation,Check also our web-pages to have more information about different system configurations.
- Page 5 We recommend minimum AWG 16#(1,5mm2) speaker cable. The detailed connection ways ar shown in page 8~10.
- Page 6 ICE-3500D...
- Page 8 use with high electric current. 1. choosing a flat and good condition for heating place to install amplifier.
- Page 9 2. Using attached hexagon wrench to remove the end cap on the amplifier as below picture showing. 3. Using attached screws to fix the amplifier to the chosen place. 4. Connecting power and speaker referring to Output Wiring Diagarm. 5. Reset the end cap to the amplifier.
- Page 12 (ICE-800D/ ICE-1500D/ ICE-3500D)
- Page 14 RMS Power @ 4OHM 3 2 0 W 5 8 0 W 700W (THD<1%) RMS Power @ 2OHM 9 8 0 W 1300W 5 5 0 W (THD<1%) RMS Power @ 1OHM 2200W 1 4 8 0 W 8 0 0 W (THD<1%) RMS Power @ 0.5OHM 3200W...
