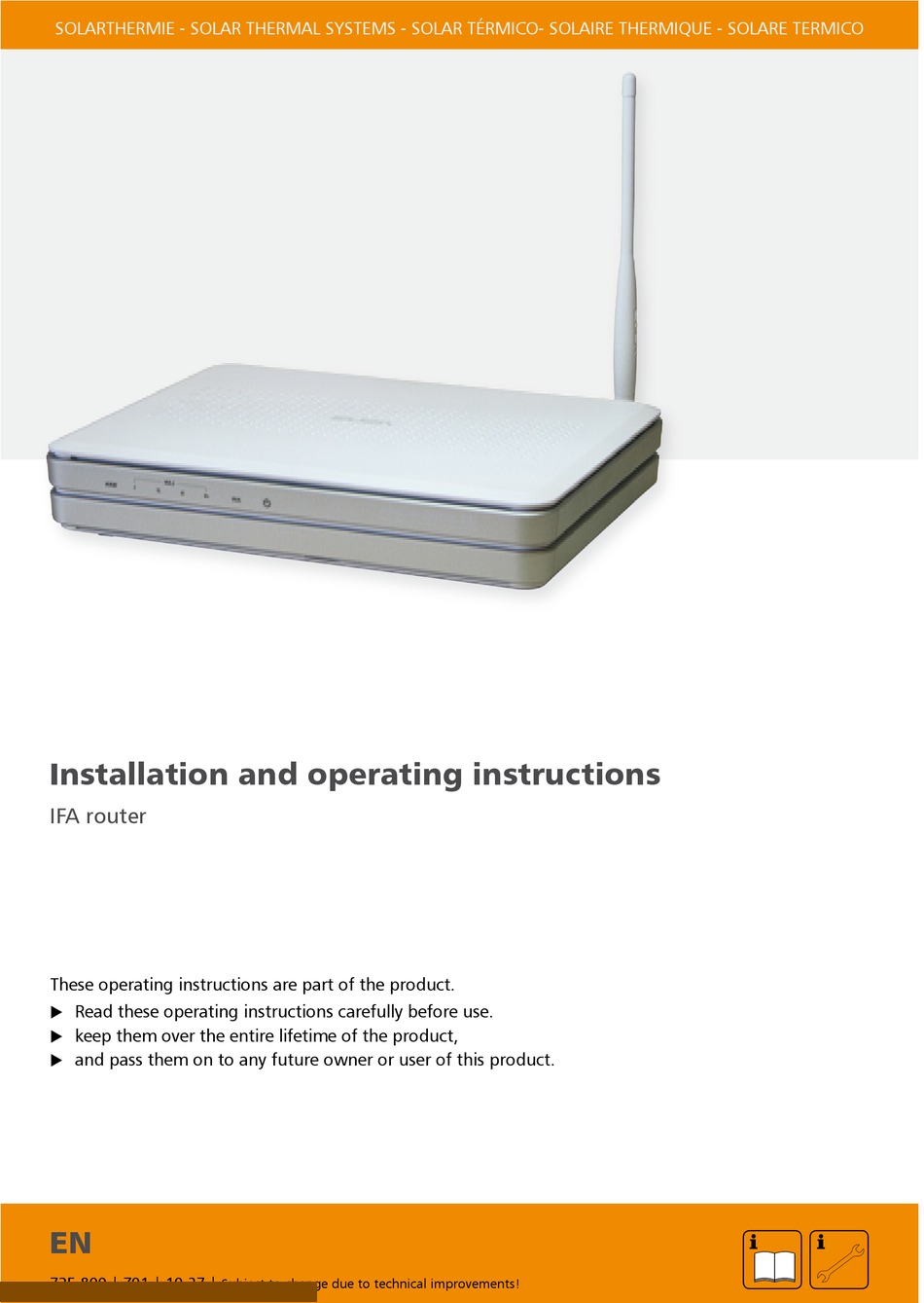

SOLARTHERMIE - SOLAR THERMAL SYSTEMS - SOLAR TÉRMICO- SOLAIRE THERMIQUE - SOLARE TERMICO
Installation and operating instructions
IFA router
These operating instructions are part of the product.
Read these operating instructions carefully before use.
keep them over the entire lifetime of the product,
and pass them on to any future owner or user of this product.
EN
735.800 | Z01 | 10.7 |
Subject to change due to technical improvements!
Advertisement
Table of Contents
Summary of Contents for Steca TK RW-2
- Page 1 SOLARTHERMIE - SOLAR THERMAL SYSTEMS - SOLAR TÉRMICO- SOLAIRE THERMIQUE - SOLARE TERMICO Installation and operating instructions IFA router These operating instructions are part of the product. Read these operating instructions carefully before use. keep them over the entire lifetime of the product, ...
-
Page 2: Table Of Contents
Content Product information ................. 3 Product description ..............4 Proper usage ................4 1.2 Components .................4 1.3 Functionality .................5 Safety ..................6 Dangers during assembly/commissioning ........ 6 Detecting faults ............... 6 Exclusion of liability ..............6 Casing overview of the router ..........7 About this manual ...............8 Applicability ................8 Users .................. -
Page 3: Product Information
10 A ppendix: Adding your own images to a slideshow ..23 10.1 Requirements to your own pictures ........3 10. Procedure for inserting your own images ......3 11 Error search ................24 11.1 General error sources with the IFA router ......4 11. Error causes with the picture frame ........5 11.3 Causes of faults in the IFA router ........... -
Page 4: Product Description
Product description Proper usage The IFA router (Internet remote display router) is a part of the Internet-based digital remote display for the visualisation of a solar thermal system. The IFA router enables the display of temperature and performance data of a solar thermal system in your Internet browser window*. In order to be able to display this data, you will need a PC with Internet connection. -
Page 5: Functionality
Functionality The controller cyclically sends the current system data to the IFA router, which forwards the data to a central server. This server then displays the data in visualised form on the Internet. The data is embedded into the appropriate system image in the IFA router and the temperature diagram is generated. The system image and the temperature diagram are sent via the wireless LAN interface from the IFA router to a digital picture frame. -
Page 6: Safety
Safety Dangers during assembly/commissioning The following risks exist during the commissioning of the router and the picture frame: • Danger to life due to electric shock caused by a damaged mains adapter plug. • During work on the controller, the safety instructions for the controller instructions must also be fol- lowed. -
Page 7: Casing Overview Of The Router
Casing overview of the router Power supply mains adapter plug USB port for USB flash drive Aerial connection EZSETUP: The wireless LAN interface is switched on or off by pressing briefly. If the button is kept pressed down for at least 5 seconds, the version number display appears on the screen of USB port for data transfer... -
Page 8: About This Manual
About this manual Applicability This manual covers installation, commissioning, and operation of the IFA router for remote display of a solar thermal system. The relevant instructions from the respective manufacturers are to be followed for the remaining components, e.g. broadband router, picture frame and solar control. -
Page 9: Mounting And Installation
4.3.4 Other symbols and markings Symbol Meaning Condition for action ✓ Call to action Result of action • List Emphasis Emphasis Mounting and installation NOTE Please note the MAC address before mounting. This is on the rear side of the IFA router and is required for registration (see drawing below). -
Page 10: Installation
Installation In the following, the individual steps for installing the remote display are described. Please follow the sequence. 1. Connect the RS3 interface cable to the controller. Please also see the instructions for the controller. Pay attention to the wire colours. Terminal diagram of the Rx Tx RS3 interface... -
Page 11: Internet Remote Display
9. Connect the mains cable to the WAN port of the IFA router and to the LAN port of the broadband router. The address is issued in the IFA router either via DHCP (automatic issue of the IP address) or can be given statically in the configuration file, see Chapter 8.3. 10. -
Page 12: Settings
Settings With the Internet remote display, the image sequence can be adapted and supplemented with your own images. Log in to www.solarthermalweb.de or www.solarthermalweb.com with your username and the settings password. Upload additional pictures / logo: Upload additional pictures, each with a maximum size of 1 MB. -
Page 13: Using A Digital Picture Frame: Initial Commissioning
Diagram title: A diagram title can be defined which is displayed above the temperature diagram. The required title is written into the line with a maximum of 50 characters, and stored with "save". Select inputs for diagram: Additional temperature sensors can only be shown in the temperature diagram by setting the control check- mark, and not in the system image. -
Page 14: Confirming The Network Connection
Confirming the network connection A successful connection to the wireless network "TK RW Net" is con- firmed. The digital picture frame is now asking to install the EasyShare software on the IFA router. Prompt the installation with "Search now". Detected devices The detected devices are listed. -
Page 15: Changing The Wlan Settings
Changing the WLAN settings If another wireless network is run within range of the IFA router, it may be necessary to change the channel or the network name of the WLAN network in order to prevent faults occurring. In addition, the encryption of the WLAN network can be adjusted as required. -
Page 16: Contents Of The Configuration File
Contents of the configuration file ;######################################## ;### Fernanzeige Konfiguration / Remote display configuration ### ;######################################## ;1: Einstellungen bezueglich Fernanzeige / Settings regarding remote display [FERNANZEIGE_CONFIG] ;1.1: Anlagenbild (aktiv: 1 / inaktiv: 0) / System image (active: 1 / inactive: system_active = 1 ;1.: Zeittagesdiagramm (aktiv: 1 / inaktiv: 0) / daily time diagram (active: 1 / inactive: 0) diagram_active = 1... - Page 17 ;.: WLAN Netzwerkname / WLAN network name ssid = „TK RW Net“ ;.3: WLAN Kanal (Wert zwischen 1 und 11) / WLAN channel (Value between 1 and 11) channel = 6 ;.4: WLAN Verschluesselung / WLAN encryption („OPEN“, „WEP“, „WPA“, „WPA“) encryption = „OPEN“...
- Page 18 8.3.2 Time diagram ;1.: Time diagram active: 1, inactive: 0 diagram_active = 1 Diagram_active is preset in the factory to 1, so the daily diagram can be selected and displayed in the digital picture frame. If diagram_active is set to 0, the daily diagram cannot be selected in the digital picture frame.
- Page 19 8.3.6 Diagram legend ;1.6: Texts for diagram legend (1 characters) diagram_t1_text = "T1" diagram_t_text = "T" diagram_t3_text = "T3" diagram_t4_text = "T4" diagram_t5_text = "T5" diagram_t6_text = "T6" Names can be defined for the temperature sensors for the legend in the temperature diagram.
- Page 20 8.3.10 Wireless LAN channel ;.3: Wireless LAN channel (value between 1 and 11) channel = 6 The factory preset value for channel is set to 6. The value can be changed between 1 and 11. 8.3.11 Wireless LAN encryption By default, the IFA router is supplied without wireless LAN encryption because no security-relevant information is being transmitted.
-
Page 21: Restoring The Configuration File
8.3.13 Protocol for IP ;3.1: Protocol used for IP issue ("static" / "dhcp") wan_protocol = "dhcp" The protocol is pre-set in the factory to "dhcp". If a fixed IP address is used, the wan_protocol must be set to "static". Then, the IP address must be defined as shown in 8.3.14…8.3.16. -
Page 22: Appendix: Customised Logo
Appendix: Customised logo Only with remote display via wireless LAN capable digital picture frames: A customised logo can be stored on the USB flash drive. The logo will be displayed on top right of the system image. The position of the logo is predetermined. -
Page 23: Ppendix: Adding Your Own Images To A Slideshow
Appendix: Adding your own images to a slideshow You can add your own pictures to those in the remote display. They are then displayed alternatingly in the slideshow. 10.1 Requirements to your own pictures • only images in the JPEG format can be used. The suffix for each of the images must be "jpg". -
Page 24: Error Search
Error search The IFA router is a quality product and is designed for many years of continuous use. Should, however, a fault occur, the cause of the fault is often not the IFA router itself but the peripheral system components. The following description of some causes of problems should help the installer and operator to isolate the problem so that the system can be repaired as quickly as possible and to avoid unnecessary costs. -
Page 25: Error Causes With The Picture Frame
11.2 Error causes with the picture frame Problem Cause / Remedy Wireless network not found. • Is the IFA router in operation? • Is the maximum distance to the IFA router being exceeded? The "SolarShare" network computer Can occur if you try to reconnect an existing connection. cannot be found. -
Page 26: Legal Guarantee
Legal guarantee In accordance with European regulations, there is a -year legal guaran- tee on this product for the customer. The seller will remove all manufacturing and material faults that occur in the product during the legal guarantee period and affect the correct functioning of the product. -
Page 27: Notes
Notes 735.800 | 10.7... - Page 28 735800...
