Summary of Contents for Cocoon GT42395

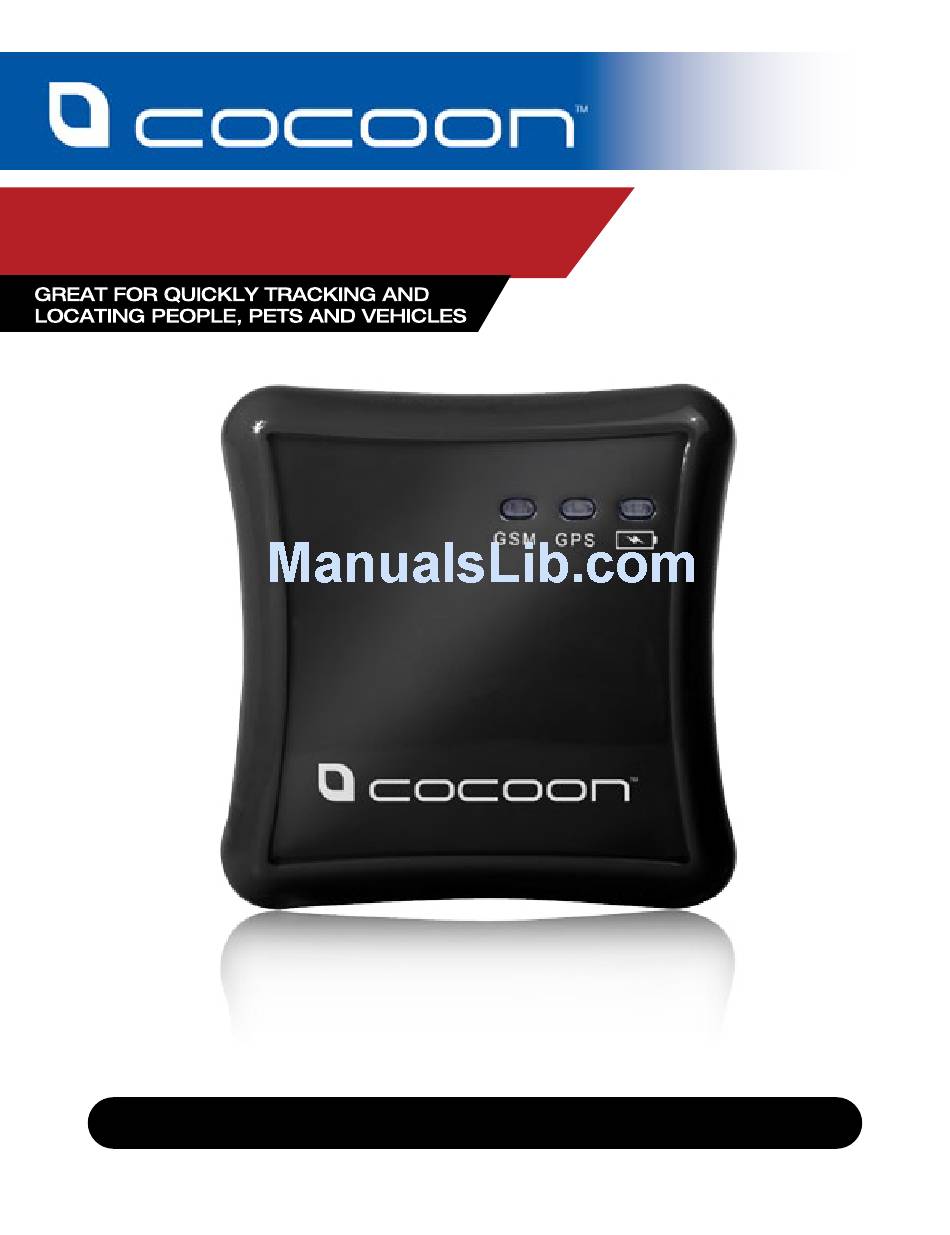

- Page 1 GPS TRACKER GREAT FOR QUICKLY TRACKING AND LOCATING PEOPLE, PETS AND VEHICLE S Model Number: GT42395 INSTRUCTION MANUAL...
- Page 2 10mm separation. Carry the Cocoon GPS tracker at least 10mm away from your body to ensure exposure levels remain at or below the as-tested levels. Cases with metal parts may change the RF performance of the device, including conformance with RF exposure guidelines, in a manner that has not been tested or certified.
-
Page 3: Table Of Contents
- Package Contents............................- Product Overview............................- LED Light Status.............................. - Charging the GPS Tracker..........................- Powering On / Off the Cocoon GPS Tracker..................2. Functions - Setting Authorized Numbers........................- Removing an Authorized Number......................- Reset to Factory Settings.......................... -
Page 4: Getting Started
1. Getting Started Introduction Thank your for purchasing the Cocoon GPS Tracker. We trust you will get many years of carefree and reliable use out of this product. Please read and follow the user manual before first use. If you experience any difficulties setting up or using this... -
Page 5: Led Light Status
BACK SIDE RIGHT SIDE 7. Back Cover 6. USB Charging Port 8. Battery Compartment 9. SIM Card Slot LED Light Status GREEN LED - GSM Quick flash(0.2 seconds on and 2.8 seconds off ) GPS Tracker is connected to GSM network Flashing (1 second on and 2 seconds off ) GPS Tracker is not connected to GSM network Solid... -
Page 6: Charging The Gps Tracker
NOTE: Charge the GPS Tracker for a minimum of 4 hours before first use to maximise the battery life Powering On / Off the Cocoon GPS Tracker Hold the Power button on the top of the unit for 5 seconds to turn the GPS tracker on The GSM &... -
Page 7: Functions
The default password is 123456. It is recommended that you change this password. Setting Authorized Numbers The Cocoon GPS Tracker allows up 3 phone numbers to send and receive commands. Follow the steps below to authorize a phone number. From the mobile you would like to authorize, SMS [PASSWORD]+[A/B/C]+1... -
Page 8: Reset To Factory Settings
Reset to Factory Settings The Cocoon GPS Tracker can be reset to factory settings by using the following command. This can be useful if you forget your password. Warning: All settings, data and preferences will be lost and reset to a default state. -
Page 9: Setting The Time Zone
Time, you would SMS 123456L+10 to the Cocoon GPS Tracker Naming the GPS Tracker You can add a name to the Cocoon GPS Tracker to give individualised SMS reports. This can be useful if you need to distinguish between multiple GPS trackers... -
Page 10: Locating The Gps Tracker With Google Maps
Locating the Cocoon GPS Tracker with Google Maps link Your Cocoon GPS Tracker can send you an active website link to Google Maps of the latest GPS coordinates of the device. To request a Google Maps link showing the location of the Cocoon GPS... -
Page 11: Setting Up A Geo-Fence Alarm
Web service. We recommend only advanced users set up a Geo-Fence using SMS commands. To set up a geo-fence alarm around current location of the Cocoon GPS Tracker, send an SMS to the Cocoon GPS Tracker in the following format: 0=Alarm on Entry 1=Alarm on Exit Geo Fence number. -
Page 12: Turning Off A Geo-Fence Alarm
1, you would SMS 123456I1,0,0 to the Cocoon GPS Tracker Setting a Speed Alert Your Cocoon GPS can be set to alert you when it exceeds a set speed. To set up a speed alert, SMS [PASSWORD]+J+1+(001-255) to the Cocoon... -
Page 13: Movement Alert
GPS tracker. Press the SMS button for 3 seconds The GSM light will dim and the Cocoon GPS Tracker will send an SMS to all registered numbers stating “Help me! +GPS Info” with the current coordinates of the GPS Tracker 3. -
Page 14: Navigating The Map
LEFT BUTTON Click and drag to move the map Registering the Cocoon GPS Device Click on “Manage” from the menu located on the left side of the webpage Click “Tracker Info” Click on the “Add New Tracker” button and fill in the name, tracker icon, hard version, IMEI, user ID and Tracker SIM number fields Click the “Add”... -
Page 15: Changing Settings
Changing Settings Click on “Settings” from the menu on the left side of the webpage to open the settings dialogue box From this dialogue box you can change the authorized numbers, change the interval of data reporting, set a speed alarm, modify the time zone, set a movement alarm, enable/disable coordinate saving and request a status SMS Warning: Please do not change any settings if you are unsure what the effect will be... -
Page 16: Adding A New Geo-Fence Online
“Finish GEO editing?” dialogue box to return to the “Add New Geo-Fence” menu You can now change the alarm to either send an alert when the Cocoon GPS tracker enters the geo-fence or when it leaves Click the “Submit” button. The geo-fence is now active... -
Page 17: Modifying/Deleting An Existing Geo-Fence Online
Modifying/Deleting an existing Geo-Fence - Online Select “Geo-Fence” from the left side menu to open up the geo-fence dialogue box In the “Operation” column click on the green modify text to open the “Edit Geo-Fence” dialogue box Modify the fields required then click the “Submit” button In the “Operation”... -
Page 18: Latitude And Longitude Values On The Map
A filter can be applied via the drop down menu if a certain type of data is required When you hit “search” the web tool will return every GPS point reported within the specified time frame From the “Reports” dialogue box you can choose to export the data to an .xls format by clicking “Export Excel”... -
Page 19: Adding A New Tracker
Manage Adding a New Tracker Click on “Manage” from the menu of the left side of the webpage Click “Tracker Info” Click on the “Add New Tracker” button Fill in the name, tracker icon, hard version, IMEI, User ID and Tracker SIM number fields Click the “Add”... -
Page 20: Email Settings
Email Settings You can set your device to send you email alert settings as well as SMS Select “Manage” from the left side menu to open the email settings screen Click “Email Settings” Check the box marked “Send email Alert” Fill in the information as given by your email provider then click the “Modify”... -
Page 21: Understanding The Buttons / Commonly Used Abbreviations
Understanding The Buttons Power Press and hold for 5 seconds to turn on/off the GPS Tracker Press for 3 seconds to send SMS’ to all sorted numbers Commonly Used Abbreviations GPS INFO :DD-MM-YY Time:HH:MM:SS Lat:000.00000000N Long:000.00000000E Speed:000.0 GEO INFO Date:DD-MM-YY Time:HH:MM:SS Speed: 000.0 SMS COMMAND Send an SMS to the SIM card inserted in the GPS Tracker... -
Page 22: Faq's
SMS commands How many phone numbers can I The Cocoon GPS Tracker can have up to three authorize on the GPS tracker? authorized phone numbers at any one time How do I view a map on my... - Page 23 GPS Tracker, the GPS Tracker is charged for the text How do I know if the GPS tracker is The Cocoon GPS Tracker will not be able to out of credit? send replies to you SMS commands if it is out of credit.
-
Page 24: Sms Commands
Summary of SMS Commands Note: Ensure there are no spaces in the texts and that all letters in CAPITALS unless otherwise stated The phrase PASSWORD should be substituted with your own password. The default password is 123456 as used in the example below SUMMARY OF SMS COMMANDS Function Command... -
Page 25: Sms Commands
SUMMARY OF SMS COMMANDS Function Command Comment Western Daylight Time 123456+09 Time zone = +09 UTC Add name to SMS alerts 123456U1,John Name can be lower case Request LAT + LONG 123456F Coordinates Request Coordinates with 123456FM Google Maps Link Request Coordinates + 123456ADD GPRS signal must be... -
Page 26: Support / Warranty Details
Support For additional support including helpful guides and videos, visit the Cocoon support website at www.winplus.com.au/cocoon.html Telephone: 1300 663 907 Email: customercare@winplus.com.au Website: www.winplus.com.au Warranty Details This product is warranted against defects for a period of One year If the product is faulty, Winplus will repair or replace the product (at its discretion) at no cost to you provided the product has been used in accordance with instructions provided. - Page 27 Notes:...
