Summary of Contents for Texecom Premier ComISDN

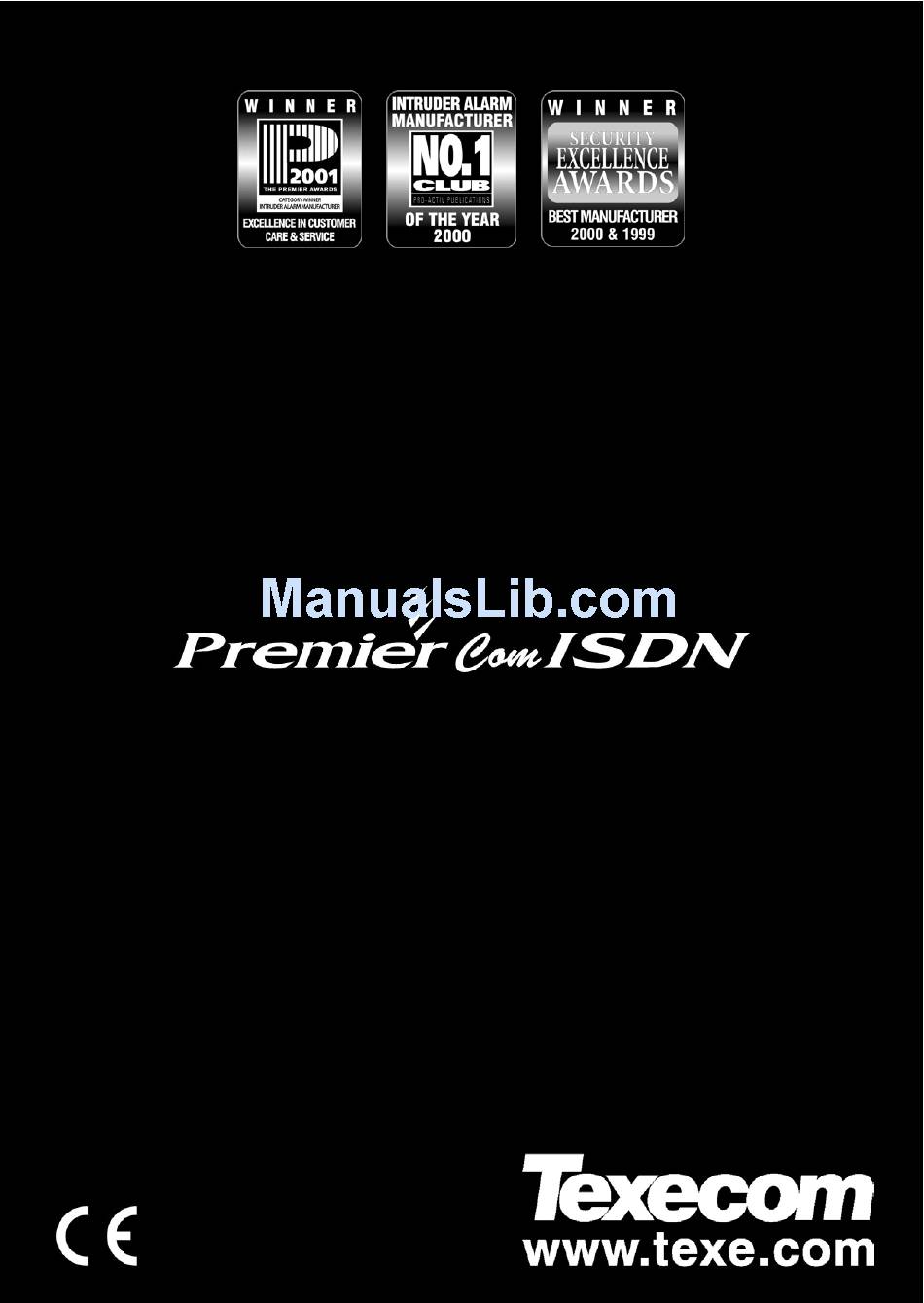

- Page 1 THANK YOU FOR VOTING TEXECOM INSTALLATION MANUAL Digi-modem Issue 3...
-
Page 2: Table Of Contents
Contents ComISDN Installation Manual Contents 1. Regulatory Requirements ..............3 General....................... 3 Approval ....................... 3 2. Overview .................... 4 General....................... 4 Digimodem Features..................4 ComISDN Layout ..................5 Operation ......................6 Communicator Operation ................6 Modem Operation ..................6 3. Installation ..................7 Plugging on the Digimodem ................ -
Page 3: Regulatory Requirements
ISDNs provided in different countries, the approval does not in itself give unconditional assurance of successful operation with every ISDN network termination point. In the event of problems, you should contact Technical Support at Texecom Ltd. The Premier ComISDN digimodem has been approved for the following usage: •... -
Page 4: Overview
ComISDN Installation Manual 2. Overview General The Premier ComISDN digimodem is compatible with the Premier series of control panels: The digimodem is connected to the control panel via an 8-pin connector located at the top right hand corner of the control panel. An RJ45 connector is also provided to connect the digimodem to an ISDN telephone line. -
Page 5: Comisdn Layout
ComISDN Installation Manual Overview ComISDN Layout Com 1 RJ45 Connector (ISDN) Connection Plug RJ45 Socket (ISDN) Direct connection for ISDN telephone line (see page 8 for wiring details). Connection Plug Plugs into digimodem socket on top right hand corner of control panel. INS187... -
Page 6: Operation
V.21, V.22 or V.22bis operation. To obtain your copy of the Wintex UDL software, please complete and return the Software Registration form enclosed with the Premier ComISDN. Communicator Operation When a reportable system event occurs, the digimodem will seize the telephone line and dial the telephone number for the Alarm Receiving Centre, once the receiver answers the call the following sequence of events will occur. -
Page 7: Installation
ComISDN Installation Manual Installation 3. Installation Plugging on the Digimodem ! To install the digimodem, proceed as follows: Isolate ALL power from the control panel (AC Mains and Battery). Do not continue if there is power still present on the control panel. Installing the digimodem with power still present on the control panel will seriously damage the digimodem and invalidate any warranty. -
Page 8: Isdn Line Connections
Installation ComISDN Installation Manual ISDN Line Connections ! To connect the telephone line, proceed as follows: Connection to the ISDN telephone network must be made via an RJ45 ISDN terminal (Line Box). Fit the rubber grommet supplied with the digimodem into the 20mm cable entry in the top right hand corner of the control panel. -
Page 9: Programming The Comisdn
ComISDN Installation Manual Installation Programming the ComISDN ! To program the ComISDN, proceed as follows: !"#$ Enter into the Engineers Menu & Select the UDL/Digi Options menu and press & Select the Program Digi menu and press !" • Select the required ARC set •... -
Page 10: Testing The Modem
Installation ComISDN Installation Manual Testing the Modem ! Once all the installation steps have been completed, proceed as follows: Reconnect power to the control panel. Please refer to the control panel Installation Manual for full details on programming the digimodem. Ask the operator of the Wintex UDL software to establish a connection and observe that the Heartbeat LED (on the control panel) flashes at a faster rate when the connection is established. -
Page 11: Specifications
ComISDN Installation Manual Installation 4. Specifications Electrical Operating Voltage 10 - 13.7V Current Consumption Quiescent 35mA When Active 100mA Communicator Protocols Fast Format Contact ID SIA Level II EasyCom Pager Modem Protocol V.21 (300-baud) - Analogue to Digital V.120 (19200-baud) - Digital to Digital Telephone Numbers 6 (up to 24 digits each) Dialling Formats... -
Page 12: Standards
ComISDN digimodem are covered by a two-year warranty against defects in material or workmanship. As the Premier ComISDN digimodem is not a complete alarm system but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that the Premier ComISDN failed to function correctly.
