Summary of Contents for Eccs E0824

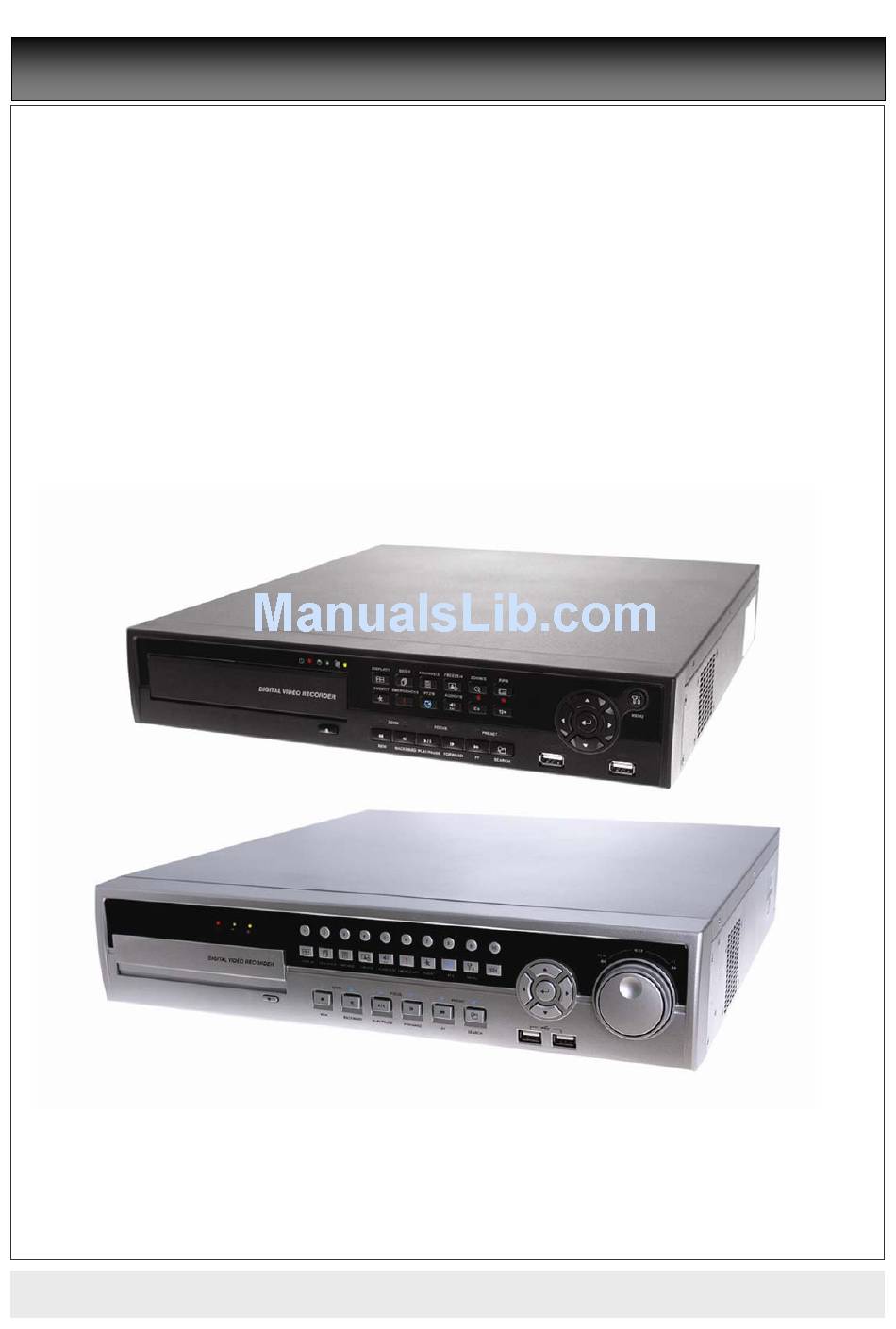

- Page 1 Stand Alone Digital Video Recorder REALTIME DVR 4, 8, 16 Channel Models User’s Manual EKFQ3_V2.08-o199 This document contains preliminary information and is subject to change without notice.
-
Page 2: Fcc Compliance Statement
FCC Compliance Statement Notice to Users This equipment has been tested and found to comply with the limits for a Class A digital device. Pursuant to Part 15 of the FCC Rules, these limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Important Safeguards
Cautions This product has multiple-rated voltages (110V and 220V). See installation instructions before connecting to the power supply. This product uses a Lithium battery. To avoid any risk of explosion, do not replace the battery on the main board by anything other than a Lithium battery. Dispose of used batteries according to the manufacturer’s instructions. - Page 4 Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the equipment. 12.
- Page 5 THE LIST OF CONFIGURATION A Type 16CH B Type DVR Set 16CH CD (Software/Manual) Remote Controller Manual Screws Data Cable (SATA Cable) HDD Brackets (Optional) Power Cable...
-
Page 6: Operation Precautions
Operation Precautions Power Off Do not turn DVR off, or plug off the power adapter while DVR is in operation (record/playback). Otherwise, it may cause permanent damage to the equipment. Please click ( ) SETUP>SYSTEM>Shutdown sequentially and then remove the power after DVR is shutdown completely. -
Page 7: Table Of Contents
Table of Contents SERVER New User Product Features ---------------------------------------- 8 4.2.4 Unpacking ------------------------------------------------------ 8 System Log ---------------------------------------------------- 26 4.2.5 Service ---------------------------------------------------------- 8 Exit --------------------------------------------------------------- 26 4.2.6 System Connection Diagram------------------------------ 8 Shutdown ----------------------------------------------------- 27 DISPLAY ----------------------------------------------------- 27 4.3.1 Installation - OSD ------------------------------------------------------------- 27 ------------------------------------------------ 10 4.3.2 Main Monitor -------------------------------------------------- 28... - Page 8 5.1.8 Emergency Recording------------------------------------- 46 Others --------------------------------------------------------- 71 Search --------------------------------------------------------- 46 10.1 Viewer ----------------------------------------------------------- 71 5.2.1 Date/Time Search ------------------------------------------ 46 10.2 E Map ------------------------------------------------------ -71 5.2.2 Calendar Search -------------------------------------------- 46 10.3 Watermark Check System----------------------------- 72 5.2.3 Event Search ------------------------------------------------- 47 10.4 Estimator ------------------------------------------------ -- 73 Playback------------------------------------------------------- 48 10.5...
-
Page 9: Product Features
Product Features Unpacking This equipment is an electronic appliance, so it should be handled with special care. After unpacking, please check if all the following items are included. DVR Main body A Type Power Supply Adapter (DC 12V, 5A) and Power Supply Cable B Type Power Supply Adapter (DC 12V, 6.67A) and Power Supply Cable Remote Control With 2 AAA batteries... - Page 10 B Type - 4 / 8 / 16 Channel Series DVR...
-
Page 11: Installation
2. Installation Hard disk and DVD-RW Installation 2.1.1 SATA Port Main substrate of this DVR has three SATA ports: they are indicated as SATA 1,2 and SATA 3.( A Type ) Main substrate of this DVR has four SATA ports: they are indicated as SATA 1,2 and SATA 3,4.( B Type ) Up to two SATA devices (hard disk and DVD-RW) are connected in Serial to the SATA ports, but the devices must be connected correct SATA port. -
Page 12: Dvd-Rw Installation
2.1.4 DVD-RW Installation Securely fix DVD-RW by using bracket and screws provided herewith. Please do not use any different DVD-RW cables (data cable and power supply cable) other than the ones we provide. Otherwise, it may cause damage to the DVD-RW. Only one DVD-RW can be used. -
Page 13: Power Supply Connections
Put the clip pin into the switch hole on the monitor (Live) screen and keep pressing until you feel the switch has clicked. CAUTION PRESS FACTORY RESET SWITCH ONLY IN LIVE MODE. NEVER PRESS IN SETUP MODE. 2.2.10 Power Supply Connections A Type : Plug the power supply adapter (DC 12V, 5A) which include in this product to ’DC12V’... -
Page 14: Input Device And Screen Icons
3. Input Device and Screen Icons Keys and LEDs KEYS PTZ KEY Operating mode Setup mode • Up/Down/Left/Right on ▲, ▼, ◄, ► • Control Pan/Tilt rotation of up/down/left/right in PTZ mode screen cursor control 1 ~ 8 • Camera select keys (4/8 channel DVR) 1 ~ 10 •... -
Page 15: Camera Select Keys For 16 Channel Dvr
Camera Select Keys for 16 channel DVR A Type model Below shows how to select camera channel for 4 channel DVR – Select Camera No. 1~4: press key and use 1~4 Below shows how to select camera channel for 8 channel DVR –... -
Page 16: Using A Remote Control
B Type model 4 Channel DVR 8 Channel DVR 16 Channel DVR Using a Remote Controller Usage of a remote controller is same as the front panel keys. Follow the procedure below when you use the remote controller for multi DVRs. ①... -
Page 17: Screen Icons
Screen Icons Icon Description Icon Description Continuous recording mode In Audio recording Event recording mode CMS access indication/ No. of accesses (Alarm In/Motion) (up to 4) In recording In channel sequencing PTZ registration / PTZ mode Lock Remote Controller Setup in HDD Overwrite mode Setup in HDD No Overwrite mode Setup in HDD No Overwrite mode (HDD Full) -
Page 18: Setup
4. Setup Login/Logout At the default setting of DVR, you have to input the password to enter the set up menu. Please press SETUP key to enter the setup menu and the following screen will appear. In order to use all functions and privileges, login is as ID: admin. Default Password is “1111”. -
Page 19: System
(NOTE) Press AUDIO/ESC in the setup screen, start operation alike CANCLE (ESC). It will not operate live or playback mode but only in the setup menu. SYSTEM 4.2.1 Information Please click ( ) SYSTEM>Information and the following screen will appear. Status Site Description Decide name of DVR. -
Page 20: Version
Import: Copy the Menu setup stored in USB memory stick into DVR. Please plug in the memory stick and then click ( ) Import. Export: Store the Menu setup of DVR in USB memory stick. Please plug in the memory stick and then click ( ) Export. When you are working on Default, Import, Export, a message box will ask the progress and click the confirmation icon, then a message box will show whether its success or failure. -
Page 21: Admin
Overwrite Setting Click( ) Overwrite Setting button and the following screen will appear. You may set for beeping or notifying messages that notify the used percentage of disk. Check Disk Overwrite and you may activate the overwrite function. This function makes restart the recording from the beginning when the HDD is full. The previous recorded data will be erased from the first one. -
Page 22: Date/Time
Date/Time Date This menu will allow you to adjust the settings. Please follow the procedure below for time adjustment. ① Click ( ) items (Y, M, D) you want to change. A designated item will be highlighted in a box (Y: Year, M: Month and D: Date). -
Page 23: Ntp
Time Format Set time indication format. Please click ( ) Time Format frame to select a format you like from the list. When you complete Date/Time input, please click ( ) NTP and the following screen will appear. This menu is for accurate setting of time of day clock in DVR. You may check only one of Run as Server and Use NTP. - Page 24 Four rows will show as follows: – 1: SATA 1 Port – 2: SATA 2 Port – 3: SATA 3 Port – 4: SATA 4 Port( B type model only ) Format You must format when you: – install new HDD –...
-
Page 25: Account
Click ( ) Inspection Time frame to set inspection time. Click Check by frame to select inspection interval. Last Check Time: show the time of the last inspection. Click ( ) ▲, ▼ direction buttons on the right-hand side of Temperature frame to adjust to maximum temperature for the HDD used in DVR. -
Page 26: New User
New User Please click ( ) New User and the following screen will appear. Click ( ) the keyboard icon on the right-hand side of User Name frame and the virtual keyboard will appear. Click desired characteristics (up to 8 characteristics) on the virtual keyboard. Input Password and Confirm. -
Page 27: System Log
This is a screen for password resetting Input password by clicking the keyboard icon on the right-hand side of the frame. key if you wish to erase password on keyboard. 4.2.4 System Log Please click ( ) SYSTEM>System Log and the following screen will appear. System Log System Log displays diverse events. -
Page 28: Exit
– USB Upgrade Success/Fail – DVR Setup Change by Remote – Before/After Time Adjust System Log removal procedure is as follows: – Execute Clear All Data in SYSTEM>Information>Record and choose ‘OK’ on the popup dialogue box. Please note that all normal recorded video data are deleted from database. –... - Page 29 The OSD menu will allow you to configure full features (i.e., on/off every letter and icon) displayed on the screen. Letters and icons are divided under System and Camera categories. If you click ( ) ‘All’, all items are on/off at once. OSD Margin The OSD Margin menu will allow you to adjust the position of OSD (letters) on the monitor.
-
Page 30: Main Monitor
Transparency The Transparency menu will allow you to alpha-blending of OSD menu on the monitor. Transparency is the quality that an object or substance has when you can see through it. Transparency range is between 0 and 100, with a larger number representing can see through it. (default 0) While pressing (+) or (-) button, a target value increases or decreases by 10 units. -
Page 31: Spot Monitor Control On Display Mode
This menu will allow adjust interval of channel sequencing of Spot monitor. Click ( ) Spot Select to choose Spot monitor to be set up. Check (check box next to the camera you want to include in sequencing. Any camera with unchecked check box will be excluded from channel sequencing. -
Page 32: Lan
Network Type Please click ( ) Network Type. Every time you click ( ), it changes to Static (fixed IP) and DHCP (floating IP). In Static, user must manually set the static IP address for use. – Set IP Address, Subnet Mask and Gateway. Please ask your network administrator for more details. –... -
Page 33: Port
‘Floating IP system’, although being predominantly used over Internet, is very inconvenient for users because its address varies every time you access. The best alternative is DDNS (Dynamic Domain Naming System) which uses name (domain name) instead of IP address (numbers). DDNS automatically recognizes ever changing, floating IP addresses, so it will allow easy Internet access. -
Page 34: Notification
Network video transmission speed and quality can be configured by pressing “Frames” and “Quality” buttons as follows. Frames : 1, 2, 3, 4, 5, 7, 15, 30 frames for NTSC(1, 2, 3, 4, 5, 6, 12, 25 frames for PAL) Quality : Std. -
Page 35: Audio
Give titles to cameras and choose PTZ protocols. Click ( ) the keyboard icon on the right-hand side of each frame on Title column and the virtual keyboard will appear. Then, register titles of cameras. If you check a check box on No column, a video of the corresponding camera is recorded and displayed on the monitor. However, if you do not check the checkbox, both recording and monitor display stop. -
Page 36: Alarm In
The Audio menu will allow you to choose whether to record Audio. When you check a check box on No column, corresponding audio and video are recorded. However, if you do not check the check box, recording stops. Choose ‘OK’ to confirm the setting. 4.4.4 Alarm In Please click ( ) DEVICES>Alarm In and the following screen will appear. -
Page 37: Record
Click ( ) the keyboard icon on the right-hand side of each frame on Title column and the virtual keyboard will appear. Then, please register the title of Alarm output. When you check a check box on No column, a corresponding Alarm output starts operating. However, if you do not check the check box, the operation stops. -
Page 38: Emergency
The Event menu will allow you to set Event videos. Each frame on Title column shows camera title registered in DEVICES>Camera/PTZ. You cannot change camera titles here. Click ( ) each frame on Resolution column to select recording resolution of a corresponding camera. You may select one of 720x480, 720x240 and 360x240. -
Page 39: Schedule
Network Setting Dual Streaming Disabled Dual Streaming Enabled NTSC(PAL) 360x240 720x240 720x480 360x240 720x240 720x480 4 Channel DVR 120(100) 120(100) 60(50) 120(100) 120(100) 60(50) 8 Channel DVR 240(200) 120(100) 60(50) 240(200) 120(100) 60(50) 16 Channel DVR 480(400) 240(200) 120(100) 240(200) 120(100) 60(50) Click ( ) each frame on Quality column to select recording quality of a corresponding camera. -
Page 40: Pre Alarm
(NOTE) Holiday (H) registration is done with a separate menu. 4.5.3 Pre Alarm Please ( ) RECORD>Pre Alarm and the following will appear. Pre Alarm is effectively used when you selected recording mode by Alarm or Motion. The Pre Alarm will allow you to check, during playback, the previously recorded video before the record start time. Each frame on Title column shows camera title registered in DEVICES>Camera/PTZ. -
Page 41: Holiday
– Camera: select camera for setup. – Sensitivity: select sensitivity (Low, Normal and High) – Motion display On/Off : Display motion trace on/off – Reverse Vert: activate the entire column at the cursor’s position. – Reverse Horz: activate the entire row at the cursor’s position. –... -
Page 42: Alarm In
The LINK menu will allow you to set recording modes of all kinds of alarms (Sensor, Motion Event, Video loss, System Event, etc.), alarm output, e-mail notification and the like. 4.6.1 Alarm In Please click ( ) LINK>Alarm In and the following screen will appear. Select cameras for recording while the motion sensor is in operation and alarm outputs and set up E-mail addresses for notification. -
Page 43: Video Loss
⑤ Repeat the above procedure for Motion Event 2~ Motion Event 16. Click( )By Duration box to set up the recording duration and prevent recording caused by event. The duration time can be controlled by previous setting mode: RECORD>Settings>Event Choose ‘OK’ to confirm the setting. 4.6.3 Video Loss Please click ( ) LINK>Video Loss and the following screen will appear. -
Page 44: Popup Link
than two alarm outputs can be set. ④ Select E-mail addresses for notification when emergency occurs. Please check a check box under Link Notification. More than two E-mail addresses can be set. Choose ‘OK’ to confirm the setting. 4.6.5 Popup Link Please click ( ) LINK>Popup Link and the following screen will appear. -
Page 45: Operation Instruction
5. Operation Instructions Viewing 5.1.1 First Image Power on DVR and the following live video will appear, while viewing and recording at the same time. The screen will display date/time and icons below. Icon Description Continuous recording mode Event recording mode (Alarm In/Motion) In recording PTZ registration/PTZ mode In Audio recording... -
Page 46: Digital Zoom
(NOTE) Using a mouse: Double click to view the corresponding camera image in full view format and click one more time to back to Split Screen. – Split Screen: Please press DISPLAY key and the available split screens (or multi-window view formats) will display alternately (i.e., 2x2, 3x3 and 4x4). -
Page 47: System Log
Run Group Tour 1~9 Run Pattern 1~9 To use a mouse in Pan/Tilt mode, please move the cursor to the lower portion near the center of the screen. To use front button in Pan/Tilt mode, please push setup button. A key pad control will show as follows: To save current camera number, select Preset No and button click. -
Page 48: Emergency Recording
Once the Key Lock function is on, you cannot use any key. If you want to use a key, please enter the correct password to release the key lock function. If Password is not required, simply press ENTER key. 5.1.8 Emergency Recording When you press EMERGENCY key, recording starts right away regardless of preset recording mode. -
Page 49: Event Search
Dates and Time with recorded data available will be high-lighted. Follow the procedure below to search video by calendar. ① Select Year and Month by using the arrow buttons in the calendar. – : search subsequent ‘Year’ – : search previous ‘Year’ –... -
Page 50: Playback
① Designate Event Search start time. ② Designate Event Search end time. ③ Select camera (video) to search data. ④ Check a check box (Motion / Alarm In / Emergency) Check box. ⑤ Click on Search Index button to recorded search event data. Playback This involves searching recorded video to playback the wanted video of a specific date and time in search mode. -
Page 51: One-Touch Playback
(NOTE) Using a mouse: Double click to view the corresponding camera image in full view format and click one more time to back to Split Screen. Move the cursor of the mouse and the keypad control will appear at the bottom near the center of the screen. Every time you press the PLAY/PAUSE key during playback mode, it is changed to ‘1X PLAY’... -
Page 52: Color Control And Position
② Click ( ) Format frame to select EXE or JPEG. Choose EXE for storing moving images; and JPEG for still images. ③ Click ( ) the keyboard display on the right-hand side of FROM frame to set the storage start time. ④... -
Page 53: Alarm Out Control
If you click (Default), proper number of Color Control or HSTART/VSTART will appear automatically. Please choose ‘OK’ to confirm the setting. Click ( ) ▲, ▼ direction buttons on the right-hand side of Brightness/Contrast/Saturation to set adjust color of the screen (i.e. -
Page 54: Cms
Stand Alone Digital Video Recorder (Central Monitoring Station) User’s Manual V2.08-o199 This document contains preliminary information and is subject to change without notice. -
Page 55: Program Installation
6. PROGRAM INSTALLATIONS System Recommendations The followings are our recommendations for system configurations/specifications used with CMS. Processor: Intel Pentium(R) (at 2.8GHz or higher) Memory: 1.00GB or more Video: 128 MB AGP VGA card, 1024 x 768 Resolution, 32-bit Color, DirectX® 8.1 version or later HDD Space: 500 MB of space Monitor: SVGA or XGA, 1024 x 768 Resolution, 32-bit Color OS: Windows®... -
Page 56: Login
⑦ When the following screen appears, click Install. ⑧ When the following screen appears, click Finish to complete the installation. Login After you install CMS software, CMS icon below appears on your desktop. Please double click on the icon to execute the program. -
Page 57: Search Mode
7. FUNCTIONS AND OPERATING INSTRUCTIONS Below lists are functions of the program. ICON ICON NAME WATCH MODE SEARCH MODE REMARKS System Log DVR System Log PTZ Control DVR PTZ Control System Health Check DVR System Health Check DVR Data Playback DVR Data Playback CMS(PC) Data Playback CMS(PC) Data Playback... -
Page 58: Watch Mode
WATCH MODE Login Screen When you login CMS, the following screen will appear. This screen is of Watch mode. Because it is not connected to DVR, images do not show. Please do Local Setting first before connecting to DVR. Local Setting Please click LOCAL SETTING button of Toolbar and the following screen will appear. -
Page 59: Remote Site
Manager/User: allow user to authority. Save Option: allow user to select Drive(C, D) and folder to save data. Choose ‘OK’ to confirm the setting. 8.2.2 Remote Site This menu is for Network setup. Make CMS IP address and Port coincide with DVR. Remote Site Connection Setup Site Name: input DVR site name to be displayed on the right-hand side of DVR icon. - Page 60 Click “Scan DVR” button then IP address of DVR will be listed which is currently connected with PC in the network. Select the IP address and click “Add site” then the connected DVR is automatically registered in the CMS. Camera Name It helps to set the camera name in CMS program other than DVR camera name.
-
Page 61: Live Video
Live Video 8.3.1 Network Connection As the setup is completed, you are now ready to connect CMS to DVR over Network. Please click in REMOTE DVR on the screen. It will turn to yellow, while being activated. Please click REMOTE CONNECT button. If a popup window for ID/Password appears, please input ID/Password. -
Page 62: Watch Mode
Date/Time LED Site Tree (DVR and Channels) Color Control Bar Instant Record Button System Log Alarm Out Channels Audio Channels Two way Audio Video Display Screen Network Connect/Disconnect Button/Exit CMS 8.3.2 Watch mode The first image (or the initial image) shows the available maximum split screen format, but you can choose a watch mode you want. -
Page 63: Multi Screen
E Map: load and close E Map image program. Mouse Double Click: If you double click the mouse on a split screen, it will turn to full screen mode. Double click the mouse to back to the previous watch mode. 8.3.3 Multi Screen CMS supports multi remote site connections simultaneously. -
Page 64: Alarm Out
8.3.7 Alarm Out This is for operating Alarm Out of a selected DVR from a remote distance. Click a channel number and Alarm Out of the corresponding channel will operate. If you see an intruder, use this function to turn on a siren in an area where the DVR is installed. 8.3.8 One Touch Recording Click on INSTANT RECORD button to save video of every channel in HDD of Local System (PC with CMS... -
Page 65: Health Check
Zoom Out/ In Focus Near / Far Iris Close / Open Preset Control / Go to Preset ③ Preset Control button The completed Preset Click on Preset Control button and the following screen will appear. Please input Title and Preset Number. When you completed input, please choose ‘OK’... -
Page 66: Recording Status
Motion recording status Alarm In connection and operating status Alarm Out connection and operating status Version Recording start/end date and time 8.5.1 Camera Connections and Operating Status Camera is in normal operation. Camera is not in use. Camera is not connected or Video Loss. Camera is Covert status. - Page 67 Click on REMOTE SETTING button in Watch mode and the following SETUP menu same as DVR’s will appear on CMS screen. The setup procedure is same as that of DVR. When the setup is completed, do not click Exit button on the SETUP screen, but click OK or Cancel button on the Remote Setup screen.
-
Page 68: Search Mode
9. SEARCH MODE Search Screen This menu is for playing back from recorded data. Click on REMOTE SEARCH button in Watch mode and the following Screen mode screen will appear. Search mode provides three search functions. One is for searching DVR video by clicking REMOTE SEARCH button and another is for searching video stored in CMS (HDD of PC) by clicking LOCAL SEARCH button and the other is for searching event recorded data stored in DVR by clicking REMOTE EVENT button. -
Page 69: Local Search
Search previous ‘Year’ Search subsequent ‘Year’ Search previous ‘Month’ Search subsequent ‘Month’ ① ⑥ ② ④ ③ ⑤ Fast Forward/Backward & Playback (Click to increase the speed by x1, x2, x4, x8, x16, x32, x64 and Extreme) Select Camera to be played back Time LED (24 Hour) Data Bar (Recorded data) Time Select Bar... -
Page 70: Playback
① Designate Event Search start time. ② Designate Event Search end time. ③ Select camera (video) to search data. ④ Check a check box (Motion/Alarm In/Emergency) Check box ⑤ Click on Search Index button to recorded search event data. Playback 9.5.1 Playback Control Button Select time and click Fast Forward/Backward button. -
Page 71: Save
9.5.3 Save This is for saving still image(s) in Bitmap or JPEG file. Click IMAGE SAVE button and the following screen will appear. Input the name of the file to save and execute Save. CAUTION If images are not saved properly, click UNDO button and save again. 9.5.4 Archive This is to back up the DVR’s moving image data to EXE file in PC(CMS). - Page 72 ② Designate Archive end time. ③ Designate file name. ④ Select camera (video) to save. ⑤ Click on Start button to begin Archive.
-
Page 73: 10. Others
10. Others 10.1 Viewer The Format of archive file is .exe(executable file). Please double click on the icon to execute the program. PLAY • Playback mode: 1X PLAY • Playback mode: PAUSE PAUSE • Frame-by-frame backward still image BACKWARD playback •... -
Page 74: Watermark Check System
Please click on the icon to load the image file. To move the icon just drag and drop. You can also rotate the icon. Please click on the icon and input the name of the E Map file to save and execute. Please click on the icon to exit program. -
Page 75: Estimator
To open the check .exe or .jpg or .bmp file just click Load File button. To click the check button, you will get following message; Result: Verification OK ! Corrupted or Modified 10.4 Estimator When you set up CMS program, the application, Estimator will set up additionally. The operation screen is as follows. -
Page 76: Keyboard Controller
Keyboard Controller Keyboard Controller CP1200A User’s Manual V2.08-o199 This document contains preliminary information and is subject to change without notice. -
Page 77: Connection
11.1 Connection User may connect cameras and Keyboard through DVR in various ways. Below shows the major probable connection methods through RS-485; 11.1.1 Configuration Diagram I – Single System Configuration (1 Camera, 1 DVR) DVR PTZ Port RS485 RS485 Tx+ Tx- Rx+ Tx1+ Tx1- Tx2+ Tx2- Tx3+... -
Page 78: Keyboard Setup In Dvr
11.1.3 Configuration Diagram III – Multiple System Configuration (Multi Cameras, Multi DVRs) Max 16 camera RS485 RS485 RS485 RS485 … … … … Multi port Max 16 DVR DVR 1 DVR 2 … … Multi port Please make sure to connect “Tx to Rx “or “Rx to Tx” with positive polarity. (+ to +) and (- to -) 11.2 Keyboard Setup in DVR Enter “Setup>SYSTEM>Information: System ID”... -
Page 79: Keyboard Configuration
11.3 Keyboard Configuration 11.4 Operation 11.4.1 DVR / PTZ Mode Conversion Press System ID number (For example, ID: 001 press Num Pad ) with button. OSD will show “KBD:1” in right-bottom side that the keyboard is on DVR mode as below picture; Then, user should be able to operate the DVR functions by the keyboard controller. -
Page 80: Ptz Control Mode
EMERGENCY: turn on/off Emergency record function. EVENT: pop up a window to see System Log. PIP: turn on/off PIP screen in case of 1 channel screen. If PIP function is on, user number key(s) + ENT key to change the PIP channel. In case of 4 or 9 channel screen, it changes the screen to a next one in the sequence. FREEZ: freeze a current image. -
Page 81: Serial Ln
Serial In (POS / ATM) Serial In (POS / ATM) User’s Manual V2.08-o199 This document contains preliminary information and is subject to change without notice. -
Page 82: Usage Of Serial-In Function
12.1 Usage of Serial-In Function Enables to record/search/display all transactions on monitoring screen by connecting POS/ATM/Cash Register. User can choose the data whether to record/display on their taste without limitedly designated protocols 12.2 Connection method This model has one ATM/POS channel and it is available to expand its connections up to four channels(Optional). Connect the RS232 port of Serial-in application to USB slot of DVR by using USB to RS-232 Converter Cable and it is available to connect up to 4 serial-in devices by using the converter. -
Page 83: Link
12.4 Link 12.4.1 Link Setup Click “Setup>Link>” then shows as below (Note) The above menu is only available on the DVR model with Serial-In function. Click “Serial In” to appear following screen. Select POS/ATM port by clicking ‘Serial In’ button. Assign the port to display/record channel by clicking a “Link Camera”. -
Page 84: 12.4.2 Schedule Setup
12.4.2 Schedule Setup Click “Record>Schedule>” then shows as below Tick the box(□) item AlarmIn Click the Time/Date that wish to activate ATM/POS function on schedule. It is possible to activate all the time by clicking top-right side of table. Click “OK” to save the schedules. 12.5 Setup Please click ( ) “System>Devices>Serial-In”, then you will see the display below. -
Page 85: Title
12.5.1 Title Click “Title” item then virtual keyboard will appear. Input the title then click ( ) to save. 12.5.2 Port Setting Press ( ) the “Port Setting” button in order to set up the port. Default values are Baud rate 2400 bps, Data Bit 5 bit, Stop Bit 1 bit, Parity None. - Page 86 Analyze among the automatically captured data which will be displayed or discarded then enter Pattern Setting. - Unless you check “Auto” item, make sure to set up “Start Pattern” and “End Pattern” - “Discard Pattern”, “Line Delimiter” and “MCPL” are utilized independently, not relation to “Auto” mode. It is possible to input and analyze the serial data by clicking “Pattern”...
- Page 87 Input a certain repeated string to “Line Delimiter”. Decide the number of minimum characters in “MCPL” item to hide data under the designated number of characters. Input the pattern of dummy data to Discard Pattern.
-
Page 88: Search
Choose the data which willing to display and enter the Start Pattern and End Pattern. Then tick the Auto box off in order to make the DVR recognizes the data between the Start and End patterns. Finally, test again and adjust data to remove missed dummy data. 12.6 Search Using event search function. -
Page 89: Cms Web Client
CMS Web Client CMS Web Client User’s Manual V2.08-o199 This document contains preliminary information and is subject to change without notice. -
Page 90: Setup And Login
13.1 Setup and Login MS Explorer web browser is required for installation and using this program. Open a browser and type the IP address of DVR. It is required to install ActiveX in the first connection. Basically, Explorer limits automatic ActiveX installation. Click the message above in the screen, then following menu box will appear. -
Page 91: Live Display
13.2 Live Display. After Login, following screen will appear. ④ ① ③ ② ⑤ The screen contains following features: 1. Display current live video 2. Setting display mode Playback : Transferring search mode. Freeze : Pause current display. Resume : Resume paused display. Quit : Finish program and close browser. -
Page 92: Playback Screen
5. Channel selection button - available to check the channel (camera) number of current display. 13.3 Playback Screen Click [Playback] then following screen will appear. ① ⑤ ③ ④ ⑥ ② The screen contains following features: 1. Searched playback video displays 2. -
Page 93: Mobile Cms
Mobile CMS Mobile CMS User’s Manual V2.08-o199 This document contains preliminary information and is subject to change without notice. -
Page 94: Installation
14.1 Requirements : Windows Mobile 6.1 or higher version. Memory : 512Kb or Higher. Device : Smartphone Network : Available all wireless networking method. I.e. Wi-fi, HSDPA, Wibro. 14.2 Installation Prepare ActiveSync program to user’s PC. Available download at following link. http://www.microsoft.com/downloads/details.aspx?FamilyID=9e641c34-6f7f-404d-a04b-dc09f8141141&DisplayLang=en ActiveSync enable users manage documents, calendars, contact lists and email between their PC and mobile device through a Cradle or a USB connection. - Page 95 Click accepting the license agreement, then click “Finish” button. Installation box will appear Click [OK] to start installation. When installation completed, following pop-up will appear. Click [OK]. If following message appeared, it has successfully installed.
-
Page 96: Site Configuration
(Note) Depending on mobile device, successful installation message may not appear. Click [OK] when license agreement message appear. Move to [Programs] page to check whether CMS has installed. 14.3 Site configuration Start CMS, following screen will appear. - Page 97 Click [Add] to appear following screen. Fill in correct information. Site Name : Insert the name of site. IP/Domain : Insert the IP address or Domain name of the site. : Input the registered ID of the site. Password : Input the password of the registered ID. Command Port : Insert Command Port of the site.
- Page 98 Edit Select a site and click [Edit] then following screen will appear. Correct items then click [Save]. Delete Select a site and click [Del]. Confirmation message will pop up.
-
Page 99: Connect
Click [Yes] then the site information will be removed. 14.4 Connect Select a site then click [Connect]. Live display screen of the site will appear if it is successfully connected. Users are able to select a camera by clicking camera button. Click [Disconnect] then, live display screen will be closed and Site list box will appear. - Page 100 Choose MobileCMS on the list and click [Remove]. Confirmation message will pop up Click [Yes] to complete uninstall then program will be removed.
