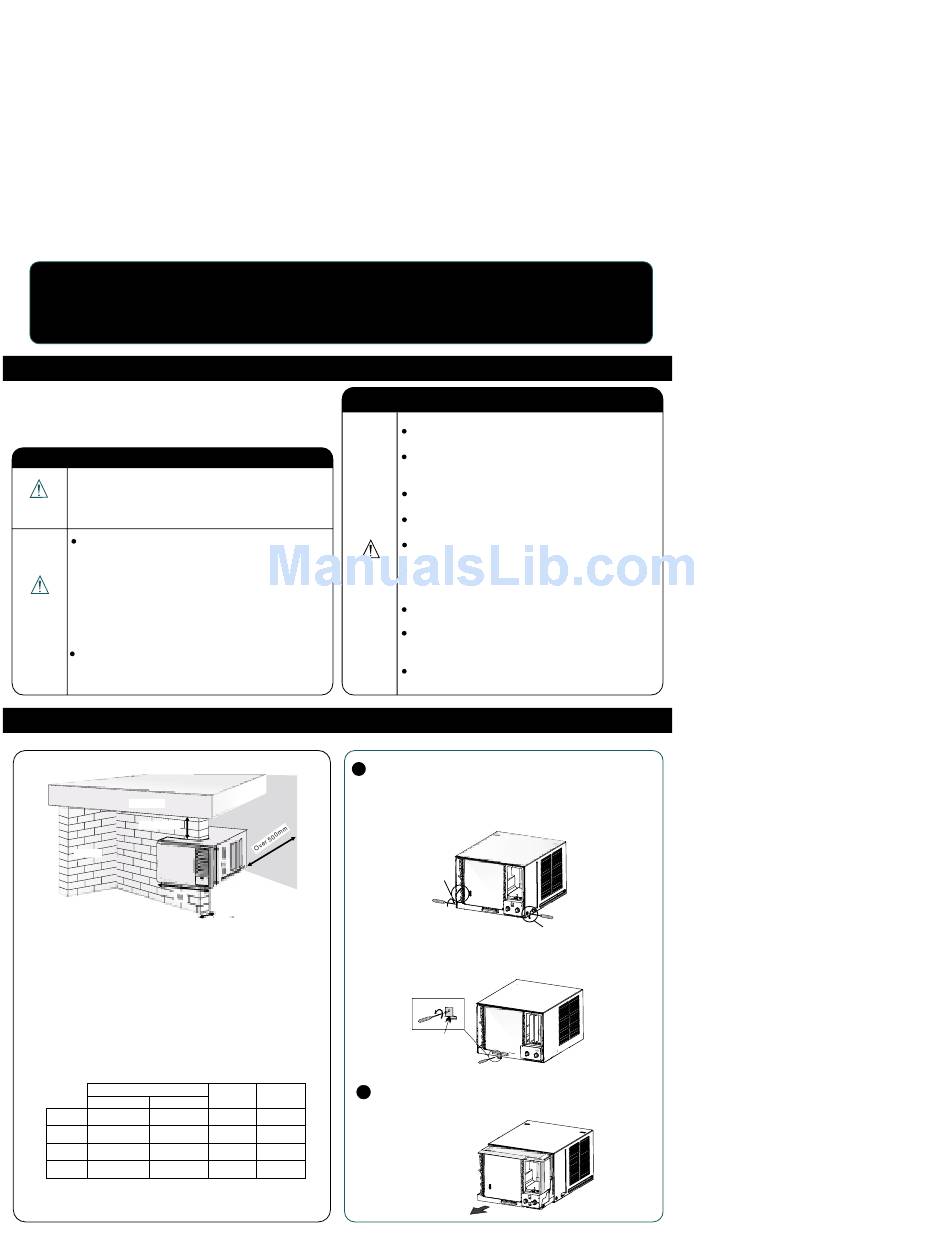

Concepcion-Carrier WINDOW ROOM AIR CONDITIONER Owner's Manual

WINDOW ROOM AIR CONDITIONER
O WNER'S MANUAL
Please observe the following safety precautions when
using your air conditioner .
Failure or negligence in observing these safety precautions
could cause fire, electrical shock or personal injury
PRECAUTIONS DURING INSTALLATION
Please ask your sales agent or qualified technician
for the installation of your unit. W ater leakage, short
WA R NING
circuit or fire may occur if you install the unit
yourself.
Please use earth line(ground the unit properly).
Do not place the earth line near water or gas
pipes, lightning-conductor , or the earth line of
telephone. Improper grounding can cause electric
shock.
C A UT IO N
A circuit breaker should be inst alled depending on
the mounting site of the unit. Without a circuit
breaker , the danger of electric shock exists.
Do not install near a location where there is
flammable gas. The unit may catch fire if
flammable gas leaks around it.
AIR CONDITIONER INST ALLATION
C E ILING
Over 150mm
WALL
Dimensions (Clearances)
! There should not be any obstacle surrounding the unit.
! Prepare an inst allation hole slightly bigger than the outer
wrapper size.
CAP ACITY
kJ/h BTU/h
5,300~8,250 5,025~7,800
Chassis 1
5,300~9,750 5,025~9,200
Chassis 2
11,100~13,500 10,700~12,800
Chassis 3
19,600~24,000
P MX/QS X 18,000~22,000
SAFETY PRECA UTIONS
PRECAUTIONS DURING OPERATION
.
WA R NING
1 Remove the chassis locking screw
Unscrew the chassis lock from the side of the outer
wrapper. Disconnect the ground wire from the front of the
outer wrapper .
F ence
Counter clockwise
or likewis e
Chassis locking screw
Les s than 240mm
*For Chassis 1
Unscrew and remove the base p an locking bracket from the
front of outer wrapper .
2 Slide the chassis out from the outer wrapper
W H
(Width,mm) (Height,mm)
476
333
476 333
566 378
431
665
Avoid an extended period of direct air flow . It can
lead to health problems.
Do not modify the length of the power cord or use
an extension cord. It can cause electrical shock
or fire.
Do not attempt to operate the unit with wet
hands, this can cause fatal accident.
Do not turn on the unit by inserting the power
cord.
Do not switch of f the unit by pulling out the power
cord.
Please switch of f the unit and turn of f the circuit
breaker during cleaning, as the high speed fan
inside the unit may cause danger .
Turn off the circuit breaker if the unit is not
operated for a long period.
Do not splash or direct water to the body of the
unit when cleaning it as this may cause short
circuit.
Do not block the air intake and outlet vanes,
cooling performance will be af fected.
Ground wire
Counter clockwise
Chassis locking screw
*For Chassis 2 & 3
Counter clockwise
bracket
*For PMX
.
