Summary of Contents for Xpresskit TBXKEY

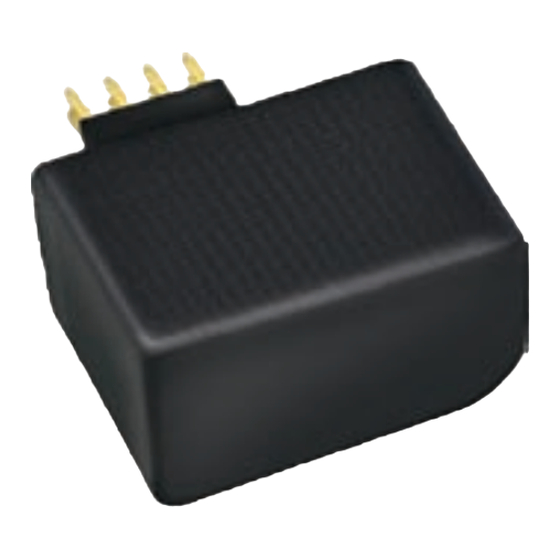

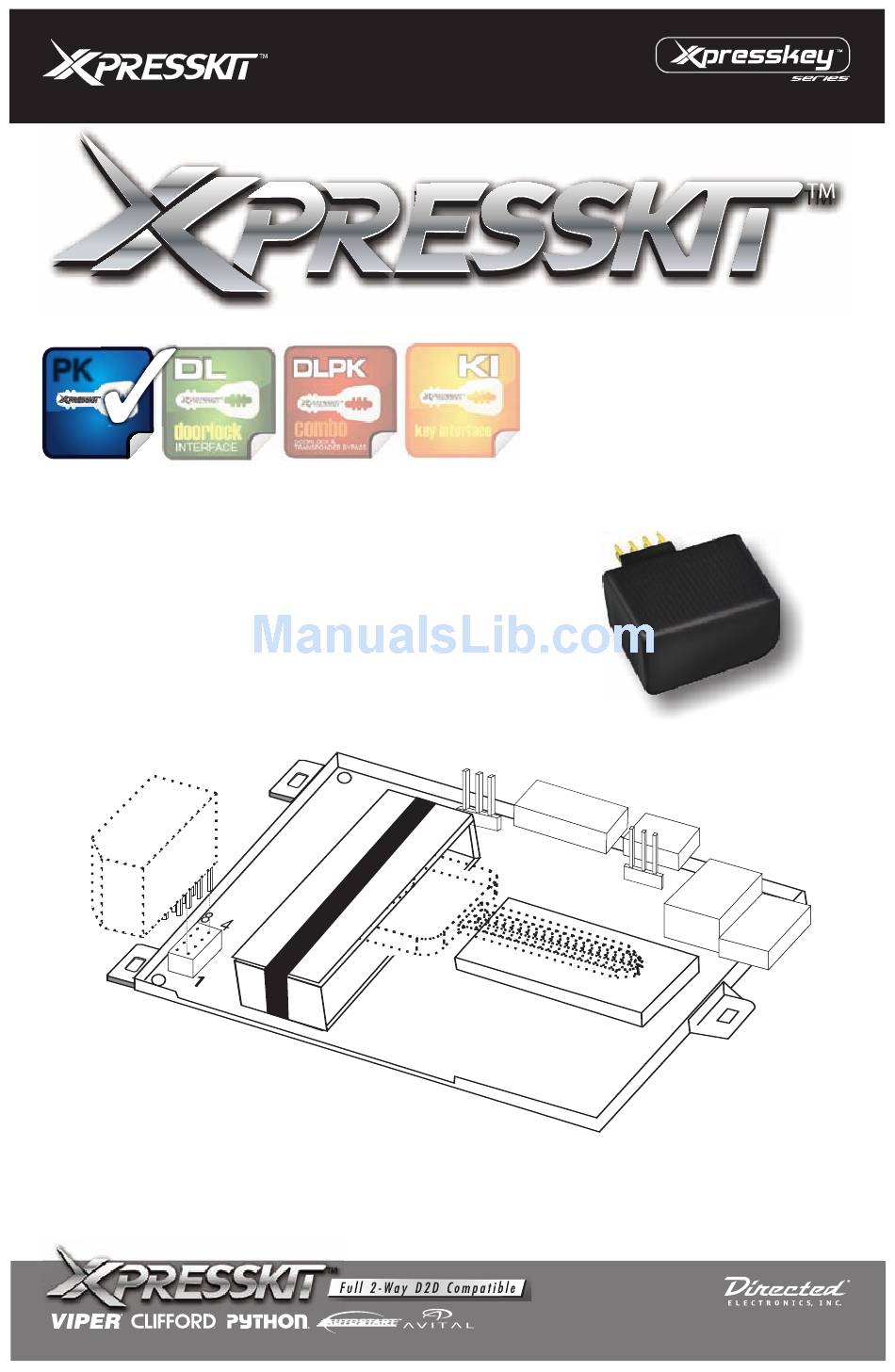

- Page 1 Universal Transponder Bypass MODEL: TBXKEY Rev.: 20091214 transponder BYPASS MODEL: TBXKEY INSTALLATION GUIDE © 2009 Directed Electronics. All rights reserved.
- Page 2 In this case, it would be necessary to remove the already programmed key or XPRESSKEY from the TBXKEY module to reprogram it. XKEYCH...
- Page 3 By connecting the Brown wire from TBXKEY to Input To vehicle’s primary ignition wire Brown Vehicle the ignition wire in the vehicle, TBXKEY will stay active the entire time the vehicle is running. © 2009 Directed Electronics. All rights reserved.
- Page 4 1. Open the module and place one of the vehicles coded Coil turns around factory transponder key through the center of the key in TBXKEY module black receiver ring as shown. 2. Reassemble the module The 60 coil winding position is more sensitive to picking up secure the key inside.
- Page 5 Install loop antenna 1. P lace the included loop antenna ring ar ound the vehicle's ignition cylinder as shown. 2. Plug the antenna loop connector into the TBXKEY control module and secure the other unused wire. 18 WIRE LOOP ANTENNA Note...
- Page 6 Universal Transponder Bypass MODEL: TBXKEY Rev.: 20091214 Alternative installation of antenna loop (i.e.: VW, Audi, BMW, ...) Disassemble the steering column shroud and locate the factory transponder ring's antenna wires. The two wires are usually located in a tube routing from the transponder ring to the factory transceiver module.
- Page 7 Universal Transponder Bypass MODEL: TBXKEY Rev.: 20091214 © 2009 Directed Electronics. All rights reserved.
- Page 8 Universal Transponder Bypass MODEL: TBXKEY Rev.: 20091214 LIMITED ONE-YEAR CONSUMER WARRANTY For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security product, Directed Electronics. (“DIRECTED”) promises to the original purchaser, to repair or replace with a comparable reconditioned piece, the security or remote start accessory piece (hereinafter the “Part”),...
