What is the small on/off switch on the left hand side of the 36 inch exhaust hood control

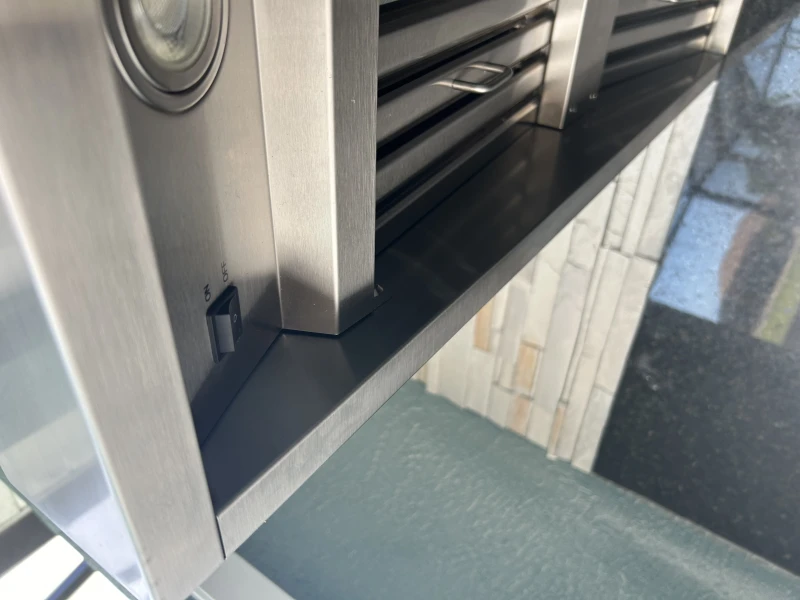

User image 67eb010d61eb7

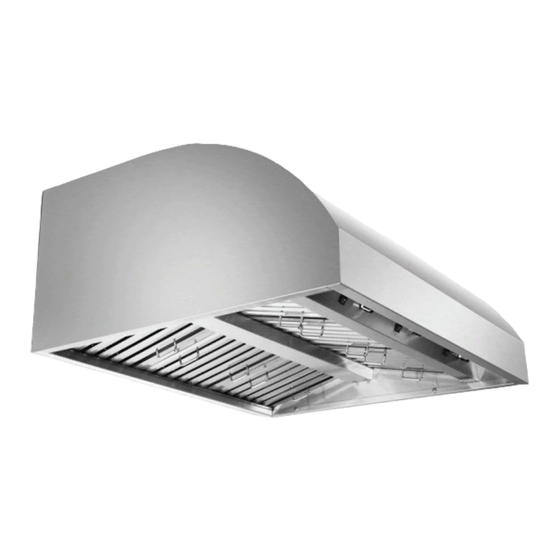

Summary of Contents for Blaze BLZ-HOOD

  • Page 1 user manual Model #: BL Z-HOOD...
  • Page 2: Table Of Contents

    | Table of Contents Table of Contents Saftey Notice III-V Diagrams Hood Dimensions . 1 Control Panel . . 2 Clearance . . 3 Installation Instructions . 4 Venting Options . 5 Hood Installation Care & Cleaning Troubleshooting Warranty Information Warranty...
  • Page 3 IMPORTANT SAFETY NOTICE upon receipt of your hood: 1) Inspect your hood for any damage in shipping 2) Plug in and test controls (lights, fan) before insalling . 3) Call your dealer immediately to report any damage Please note: you must report any damage directly to your dealer immediately upon receipt to address any issues .
  • Page 4: Important Safety Notice

    | Safety Notices IMPORTANT SAFETY NOTICE Installer: Leave this guide with the homeowner . Consumer: Keep this guide for future reference . The Important Safety Notice and warnings in this manual are not meant to cover all possible problems and situations that can occur . Use common sense and caution when installing, maintaining or operating this or any other appliance .
  • Page 5 Safety Notices IMPORTANT SAFETY NOTICE warning If you receive a damaged product, immediately contact your dealer . Do not install or use a ♦ damaged hood . Do not install, repair or replace any part of the range hood unless specifically recommend- ♦...
  • Page 6 BLAZE OUTDOOR PRODUCTS BL AZE BBQ HOOD 42.00in UNLESS OTHERWISE SPECIFIED: FINISH: DEBUR AND DO NOT SCALE DRAWING REVISION DIMENSIONS ARE IN MILLIMETERS BREAK SHARP SURFACE FINISH: EDGES TOLERANCES: LINEAR: ANGULAR: NAME SIGNATURE DATE TITLE: DRAWN CHK'D APPV'D MATERIAL:...
  • Page 7: Control Panel

    USER MANUAL | Control Panel A) LEFT FAN: To turn on the fan, flip the switch on the left . Press up (I) to power on, and down (o) to power off . To adjust the intensity of the fan, use the knob on the right . Turn the knob coun- terclockwise for the lowest fan speed and quietest output .
  • Page 8: Clearance

    BLAZE OUTDOOR PRODUCTS clearance dimensions...
  • Page 9: Instructions

    USER MANUAL | instructions warning It is important to install the hood at the proper mounting height . Hoods mounted too low could result in heat damage and fire hazard . Hoods mounted too high will be hard to reach and will lose performance and efficiency . For best operation, we recommend you: allow 36-40”...
  • Page 10: Venting Options

    BLAZE OUTDOOR PRODUCTS venting options horizontal wall venting Option 1 Option 2 vertical roof venting Note: This model comes with two 8” outlets . You can vent straight up with both, or you may combine them into a 10” or 12” pipe . Do not combine into one 8” outlet .
  • Page 11: Installation

    USER MANUAL | wall hood installation preparation Plan where the ductwork will be located . Install proper-sized duct work, and roof or wall cap, depending on where you will be venting your hood . Recommended and most com- mon installations are shown in the venting diagrams on the previous page . Adjust your measurements to accomodate heights of ceilings, cabinets, or rangetops .
  • Page 12: Hood Installation

    BLAZE OUTDOOR PRODUCTS wall hood installation step 2 Slide filter front over front lip . Push filter rear up, then slide back over rear lip . Repeat this step for all filters on the front and back of the hood .
  • Page 13 . cleaning baffle filters All BLAZE BBQ hoods come with stainless steel baffle filters . They should be inspected for grease accumulation periodically . The baffle filters can be washed in a dishwasher or in a sink with hot, soapy water .
  • Page 14 BLAZE OUTDOOR PRODUCTS Care & Cleaning step 2 step 1 When cleaning filters, always re- move the grease channels and Slide filter forward off of rear lip . clean by soaking in a sink with hot Lower filter rear, then slide filter soapy water .
  • Page 15: Troubleshooting

    USER MANUAL | 10 troubleshooting NOTHING WORKS (Control Panel not responding, Blower not working) Solution 1: Turn on power at circuit breaker panel or fuse box . Check for tripped breaker or blown fuse . Solution 2: Make sure hood power cable is plugged in and powered . LIGHTS NOT TURNING ON Solution 1: see “nothing works”...
  • Page 16: Warranty

    11 | BLAZE OUTDOOR PRODUCTS Warranty One Year Warranty - Parts Only For one year from the date of original purchase, we will repair or replace any non-consumable parts or components that failed due to manufacturing defects . What is NOT Covered: Consumable parts such as light bulbs and filters (stainless, aluminum, or ♦...
