Mastec 50550/HTDVDRE 31 Quick Manual

GB
Important!
In addition to this quick guide, please read the supplied operating instructions
carefully. Only by doing so will you be able to use all the functions safely and
with certainty.
Welcome to this quick guide for your new DVD Recorder. Here you will find a short and simple overview for setting up the DVD
Recorder. Follow the steps below to set up the device.

Connecting the DVD Recorder

Connecting the DVD Recorder to your aerial or cable-TV connection
Connect the aerial input (12) using an aerial cable (not included) to the house's aerial connection or cable-TV connection.
Connecting the DVD Recorder to the television set using a SCART cable
Use a SCART cable (see Specialist Terms) to connect the DVD Recorder to your television set. Use the SCART cable to connect
the EXT 1 socket (15) of the DVD Recorder to a SCART socket on your television set.
You will achieve a very high picture quality if you use this type of connection.
For information on connecting
the DVD Recorder to the
television set using an S-Video
(Y/C) cable or a video RCA cable
(CVBS), please refer to the
operating instructions for that
particular device.

Connecting audio devices

Analog receiver with Dolby Pro Logic decoder or a normal stereo sound system
Use an RCA cable to connect your stereo sound system to the analog audio output (17) (red and white jacks).
If you are operating the DVD Recorder with just a stereo sound system, set the analog output to stereo in the audio settings section
of the system menu.
If you have connected the DVD Recorder to a Dolby Surround system, set the analog output to the surround setting.
Dolby Digital system, AV receiver, digital 2-channel amplifier
To enjoy digital 5.1 sound, connect your Dolby Digital system to the digital output of the DVD Recorder.
Use a single RCA cable to connect the coaxial digital output (18) of the DVD Recorder to the coaxial digital input of your system.
Configure your system to use the coaxial digital input.

DVD Recorder

Model 50550/HTDVDRE 31

Quick Guide

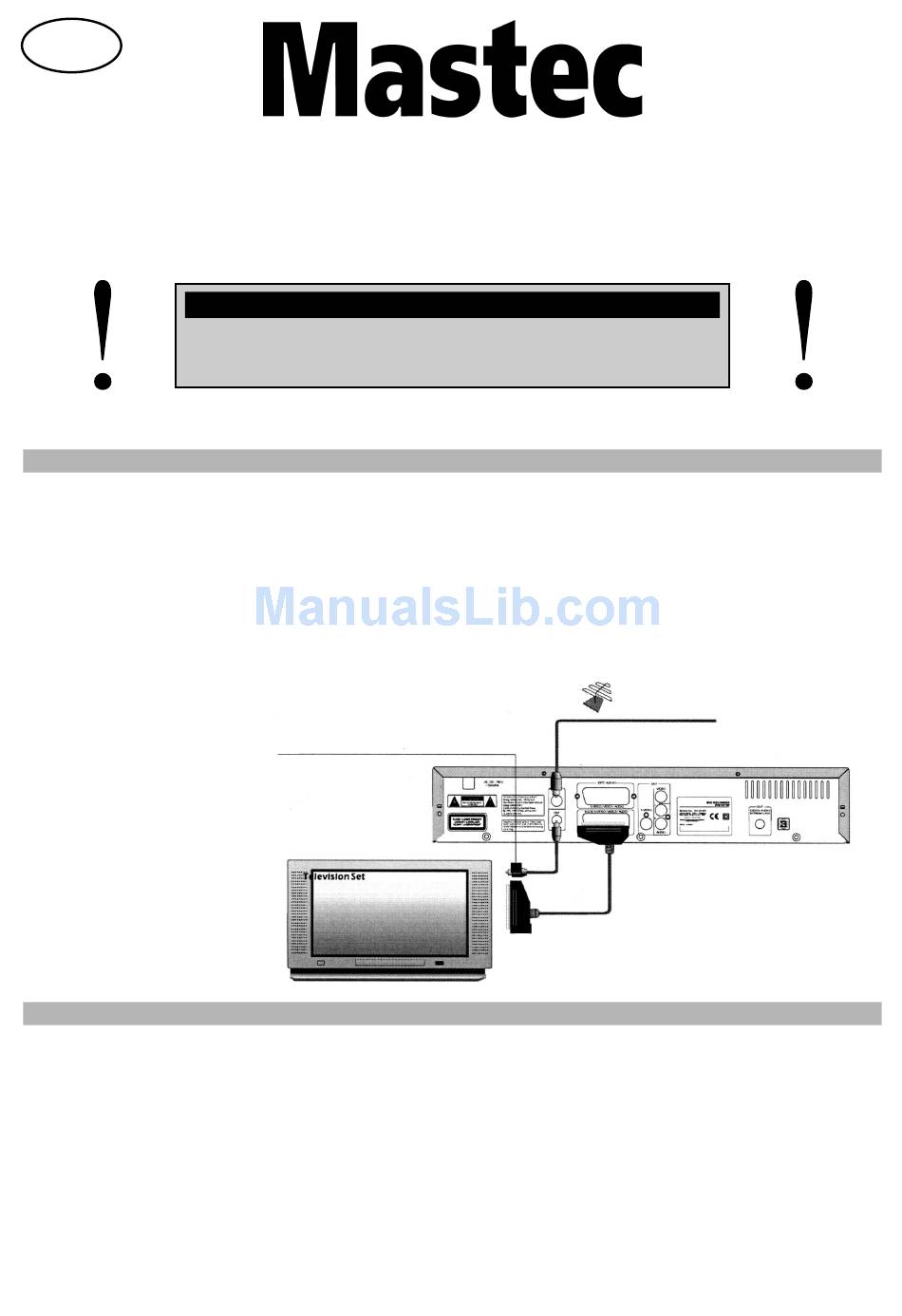

Aerial output to the television
www.ls-electronic.de
Aerial cable from the cable-TV connection
or the house's external aerial
SCART connection EXT 1 to the SCART input
of your television set
