Summary of Contents for Lufkin LR600

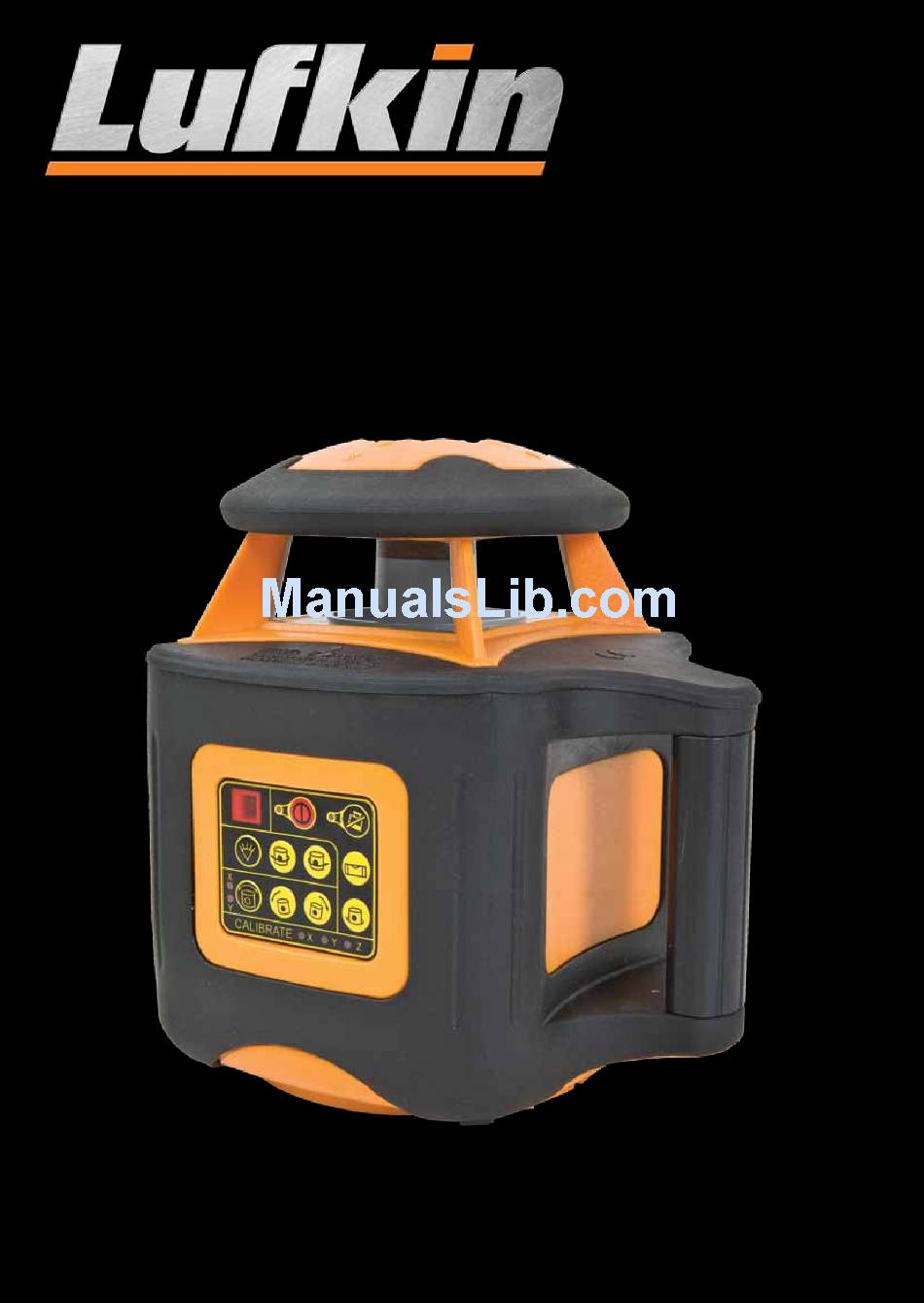

- Page 1 LR600 Auto Levelling Rotary Laser Level USER GUIDE...
- Page 2 LR600 Lufkin LR600 The LR600 is a professional instrument with an extremely rugged design, enabling precision automatic levelling. Self-levelling range ± 5° horizontal, accuracy 1 mm / 10 m, temperature- resistant sensor system (SLS). Highest reliability is guaranteed through the anti-drift system (ADS): The electronics permanently monitor the measuring process and switch the laser off in the case of any outside interference or disturbance.
- Page 3 LR600 Laser Window Control Panel On Off Move Scan Left Move Scan Right Safety Mode Scan Mode Re-level Control Slope Rotation Speed Tilt Right Tilt Left...
- Page 4 LR600 Included Accessories: Horizontal Levelling Vial Laser Detector LCD Screen Detector Window Vertical Levelling Vial Sensitivity Adjustment (high - med - low) Back Light Volume Control On / Off Close-up of detector controls...
-
Page 5: Remote Control
LR600 Remote Control Move Scan Left Tilt Tilt Left Move Scan Right Scan Mode Tilt Right Re-level Control On Off Calibration Panel Rotation Speed... - Page 6 LR600 Operation of the LR600 Charging the batteries • Before using the LR600, fully charge the batteries • Open the battery compartment, insert the batteries and connect the plugs to the sockets. The plugs fit in the sockets in one position only (see pictures on right). close the battery compartment. • Connect the battery charger/mains unit to a mains source and plug into the socket. Please only use the charger/mains unit supplied with the device.
- Page 7 LR600 Note: If the device is too far off the horizontal (more than 5°), a warning signal will sound and the rotor head will not rotate. In this case, the device must be repositioned on a more level surface.
- Page 8 LR600 Note: When the unit is automatically levelled, press the button and the unit will returned to normal operation. When the unit is in safety mode, press this button to exit from the safety mode and enter into the slope setting mode.
- Page 9 LR600 Max 2mm Max 2mm...
-
Page 10: Calibration Adjustment
X Axis Adjustment 1. Turn the LR600 so that the X axis faces a wall or post (reference surface). 2. Activate calibration adjustment mode as described above. 3. Press the X / Y button on the remote control twice. The X LED on the calibrate panel will illuminate as shown on the right. - Page 11 Calibration Adjustment Z Axis Adjustment 1. Set up the LR600 so that the Z axis (vertical line) aligns with a vertical plumb line. 2. Activate calibration adjustment mode as described previously. 3. Press the X / Y button on the remote control 3 times. The Z LED on the calibrate panel will illuminate as shown on the right.
- Page 12 LR600 Technical Specifications LR600 Specifications Self-levelling range ± 5° Adjustment speed approx. 30 sec – on entire working angle Precision Horiz ± 1 mm/10 m - Vert ± 1.5mm/10m Sensor Electronic levelling device Horizontal levelling Automatic Rotation speed 120 RPM (low) & 500 RPM (high)
- Page 13 Apex Tool Group Pty Limited 519 Nurigong Street, Albury NSW 2640, AUSTRALIA Ph: (02) 60580300 apextoolaus@apextoolgroup.com www.apextoolgroup.com.au...
