Summary of Contents for Tuta S30

  • Page 1 TUTA S30 GSM Power Socket...
  • Page 2 TUTA S30 GSM POWER SOCKET USER MANUAL User Manual Manual version 1.2...

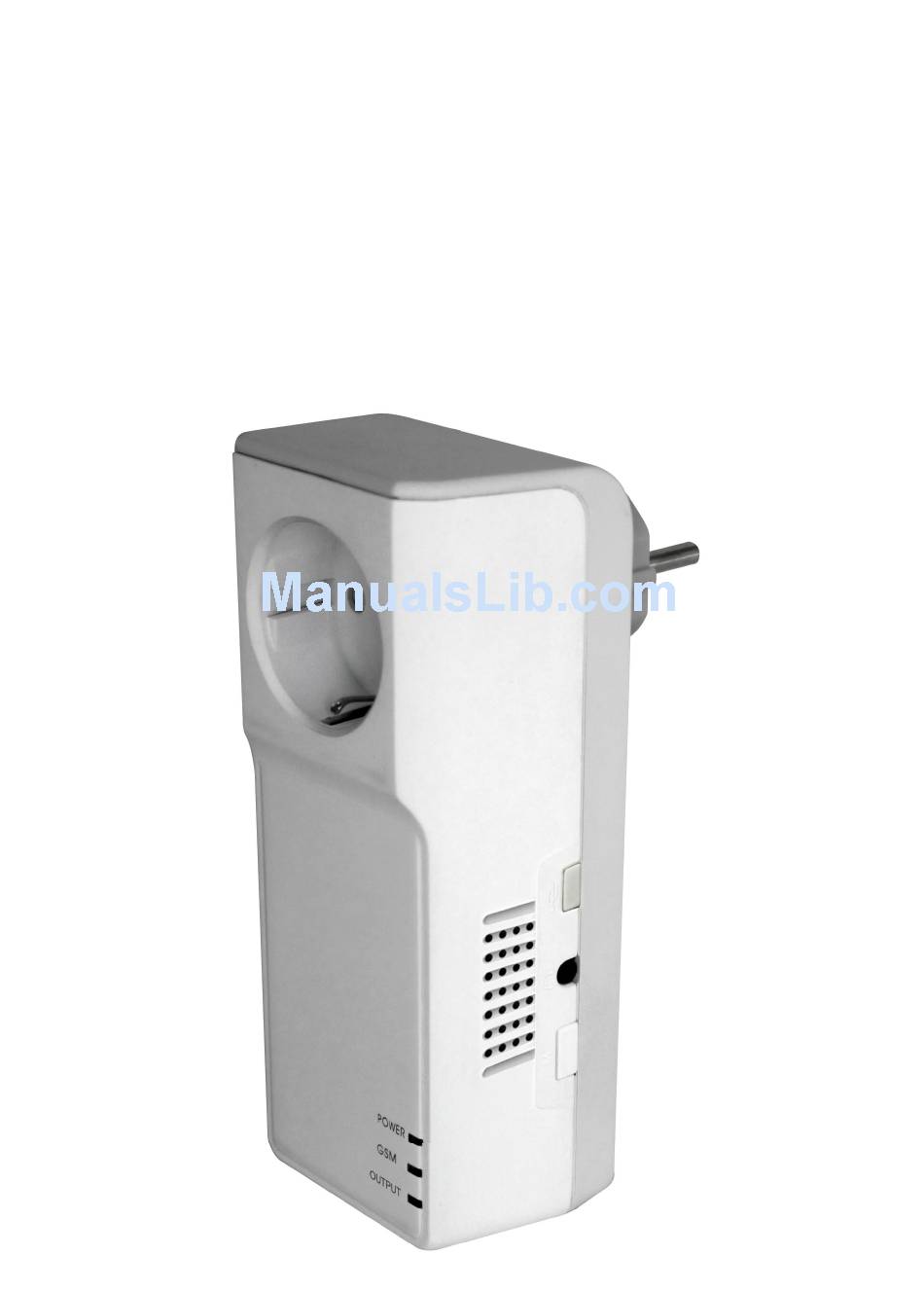

  • Page 3 TUTA S30 GSM Power Socket Thank you for purchasing the TUTA S30. The TUTA S30 GSM power socket is a remote controlled socket consisting of a GSM module. The power supply output of the socket can be turned on or off remotely by the SMS (Short Message System) command or local controlled by pressing button.
  • Page 4 TUTA S30 GSM POWER SOCKET USER MANUAL reaching of pre-set alert value of surroundings temperature. TUTA S30 is mainly applied for house and office usage. It is not suited for industry application, especially in humidity or dust condition. All services and functions need to be supported by the GSM network and a SIM card.

  • Page 5: Table Of Contents

    TUTA S30 GSM POWER SOCKET USER MANUAL For your safety..............8 Exception clause............10 Chapter 1 Features and accessories.......12 1.1 Main function............12 1.2 Package contents ...........14 1.3 Sockets instructions..........16 1.4 Light indicator and “Beep” warning tone....18 Chapter 2 Quick start.............20 2.1 Install the SIM card and temperature sensor..20 2.2 GSM Power on/ off..........21...
  • Page 6 TUTA S30 GSM POWER SOCKET USER MANUAL 2.6 External power supply notification......24 Chapter 3 Advanced settings..........26 3.1 Define the users............26 3.2 Change password............31 3.3 Switching on/off the socket output manually..31 3.4 Delayed-switch on/off the socket output....34 3.5 Timed switching on the socket output.....36 3.6 Auto-control the socket output by temperature..39...
  • Page 7 TUTA S30 GSM POWER SOCKET USER MANUAL Chapter 4 Maintenance...........52 Chapter 5 General Troubleshooting......54 Chapter 6 Main Technical Parameters......57 Appendix: SMS commands list........58...

  • Page 8: For Your Safety

    1. Purchase a GSM SIM card (mobile phone card) from GSM network service provider and install it in the socket. This SIM card number is referred as TUTA S30 number on this brochure. 2. The user needs to activate the Caller ID Presentation function of SIM card, and deactivate PIN code of the SIM.
  • Page 9 TUTA S30 GSM POWER SOCKET USER MANUAL the electrical appliance which is for industry or business operation, for example, iatrical appliances, large heaters and refrigerates. λ Before using this socket, make sure that the mobile phones can be used well in the area, otherwise, do not put this socket into operation.

  • Page 10: Exception Clause

    2. For the latest socket information, please visit: http://www.i-tuta.com. We don’t guarantee for the document veracity, reliability or any content except regulate in proper laws. Including no guarantee for socket suitable market or suitable area promise.
  • Page 11 TUTA S30 GSM POWER SOCKET USER MANUAL expressed or implied, including, but not limited to the accuracy, reliability or contents of this document. We reserve the right to revise this document or withdraw it at any time without prior notice.

  • Page 12: Chapter 1 Features And Accessories

    TUTA S30 GSM POWER SOCKET USER MANUAL Chapter 1 Features and accessories 1.1 Main function λ This socket uses a GSM SIM card. λ Remotely operate by SMS command: The socket be controlled and set by sending SMS commands. λ...
  • Page 13 TUTA S30 GSM POWER SOCKET USER MANUAL temperature within presetting range or at fixed temperature value. λ SMS alarm when temperature rapid-changing or reaching the pre- set value: When it detects the rapid-changing or the reach of pre- set alert value of surroundings temperature, it can auto-send the SMS alarm message to master’s mobile phone.

  • Page 14: Package Contents

    TUTA S30 GSM POWER SOCKET USER MANUAL 1.2 Package contents GSM power socket（1 unit）...
  • Page 15 TUTA S30 GSM POWER SOCKET USER MANUAL Temperature sensor（1 unit） User manual（1 unit）...

  • Page 16: Sockets Instructions

    TUTA S30 GSM POWER SOCKET USER MANUAL 1.3 Sockets instructions...
  • Page 17 TUTA S30 GSM POWER SOCKET USER MANUAL Figure 1: TUTA S30 instructions...

  • Page 18: Light Indicator And "Beep" Warning Tone

    TUTA S30 GSM POWER SOCKET USER MANUAL Figure 2: Temperature sensor Instruction 1.4 Light indicator and “Beep” warning tone Indicator Action Status Power Turning off No power supply input (Green) light Constant Has power supply input light GSM (Blue) Turning off...
  • Page 19 TUTA S30 GSM POWER SOCKET USER MANUAL Turning off The socket outlet cuts power supply. “Beep” One time The socket outlet changes power warning tone supply status. (Default Several TUTA S30 lost external power supply. turning off) times Long Beep...

  • Page 20: Chapter 2 Quick Start

    TUTA S30 GSM POWER SOCKET USER MANUAL Chapter 2 Quick start 2.1 Install the SIM card and temperature sensor λ Turn the power switch to “OFF” position. λ Loosen the screw and open the socket’s SIM cover; you will see a SIM card holder.

  • Page 21: Gsm Power On/ Off

    Power on: 1. Turn the power switch to “On” position (See 7 on Figure1). 2. Plug the TUTA S30 in an AC power socket (See 6 on Figure1). The blue light will be flashing slowly for about 20 seconds, then blue light be on constantly and a long “Beep”...

  • Page 22: Add A Master Number To The Socket

    • The GSM network’s signal strength may affect the socket feature. Therefore, before using, the user should ensure that TUTA S30 is used in an area with a strong GSM network signal. • For the first time use, the user should perform a test-run by sending SMS to the socket.

  • Page 23: The Regulation Of Time

     Important note If TUTA S30 is being used for the first time, or it has been reset, the Master user must adjust the socket time according to the current time of SMS center. Otherwise, TUTA S30 will use the original time from 00:00:00, 1 .Jan.2004.

  • Page 24: External Power Supply Notification

    SIM card is available: Lost external power supply: If the plug of TUTA S30 is disconnected from external AC power or lost of the AC power occurs, all operating on TUTA S30 is de-activated, including M button and all SMS commands. TUTA S30 will notify the...
  • Page 25 “Main electricity supply lost Temp:**”. Resume external power supply: If the AC power of TUTA S30 is available again, the SMS notification will be sent to the user, i.e.” Main electricity supply restore Status: ON/OFF Temp:**” When the external power supply is resumed, the output of TUTA S30 will keep its previous working status.

  • Page 26: Chapter 3 Advanced Settings

    TUTA S30 GSM POWER SOCKET USER MANUAL Chapter 3 Advanced settings 3.1 Define the users 3.1.1 User authorization level All the settings of TUTA S30 can be set or adjusted via a SMS command. There are two mobile phone user controlling levels: Master user: Only one Master user has authorization to use all features of TUTA S30.
  • Page 27 No allow any space within the commands. 3.1.3 Add a master number to the socket  Description If TUTA S30 is being used for the first time, or TUTA S30 has been reset to factory settings, the Master user’s number must be programmed into the socket.
  • Page 28 Welcome to use TUTA-S30. Your Password is:1234..  Failed SMS reply If a user tries to add another Master user again, TUTA S30 will send a notification via SMS stating “The master user already exists.”. The Master number should be changed. (Refer to Chapter 3.1.4)
  • Page 29 Up to 4 family users’ number can be stored on one socket. Family users have the authority to send SMS command to switch on or cut off the TUTA S30 output. The family users should remember and safeguard the socket’s SIM number.
  • Page 30 TUTA S30 GSM POWER SOCKET USER MANUAL #06# FamilyNumber # Add several family numbers: #06# FamilyNumber1 #...# FamilyNumber4 # • FamilyNumber should be the Family user’s mobile phone number.  Successful SMS reply #******# Family numbers set successfully. 3.1.6 Check family user’s number Refer to Chapter 3.10 Check status.

  • Page 31: Change Password

    3.3 Switching on/off the socket output manually  Description • When the socket output is switching on, TUTA S30 offers power supply for electronic appliance which being connected with it; the red indicator light is lighted constantly. Otherwise, TUTA S30 has no power supply for electronic appliance and the red light is turned off.
  • Page 32 SMS notification message will be sent to the Master, but the setting time range and temperature range parameters will be saved until TUTA S30 is reset to factory settings. 3.3.1 Switching on/off by SMS  Method...
  • Page 33 Delay control: function ON/OFF 3.3.2 Switching on/off by M button Keep press M button on the TUTA S30 for half a second. The OUTPUT indecator light will turn on or off to indicate that TUTA S30 output is switching on or off.

  • Page 34: Delayed-Switch On/Off The Socket Output

    3.4 Delayed-switch on/off the socket output  Description • The output of TUTA S30 can be set to delay switch on or off for a period with SMS commands. • When the “delayed-switch on/off the socket” function is applied, the preset “timed switch on the output”...
  • Page 35 TUTA S30 GSM POWER SOCKET USER MANUAL Delay control: function OFF • When the “delayed switch off the socket” command is received and if the the socket output is switched on, the socket output will remain the switch on state and be switched off as the setting delayed time is reaching.

  • Page 36: Timed Switching On The Socket Output

    3.5.1 Enable timing switching on the output  Description • The output of TUTA S30 can be set to switch on for a duration and then be switch off after the duration. • If the socket output status is changed manually (including pressing...
  • Page 37 0, it means the time duration has not been set. (Refer to 3.4.2) Then TUTA S30 will keep switching on or off the output automatically according to the schedule settings. 3.5.2 Set time period to switch on the output ...
  • Page 38 TUTA S30 GSM POWER SOCKET USER MANUAL • WorkDay: one digit, the values lie in the range of “0” to “8”. The following table contains the descriptions of each value: Value Corresponding day Sunday Monday Tuesday Wednesday Thursday Friday Saturday...

  • Page 39: Auto-Control The Socket Output By Temperature

     Description • The external temperature sensor must be inserted into the I/O port of TUTA S30. The output status of the socket can be controlled by the environmental temperature automatically. • If users don’t open the “timed switch on the socket” or “delayed...
  • Page 40 • For example: TUTA S30 is used for the power control of the heating apparatus. If users set the socket output on when indoor temperature is bellow 20 degrees and off when indoor temperature is above 28 degrees.
  • Page 41 3.6.2 Set temperature range to switch on/off the output  Description After successful setting of temperature range, the temperature parameter will be saved on the socket until TUTA S30 is reset to factory settings. But the “Auto-controlled by temperature” feature is applied only when command 20 be set.
  • Page 42 TUTA S30 GSM POWER SOCKET USER MANUAL • Temperature unit is degree Celsius. • Example 1: set commands: #159#0#10#20#, if the environmental temperature is 5 degrees (bellow the limitation of 10 degrees in the command), the socket output will be switched on to power heating apparatus;...

  • Page 43: Temperature Alarm

    A range of temperature can be pre-set onto the socket. In this case, if the surroundings temperature is detected out of the pre-set temperature range, the TUTA S30 will auto-send the SMS alarm message to master’s mobile phone. This feature depends on the temperature sensor.
  • Page 44 TUTA S30 GSM POWER SOCKET USER MANUAL  Method The Master user sends following SMS message in order to: Enable over-temperature alarm: #170#1# (24) Set limits of temperature: #170# MinTemp # MaxTemp # (25) • MinTemp and MaxTemp: The values can be set within the range of -10 to 50 centigrade degree.

  • Page 45: Sms Notification Upon The Socket Output Changing

    Time:* minutes 3.8 SMS notification upon the socket output changing  Description TUTA S30 will default notify the user when the state of the socket output is changed with a SMS notification. The Master user can enable/disable this SMS notification.

  • Page 46: Sms Notification Upon External Power Supply Changing

    Set SMS notification once socket output changed. 3.9 SMS notification upon external power supply changing  Description TUTA S30 will default notify the user when the state of the external power supply is changed with a SMS notification. For example: Main electricity supply lost...

  • Page 47: Beep" Warning Tone

    3.10 “Beep” warning tone  Description A “Beep” warning tone will be sounded if the work state of TUTA S30 is changed. The “Beep” warning tone is default turning off. The Master user can enable it by sending SMS command.

  • Page 48: Check Status

     Method The Master user sends following SMS message in order to: Check socket operating status: #07# (36) After receiving the SMS commands, TUTA S30 will reply one SMS message of socket status checking: Number:***********,********** Status: ON/OFF TEMP:** Temp control:function ON/OFF...
  • Page 49 TUTA S30 GSM POWER SOCKET USER MANUAL Check “delayed switch on/off the socket” parameters: #138# (38) After receiving the SMS commands, TUTA S30 will reply one SMS message of “Delayed switch on/off the socket” parameters checking: Status: ON/OFF Output will switch off/on after ** minutes.

  • Page 50: Resetting The Socket

    TUTA S30 GSM POWER SOCKET USER MANUAL Check “temperature rapid changing alarm” parameters: #160# (41) After receiving the SMS commands, TUTA S30 will reply one SMS message of parameters. It means SMS alarm message will be sent upon the surrounding temperature changes “Delta” centigrade degree within * minutes: Fast temperature changing.: function ON/OFF...
  • Page 51 This function needs to be used carefully as it also erases all setting values.  Method Method 1: Press the side M button of the device for 5 seconds. Method 2: The Master user sends following SMS message to TUTA S30 in order to: Reset the socket: #08# (43) ...

  • Page 52: Chapter 4 Maintenance

    TUTA S30 GSM POWER SOCKET USER MANUAL Chapter 4 Maintenance • If TUTA S30 does not in use for long time, it should be powered off. • Store and use the remote socket in suitable temperature. Too high or too low temperature will likely to damage the socket.
  • Page 53 TUTA S30 GSM POWER SOCKET USER MANUAL • Do not attempt to open it except as instructed. If the socket does not work normally, try to resolve it as the guide of the "general troubleshooting", if to the problem can not be solved, contact with the dealer immediately.

  • Page 54: Chapter 5 General Troubleshooting

    TUTA S30 GSM POWER SOCKET USER MANUAL Chapter 5 General Troubleshooting General Possible Reason Solution Trouble Power No power input. Check TUTA S30’s indicator light external AC power is turns off available. Can’t find or SIM card no install indicator light...
  • Page 55 TUTA S30 GSM POWER SOCKET USER MANUAL General Possible Reason Solution Trouble All functions Caller ID Contact network disable presentation do not provider to active SIM (Indicator is active, insufficient card function. Pay for working) fee of the SIM card.
  • Page 56 TUTA S30 GSM POWER SOCKET USER MANUAL General Possible Reason Solution Trouble SIM card PIN code Close the PIN code. actives. SIM card invalid. Contact with local operator to check of it. The master Other master is Change Master number...

  • Page 57: Chapter 6 Main Technical Parameters

    TUTA S30 GSM POWER SOCKET USER MANUAL Chapter 6 Main Technical Parameters Input power socket 110~230V/50HZ, CEE 7/7 hybrid Schuko/French plug Output power socket 110~ 230V/50HZ, 230V/30A(30s), 16A long-duration, CEE7/4 German “Schuko” Operating temperature -10 ~+50 ℃ ℃ Store temperature -20 ~+60 ℃...

  • Page 58: Appendix: Sms Commands List

    TUTA S30 GSM POWER SOCKET USER MANUAL Appendix: SMS commands list Category Function Command Time Regulate the socket time #152# SIMCardNumber # Define the Add a master number (2) #00# users to the socket...
  • Page 59 TUTA S30 GSM POWER SOCKET USER MANUAL Category Function Command Change the master user’s number #14# NewMasterNumber # Add a family number (4) #06# FamilyNumber # Add several family (5) #06# FamilyNumber1 # numbers ...# FamilyNumber4 # Delete a family...
  • Page 60 TUTA S30 GSM POWER SOCKET USER MANUAL Category Function Command manually Family user switches (12) #01# Password # on the socket output manually Family user cuts off (13) #02# Password # the socket output manually Enable switching (14) #18#1# on/off the output by...
  • Page 61 TUTA S30 GSM POWER SOCKET USER MANUAL Category Function Command Delay switching off the (17) #138#0# Minutes # output after a certain minutes Timing Enable timing switch (18) #128#1# control on the output Set time period to (19) #129# WorkDay #...
  • Page 62 TUTA S30 GSM POWER SOCKET USER MANUAL Category Function Command temperature temperature alarm alarm Set limits of (25) #170# MinTemp # temperature MaxTemp # Disable the over- (26) #170#0# temperature alarm Temperature Enable the (27) #160#1# rapid- temperature rapid- changing...
  • Page 63 TUTA S30 GSM POWER SOCKET USER MANUAL Category Function Command upon the socket output changing SMS notification upon (32) #12#1# the power supply changing (Default) No SMS notification (33) #12#0# upon the power supply changing “Beep” Enable the “Beep” (34) #19#1#...
  • Page 64 TUTA S30 GSM POWER SOCKET USER MANUAL Category Function Command Check Socket output (37) #000# status Check “Delayed switch (38) #138# on/off the socket” parameters Check “Timed switch (39) #128# on the socket” parameters Check “Temperature (40) #159# control” parameters Check “temperature...
  • Page 65 TUTA S30 GSM POWER SOCKET USER MANUAL TUTA S30 GSM Power Socket...
  • Page 66 TUTA S30 GSM POWER SOCKET USER MANUAL E1046...
