CHAPTER 26 BARCODE READER
OVERVIEW
Chapter Issue 3 Jan 08
WARNING
RADIATION. RISK OF INJURY TO THE EYES DUE TO LASER LIGHT BEING
PRESENT IN THE VICINITY OF THE LABEL. DO NOT LOOK AT THE LIGHT
SOURCE OR REFLECTIONS FROM A SURFACE.

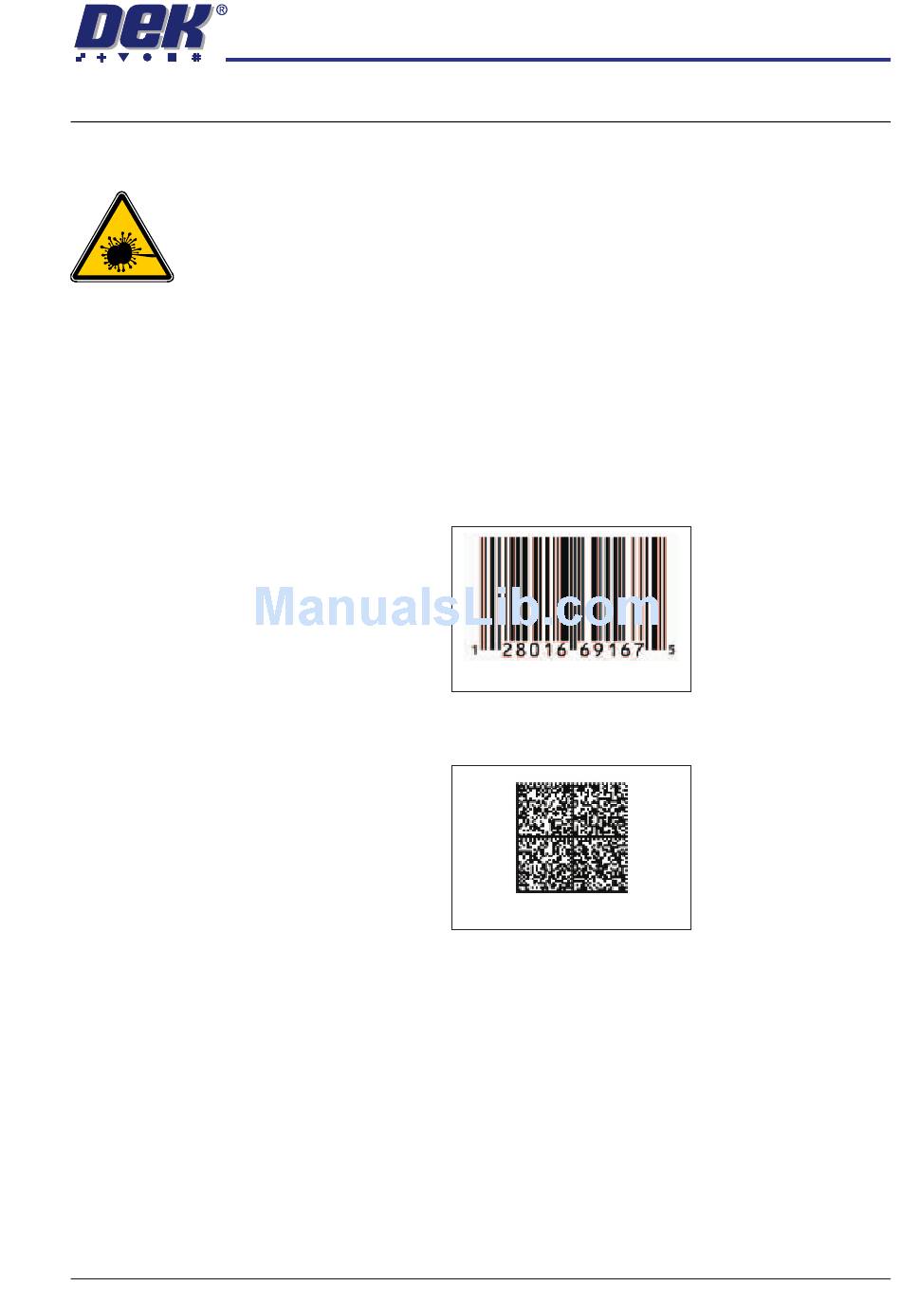

There are four types of barcode readers that may be fitted to the machine:
•
Remote Barcode Reader 1D
•
Remote Barcode Reader 2D
•
Handheld Barcode Reader 1D
•
Handheld Barcode Reader 2D
1D or one dimensional barcodes are the most common barcodes consisting of
a single row of different width bars.
2D or two dimensional barcodes consist of square modules constructed in a
matrix that may be square or rectangular.
NOTE
There are many different formats of barcodes and the above are single exam-
ples to demonstrate the difference between 1D and 2D barcodes.
Technical Reference Manual
Example of a 1D Barcode
Example of a 2D Barcode
BARCODE READER
OVERVIEW
26.1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for DEK Remote Barcode Reader 1D
- Page 1 PRESENT IN THE VICINITY OF THE LABEL. DO NOT LOOK AT THE LIGHT SOURCE OR REFLECTIONS FROM A SURFACE. There are four types of barcode readers that may be fitted to the machine: • Remote Barcode Reader 1D • Remote Barcode Reader 2D •...
- Page 2 BARCODE READER OVERVIEW Remote Barcode The remote barcode reader is normally located on the input conveyor to the Reader machine and reads the barcode of the incoming product board. The remote barcode reader provides GEM and SPC of the product barcode before the product is passed to the printer.
- Page 3 Barcode Reader NOTE The 2D handheld barcode reader supplied by DEK requires an additional 12V supply to power the reader. The 1D handheld barcode reader supplied by DEK is powered from the USB port. Chapter Issue 3 Jan 08 Technical Reference Manual...
- Page 4 BARCODE READER ELECTRICAL SCHEMATIC ELECTRICAL SCHEMATIC 26.4 Technical Reference Manual Chapter Issue 3 Jan 08...
- Page 5 4. Remove the rear panel to gain access to the PC. 5. Route the cable from the conveyor, under the Dek machine exiting at the rear of the machine.
- Page 6 BARCODE READER REPLACEMENT PROCEDURES Remote Barcode HW 13. Select Remote Barcode HW. Not Fitted 14. Select Fitted. Fitted 15. Select Accept. Accept Start Character 16. Select Start Character. 17. Set the start character for the barcode. 18. Select Accept. Accept Name Length 19.
- Page 7 BARCODE READER REPLACEMENT PROCEDURES Fitting the Handheld Barcode Reader 1. Select Shut Down and switch the mains isolator to OFF. Shut Down 2. Gain access to the 4 port USB hub behind the front panel. 3. Connect the handheld barcode reader to the spare USB port on the hub. 4.
- Page 8 BARCODE READER REPLACEMENT PROCEDURES 11. Select Fitted. Fitted 12. Select Accept. Accept Start Character 13. Select Start Character. 14. Set the start character for the barcode. 15. Select Accept. Accept Name Length 16. Select Name Length. 17. Set the name length for the barcode. 18.
