Electric Dustless Cut-Off Saws
12" Dust Director
12" Blade, 4-1/4" Depth-of-Cut
Dust Director™Guard & Blade Installation, Handling & Cutting Techniques
SAFE USE WARNING - BUYER ALTERATION to MANUFACTURER ANGLE GRINDER. The Dust Director™ is a suitable and safe alteration for use
on an angle grinder product within the blade capacities of the angle grinder. However, upon the Buyer or User's installation and/or attachment of the
Dust Director™ to the angle grinder, notification is hereby given that such a modification may void the manufacturer's warranty on the angle grinder.
Additionally, the Buyer and/or User are also notified that while using the modified user-assembled product they will be doing so at their own risk and
that Seller (and all parties associated with the Dust Director™ including but not limited to the inventor or manufacturers) and the manufacturer of the
angle grinder shall not be liable for any injury, loss or damage, direct or consequential, arising from the use of, or inability to use the user-assembled
product. For additional information on this safety notification, please see the LIMITED WARRANTY / LIABILITY section below.

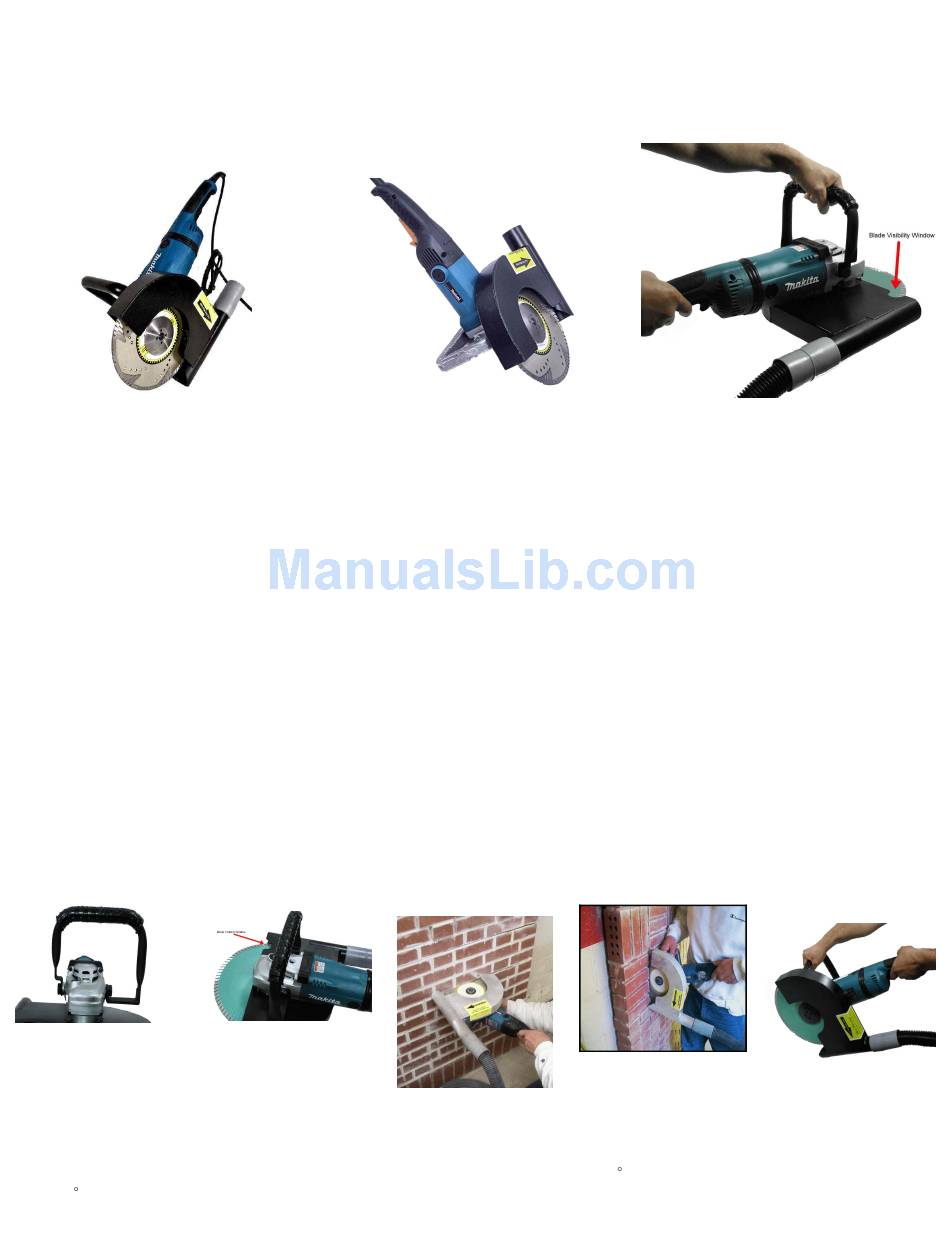

1. LOOP HANDLE INSTALLATION (picture below, left). The loop handle provides safety and comfort in handling. When installed, the large
open-end of the Loop Handle is positioned on the side opposite the barrel of the Dust Director™ or opposite the Directional Arrow on the
Angle Grinder's Head. Two (2) Hex Bolts and one (1) 5/8" Lock Washer are enclosed. The Lock Washer is installed on to one of the Hex
Bolts, then both Hex Bolts are inserted through the loop handles' bolt holes and fasten securely into the side bolt holes on the angle grinder.
2. GUARD POSITIONING / HANDLING THE DUST DIRECTOR™. Installation of the Dust Director™ and its adjustment on the angle grinder
is accomplished by loosening the four (4) hex cap screws on the collar of the Dust Director™. Once positioned to your preference on the
angle grinder, tighten the four (4) screws securely into the bore of the angle grinder's head.
Loop Handle
Installation
2. CUTTING WITH THE DUST DIRECTOR. Your initial cut into the work surface needs to be on a 45 angle. Ease the Dust Director into the material to be
cut on a 45 angle. The shoe of the Dust Director must touch the work surface. Always keep the barrel's shoe within a 1/4" of the work surface.
IMPORTANT: Only cut in the direction of the Yellow "Arrow" Sticker on the Dust Director™ or "towards the vacuum barrel" on the Dust Director™. Cutting in
the opposite direction will result in unsatisfactory dustless cutting.
Dust Director
10" Multi-Purpose Dust Director
7" - 10" Blades, 2" ~ 3-1/4" Depth-of-Cut
HORIZONTAL WALL
CUTTING POSITION
Arrow Shows Blade
Visibility Window
Horizontal Cutting Position
Horizontal Wall Cutting Position
Arrow shows Blade Visibility Window
VERTICAL WALL
CUTTING POSITION
STANDARD CUT-OFF
SAW POSITION
