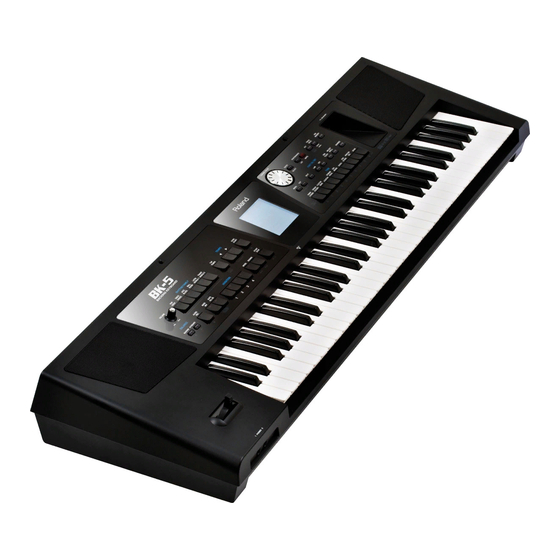

Roland BK-5 Owner's Manual

Supplementary Owner's Manual for Wireless LAN Function
This document discusses the Wireless LAN Function that has been added in this version.
Please read this along with the BK-5 owner's manual.
Check the version
The wireless LAN function was added in BK-5 version 1.03. If
the version is earlier than 1.03, download the update from
the support page (http://www.roland.com/support/) g
Downloads g product name (BK-5) g BK-5 System Program
Version 1.03, and update your BK-5.
* If this supplementary manual was included with the BK-5
you purchased, your instrument has already been updated to
version 1.03 or later; you do not need to update.
How to check the version
Select the [MENU] button g "Global" g"Utility" g"Version
Info"
What is Wireless LAN Function?
By inserting the wireless USB Adapter (WNA1100-RL; sold separately) into
the BK-5's USB MEMORY port, you'll be able to use wirelesscompatible
applications (such as the "Air Recorder" iPhone app).
iPhone etc. Wireless LAN access point
(e.g., wireless LAN router)
Wireless LAN
Items required to use the wireless LAN function
‰ Wireless USB Adapter (sold separately: WNA1100-RL)
‰ Wireless LAN access point (e.g., wireless LAN router) *1*2*3
‰ Phone or iPad touch etc.
*1 The wireless LAN access point you use must support WPS. If
your wireless LAN access point does not support WPS, you can
connect using the procedure described in "Connecting to a
Wireless LAN Access Point That You Select" (p. 2).
*2 The ability to connect with all kinds of wireless LAN access
points is not guaranteed.
*3 If you're unable to connect to the wireless LAN access point, try
connecting using Ad-Hoc mode (p. 3).
1
BK-5
Wireless USB Adapter (sold
separately: WNA1100-RL)
Wireless LAN
(Version 1.03)
Basic Connection Method (Connect by
WPS)
The first time you connect the BK-5 to a wireless network, you'll need to
perform the following procedure (WPS) to join the wireless network.
This procedure is required only the first time. (Once you've joined the
network, this procedure will no longer be necessary.)
What is WPS?
This is a standard that makes it easy to make security settings when
connecting to a wireless LAN access point. We recommend that you
use WPS when connecting to a wireless LAN access point.
1.
Turn ON the power of the BK-5.
2.
Insert the wireless USB Adapter (WNA1100-RL; sold
separately) into the BK-5's USB MEMORY port.
3.
Press and hold the WPS button for three seconds while
taking care to hold it firmly with two fingers at least, to
prevent it from bending.
The indicator of the wireless USB Adapter flashes.
WPS button
NOTE
If you apply excessive force to the USB adapter when pressing
the button, you may damage it.
4.
Perform the WPS operation on your wireless LAN access
point (e.g., press and hold the WPS button on your
wireless LAN access point).
For details on WPS operation of your wireless LAN access point,
refer to the documentation for your wireless LAN access point.
Once successfully connected the indicator of the wireless USB
adapter lights steadily.
NOTE
The device (e.g., iPhone) running the app must be connected to
the same network.
MEMO
• The connection data is stored in memory when you perform
the WPS procedure; the device will automatically connect to the
wireless network next time.
• All connection data will be erased if you perform a factory reset.
r
The Indicator flashes
