- Page 1 N e t w o r k r e p e A t e r w I r e L e s s 3 0 0 N 3 0 0 M b p s M A N U A L N I - 7 0 7 5 4 7...

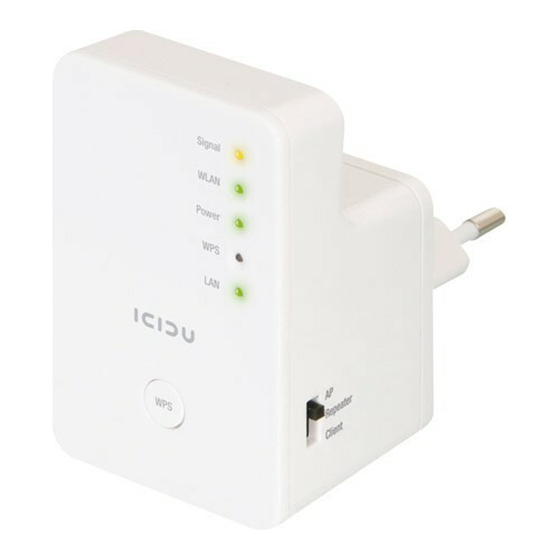

- Page 2 e N G L I s H N e t w o r k r e p e A t e r w I r e L e s s 3 0 0 N 3 0 0 M b p s First of all, let us thank you for purchasing the 300N wireless repeater.
-
Page 3: Wireless Repeater
C o N t e N t s o F t H e p A C k A G e Check that all of the required components are present before starting the installation process. The package should contain: - 300N wireless repeater - Manual - CD with manuals in 13 languages and complete English language manual Purchase tip: LAN cable... - Page 4 H A r d w A r e I N s t A L L A t I o N Switch the device to the desired functionality: AP – operates as a Wireless Access Point Repeater – operates as a wireless repeater Client - operates as a wireless network client Connect the wireless repeater to the mains and switch it on using the on/off button.
-
Page 5: Making A Connection
M A k I N G A C o N N e C t I o N WEb INTERFACE We recommend logging in via the web interface in order to make use of the extended configurations for the repeater. Connect the repeater to a PC or notebook using a LAN cable. Make sure the computer is set to receive IP. - Page 6 w p s ( w I - F I p r o t e C t e d s e t U p ) Use the WPS button to connect to a wireless broadband router or access point. 1) Press and hold the WPS button on the repeater for 2 seconds. 2) The ‘WPS’...
- Page 7 L e d I N d I C A t I o N s Colour LED status Description Amber Constant Receiving a good signal ( strength 100%~50%) Flashing Normal signal Flashing slowly (50%~25%) Signal Poor signal Flashing rapidly (<25%) Out of range, not connected or LED off mode. Green Flashing Connecting to a wireless router or access point,...
- Page 8 r e s e t t I N G t H e d e v I C e The wireless repeater can easily be reset to the factory settings. To do this, press and hold the WPS button for 10 seconds. This will then restore the factory settings.
-
Page 9: National Restrictions
C e M A r k w A r N I N G This is a class b product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. NATIONAL RESTRICTIONS This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:... - Page 10 F C C s tAt e M e N t This equipment has been tested and found to comply with the limits for a Class b digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 11 Visit our website, www.icidu.com, for further details. ICIDU is a registered brand name. All other brand names and associated rights are and remain the property of their lawful owners. © Copyright 2011 ICIDU...
