Mountfield Multiclip 501SP Operating Instructions Manual

Lawnmower with rm45 engine 291502148/bq
Hide thumbs Also See for Multiclip 501SP:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Do you collect your grass clippings? Do
they end up in a rotting heap tucked away
in a corner of your garden? There is an
Multiclip cutting technology.
Gone are the days when recycling your
clippings meant sacrificing the standard of
finish and you will save time, money and
effort.

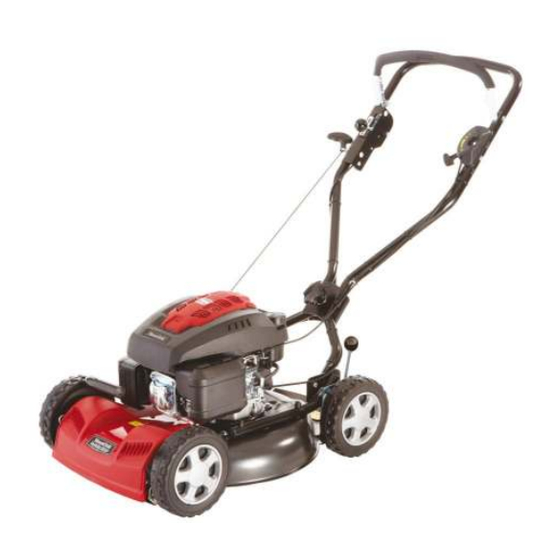

This mower is powered by a Mountfield
RM45 OHV engine and has a 48cm cutting
width. Front wheel drive and handles
which can be offset to either side make it
easy to cut your grass even when you are
working alongside hedges or other
barriers.
Look no further if you want a life free of
grass clippings.
GGP UK Limited has a policy of continuous improvement and reserves the right to change models and specifications without prior
notification. E&OE
Multiclip 501SP Lawn Mower
TECHNICAL SPECIFICATION
Model
Type
Engine
Engine Capacity
Net Power Output
Starting Method
Propulsion
Transmission
Cutter Deck
Cutting Width
Cutting Height
Positions
Adjustment
Front Wheel
Rear Wheel
Ball Bearings
Collector Type
Capacity
Weight
Warranty
Multiclip 501SP
4 Wheel Mulching
Mountfield RM45 OHV
140cc
2.22kW @2900rpm
Recoil
Power Drive
Single Speed
Steel
48cm
31-75mm
5
3 Levers
210mm
210mm
Yes - Double
n/a
n/a
34.0kg
2 years

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multiclip 501SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mountfield Multiclip 501SP

Summary of Contents for Mountfield Multiclip 501SP

  • Page 1 Cutter Deck Steel effort. Cutting Width 48cm Cutting Height 31-75mm This mower is powered by a Mountfield Positions RM45 OHV engine and has a 48cm cutting Adjustment 3 Levers width. Front wheel drive and handles Front Wheel 210mm...

  • Page 2: Operating Instructions

    Please Read These Instructions Before Using Your Mower Operating Instructions for model Multiclip 501SP Lawnmower with Mountfield RM45 engine Product Code: 291502148/BQ Call our Helpline if you have any problems:- 0845 600 2912 Open from 9:00am to 5:00pm Monday to Saturday...

  • Page 4: Table Of Contents

    ITALIANO - Istruzioni Originali - Norme di sicurezza..................4-7 - Funzionamento....................8-11 - Risoluzione problemi...................11 ENGLISH - Translation of the original instructions (Istruzioni Originali) - Safety precautions..................12-15 - How to get mowing..................16-19 - Fault Finding....................19 GUARANTEE....................20...

  • Page 5: Norme Di Sicurezza

    Geazie per aver acquistato un rasaerba Mountfield. Questa macchina garantirà molti annI di affidabile e sicuro lavoro se utilizzata secondo le seguenti istruzioni. Preghiamo di leggere e capire attentamente le istruzioni di utilizzo prima di usare il rasaerba, eventuali omissioni potrebbero causare danni a persone o alla macchina.
  • Page 6 ETICHETTA DI IDENTIFICAZIONE 1. Livello di potenza acustica secondo la direttiva 2000/14/EC. 2. Marchio di conformità secondo la direttiva 98/37/EEC (2006/42/EC dal 29/12/2009). 3. Tipo di rasaerba 4. Modello di rasaerba 5. Numero di matricola. 6. Nome e indirizzo del costruttore. 7.
  • Page 7 Le seguenti norme di sicurezza devono essere osservate ad ogni utilizzo. Preghiamo di leggerle attentamente. ADDESTRAMENTO 1) Leggere attentamente le istruzioni. Prendere famigliarità con i comandi e con un uso appropriato del rasaerba. imparare ad arrestare rapidamente il motore. 2) Utilizzate il rasaerba per lo scopo al quale è destinato, cioè per il taglio dell’erba. Qualsiasi altro impiego può...
  • Page 8 10) Fermare la lama se il rasaerba deve essere inclinato per il trasporto, nell’attraversare superfici non erbose, e quando il rasaerba viene trasportato da o verso l’area che deve essere tagliata. 11) Non azionare mai il rasaerba se i ripari sono danneggiati 12) Non modificare le regolazioni del motore, e non fare raggiungere al motore un regime di giri eccessivo.

  • Page 9: Funzionamento

    FUNZIONAMENTO Il vostro rasaerba Mountield non contiene né benzian né olio motore; questi vanno aggiunti prima dell’utilizzo. L’utilizzo del rasaerba con un’insuficiente quantità di olio può causare seri danni al e invalidare la vostra garanzia. NON INCLINARE IL RASAERBA SUL SUO FIANCO. LA FUORIUSCITA DI OLIO POTREBBE DANNEGGIARE IL FILTRO ARIA. Per accedere alla parte inferiore, alzare le ruote manico si appoggia a terra.
  • Page 10 AVVIARE IL RASAERBA Leggere e capire le norme di sicurezza prima di avviare il rasaerba. Riempire con olio SAE 10W-30 il serbatoio olio (Figure 3). Non riempire in eccesso; la capacità del serbatoio olio è 0.55 litri. Riempire il serbatoio con benzina verde. Utilizzare benzina fresca; benzina vecchia o lasciata depositare potrebbe danneggiare il carburatore.
  • Page 11 Estrarre l’astina livello olio. L’olio deve raggiungere il segno Max. La capacità del serbatoio olio è di 0.55 litre o 18 fluido oz. c) Nel caso il livello olio fosse basso aggiungere olio Mountfield cod. MX855 o SAE 10W-30, fino alla tacchetta MAX sull’astina.Non rabboccare oltre il livello MAX.

  • Page 12: Risoluzione Problemi

    DOPO OGNI UTILIZZO • Rimuovere ogni residuo di erba dall’apparato di taglio servendosi di un oggetto non metallico come un pezzo di legno, prestando attenzione a non danneggiare la verniciatura. • Esaminare la lama per trovare eventuali danni . Una lama danneggiata potrebbe disequilibrare il rasaerba causando eccessive vibrazioni.

  • Page 13: Safety Precautions

    Thank you for purchasing a Mountfield lawnmower. This machine will give you many years of safe and reliable service if operated in accordance with these instructions. Please read and understand these Operating Instructions before using your mower, failure to do so could result in personal injury or damage to the equipment.
  • Page 14 IDENTIFICATION LABEL 1. Acoustic power level according to directive 2000/14/EC. 2. Conformity mark according to directive 98/37/EEC (2006/42/EC from 29/12/2009). 3. Type of lawnmower 4. Model of lawnmower. 5. Serial number. 6. Name and address of Manufacturer. 7. Article code. 8.
  • Page 15 The following safety precautions must be observed at all times. Please read them very carefully. TRAINING Read the instructions carefully. Get familiar with the controls and proper use of the equipment. Learn how to stop the engine quickly. Only use the lawnmower for the purpose for which it was designed, i.e. for cutting and collecting grass.
  • Page 16 Exercise extreme caution when changing direction on slopes. Do not mow on slopes of more than 20 degrees. Exercise extreme caution when pulling the lawn mower towards you. Stop the blade if the lawnmower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the lawnmower to and from the area to be mown.

  • Page 17: How To Get Mowing

    HOW TO GET MOWING Your Mountfield lawnmower does not contain petrol or oil and these must be added before use. Running the mower with insufficient oil can cause serious damage to the engine and will invalidate your warranty. NEVER TIP THE MOWER FORWARDS OR ONTO ITS SIDE AS THIS WILL FLOOD THE CYLINDER AND AIR FILTER WITH OIL.
  • Page 18 STARTING YOUR MOWER Read and understand the Safety Precautions before using your mower. Put SAE 10W-30 oil, in the oil filler (Figure 3). Do not overfill, the oil tank capacity is 0.55 litre. Fill the fuel tank with UNLEADED petrol. Use only clean, fresh petrol - stale fuel may contain deposits that will clog the carburettor.
  • Page 19 The oil tank capacity is about 0.55 litre or 18 fluid oz. c) If the oil level is low add Mountfield oil part number MX855 or a SAE 10W-30 oil, to the upper limit on the dipstick. Do not overfill; the oil level should not be above the FULL mark.

  • Page 20: Fault Finding

    AFTER EACH USE Remove any grass pulp from the underside of the cutter deck using a non-metallic instrument such as a piece of • wood. Take care not to damage the paintwork. Examine the cutter blade for any damage. A damaged blade may upset the balance of your mower and cause •...

  • Page 21: Guarantee

    All repairs must be carried out by an authorised Mountfield dealer. Delivery and collection of the machine is the owner’s responsibility and not covered under the terms of this guarantee.
