Matrix MR311 Manual For Installation, Use And Maintenance

Range cooker
Hide thumbs
Table of Contents

Advertisement

Quick Links

MR311 Range Cooker
Manual for Installation, Use and Maintenance
GB, IE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MR311 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix MR311

Summary of Contents for Matrix MR311

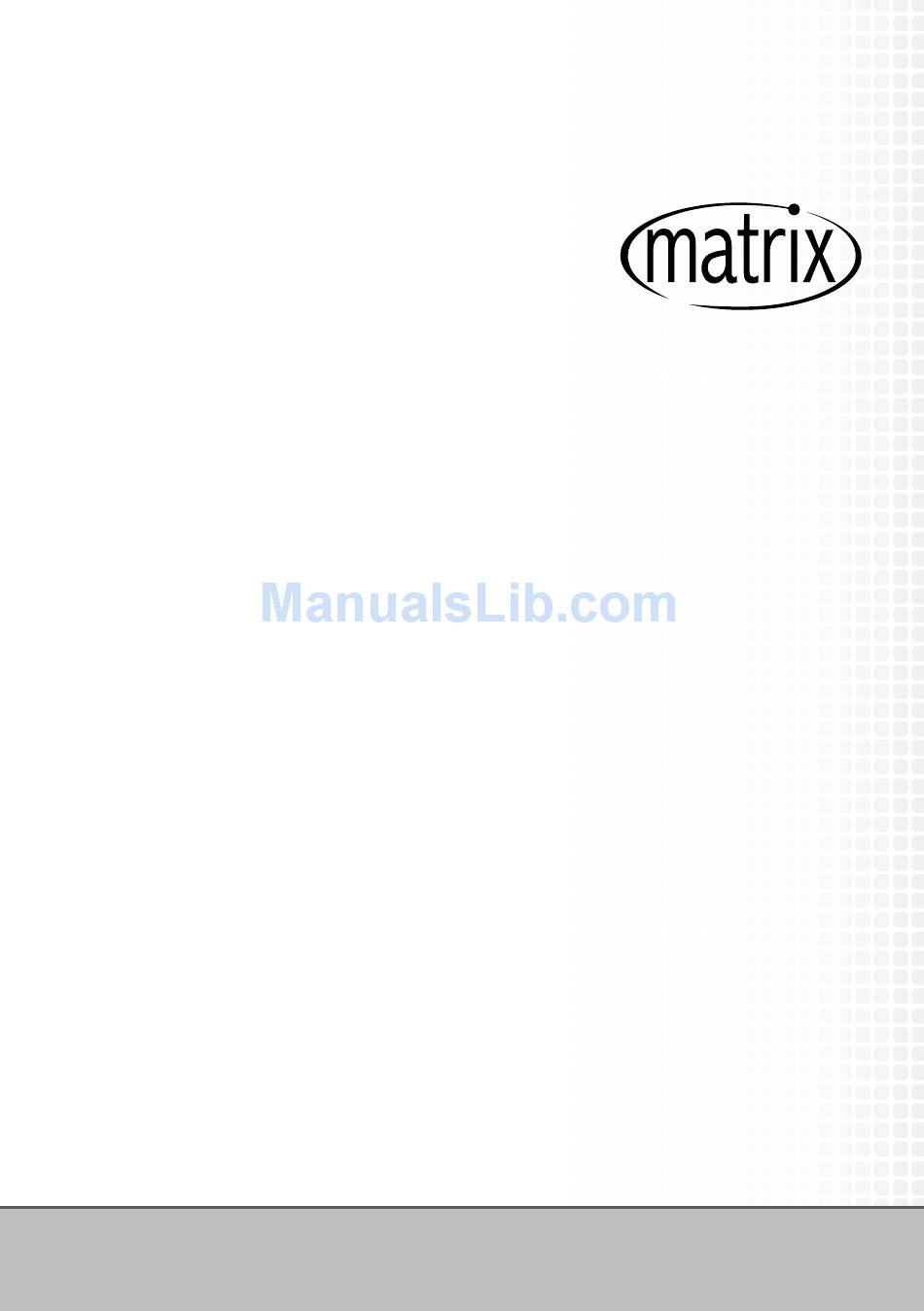

  • Page 1 MR311 Range Cooker Manual for Installation, Use and Maintenance GB, IE...
  • Page 2 Important This appliance must only be used for the purpose for which it is intended, i.e. domestic cooking. Any other use could be dangerous and may lead to premature failure of the appliance. The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product.

  • Page 3: User Information

    User information: Read the instructions carefully before using the cooker. Keep the instructions in a safe place for future reference. Follow the instructions for first use (page 4). Always use oven gloves when removing shelves and trays from the cooker. Always grill with the door closed.

  • Page 4: Before First Use

    Before first use • Before using the oven for the first time we recommend that you clean the oven with soapy water, rinse carefully , dry thoroughly and then heat on the oven function at maximum temperature for one hour. A slightly unpleasant smell may be produced, caused by grease remaining on the oven elements from the production process.

  • Page 5: Using Your Hob

    Using your hob Gas burners: 1. Left Rapid 3.0kW 2. Left Semi-rapid 1.75kW 3. Triple-ring/Wok 3.7kW 4. Right Semi-rapid 1.75kW 5. Right Rapid 3.0kW Control panel: 6. Timer control 7. Front left rapid burner control 8. Rear left semi-rapid burner control 9.

  • Page 6: Igniting The Burners

    Igniting the Burners The hob is fitted with a flame failure device. Flame failure devices operate by shutting off the supply of gas to the burner in the event that the flame is extinguished accidentally. To ignite the burners, follow these instructions: 1.
  • Page 7 Correct use of the Wok Pan Adaptor The wok pan adaptor is a special stand that is designed to be fitted over the triple ring burner to give support to round bottomed woks. When using a wok, always place the wok pan adaptor in position over the pan support on the triple ring burner as shown in Fig.5.

  • Page 8: Using The Light

    The Oven and Grill Using the light The cooker is equipped with a light to illuminate the oven cavity allowing easy viewing of the food as it cooks. To switch the oven light on, turn the oven light control knob to the light position. To switch the oven light off, turn the oven light control knob to the off position.

  • Page 9: Using The Grill

    Using the grill The grill burner is fitted with a flame failure device. This will shut off the supply of gas to the burner in the event that the flame is extinguished accidentally. To light the grill burner, follow the instructions below: 1.

  • Page 10: Care And Maintenance

    Care and Maintenance Cleaning the Cooker IMPORTANT: Always disconnect the appliance from the power supply before undertaking any cleaning or maintenance. You should always allow the cooker to cool fully after use before undertaking any cleaning or maintenance. • Steam cleaners must not be used when cleaning this appliance •...

  • Page 11: Cleaning The Oven Interior

    Cleaning the Oven Interior To clean the oven interior, suitable proprietary chemical cleaners may be used after first consulting with the manufacturer’s recommendations and testing a small sample on the oven cavity. If necessary, the oven floor can be removed for cleaning. Do not use metal scrapers or harsh cleaners on the oven door glass.

  • Page 12: Removing The Oven Door

    Removing the Oven Door The oven door can easily be removed as follows: • Open the door to the full extent (fig. 10) • Open the lever A completely on the left and right hinge see (fig. 11) • Hold the door as shown in Fig. 14 Fig.

  • Page 13: Control Knobs

    Care and Maintenance Flexible gas pipe Check the flexible gas pipe connecting the gas supply to the cooker regularly. It must be always in perfect condition; in case of damage contact Customer Care for advice. Control knobs Should any of the control knobs become stiff, do not use force. Contact Customer Care for advice. Changing the oven light 1.

  • Page 14: Installation Section

    Installation section The manufacturer will not be held responsible for any damage to property or injury to persons/animals resulting from incorrect installation of this appliance We recommend you seek the help of another individual when installing this appliance to prevent damage or injury.
  • Page 15 Notes: • Do not position this appliance adjacent to a refrigeration unit. The heat generated may cause the refrigeration unit to fail. • This appliance is designed to be installed adjacent to cabinet units capable of withstanding temperatures of 65°C or greater above ambient temperature.
  • Page 16 Installation section THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C.

  • Page 17: Gas Supply Requirements

    Gas Supply Requirements IMPORTANT: THIS APPLIANCE SHOULD BE FITTED BY A GAS SAFE REGISTERED FITTER OR OTHER SUITABLY QUALIFIED PERSON. • This installation must comply with the Gas Safety (installation and use) Regulations 1984. • This appliance is category II2H3+ and is designed for use in the UK and Ireland. The installation must comply with the Gas Safety (installation and use) Regulations 1984.

  • Page 18: Natural Gas To Lpg Conversion

    Natural Gas to LPG conversion This appliance can be converted from natural gas to propane operation at a nominal inlet pressure of 37mbar, or butane operation at a nominal inlet pressure of 28/30mbar. This conversion must only be carried out by a competent person (i.e.
  • Page 19 Instructions to fit replacement grill injectors: 1. Disconnect the appliance from the gas and electrical supplies. 2. Remove the accessories from the oven. 3. Remove two securing screws at the left hand side of the burner, marked A and move the burner to the right to allow access to the injector.
  • Page 20 Setting up the Range Cooker for Primary air adjustment for the oven and grill burners Loosen the adjustment screw A of the air regulation sleeve. Turn the adjustment sleeve to the position that corresponds to the type of gas to be used according to the table below. Tighten the adjustment screw.
  • Page 21 IMPORTANT Failure to set the reduced rate of the oven burner correctly may result in performance problems and prevent the oven from functioning at low temperatures. Final installation checks 1. Check that all connections are gas tight using appropriate methods and that the flexible gas hose is positioned correctly, hanging freely, is not kinked or trapped and is not fig.
  • Page 24 Serviced by To contact our Customer Care Department, or for Service, please contact us on the details below. Passionate about style Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
