Lens Cover (Included)
Lenses
The NI High-Performance Smart Cameras have a C lens mount.
National Instruments offers a number of C mount lenses.
These lenses include both low and high resolution options to
accommodate the different camera models.
NI 1772, 1772C, NI 1774, NI 1774C
Computar M0814-MP , 8mm, F1.4, Megapixel
Computar M1214-MP , 12mm, F1.4, Megapixel
Computar M1614-MP , 16mm, F1.4, Megapixel
Computar M2514-MP , 25mm, F1.4, Megapixel
Computar M3514-MP , 35mm, F1.4, Megapixel
NI 1776, NI 1776C, NI 1778
Computar M1620-MPV, 16mm, F2.0,2/3 inch, 3MP 782023-01
Computar M2518-MPV, 25mm,F1.8, 2/3 inch, 3MP 782024-01
Computar M3520-MPV, 35mm, F2.0,2/3 inch, 3MP 782025-01
Fujinon HF12.5SA-1, 12.5mm, F1.4, 5 MP
Fujinon HF16SA-1, 16mm, F1.4, 5 MP
Fujinon HF25A-1, 25mm, F1.4, 5 MP
Ethernet
Utilize Ethernet for enterprise connectivity, Modbus,
EtherNet/IP , and TCP/IP .
M12 Ethernet Connector
M12 to RJ45 Cable (5m)
USB and VGA Video
View inspection images and connect additional storage via USB.
M12 VGA and USB Connector
M12 to VGA/USB Splitter Cable (1m)
780024-01
780025-01
780026-01
780027-01
780033-01
782525-01
782424-01
782423-01
153130-05

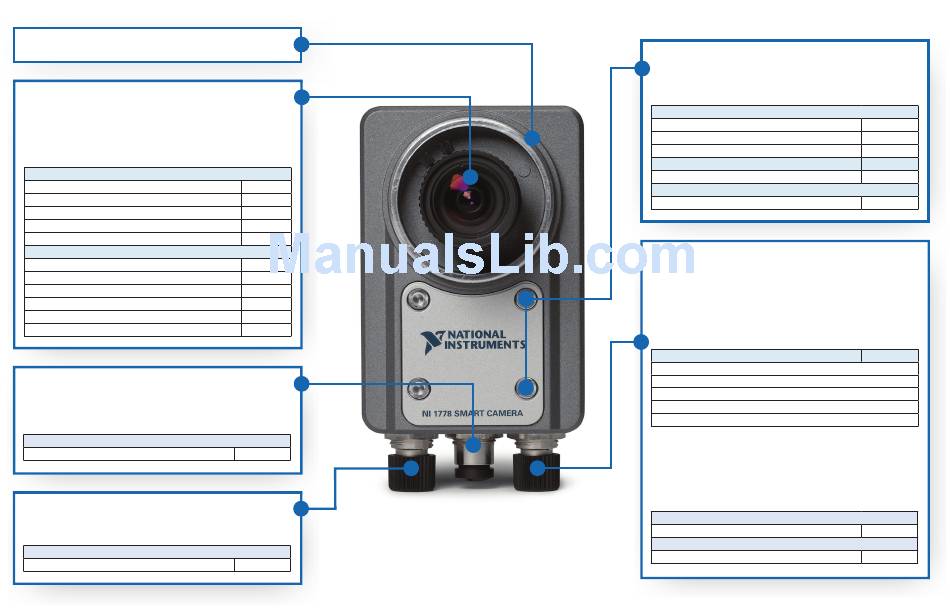

NI 177x Smart Camera
153064-01
Accessories
Mounting and Lighting
Utilize industry standard mounting for the following mount and
lighting options:
Mounting
Tripod Adaptor
Pan and Tilt Mount
Light Bracket for 177x Smart Cameras
Lighting for Monochrome Cameras
Advanced Illumination RL127 , Red Ring Light
Lighting for Color Cameras
Advanced Illumination RL127 , White Ring Light
Power and I/O
There are two main options for connecting power and I/O to
the camera.
The first is to use the starter kit for NI 177x Smart Cameras. The
starter kit includes all accessories listed in the table, and is the
easiest way to start using the NI 177x Smart Camera.
Starter Kit for NI 177x Smart Cameras
Power & I/O Accessory
Power Supply
M12 to DSUB cable for Power & I/O Accessory
M12 to RJ45 cable
M12 to VGA/USB cable
The second option is to use the following M12 to Pigtail cable.
This cable provides a way to connect the smart camera power
and I/O lines to custom termination. The Power Supply for NI
177x Smart Cameras can also be connected to custom
termination utilizing the M12 to Pigtail cable to connect to
the Smart Camera.
Cable
M12 to Pigtail cable (3m)
Power Supply
Power Supply for NI 177x Smart Cameras
199173-01
748182-02
782570-01
782026-01
782027-01
782043-01
Mount
153131-03
782032-01
