- Page 1 Stand-Alone Digital Video Recorder Edge DVR Quick Guide Advanced MPEG-4 DVR 4, 8 and 16 Channel Models Scorpion Group Security - 01452 525397 V0.97.07-R04-5000 For Service Call Scorpion Group 01452 525397...
- Page 2 First guide for the operation of M5000 >> Cautions for Power-Off Forced power-off or unplug while DVR is in its operation (Record/Playback) can cause fatal damages or abnormal operation to DVR. You are firmly requested to shutdown the system first in SYSTEM/Shutdown and then turn the power off.
-
Page 3: Installation
INSTALLATION INSTALLATION OF HDD AND CD-RW (DVD-RW) 2.1.1 IDE ports This DVR provides 2 x IDE ports that are to be divided into Primary and Secondary respectively. Every IDE port will be connected with 2 IDE devices (HDD, CD-RW, DVD-RW) in a row, but each of the storage devices should be set as Master or Slave in accordance with following port setting plan Correct set of CD-RW (or DVD-RW) is Slave in the Secondary port. -
Page 4: Input Device And Screen Icons
INPUT DEVICE and SCREEN ICONS KEYS AND INDICATORS Keys PTZ key Operation Mode Setup Mode •Camera selection keys (For 4 / 8ch DVR) ▲, ▼, ◄, ► •Move cursor to Up/Down/Left/Right • Rotate Pan/Tilt to Up/Down/Left/Right in PTZ Mode •Enter into Sub-Menu •Camera selection keys (For 8ch DVR) •Select where cursor locates at 1 ~ 16... -
Page 5: Front Panel
FRONT PANEL 4 / 8 channel DVR 16 channel DVR HOW TO USE REMOTE CONTROLLER Function buttons and their functionalities of Remote Controller are as same as the buttons on the Front Panel of DVR. Follow the instructions below when you are in use of multi DVR units. ①... -
Page 6: System Time

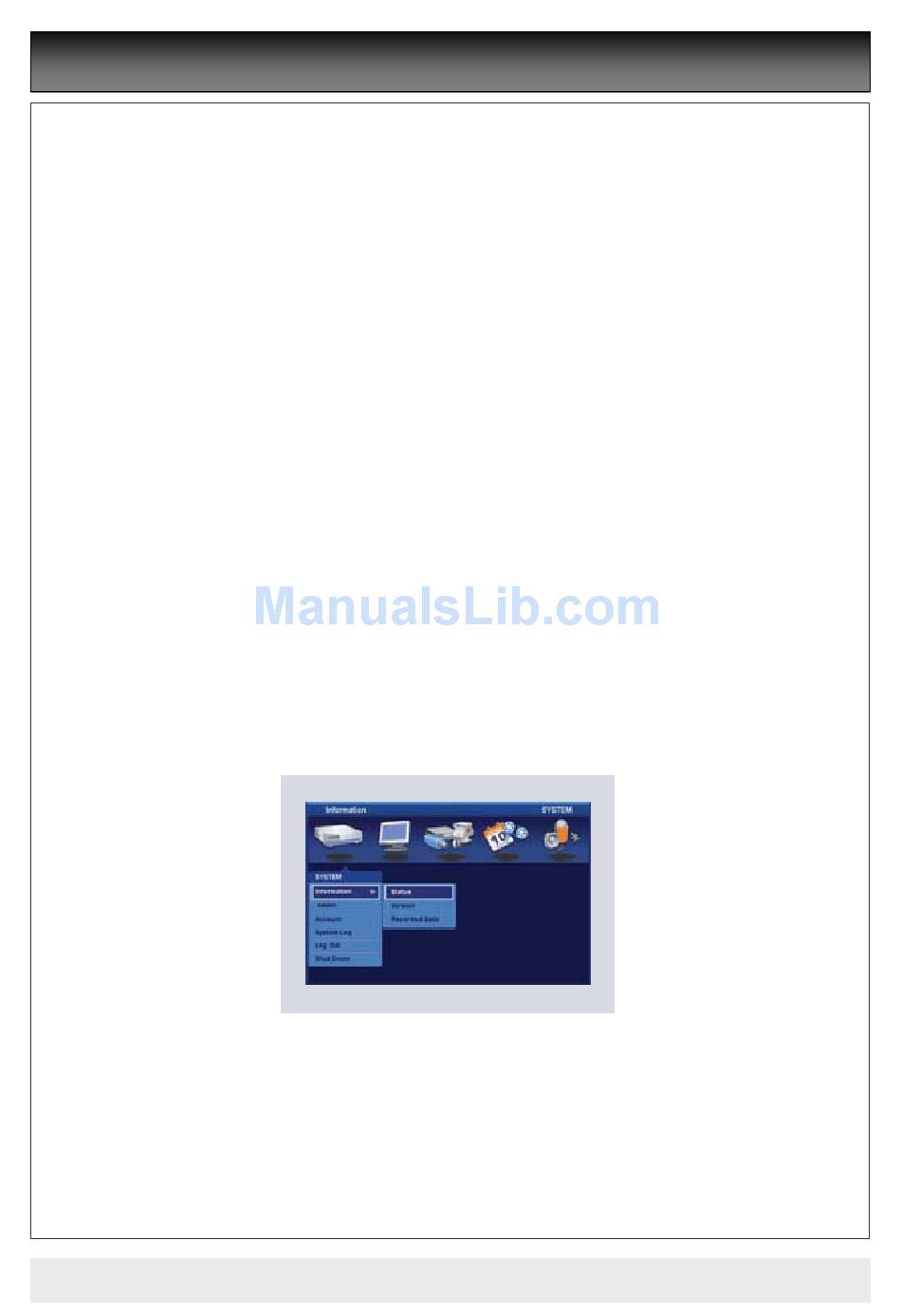

SETUP Time SYSTEM This Menu is to set present Time. Adjust the Time in same 4.2.1 Information manner of Date setting. Version (ATTENTION) After Status input is completed, click ( ) Version to display If the date/time newly adjusted is earlier time than the following screen menu. - Page 7 4.2.6 Shutdown NTSC(PAL) 352x240 704x240 704x480 Shutdown is to safely turn off the power of DVR. Forced power 4ch DVR ---- 120(100) 60(50) off can cause unexpected malfunction on the system. You are 8ch DVR 240(200) 120(100) 60(50) firmly requested to turn the power off in the Shutdown mode. 16ch DVR 480(400) 240(200)
-
Page 8: Motion Detection
(Note) Holiday will be registered in another Menu. 4.5.3 Motion Detection Click ( ) Motion Detection in RECORD>Motion Detection to display following screen menu. This Menu is to set Motion Detection. Press SETUP key (or press Right button of Mouse) to display setup Menu. -
Page 9: Operation
OPERATION MONITORING 5.1.4 Screen Freeze Press FREEZE key to pause present screen display. 5.1.1 First Screen Screen Freeze can be functioning in Full screen and Split First screen defaulted to be displayed after power on will be a screens. But this function will not be working in Sequence screen split screen as below and DVR starts both of Live and record mode and PIP mode. -
Page 10: System Log
5.1.6 System Log The system supports 2 different ways of Search. Press EVENT key to display System Log as below. Date/Time Search: Search by putting in Date and Time. Calendar Search: Search by using Calendar dates. 5.2.2 Date/Time Search Click ( ) Date/Time Search in the pop-up screen to display following screen Menu. -
Page 11: One-Touch Playback
If the reboot doesn’t make the again to pop up a Search Menu. Click ‘Exit Search’ in the system regularly operate, HDD format or system recovery Search Menu. One-touch playback will be stopped. should be processed Scorpion Group Security For Service Call (01452) 525397 www.scorpion-group.co.uk...
