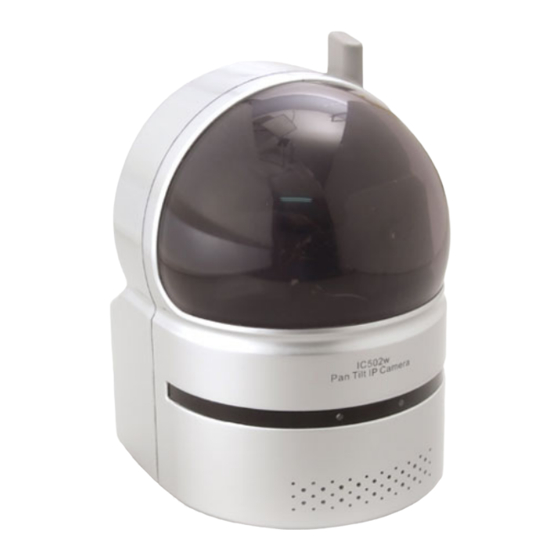

E-Guard IC502w User Manual

802.11 b/g wireless ip camera with pan/tilt function
Hide thumbs
Table of Contents

Advertisement

Quick Links

E-Guard
802.11 b/g Wireless IP Camera
With pan/tilt function
Model : IC502w

User Manual

Mundo Digital Guatemala
http://www.digimundos.com
Revision: 000109
Date: 2008/9/2
For firmware version v010711

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC502w and is the answer not in the manual?

Questions and answers

Summary of Contents for E-Guard IC502w

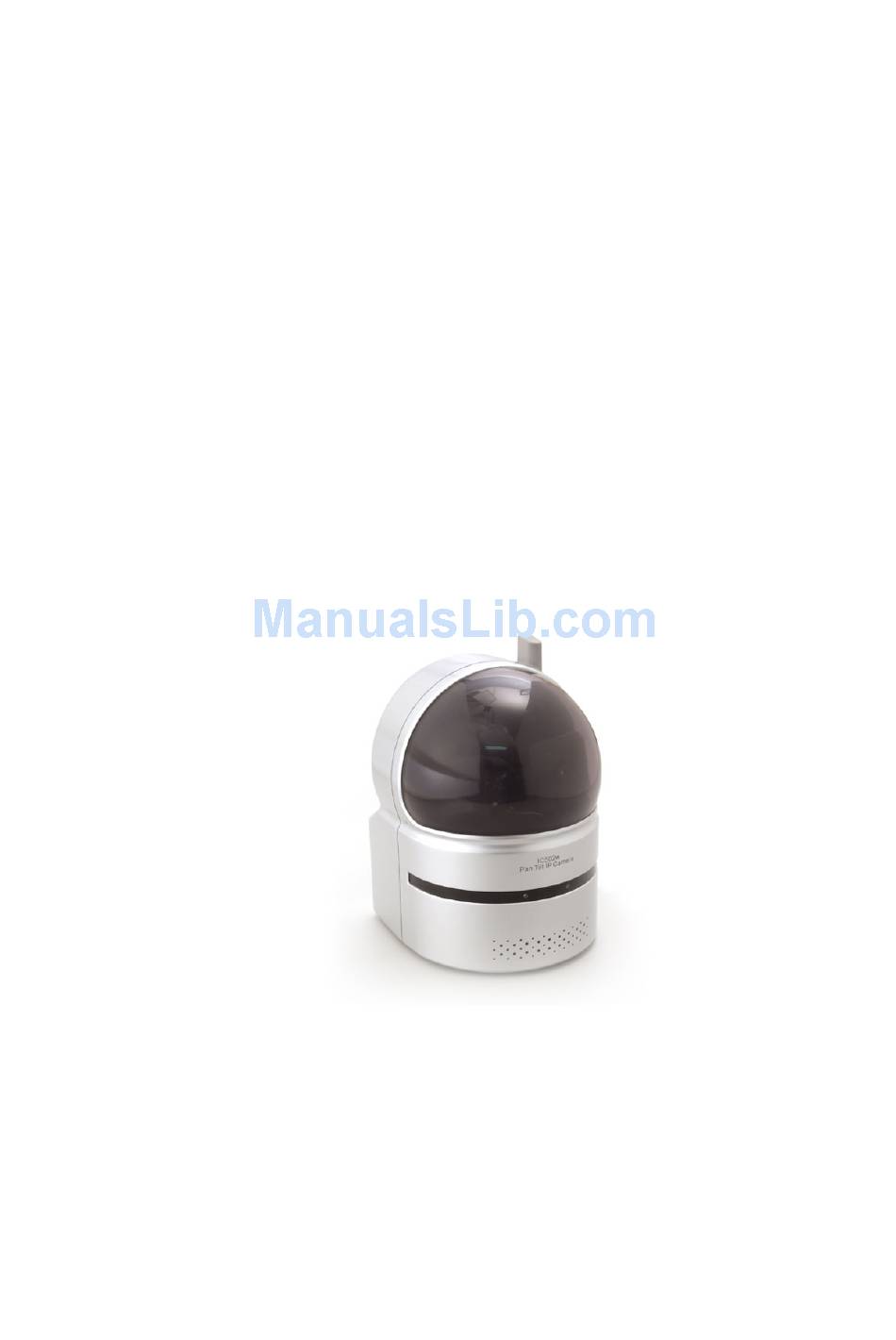

  • Page 1: User Manual

    E-Guard 802.11 b/g Wireless IP Camera With pan/tilt function Model : IC502w User Manual Mundo Digital Guatemala http://www.digimundos.com Revision: 000109 Date: 2008/9/2 For firmware version v010711...

  • Page 2: Table Of Contents

    E-Guard IC502w Table of Contents INTRODUCTION..........................6 HARDWARE DESCRIPTION AND QUICK INSTALLATION/USAGE ........8 2.1..................8 AJOR HARDWARE COMPONENTS 2.2..................9 UICK INSTALLATION AND USAGE 2.3......................13 IRELESS CONNECTION WEB CONFIGURATIONS ......................15 3.1........................16 NFORMATION 3.2........................17 IDEO ISPLAY 3.3..........................19 ETWORK 3.4.
  • Page 3 E-Guard IC502w APPENDIX F. THIRD PARTY AND EMBEDDED WEB PAGE INTEGRATION ......50...

  • Page 4: List Of Figures And Tables

    Figure 3-21: Micro-SD card recording page Figure 3-22: Safe mode information page Figure 3-23: Stick the reset button to set to the factory default Figure 5-1: IC502w body Figure 5-2: Power Adaptor Figure 5-3: Quick installation guide Figure 5-4: Ethernet cable...
  • Page 5 E-Guard IC502w Figure 5-5: Installation CD Figure 5-6: ID/Password Card Table A-1: List of tested Wireless AP/router devices Table A-2: List of tested Wired NAT/router devices...

  • Page 6: Introduction

    Internet. The differences It’s very easy to see the video of the IC502w IP Camera, you only need to key in the ID/Password of the IP CAM any where in the world, you do not need to remember the IP address or domain name or DDNS name or port number.
  • Page 7 E-Guard IC502w ♦ UPnP support in router ? ♦ What’s needed ? ID and Password...

  • Page 8: Hardware Description And Quick Installation/Usage

    E-Guard IC502w 2. Hardware description and quick installation/usage The IP CAM is designed to be very easy to install and use. First, let’s see the major components of the IP CAM products. 2.1. Major hardware components. The major components on the front panel of the IP CAM products are the built-in microphone, lens and LEDs : 1.

  • Page 9: Quick Installation And Usage

    E-Guard IC502w 3. Ethernet jack – this is the place to plug in the RJ45 Ethernet cable. When the Ethernet link is ok, the Ethernet indication LED on the front side will be blue light. 4. Reset button – this is the button to reset the IP CAM to default factory settings.
  • Page 10 E-Guard IC502w constant red light to indicate this good connection status. If the LED is blinking, please refer to section 3.3~3.5 to try other network settings. Figure 2-3: IP CAM connection diagram. Figure 2-4: Connect Ethernet cable to a switch/router.
  • Page 11 E-Guard IC502w Figure 2-5: The installation CD disk Third, Use CamView program to see the video Figure 2-5 is the running window of the CamView program. If the computer and IP CAM is connected to the same network, the IP CAM ID will be displayed in the “Auto Search”...
  • Page 12 E-Guard IC502w Seeing the video in a remote location After the IP CAM is installed and you can see the video from the CamView software in the local network, it’s very easy to see the video in a remote location. All you need to do is add a camera item in the “CameraList”...

  • Page 13: Wireless Connection

    E-Guard IC502w 2.3. Wireless connection The IP CAM can also be connected to the home/office network through the 802.11 b/g wireless connection. There are only three things that you need to do to have the wireless connection: 1. Set the WiFi security settings on the web configuration page.
  • Page 14 E-Guard IC502w Figure 2-9: Unplug the Ethernet cable to enable the WiFi function...

  • Page 15: Web Configurations

    E-Guard IC502w 3. Web configurations You can login into the web configuration page by directly key-in the IP address of the IP CAM or right-click the searched IP CAM in the “Auto Search” list of the CamView software and click the “Web Configure” to open the login window of the IP CAM.

  • Page 16: Information

    E-Guard IC502w 3.1. Information The first page of the web configuration of the IP CAM IC502w is the information page. You can see the model name/firmware version, IP CAM ID, registration status, network type and current video settings( bandwidth, resolution) in this page.

  • Page 17: Video Display

    E-Guard IC502w 3.2. Video Display This display page allows you to view the video display and control the pan/tilt movement of the IP camera. For the first time use of this display on a computer, an activeX component will be automatically downloaded into the browser. This could take some time, depends on the internet speed.
  • Page 18 E-Guard IC502w updated accordingly. You can click the (x,y) axis of the patrol point to direct the view to this specific patrol point directly. After the patrol points are set, you can click the “Patrol” button to start the automatic patrol. The patrol movement will remain even after power-off and power-on, and will be stopped only after pressing “Stop”...

  • Page 19: Network

    E-Guard IC502w 3.3. Network The Network page allows you to modify the network settings of the wired Ethernet. The default settings use DHCP to obtain an IP address automatically. In most of the home and office network environment, there is a DHCP server running. In this situation, by using this default settings, the IP CAM can work immediately in most of the time.
  • Page 20 E-Guard IC502w Figure 3-6: Network settings page for fixed IP address...

  • Page 21: Wifi Security

    E-Guard IC502w 3.4. WiFi security You can use the wireless to connect the IP CAM to the network. If your network environment has a 802.11 b/g router or AP running, you can check the “Enable WiFi function” button to use the wireless.
  • Page 22 E-Guard IC502w All the fields in this page must be filled correctly with the same settings the wireless router or AP using. Figure 3-8: WiFi security enabled page You can also click the “WiFi test” button to check if the IP CAM can connect to the wireless network for these settings.
  • Page 23 E-Guard IC502w Figure 3-9: WiFi testing page...

  • Page 24: Advanced Network

    E-Guard IC502w 3.5. Advanced Network In some special situation, your network environment only provides PPPoE connection(ADSL service), there is no NAT/router available. You will then need to set the PPPoE settings in the “Advanced Network” page. Only the PPPoE username and password are needed to let PPPoE work.

  • Page 25: Video Settings

    E-Guard IC502w 3.6. Video Settings The IP CAM is designed to provide high quality video for viewing from CamView software. In this page, you cam modify some settings related to the video viewing: 1. Password(play video) – this is the password needed for viewing the video from the CamView software.
  • Page 26 E-Guard IC502w very vague. For indoor usage, if there is strong sun light into the room, please select the “Indoor+sun light” choice. 12. Enable/disable audio microphone – you can enable or disable the audio microphone on the IP CAM. If disable, there will be no voice on the CamView video viewing.

  • Page 27: 3Gpp/Rtsp Settings

    E-Guard IC502w 3.7. 3GPP/RTSP settings The IP CAM is able to be viewed from a 3G mobile phone, for detailed settings on the 3G mobile phone, please refer to Appendix E. Users can disable the 3G mobile access ability in this page. After the 3GPP/RTSP feature is disabled, no 3G mobile phone is allowed to access the video of the IP camera.

  • Page 28: Motion Detection

    E-Guard IC502w 3.8. Motion Detection The IP CAM provides the motion detection function, you can enable the motion detection ability in this page, the IP CAM will then send out an email with a jpeg picture attached in the email and/or send out the jpeg picture file to a ftp server. The related settings are explained below: 1.
  • Page 29 E-Guard IC502w The default setting is “Disable Motion Detection”. Figure 3-13: Motion detection enabled page...

  • Page 30: Sd-Card Record Control

    E-Guard IC502w 3.9. SD-card record control The IP camera has a micro-SD card slot that users could insert micro-SD card into the IP camera for video recording usage. The maximum size supported for the micro-SD card is 2G bytes. In the “Record Control” page, users could control the recording method for the micro-SD card : 1.

  • Page 31: Micro-Sd Card Recorded Files Display

    E-Guard IC502w 3.10. Micro-SD card recorded files display The recorded files on the micro-SD card could be displayed and downloaded on the “Recording File” page. You can press the “Download” to download the recorded file into your computer and then be played by the CamPlay software. The file could also be deleted by pressing the “Delete”...

  • Page 32: Led Display Control

    E-Guard IC502w 3.11. Led Display Control The IP CAM provides the Led Display Control function, you can enable or disable the led display/indication on the front panel of the IP cam device. The related settings are explained below: 1. Normal led display – select this to enable the status led and ethernet led display.

  • Page 33: Date/Time

    E-Guard IC502w 3.12. Date/Time The IP CAM can synchronize the date/time with the universally available time server( for example stdtime.gov.tw) through NTP protocol. The date/time will then be corrected with the time server anytime when the Internet is connected. Users can choose the different TimeZone of their areas to display the correct time.

  • Page 34: Admin

    E-Guard IC502w 3.13. Admin In this page, you can modify the web login account. With this account, you can login to the IP CAM and do any modifications. The default account is “admin” without password. If the login account is forgotten, you can reset the IP CAM to the factory default settings by following the steps in section 3.15 and login with the “admin”...

  • Page 35: Upgrade

    E-Guard IC502w 3.14. Upgrade If there is some new firmware available from the supplier of this IP CAM, you can upgrade the firmware on this page. Please ask for the correct information about FTP server, username/password account and firmware filename from your supplier, and then do this upgrade.
  • Page 36 E-Guard IC502w Figure 3-20: Firmware upgrade status page...

  • Page 37: Reboot

    E-Guard IC502w 3.15. Reboot You can restart the IP CAM manually on this page. All the connected video viewing users will be disconnected. Figure 3-21: System reboot settings page Figure 3-22: System reboot under-going page...

  • Page 38: Safe Mode

    E-Guard IC502w 3.16. Safe Mode If by some abnormal operation, for example, powered off during the critical point of the upgrade procedure, the IP CAM will enter into the safe mode. In this mode, you will see the following “Safe mode” page when login into this IP CAM. Please do the upgrade operation immediately to recover the system.

  • Page 39: Set To Factory Default

    E-Guard IC502w 3.17. Set to factory default For some reason, for example you forgot the web login password, you may want to set the IP CAM to the factory default settings. The only thing you need to do is using a stick to press the “reset” button on the back of the IP CAM body for more than 3 seconds and release it, do this when the IP CAM is powered on.

  • Page 40: Features And Specifications

    E-Guard IC502w 4. Features and specifications 4.1. Features Easily access the camera from anywhere in the world via the ID/password No complicated NAT/router settings needed. Free video management software - CamView program accompanied for easy access and multi-camera management. 3GPP/ISMA support.

  • Page 41: Specifications

    E-Guard IC502w 4.2. Specifications IC502w Models DC 5V, 2A Power Processors RISC CPU, hardware video processing and compression. Network interface Ethernet 10BaseT/100BaseTX, Auto-MDIX, RJ-45 IEEE 802.11g 6 - 54 Mbps Wireless interface IEEE 802.11b 1 - 11 Mbps Transmit power: 14.5dBm typically @ 802.11g 17.5dBm typically @ 802.11b...
  • Page 42 E-Guard IC502w Web management username/password protection Security Video display ID/password protection WiFi WEP and WPA security mode Installation, Installation tool on CD and Web-based configuration management and Automatic configuration backup and restore Video management software-CamView for video access and maintenance...

  • Page 43: Package Contents

    E-Guard IC502w 5. Package contents Figure 5-1: IC502w body Figure 5-2: Power Adaptor Figure 5-3: Quick installation guide Figure 5-4: Ethernet cable Figure 5-5: Installation CD Figure 5-6: ID/Password Card...

  • Page 44: Appendix A. List Of Tested Nat/Router Devices

    E-Guard IC502w Appendix A. List of Tested NAT/router Devices The followings are the list of tested NAT/router devices that can work with the IP CAM and CamView software when viewing in a remote location. You do not need to do any modification on the default settings of the NAT/routers. In some office environment, if some strict firewall function is enabled, it’s possible that you can not...

  • Page 45: Appendix B. Maximum Allowed Video Users

    E-Guard IC502w Appendix B. Maximum Allowed Video Users The maximum allowed video users for a single IC502w camera at the same time is dependent on the video settings including “Internet speed” and resolution. The followings are the summary of the maximum allowed video users: 1.

  • Page 46: Appendix C. Performance Information

    E-Guard IC502w Appendix C. Performance Information 1. Video Performance Information The video quality is dependent on the video parameter settings and the network quality. If you want to have a better video quality, you will usually set higher resolution and higher frame rate. This is fine when you are viewing the video locally in the same network.

  • Page 47: Appendix D. Trouble Shooting

    E-Guard IC502w Appendix D. Trouble shooting 1. What’s going on when the red led light on the IP camera is flashing? A: When the IP Cam is connected to the Internet and working correctly, the red led light will be on constantly. If the red led light is flashing, it’s probably because there is some network connecting problem.
  • Page 48 E-Guard IC502w A: It’s probably because the internet bandwidth (internet speed) is not big enough. Please try to apply for a better internet connection from your Internet Service Provider or decrease the bandwidth settings of the IP Cam. You can adjust the bandwidth requirement of the IP Cam either from the CamView software or login into the web configuration page of the IP Cam to do the modification.

  • Page 49: Appendix E. 3Gpp/Isma Operation

    Appendix E. 3GPP/ISMA operation 3GPP/ISMA is using RTSP protocol for 3G mobile phone to display the video stream from some network devices, including IP camera. The IC502w support the RTSP protocol and video/audio codec needed by 3GPP/ISMA. Users only need to access the address rtsp://ip_cam_address/CAM_ID.password...
  • Page 50 RTSP protocol and video/audio codecs needed by most generally used video play software, including Apple QuickTime and VideoLAN. The supported media protocols including TCP and UDP. IC502w will automatically use TCP or UDP media stream depends on the connection request. The video codec supported is MPEG4, the audio codecs supported are AMR-NB and MPEG2-audio.
