Pure Acoustics Micro-103 Instruction Manual

Home a/v center
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
Model Micro-103
Home A/V Center

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micro-103 and is the answer not in the manual?

Questions and answers

Related Manuals for Pure Acoustics Micro-103

Summary of Contents for Pure Acoustics Micro-103

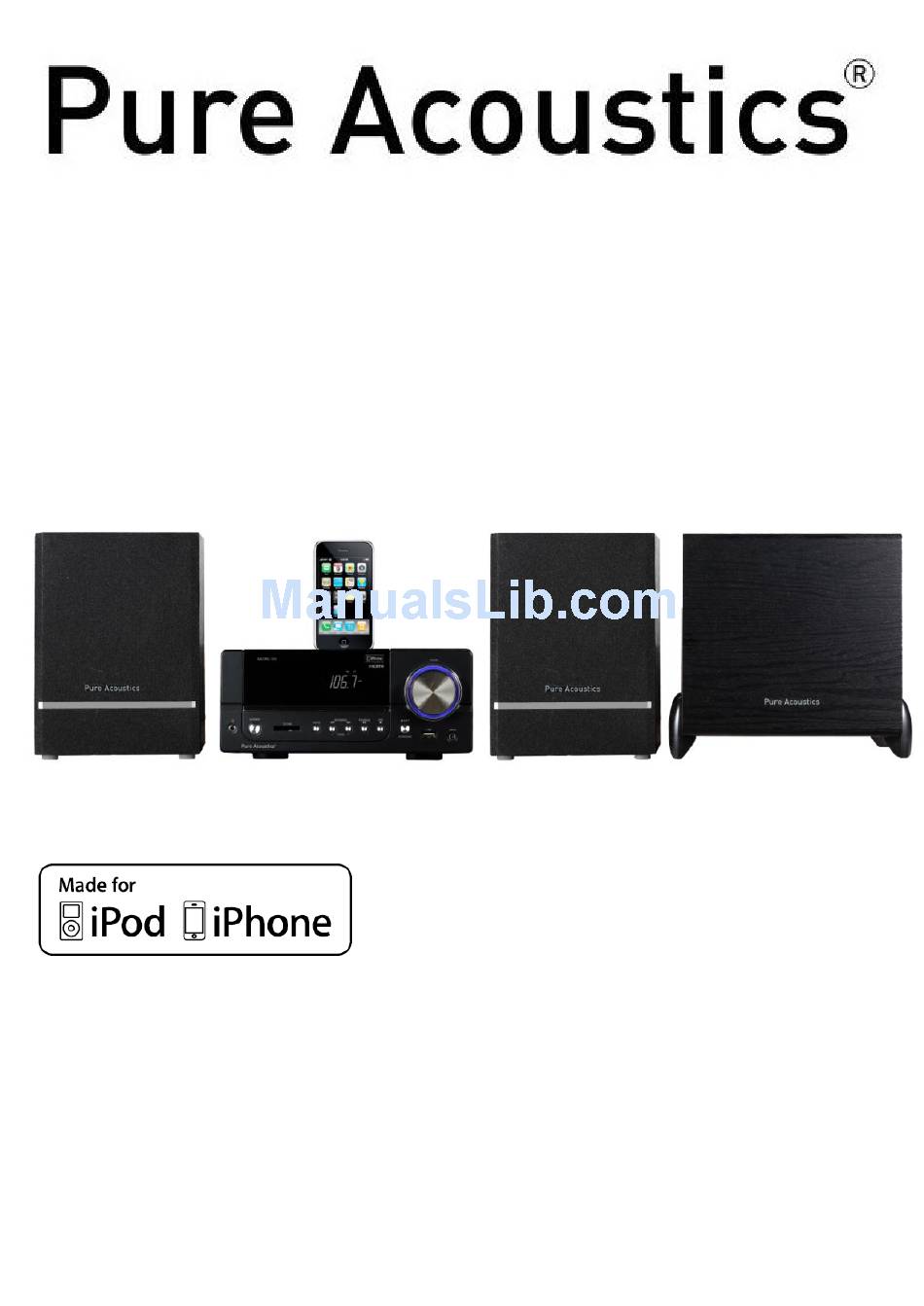

  • Page 1 Instruction Manual Model Micro-103 Home A/V Center...
  • Page 2 Inhalt English Contents Overview of the components .........Page 2 Instruction Manual .............Page 3 Technical Data ...............Page 5...
  • Page 3 Overview of the Components Abb./Fig. 1 17 18 19 20 21 26 25 Abb./Fig. 2 Abb./Fig. 3...
  • Page 4 ENGLISH Device parts (Fig. 1 / Fig. 2) 1 Standby button ( POWER) 14 Memory card slot 2 IR Receiver 15 Headset jack 3 Display 16 Loudspeaker connections 4 CD/DVD tray 17 AUX IN Audio input 5 Docking port 18 “Reset” (RESET) button. Any malfunctions (e.g.
  • Page 5 ENGLISH Remote (Fig. 3) 1 MUTE: To switch off the sound. 24 ALBUM / : To select the albums of a docked iPod. 2 CLOCK: Sets the time. 25 EQ: Sets sound options. 3 ZOOM: To zoom in or out. 26 DVD/SD/USB: USB / CARD / 4 “...

  • Page 6: Table Of Contents

    ENGLISH Technical data Type of equipment Music Center with DVD for iPhone / iPod Model Micro-103 Voltage 110-240 V AC, 50/60 Hz Output 70 W Dimensions (W x H x D) 239 x 106 x 302 mm Weight (DVD Player) ca.
  • Page 7 Declaration of conformity ....................32 OSD Menu overview ......................32 Many thanks! Thank you for choosing the Music Center Micro-103 We would like to wish you much joy with your machine and thank you for your purchase! Symbols in this operating manual Important instructions for your safety are especially marked.

  • Page 8: Safety Instructions

    ENGLISH Safety instructions Operating manual Read the complete operating manual before using the player. Keep the manual in a safe place. If you pass the player on to a third party, pass on the operating manual as well. Non-compliance with this manual can lead to severe injuries or damage to the machine.
  • Page 9 ENGLISH Laser Do not open the appliance. Do not attempt to dismantle the appli- ance. In order to avoid any danger: Have service work only carried out by the manufacturer or an authorized service workshop. Transport In order to avoid damage to the DVD, you should remove it before transporting the appliance.

  • Page 10: Setting Up And Connecting

    ENGLISH Intended use The DVD-Player is solely intended for the following tasks: Playing of Video DVD/Video CD. Playing of Audio-CD. Reception of radio programmes. Sound reproduction from external sources. Any other use is considered non-intended use and is prohibited. Defect If the machine should become defective at some point: If the power supply cable for this appliance is damaged, it must be replaced by the manufacturer or his customer services, in order to...

  • Page 11: Remote Control

    ENGLISH Starting up Remote control battery installation WARNING: Leaking out battery acid can damage your health. Remove the bat- tery from the battery compartment as soon as it is exhausted or if the remote control is not going to be used for a longer period of time. Wipe up leaked out battery acid with a cloth.
  • Page 12 ENGLISH NOTE: for iPod or iPhone Video playback If you also want to play videos from your iPod or iPhone via the docking port, please note that the picture is only displayed via the SCART and S-VIDEO connection. SCART SCART is used to transmit both Video and Audio data. 1.
  • Page 13 ENGLISH Composite-Video Composite-Video is used to transmit both Video data. 1. Plug the Composite-Video jack into the socket on the back of the player. 2. Plug the Composite-Video jack into the corresponding socket on your playback device. Fig. 2/23 Connecting the Audio cable You can choose from three transmission methods for audio signals.
  • Page 14 ENGLISH Digital Connect the Coaxial cable for transmission of digital Audio signals to your playback device or your amplifier. 1. Plug the Audio jack into the socket on the back of the player. 2. Plug the Audio jack into the corresponding socket on your playback device or your amplifier.

  • Page 15: About The Dvd-Player

    ENGLISH Inserting a memory card (on the left side of the unit) Insert a MMC/SD or MS memory card into the card slot on the left side of the unit. Fig. 1/14 Set the time 1. Press the CLOCK button in standby mode (Fig. 3/2). The popup _ _ : _ _ appears on the display.

  • Page 16: Playing Media

    ENGLISH Terminology Track: “Track” is the designation for sections on an Audio-CD. This may be a song, the set of a symphony, etc. Title/Chapter: Video-DVDs are divided into “Title” and “Chapters”. A “Title” may be e.g. a particular film, the “Chapters” may be subsections of this film HDMI: H igh Definition Multimedia Interface is an interface for trans-...
  • Page 17 ENGLISH Understanding the onscreen When playing DVDs you can view the on-screen menu by pressing the DISPLAY button (Fig. 3/7). DVD-menu DVD-menu Current title/total number of titles (1). Current chapter/total number of chapters (2). Time (3): This provides information about the duration and the remaining play time.
  • Page 18 ENGLISH Selecting next chapter/track Press the button (Fig 3/16) to jump to the start of the next chapter or track. Selecting track directly Enter the number of the desired chapter/track with the Numerical But- tons on the remote control (Fig. 3/28). Replay of the chapter/track starts after a short while.
  • Page 19 ENGLISH Using the DVD-menu Normally each DVD has its own menu. Here you can choose chapters, make settings, etc. This menu is specific for the DVD and can thus not be explained in detail. Press the MENU-button (Fig. 3/11), to access the DVD-menu. Use the Cursor Buttons (Fig.

  • Page 20: Working In File Mode

    ENGLISH Creating a playlist (CD/DVD) You may want to replay the titles, e.g. on a CD, in a different order to the order determined by the producer. The function „Create Playlist“ you can create your own playing order. To do this, proceed as follows: 1.
  • Page 21 ENGLISH Using a memory card You can use the following memory cards: SD Card Multi Media Card Memory Stick 1. Insert the memory card into the card reader (Fig. 1/14). 2. Press the DVD/SD/USB button (Fig. 3/26) on the remote control to switch the DVD player to file mode.

  • Page 22: Viewing Pictures

    ENGLISH Selecting file/directory and Media may contain numerous data/files and directories. You must there- fore first determine the data to be played. starting replay 1. If this has not yet been done, insert the CD or DVD into the drive. Alternatively insert a memory card or USB storage device.

  • Page 23: Changing The Default Settings

    ENGLISH NOTE: After a few seconds a preview picture appears on the right-hand side in the two-column menu window. Scrolling Manual: Press the (Fig. 3/31) or -button (Fig. 3/14) on the remote control to scroll forward or back. Interrupt scrolling: Press the PAUSE button (Fig.
  • Page 24 ENGLISH Using the menu Navigation and selection Use the Cursor Buttons (Fig. 3/32) ( / ) on the remote control to browse through the main menu. Cursor Buttons ( / ) to move in In contrast to this, you must use the the sub-menu.
  • Page 25 ENGLISH NOTE: The setting “Normal/PS” is not supported by all DVDs. You can also toggle between the options using the WIDE button (Fig. 3/5). Angle Mark (Camera Angle) If the DVD contains sequences recorded from different camera angles you can use the ANGLE button (Fig. 3/38) to select the various camera angles. This function is only available if the DVD contains scenes with various camera angles.
  • Page 26 ENGLISH Audio Setup Speaker Setup Downmix Change the characteristics of the speaker output: LT/RT: Choose this setting if you want to play the DVD with the Pro Logic Dolby stereo effect. This produces a almost real 2-channel replay effect. Stereo: Choose this setting if you want to play a DVD, that has been produced in the 5.1-Audio format, as 2-channel stereo sound.
  • Page 27 ENGLISH Dynamic The term “Dynamic” (Dynamic Range) describes the ratio of quietest and loudest sound. If the dynamic range is very large, you will experience very quiet and very loud sounds. This may cause replay problems.Let us assume that you are wathcing a DVD in a relatively loud environment.
  • Page 28 ENGLISH Preference Page TV Type Match the output of the DVD-Player to the colour transfer system of your playback device. The following options are available: PAL: A system commonly used in Europe. AUTO: Select this setting if your playback device is a multi-system unit.

  • Page 29: Radio Station Set-Up

    ENGLISH Default Select the command “Default/ Reset” if you want to reset the player to the factory implemented default settings. Any settings you have made will be lost. Radio Station Set-up This device has a built-in FM/AM radio receiver. There are 2 different ways to search for radio stations: automatic station finding and manual station finding.

  • Page 30: Docking Port For Ipod/Iphone

    ENGLISH 2. Press the SOURCE button (Fig. 3/13) repeatedly until “AUX” appears in the display. 3. For the remaining procedure please see the operating instructions of the external sound source. 4. Through the loudspeakers you now hear the sound from the exter- nal device;...

  • Page 31: Troubleshooting

    ENGLISH CAUTION: Return to radio mode before disconnecting your iPod/iPhone from this device to avoid damages to your iPod/iPhone. NOTE: If you have an incoming call when playing back music with the iPhone docked, then playback stops and you can hear the ring tone. iPod/iPhone Charging Your iPod/iPhone battery is charged as soon as the iPod/iPhone is docked.

  • Page 32: Disposal

    ENGLISH Fault Possible cause Solution No response when Power supply problem or static Press the RESET button (Fig. 2/18) of the back of the unit. pressing button charging of appliance Disconnect the mains plug for about 5 seconds. Insert the mains plug into the socket and switch the player on again.

  • Page 33: Declaration Of Conformity

    ENGLISH Declaration of conformity ETV Elektro-technische Vertriebsgesellschaft mbH hereby declares that the device DVD 4626 iP is in conformity with the basic requirements of the European guideline for electromagnetic compatibility (2004/108/EG) and the low voltage guideline (2006/95/EG). A copy of the declaration of conformity can be requested from the stated address.
  • Page 34 Customer's service and other products: You can contact our customers service through our web site www.sel.co.il...
