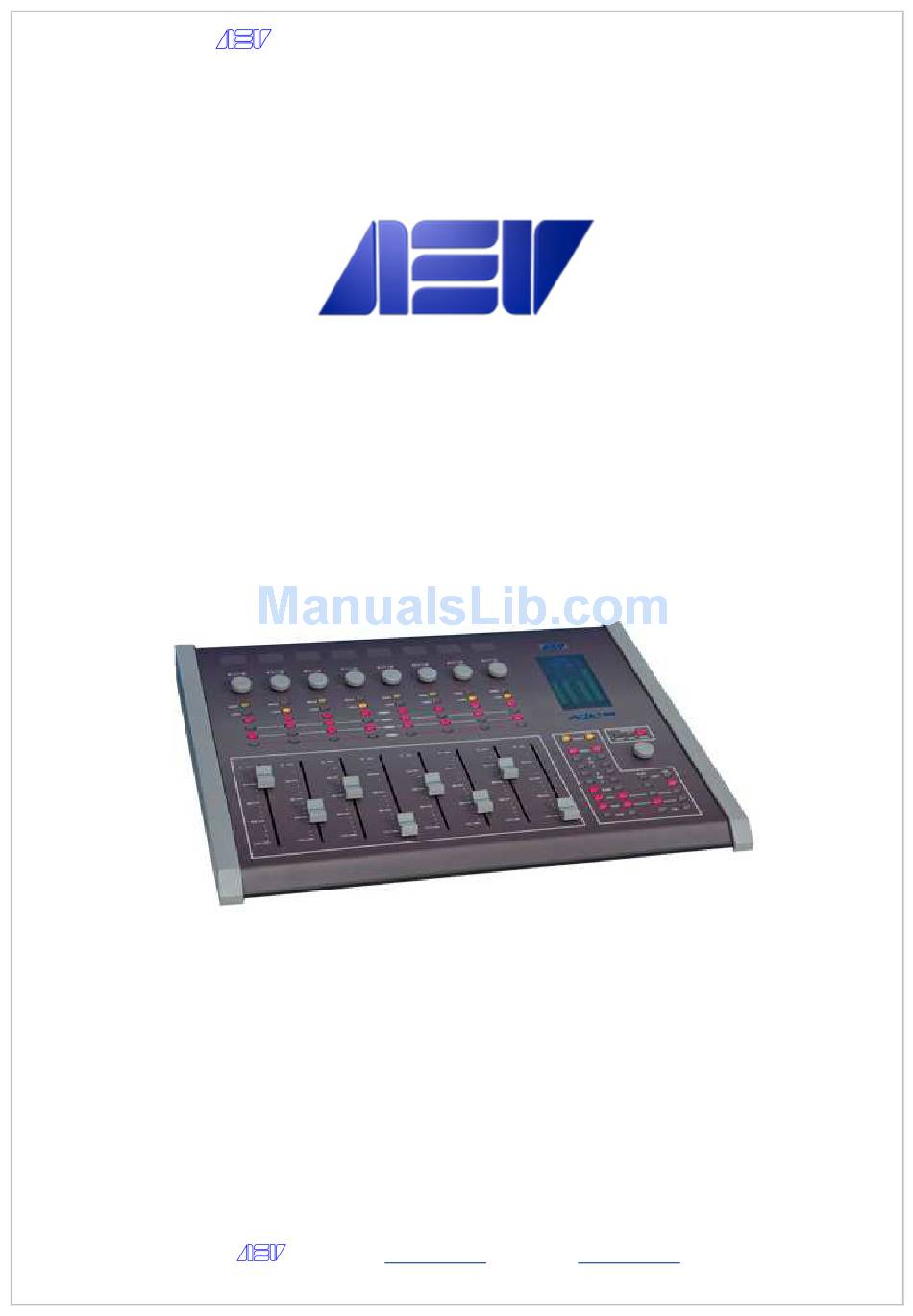

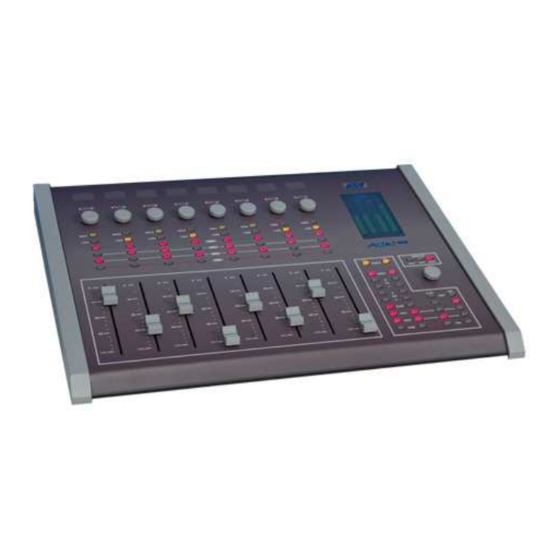

- Page 1 ACUO 908 Serie - AEV ON AIR CONSOLE ACUO 9O8 Serie AEV On Air broadcast console AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu...
-
Page 2: Guarantee
If the problems still cannot be solved, call the AEV SERVICE Department for further information. If the problem is a minor one we can a telephone call will probably sufice. If, on the other hand, the equipment is to be shipped to AEV for service or repairs. -
Page 3: Precautions
The device of dissection of the equipment is the cable of feeding, so it must be unconnected from the equipment every time it is necessary to do any type of maintenance. AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu... -
Page 4: Table Of Contents
Rear Panel — Connections ........12 RJ connectors pin out ......... 14 Logic GPI/O port ..........14 Telephone hybrids - operation........16 Technical specifications ........17 AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 5: Features
- Talk back on C.Studio OFF/ON - Phantom Power (only for Micro inputs) OFF/ON Also you can to select the Bus assignment pushing the following buttons: AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 6: Outputs
Digital TFT encoder display channels assignement busses assignement VU display section Encoder Master channels fader Telephone hybrid section section C.Room & C.Studio section AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 7: Micro - Line Channel
6 – UTL Button for routing the channel to the UTL bus. 7 – AUX Button for routing the channel to the AUX bus. 8 - Button enabling the preview CUE. 9 - Fader. AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 8: Digital - Line Module
7 – AUX Button for routing the channel to the AUX bus. 8 - Button enabling the preview CUE. 9 - Fader. AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 9: Usb - Line Module
6 – UTL Button for routing the channel to the UTL bus. 7 – AUX Button for routing the channel to the AUX bus. 8 - Button enabling the preview CUE. 9 - Fader. AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 10: Monitoring Section
9B - Button for assigning the tel2 to the AUX bus. 10A -Button for assigning the tel2 to the CUE bus. 10B -Button for assigning the tel2 to the CUE bus. AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 11: Control Room & Control Studio Section
9th channel selection to associate the command I / O Start/Stop B (GPIO 2) 10th channel selection to associate the command Out Start/Stop C AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 12: Rear Panel - Connections
21 – AUX output RJ45 connector 22 – Control Studio output RJ45 connector. 23 – PGM Dig & UTLDig input RG45 connector. 24 – Remote Fader RG45 connector. AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... - Page 13 34 – PWS connector. 35 – Headphone jack 6,3 mm connector. 36 – USB 1 connector. 37 – USB 2 connector. 38 – USB serial connection. AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu...
-
Page 14: Rj Connectors Pin Out
4–12 – GPO3 ; (Start) with selected channel 5-13 – GPI1 Start/Stop IN A ; Toggle 6-14 – GPI2 Start/Stop IN B ; Toggle AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 15: Logic Gpi/O Port
- coupler place between pins 5:13 states will alternate start and stop of the channel , the status of which will be using the remote control Out Start/Stop A AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 16: Telephone Hybrids - Operation
C. Room (Regia) and / or C.Studio (studio). PRIV TEL (ON) of the microphone channel AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu... -
Page 17: Technical Specifications
DSUB 15 pole female USB Port 2 x USB 2.0 interface Dimensions 460 x 360 x 44 mm ( L x D x H ) AEV Broadcast Srl, via della Tecnica 33 – 40050 Argelato (BO) Italy Web site www.aev.eu e-mail info@aev.eu...
