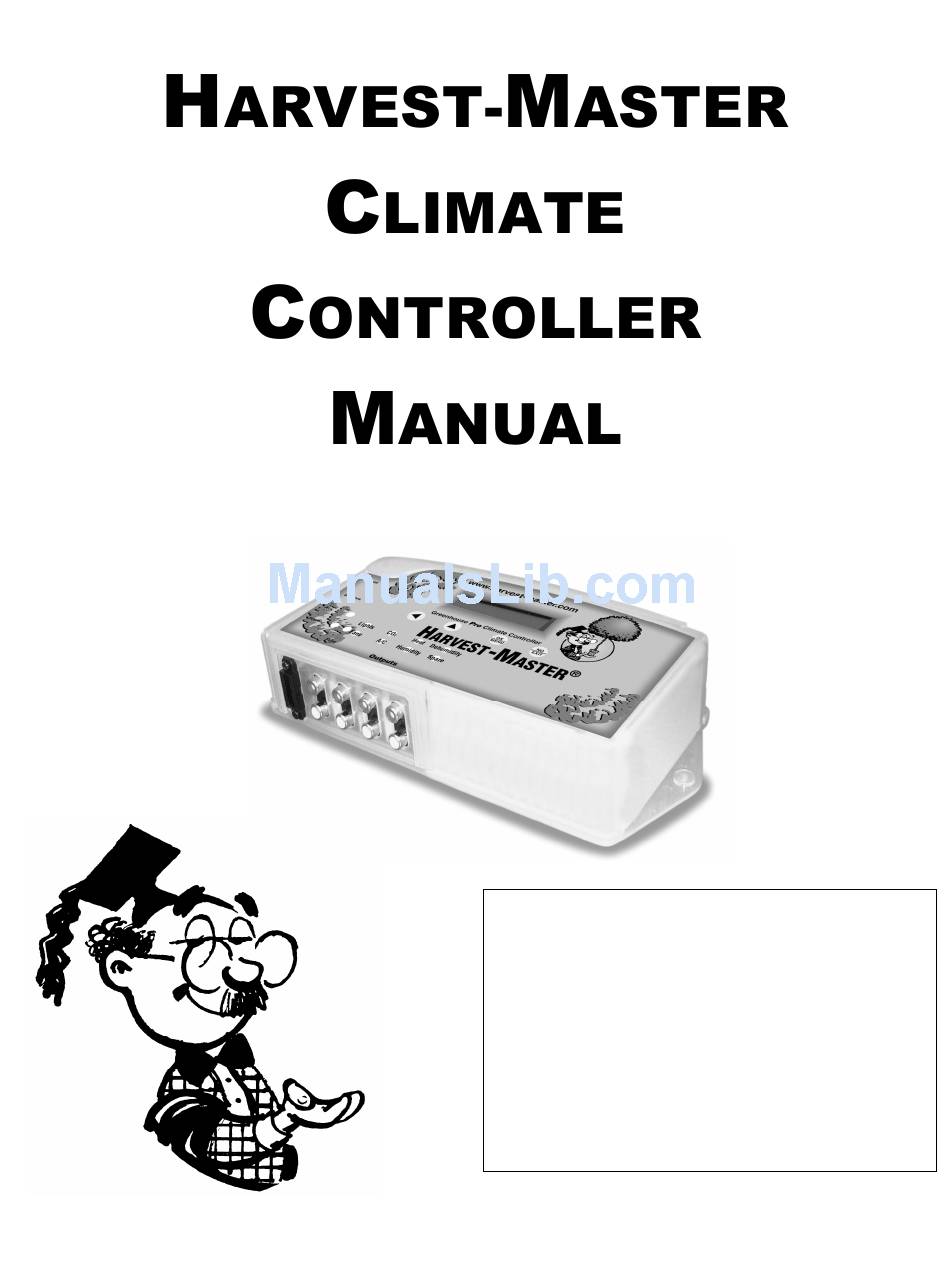

Summary of Contents for Harvest-Master Climate
- Page 1 4 Models Climate • Climate Pro (with CO2 sensor) • Climate Plus • Pro Plus (with CO2 sensor) •...
-
Page 2: Table Of Contents
Table of Contents Introduction pg 3 pg 4 Contents of Pack pg 6 Harvest-Master Connections pg 8 Harvest-Master Plug and Run pg 10 Set-up Equipment pg 11 Set-up Climate Information pg 14 Set-up Growth Cycle pg 16 Set-up Outputs on Plus model only... -
Page 3: Introduction
The simple facts are plants need air, water, light and nutrients, in balance. • Controlling and maximising the climate for the best cropping is what Harvest-master does. Harvest-master learns continuously how your room works, to keep it that way. •... -
Page 4: Contents Of Pack
Included with your Harvest-Master Climate Controller are: • Remote relay switches, 3 in Climate models, to connect and switch mains power for Green House devices (lights, fans, air-cond etc) and an external temperature/humidity sensor. Pro and ProPlus models have CO sensors and a four relay switch. -
Page 5: Specifications
16 Character x2 line backlit LCD. LED indicators for power, sensor, output line status (On/Off). Climate and Pro models; 8 outputs for “switch on demand” or “cycle timer”. ProPlus model includes 8 Inputs and an additional 8 outputs (16 total). - Page 6 Input Connections...
- Page 7 Output Connections...
-
Page 8: Connecting Equipment
Plug & Run. Locating Harvest-Master. Harvest-Master is best fitted outside your Green House (only inside it if conditions are dry and no condensing humidity). Harvest-Master will need to be physically located so that the 10-ft (3 metre) control cables will reach from Harvest-Master to where you connect remote relay switches. Switch relays can be located at the power socket or at the end of a power cord. -
Page 9: Set-Up Equipment
You need to manually select “Calibrate” option) Set up equipment allows you to manually set what devices you want on the climate outputs 3 - 8. Outputs 1 & 2 are reserved for lights and fans respectively. -
Page 10: Set-Up Climate Information
Set-up Climate Information. You can change the following set-up values in Climate Set-up. Temp Units – There are two temperature types Celsius (for almost every where) and Fahrenheit (for USA) choose one or the other. - Page 11 22) Dehumidify&Fans? Should a Dehumidifier be used when the Fans are ON? As for (21), select YES or NO. 23) Off/On Light Mins. In the event of lights being turned OFF by Harvest-Master, most lights used are HP Sodium or Metal Halide and these must be given time to cool after turning off before they...
-
Page 12: Set-Up Growth Cycle
Harvest-Master supports three growth cycles, Vegetative, Flowering and Fruiting. The length of "day" and "night" periods is controlled by the climate settings above. To change the growth cycle just select this menu option. Use the arrow until the correct cycle is displayed, then OK. Press EXIT to exit. -
Page 13: Set-Up Outputs On Plus Model Only
24hrs anyway, so just let it go! Set-up Watering The spare climate output (or any other unused outputs) can be set to control cycling a hydroponics system, repeat CO2 dispensing or just watering your plants. To do this, select "Set-up Equipment", select the output you want to change, press Ok, then again to select "Watering"... - Page 14 Setting up outputs on the Harvest-Master unit. When you choose "Set-up Output" from the menu, the display will look like: CHOOSE OUTPUT NO 9 (NOTHING The output number is displayed on the second line with the current setting of the output in brackets.
-
Page 15: Hints On Setting Up Greenhouse
Remember once your plants are growing a 10’x 10’ garden may need as much as 30 gallons of water. Harvest-master can be used for the watering system with a timer switch or moisture sensor. Step 6/ A floor drain is handy. Trays placed underneath or visqueen plastic to save floors from damp. -
Page 16: Equipment For Your Greenhouse
• Yardstick (to measure growth) Harvest-master already has the humidity/temperature sensor built in. Check out our website www.Harvest-master.com for users tips, FAQ’s and other hints. Equipment for Your Green House Devices you will need. 1) Lights. These must be strong enough for the number of plants you want to grow. Your supplier can help you with this. -
Page 17: Electrical Safety
I.e. Lights 1000Watts Fans 40Watts Dehumidifier 300Watts CO2 Solenoid 10Watts Harvest-Master 10Watts -------------- Total 1360Watts What about a Green House with three 1000Watt lights, fans, a cooling device, a dehumidifier, and carbon dioxide. Lights 3000Watts Fans... -
Page 18: Warranty And Return Policy
God, accidents or other causes beyond TCS’s control, or by other than the original purchaser. If, after inspection, TCS or its agent determines there is a defect, Harvest-Master will repair or replace the controller at no cost to the purchaser (excluding freight).
