Summary of Contents for Standard Horizon GSU-5H

  • Page 1: Smart Dgps Receiver

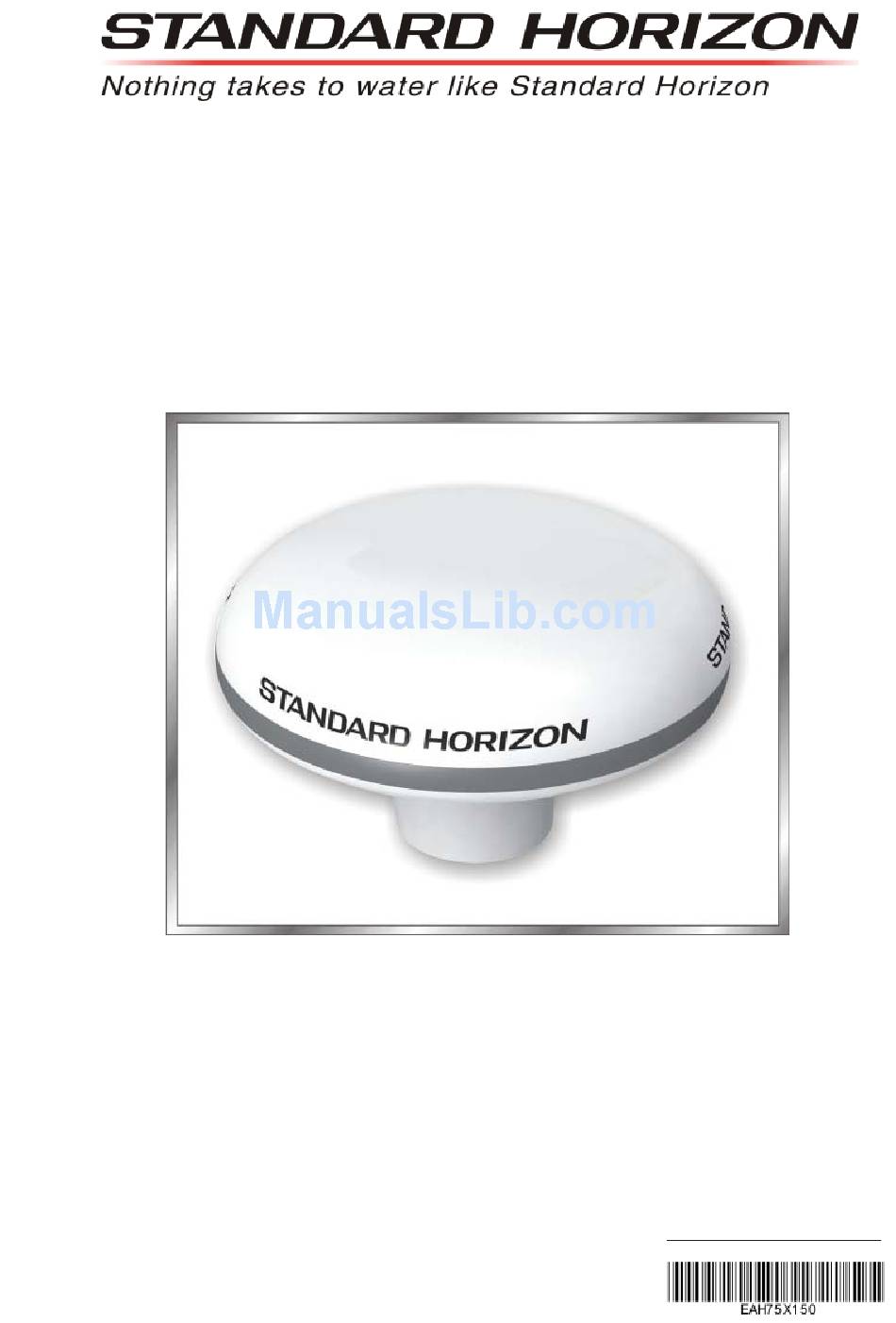

    GSU-5H Smart DGPS Receiver Owner’s Manual code: (EAH75X150-D290512e)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT INFORMATION ....................3 CAUTION ......................3 1. SMART DGPS RECEIVER ....................4 TECHNICAL SPECIFICATIONS ................4 1.0.0 Physical Characteristics ................4 1.0.1 Electrical Characteristics ................4 1.0.2 Performance ....................4 1.0.3 Environmental Characteristics ..............5 WIRING ......................

  • Page 3: Important Information

    IMPORTANT INFORMATION CAUTION STANDARD HORIZON suggest that you read carefully this Owner’s Manual and make sure you understand with its contents before using the SMART DGPS RECEIVER. For a safe navigation compare information received from GPS to all available navigation indications received from other electronic navigation navaids that you carry on board.

  • Page 4: Smart Dgps Receiver

    1. SMART DGPS RECEIVER This SMART DGPS RECEIVER is based on a ultimate 32 + 18 channels GPS engine that delivers accuracy better than three meters by decoding the GPS correction signals from the satellite-based WAAS (North America Wide Area Augmentation System), EGNOS (Euro- pean Geostationary Navigation Overlay Service), MSAS (Asian Multi-Functional Satellite Augmentation System), GAGAN (Indian Geoaugmented Navigation).

  • Page 5: Environmental Characteristics

    · Sensitivity Tracking, Navigation : -160 dBm Acquisition, Reaquisition : -160 dBm Cold Starts : -145 dBm · Output Format : NMEA-0183 Baud rate 4800 N81 · NMEA Output messages : GGA, RMC, GSA, GSV, TXT · Geodetic Datum : WGS84 NOTE SBAS = Satellite-Based Augmentation Systems.

  • Page 6: Mechanical Characteristics & Mounting

    MECHANICAL CHARACTERISTICS & MOUNTING 1.3.0 Installing Choose a location for the antenna that has a clear view of the sky. Ensure there are no major obstructions or fixtures in the immediate proximity to the antenna. The antenna relies on direct “line of sight” satellite reception. If you are unsure that the chosen location is suitable it may be advisable to mount the antenna in a temporary manner to verify correct operation.

  • Page 7: Dimensions

    Cutting Template EM016N560 Figure 1.3.0a - GPS antenna: cutting template 1.3.1 Dimensions Figure 1.3.1 - GPS Antenna Dimensions Smart DGPS Receiver Page 7...
  • Page 8 United States: To receive warranty service, the purchaser must deliver the Product, transportation and Insurance prepaid, to STANDARD HORIZON (Marine Division of YAESU USA) - Attention Factory Service - 6125 Phyllis Drive - Cypress, CA 90630, include proof of purchase indicating model, serial number and date of purchase.
