The device

Features

› Internet radio via LAN or WLAN
› Fluorescent display
› Plays music fi les stored on a network (Shared Media)
› Remote control
› USB 2.0 connection
› Optical output
› Plays MP3 and WMA fi les

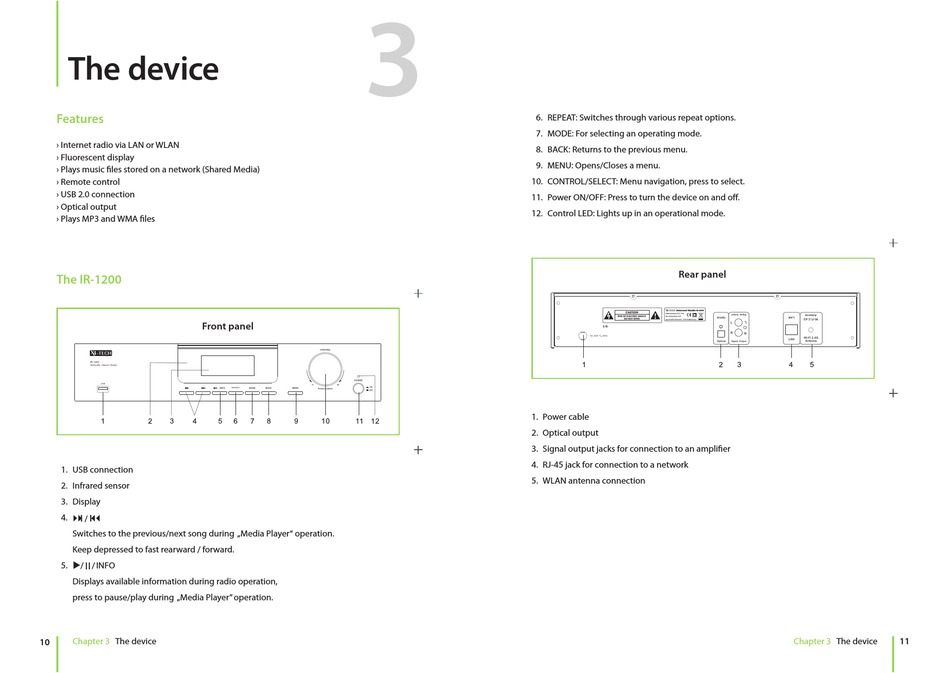

The IR-1200

Front panel
IR-1200
WiFi/LAN Interne t Radio
US B
/
1. USB connection
2. Infrared sensor
3. Display
4.  l / l 
Switches to the previous/next song during „Media Player" operation.
Keep depressed to fast rearward / forward.
5. / / INFO
Displays available information during radio operation,
press to pause/play during „Media Player" operation.
Chapter 3 The device
10
3
REPEA T
6. REPEAT: Switches through various repeat options.
7. MODE: For selecting an operating mode.
8. BACK: Returns to the previous menu.
9. MENU: Opens/Closes a menu.
10. CONTROL/SELECT: Menu navigation, press to select.
11. Power ON/OFF: Press to turn the device on and off .
12. Control LED: Lights up in an operational mode.
Rear panel
AC 230V 50Hz
1. Power cable
2. Optical output
3. Signal output jacks for connection to an amplifi er
4. RJ-45 jack for connection to a network
5. WLAN antenna connection
Chapter 3 The device 11
