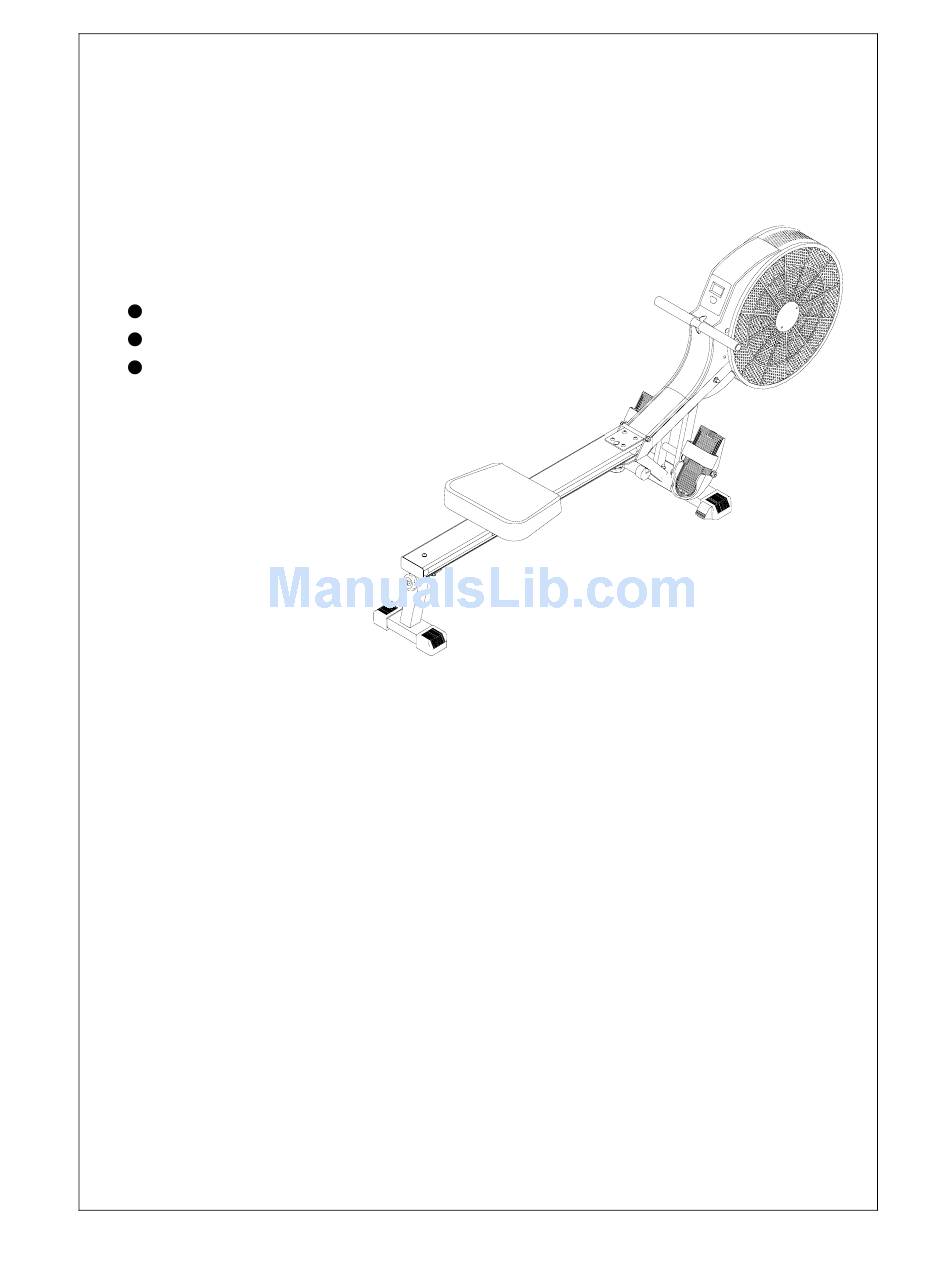

AIR ROWER SC760
Owner's Manual
Assembly
Usage
Parts
CAUTION: Weight on this product should not exceed 250 lbs.
CAUTION: Exercise of a strenuous nature, as is customarily done on this
equipment, should not be undertaken without first consulting a physician. No
specific health claims are made or implied as they relate to the equipment.
Measurements made by the equipment are believed to be accurate, but only
the measurements of your physician should be relied upon.
IMPORTANT: Read all instructions carefully before using this product. Return
this owner's manual for future reference.
Product may vary slightly from picture.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIR ROWER SC760 and is the answer not in the manual?

Questions and answers

Summary of Contents for Helisports AIR ROWER SC760

  • Page 1 AIR ROWER SC760 Owner’s Manual Assembly Usage Parts CAUTION: Weight on this product should not exceed 250 lbs. CAUTION: Exercise of a strenuous nature, as is customarily done on this equipment, should not be undertaken without first consulting a physician. No specific health claims are made or implied as they relate to the equipment.

  • Page 2: Hardware Illustrations

    ASSEMBLY Assembling Your Air Bike GENERAL Remove all the parts of your rower from the carton and place them on the floor carefully. Assembling your rower is simple! Follow these instructions carefully and it should take you around 20-25 minites. TOOLS REQUIRED FOR ASSEMBLY (NOT SUPPLIED) Adjustable Wrench Hammer...
  • Page 3 Check-List - 2 -...

  • Page 4: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Step 1 ATTACH THE FRONT STABILIZER a.] Attach the Front Stabilizer (2) to the Main Frame (1) and secure, using two carriage bolts (60), flash washers (6) ,spring washer (65) and capnuts (66) and tighten. NOTE: Make sure our fasten the stabilizer with built in wheel. - 3 -...
  • Page 5 Step 2 ATTACH THE ALUMINUM TRACK Attach the Aluminum Track (29) with bracket (32) to the Main Frame (1) bracket and secure, using allen head bolt (34) , washer (6) and locknut. (5). Raise up the Aluminum Track (29) and connect the elastic cord (19) from the inside of the track (29) to the front strap (50) through the Main Frame (1) bracket with hook (20) then put the track (29) down.
  • Page 6 Step 3 ATTACH THE REAR STABILIZER Attach the Rear Stabilizer (3) to the Track Bracket (8) and secure, using allen head bolt (9), washer (6) , locknuts (5) and rear adjustment knob (7) and tighten.

  • Page 7: Attach The Pedals

    Step 4 ATTACH THE PEDALS Thread the pedal rod through the tube on the main frame (1). Slide the pedals (37) and spacers (36) onto the pedal rod (42) (spacer inside, the pedal) and fasten with washers (36) and locknuts (35). Connect the socket of sensor (72) to the plug of computer (71), then press the Computer (71) into position on the console (73).

  • Page 8: Explosion Drawing

    Explosion Drawing...

  • Page 9: Assembly Instruction

    Assembly Instruction...

  • Page 10: Part List

    Part List Description Q’ty NO Description Q’ty FRAME PULLEY FRONT STABILIZER LOCK NUT M6x1.0px6H REAR STABILIZER BELT END CAP BELT FIXER LOCK NUT M8x1.25Px8H CAP NUT3/8"x26Wx17.6H FLAT WASHERφ16xφ8.4x1.0t FLAT WASHERφ26x11x2.0t KNOB M8 MACHING SCREW M5x15L DECORATION COVER REAR STABILIZER FIXER ALLEN SCREW M8x1.25Px72L ROPE SPACERφ13xφ8.4x20H...
  • Page 11 COMPUTER MONITOR INSTRUCTIONS Using Your Monitor: Your MONIOR is designed to provide five functions (Tune, Speed, Distance, Calories and Scan). 1) SPEED can be displayed in either “Miles” or “KM” per hour. 2) DISTANCE is displayed from 0.1-9999 miles or km. 3) TIME is displayed in hours: minutes: seconds up to 23 hours: 59 minutes: 59 seconds.

  • Page 12: Training Instruction

    Training instruction To achieve a considerable improvement of your physical resistance and your health, some aspects of how to find the most efficient amount of training should be followed: If you have not been physically active for a longer period of time and also to avoid health risks you should consult your general physician before starting to exercise.

  • Page 13: Safety Precautions

    SAFETY PRECAUTIONS Thank you for purchasing our product. Even though we go to great efforts to ensure the quality of each product we produce, occasional errors and /or omissions do occur. In any event should you find this product to has either a defective or a missing part please contact us for a replacement.
