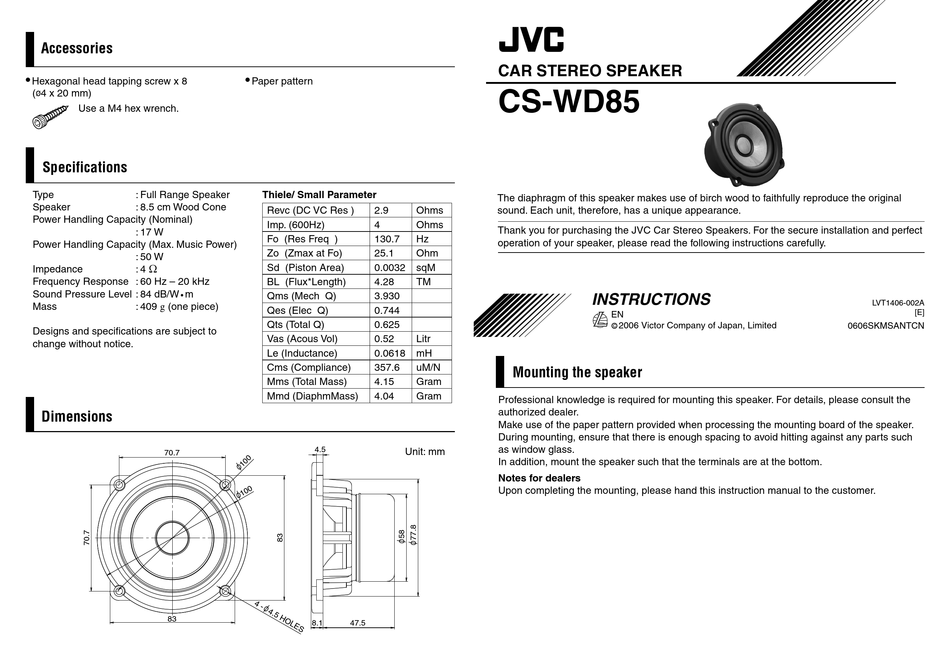

JVC CS-WD85 Instructions

Accessories
•
Hexagonal head tapping screw x 8
(R4 x 20 mm)
Use a M4 hex wrench.

Specifications

Type : Full Range Speaker
Speaker : 8.5 cm Wood Cone
Power Handling Capacity (Nominal)
: 17 W
Power Handling Capacity (Max. Music Power)
: 50 W
Impedance : 4 K
Frequency Response : 60 Hz – 20 kHz
Sound Pressure Level : 84 dB/W m
0
Mass : 409 g (one piece)
Designs and specifications are subject to
change without notice.
Dimensions
70.7
83
•
Paper pattern
Thiele/ Small Parameter
Revc (DC VC Res ) 2.9 Ohms
Imp. (600Hz) 4 Ohms
Fo (Res Freq ) 130.7 Hz
Zo (Zmax at Fo) 25.1 Ohm
Sd (Piston Area) 0.0032 sqM
BL (Flux*Length) 4.28 TM
Qms (Mech Q) 3.930
Qes (Elec Q) 0.744
Qts (Total Q) 0.625
Vas (Acous Vol) 0.52 Litr
Le (Inductance) 0.0618 mH
Cms (Compliance) 357.6 uM/N
Mms (Total Mass) 4.15 Gram
Mmd (DiaphmMass) 4.04 Gram
4.5
Unit: mm
8.1 47.5
CAR STEREO SPEAKER
CS-WD85
The diaphragm of this speaker makes use of birch wood to faithfully reproduce the original
sound. Each unit, therefore, has a unique appearance.
Thank you for purchasing the JVC Car Stereo Speakers. For the secure installation and perfect
operation of your speaker, please read the following instructions carefully.
INSTRUCTIONS
EN
2006 Victor Company of Japan, Limited
Mounting the speaker
Professional knowledge is required for mounting this speaker. For details, please consult the
authorized dealer.
Make use of the paper pattern provided when processing the mounting board of the speaker.
During mounting, ensure that there is enough spacing to avoid hitting against any parts such
as window glass.
In addition, mount the speaker such that the terminals are at the bottom.
Notes for dealers
Upon completing the mounting, please hand this instruction manual to the customer.
LVT1406-002A
[E]
0606SKMSANTCN
