Summary of Contents for Trick-tools Flow2go

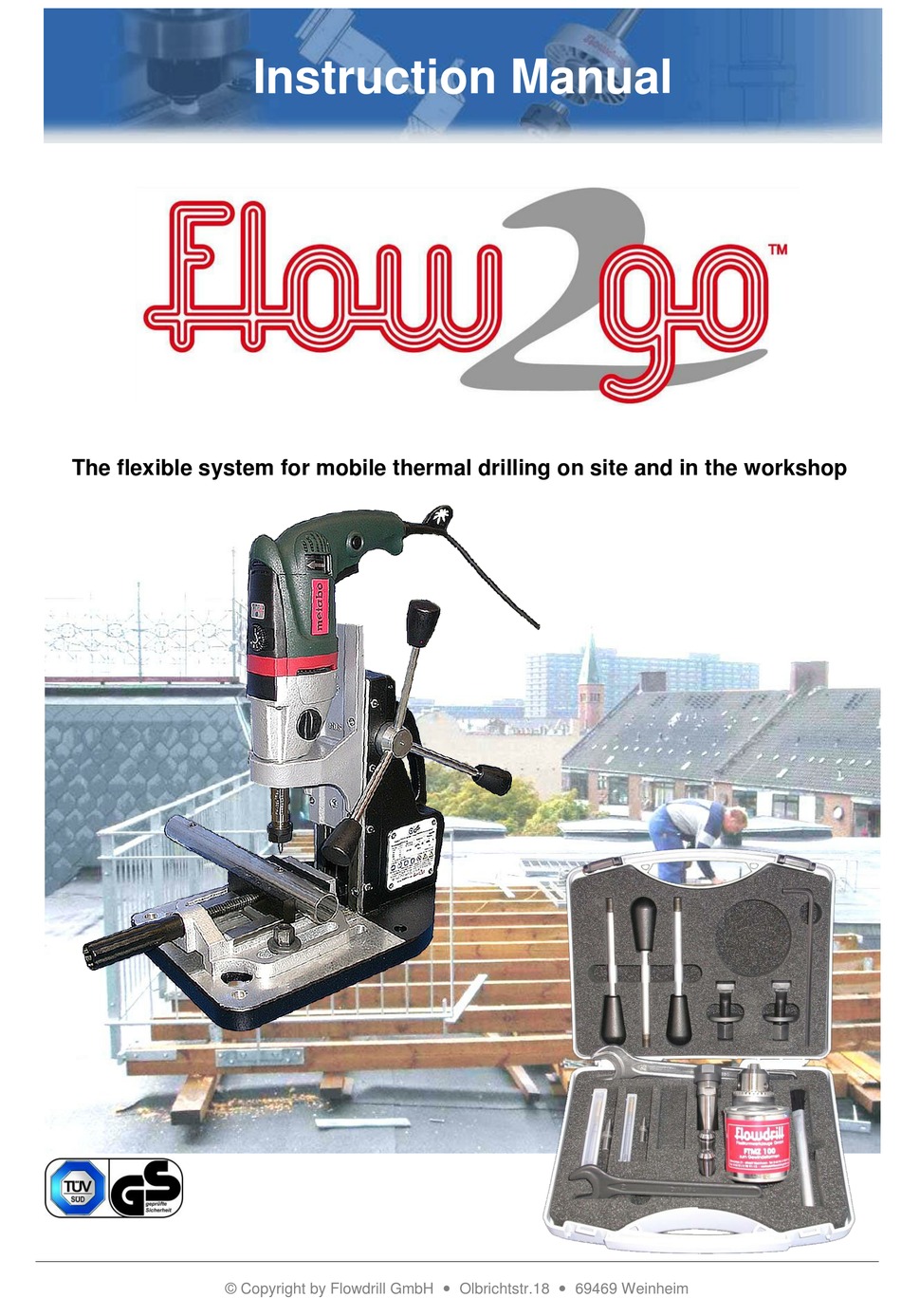

- Page 1 Instruction Manual The flexible system for mobile thermal drilling on site and in the workshop © Copyright by Flowdrill GmbH Olbrichtstr.18 69469 Weinheim...
- Page 2 80 Truman Road Pella, IA 50219 Phone:1-877-VAN-SANT E-mail: sales@trick-tools.com Here at Trick Tools we believe that our customers deserve the best value in their tool and equipment purchases. We are constantly at work searching out a variety of high quality, high performance tools to offer at the best prices possible.
-
Page 3: Table Of Contents
Instruction Manual Mobile thermal drilling Table of Contents Page Conventional use ......................2 General safety and hazard precautions ................3 Additional safety precautions .................... 3 Preparation ........................4 4.1. Mounting the handles on the drill stand ..............4 4.2. Mounting the tool holder ..................4 Use and general application ..................... -
Page 4: Conventional Use
Mobile thermal drilling 1. Conventional use The mobile thermal drilling unit (from here on known as Flow2go) includes the enclosed hand drill, stand and tool holder, which is suitable for conventional drilling as well as thermal drilling in thin walled material. The maximum wall thickness for this unit is dependant on the diameter of the hole and thickness of material;... -
Page 5: General Safety And Hazard Precautions
Before using the hand drill read the enclosed safety precautions (red volume) as well as the instruction manual carefully and completely. Keep all the enclosed documents and only pass on the Flow2go unit together with these documents. Warning of hazardous electric... -
Page 6: Preparation
Instruction Manual Mobile thermal drilling 4. Preparation For the proper functioning of the Flow2go unit when thermal drilling and for industrial safety reasons, the following must be taken into account: 4.1. Mounting the handles on the drill base Please screw the 3 handles enclosed fully up to the stop in the openings provided for this purpose on the capstan shaft. -
Page 7: Use And General Application
Instruction Manual Mobile thermal drilling 5. Use and general application 5.1. Mains power Please check the mains voltage first. The mains voltage indicated on the hand drill must correspond with the electric mains supply. 5.2. Mounting the drill on the drill stand 1. -
Page 8: Inserting The Collet
Instruction Manual Mobile thermal drilling Inserting the collet 5.4. 1. Insert the collet at a slight angle into the screwed cap and turn both using light pressure in opposite directions until the collet perceptibly locks and sits vertically in the screwed cap. The collet should no longer fall out on its own. -
Page 9: Selecting The Speed Step And Presetting The Rotational Speed
Instruction Manual Mobile thermal drilling 5.7. Selecting the speed step and presetting the rotational speed The speed step of the work spindle should be selected irrespective of the material and drill diameter in accordance with the following Table: Machine setting Thread Flowdrill Material thickness... -
Page 10: Switching The Motor On/Off
Instruction Manual Mobile thermal drilling 5.10. Switching the motor on/off To switch on the motor please press the pushbutton (1) and lock this by pressing in the button on the side (2). To switch off the motor press the pushbutton again as far as the stop – this automatically unlocks it – and release it again. -
Page 11: Flowtapping With Flowtap
Instruction Manual Mobile thermal drilling Please ensure that the component surface is dry or when in the drilling position and is free of water/oil and other strong contaminants. Do not use any unauthorised lubricants or releasing agents for thermal drilling on this mobile drill base! Our special NOTE releasing agent FDKS is available as an option for thermal drilling. -
Page 12: Maintenance
Instruction Manual Mobile thermal drilling 6. Maintenance 6.1. Flowdrill The friction or contact surfaces of the Flowdrill have the tendency for foreign material to adhere, which in places coats the drill. This adhesion tendency is very material-dependent and cannot be avoided entirely. -
Page 13: Guide System
Instruction Manual Mobile thermal drilling 6.4. Guide system Regularly check the guide system. This must if necessary be lubricated or readjusted. To readjust please loosen the lock nuts (12) and cylindrical head screws (13) of the guide rail (2) and evenly tighten the adjustment screws (11). -
Page 14: Trouble Shooting
Instruction Manual Mobile thermal drilling 7. Trouble shooting Problem Cause Remedy - No mains voltage - Rotation direction not selected - Check mains voltage - Switch not clearly positioned - Preset rotation direction Motor does not start - Switch or lead faulty - Have switch or lead replaced - Carbon brushes worn (observe flashing - Have carbon brushes replaced... -
Page 15: Range And Supply Of Accessories
Instruction Manual Mobile thermal drilling 8. Range and supply of accessories This “Flow2go unit” as delivered consists of the following items: Article name Description Consumable Quantity “Flow2Go“ drill base Drill base Vice Machine vice Lock screw T-slot lock screw including washer and nut... -
Page 16: Exploded Diagram Of The Drill Stand And Names
Instruction Manual Mobile thermal drilling 9. Exploded diagram of the drill base and names Item Name Housing Adjustment guide rail Guide Gear rack Slide bearing Gear rack shaft Lens lowering screw Handle rod Snap-on handle Base plate Re-adjustment screw Cylindrical head screw Cylindrical head screw Cylindrical head screw Guide rail... -
Page 17: Guarantee Provisions
Instruction Manual Mobile thermal drilling 10. Guarantee provisions For the hand drill unit hereby purchased the manufacturer’s guarantee provisions apply in conjunction with the information listed in this instruction manual. Damage due to natural wear and tear, overloading or unauthorised handling of the unit, tools or drill base, are excluded from the guarantee. - Page 18 © Copyright by Flowdrill GmbH Olbrichtstr.18 69469 Weinheim...
