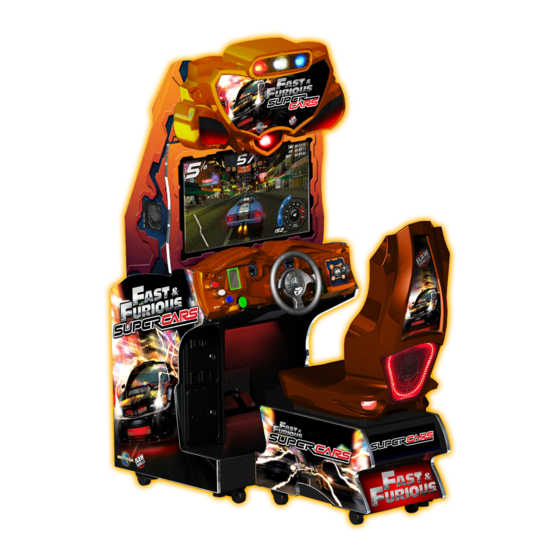

Raw Thrills Fast&Furious SUPERCARS Operator's Manual

Hide thumbs Also See for Fast&Furious SUPERCARS:

Operator's manual (41 pages)

Table Of Contents

Table of Contents

Quick Links

OPERATOR'S MANUAL

Table of Contents

Need help?

Do you have a question about the Fast&Furious SUPERCARS and is the answer not in the manual?

Questions and answers

Summary of Contents for Raw Thrills Fast&Furious SUPERCARS

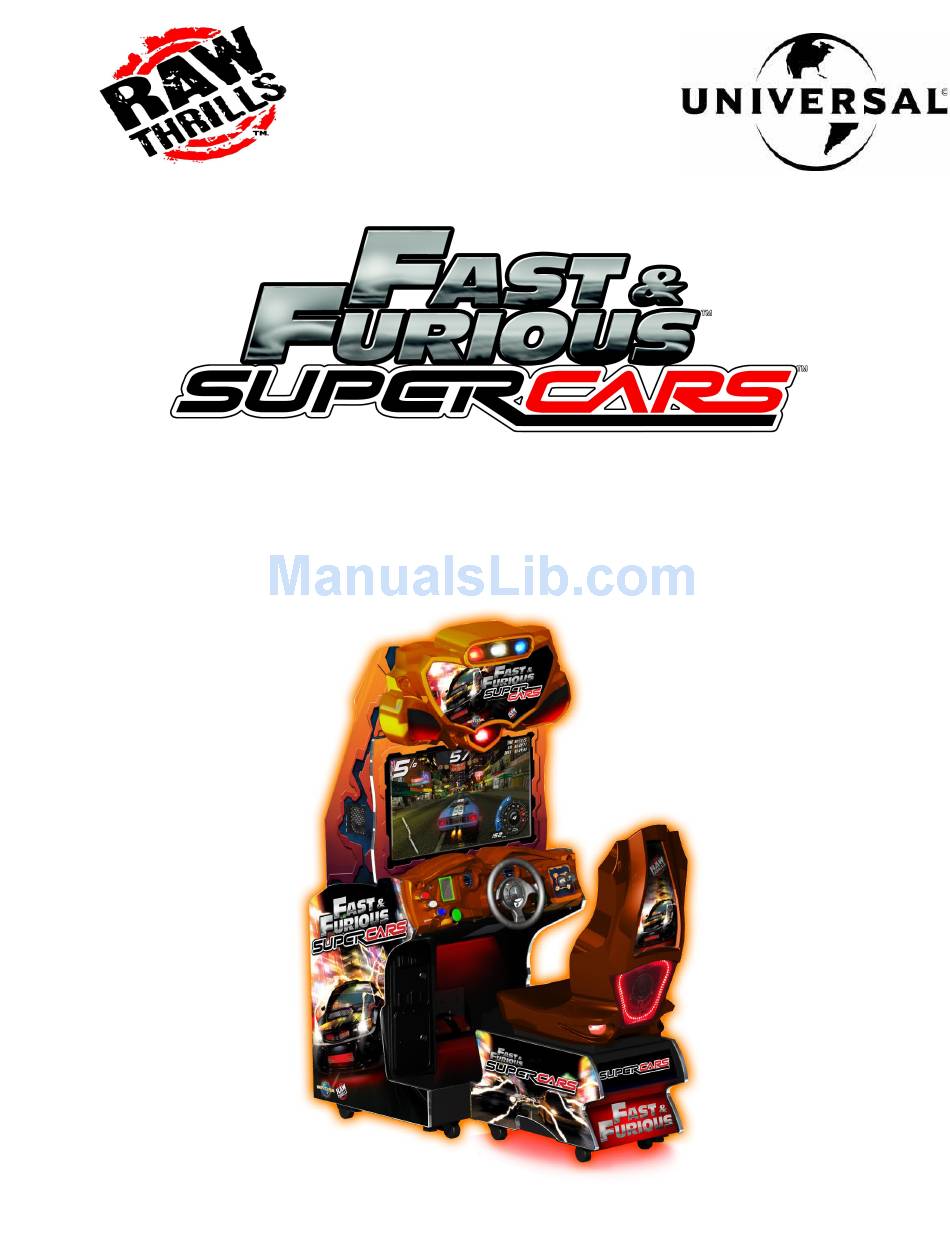

Page 1 OPERATOR’S MANUAL...
Page 3: Safety Instructions
The PC contains sensitive components such as a hard drive. Do not handle roughly. Call your distributor before servicing PC internal components. Ask about warranty information as it relates to the PC. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 5: Product Specifications
120VAC @ 60 Hz, 5 amps Foreign 240VAC @ 50Hz, 2.5 amps TEMPERATURE 32° F to 100°F (0°C to 38°C) HUMIDITY Not to exceed 95% relative humidity. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 7: Power Up Procedure
4. The game attract feature will begin after the game is finished loading- approximately 1 minute. 5. Proceed to Switch Test of this document and verify proper game operation. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 8: Networking Considerations
Please refer to the Game Troubleshooting Guide on this manual for more details. SET NETWORK ENABLE= ON >> SET UNIQUE MACHINE ID= 1-8 >> The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 9: Menu Navigation
Scroll down thru Menu items Service or Tunes Exit to previous Menu MAIN MENU The Test Main Menu appears when the TEST button is pressed The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 10: Diagnostics Menu
Verify pot value for min, center and max are correct. If not, proceed to Calibration section of this manual. Press and hold the Service Button for three seconds to return to the Diagnostics Menu The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 11: Sound Test
From the Diagnostics Menu select and enter Wheel Test. Verify proper wheel force feedback function using this menu. Follow the screen instruction carefully. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 12: Monitor Test
Lamp function could also be verified using Switch Test. Please check the coin door lamps as part of your game diagnostic check. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 13 From the Diagnostics Menu select and enter Watchdog Test. The game will reset in approximately 6 seconds. The watchdog feature allows the PC to monitor normal game software and hardware operation. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 15 From the Audits Menu, select General 2 and enter to view additional general game statistics. Press the Tunes Button to return to Main Menu. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 16 From the Audits Menu, select Courses Wins and enter to view individual win and overall percentage information on each course. Press the Tunes Button to return to Main Menu. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 17 From the Audits Menu, select Vehicles and enter to view individual count for each vehicle selection and percentage information. Press the Tunes Button to return to Main Menu. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 18 From the Audits Menu, select Stunts and enter to view individual count for each stunt performed. Press the Tunes Button to return to Main Menu The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 19 Audits. The credits issued money accepted during Freeplay mode will be available after Freeplay is turned off or deactivated. Please perform Clear Credits to remove unwanted credits. Press Start to Select. Press Tunes or Service to Exit. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 20 From the Pricing Menu, select Coin Value and enter. Choose the coin value based on the currency selected and the coin acceptor type or setting. Press Start to Select. Press Tunes or Service to Exit. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 21 From the Pricing Menu, select Coin per Credit Menu and enter. Choose the number of coins required to earn one credit. Press Start to Select. Press Tunes or Service to Exit. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 22 Wins Free Race and enter. Select the amount of time in seconds given to the player to reach the first check point. Press Start to Select. Press Tunes or Service to Exit. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 23 From the Pricing Menu, select Upgrades per Credit and enter. Choose the number of upgrades given per credit. Press Start to Select. Press Tunes or Service to Exit. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 24 When active, volume for all linked games can be adjusted to the same level from any one of the games connected to the network. Press Start to Select. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 25 Network parameter. Press Start to Select. Press Tunes or Service to Exit. Language From the System Adjustment Menu, select Language and enter. Press Start to Select. Press Tunes or Service to Exit. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 26 Choose MPH or Miles per Hour. Choose KPH or Kilometers per Hour. Press Start to Select. Press Tunes or Service to Exit The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 27 Note: The starting line girl and crowd can be removed for certain locations which may consider this feature not suitable or appropriate. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 28: Utilities Menu
From the Utilities Menu, select Clear Player Stats and enter. Performing Clear Player Stats will clear all player information, including PIN, car upgrades and money earned. Press Start to Select. Press Tunes or Service to Exit. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 30: Calibration Menu
Adjustment to game volume must be done while on Volume Adjust screen or while on game mode. • Adjust volume levels relative to location and environment. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 31: Troubleshooting Guide
Do not connect or disconnect any cables or connectors on this game with the power on. This could potentially damage the game. The Fast and the Furious Super Cars • Copyright 2010 • Raw Thrills Inc • All rights reserved...
Page 34: Exploded View
ITEM NO. PART NUMBER DESCRIPTION QTY. SC-32_Front_Assy SUPERCARS - 32" Front Assembly SUPERCARS - 32" HD Monitor SC-32_Monitor_Assy Assembly SUPERCARS - 32" Marquee SC-32_Marquee_Assy Assembly SC_Dash_Assy SUPERCARS - Dash Assembly SC_Pedestal_Assy SUPERCARS - Pedestal Assembly 603-00518-01 Supercars 32" - Hood Plastic 601-00526-01 Supercars 32"...
Page 35 ITEM NO. PART NUMBER DESCRIPTION QTY. 601-00523-01 Supercars 32" - Main Cabinet Supercars 32" - Woofer Mounting 601-00527-01 Board 601-00531-01 Supercars 32" - Hood Support Board Supercars 32" - Dash Jamb 600-00618-01 Mounting Bracket Supercars 32" - Coin Door Housing 608-00031-01 Plate Supercars 32"...
Page 36 ITEM NO. PART NUMBER DESCRIPTION QTY. 600-00511-01 RIO - Mounting Plate Chassis 500-00040-01 RIO PCB 500-00037-01 RIO Wheel Driver PCB Supercars - RIO Assembly Exploded View...
Page 37 ITEM NO. PART NUMBER DESCRIPTION QTY. 809-00003-00 32" HD Monitor 600-00613-01 32" LCD Front Glass 600-00610-01 Supercars 32" - Steel Monitor Frame 606-00544-01 SC 32" - Monitor Frame Decal SUPERCARS - 32" HD Monitor Assembly Exploded View...
Page 38 ITEM NO. PART NUMBER DESCRIPTION QTY. 603-00519-01 Supercars 32" - Marquee Plastic 500-00026-02 Red LED Spotlight PCB 500-00035-01 White LED Spotlight PCB 500-00028-02 Blue LED Spotlight PCB 600-00228-01 Supercars 32" - Marquee Blower Grill 600-00617-01 Supercars 32" - Marquee Lower Grill Supercars 32"...
Page 39 ITEM NO. PART NUMBER DESCRIPTION QTY. 600-00609-01 Supercars - Dash Plate Supercars - Speedometer Display SC_Speedo_Assy Assembly SC_Boost_Assy Supercars - Boost Display Assembly Supercars - Keypad Edge Glow 600-00649-01 Plastic 2-1-14-00-00-000 Keypad (Pay Phone Style) SC_Steering_Assy Supercars - Steering Assembly 603-00517-01 Supercars - Dash Plastic Steering Hoop (Happ 50-1035-...
Page 40 ITEM NO. PART NUMBER DESCRIPTION QTY. ITEM NO. PART NUMBER DESCRIPTION QTY. 500-00032-01 Speedo LED PCB 500-00036-01 Boost LED PCB 600-00125-01 Speedo Lens 600-00126-01 Boost Lens PCB Standoff (Self- PCB Standoff (Self- For #8 Screw Size, .375" H For #8 Screw Size, .375" H Retaining) Retaining) Supercars - Speedometer Display Assembly...
Page 41 ITEM NO. PART NUMBER DESCRIPTION QTY. 604-00002-00 Steering Mech (Happ 50-8593-50) 2-1-03-00-00-004 Split Hub Collar (Happ 50-2525-00) Supercars - Steering Assembly Exploded View...
Page 42 ITEM NO. PART NUMBER DESCRIPTION QTY. 601-00524-01 Supercars - Pedestal Cabinet SC_Seat_Assy Supercars - Seat Assembly 600-00103-01 Supercars - Pedestal Diamond Plate 500-00056-01 72 Light RGB LED Strip 600-00639-01 Supercars - Rear Pedestal LED Clip 606-00584-01 SC - Pedestal Marquee Supercars - Rear Pedestal Marquee 600-00648-01 Edge Bracket...
Page 43 ITEM NO. PART NUMBER DESCRIPTION QTY. 603-00520-01 Supercars - Copper Seat Seat Slide Assembly (Happ 50-0429- 604-00007-01 600-00105-01 Supercars - Headrest Speaker Grill 600-00620-01 Supercars - Mid Seat Plate 807-00003-00 Woofer: 6.5", 8 Ohm 500-00045-01 72 Light Red LED Strip 600-00647-01 LED Side Clip 600-00106-01...
Page 44 ITEM NO. PART NUMBER DESCRIPTION QTY. SC-42_Front_Assy SUPERCARS - 42" Front Assembly SUPERCARS - 42" HD Monitor SC-42_Monitor_Assy Assembly SUPERCARS - 42" Marquee SC-42_Marquee_Assy Assembly SC_Dash_Assy SUPERCARS - Dash Assembly SC_Pedestal_Assy SUPERCARS - Pedestal Assembly Supercars 42" - Monitor Cabinet 601-00536-01 Back Door Supercars 42"...
Page 45 ITEM NO. PART NUMBER DESCRIPTION QTY. 601-00533-01 Supercars 42" - Main Cabinet Supercars 42" - Monitor Cabinet 600-00658-01 Support Bracket 601-00535-01 Supercars 42" - Monitor Cabinet Supercars 42" - Woofer Mounting 601-00538-01 Board Supercars 42" - Dash Jamb 600-00100-01 Mounting Bracket Supercars 42"...
Page 46 ITEM NO. PART NUMBER DESCRIPTION QTY. 600-00511-01 RIO - Mounting Plate Chassis 500-00040-01 RIO PCB 500-00037-01 RIO Wheel Driver PCB Supercars - RIO Assembly Exploded View...
Page 47 ITEM NO. PART NUMBER DESCRIPTION QTY. 809-00004-01 42" HD Monitor 600-00099-01 Internal Monitor Mounting Bracket 606-00097-01 42" LCD Beveled Box 820-00012-00 Cooling Fan(standard size): 12VDC, 3W, 80CFM 800-00001-00 120mm Wire Fan Guard Foam Tape Black: 5/8"W x 1/8"T 600-00509-01 42" LCD Front Glass 603-00507-01 42"...
Page 48 ITEM NO. PART NUMBER DESCRIPTION QTY. 601-00051-01 Supercars 42" - Marquee Back Board 2-1-10-00-00-000 Full Range Speaker: 5.25", 8 Ohm 812-00004-01 Fluorescent Assy: 18" Bulb (F15T8/CW) 603-00532-01 Supercars 42" - Marquee Plastic 500-00026-02 Red LED Spotlight PCB 500-00035-01 White LED Spotlight PCB 500-00028-02 Blue LED Spotlight PCB 600-00092-01...
Page 49: Appendix A: Hard Drive Recovery
Appendix A: Hard Drive Recovery NOTICE: Fast and the Furious is shipped with a recovery compact disk. Hard drives have been known to occasionally fail for many reasons. Follow the procedure below to restore data on the hard drive if a disk failure should occur.
Page 50 AC power from the game for a period of 5-10 seconds before the power supply becomes operational again. The Fast and the Furious Drift • Copyright 2007 • Raw Thrills Inc • All rights reserved...
Page 51: Copyright And License Notice
Saleen, S7 and all vehicle model names and designs are registered trademarks of Saleen, Inc... Used under license to Raw Thrills, Inc. Ford Oval and nameplates are registered trademarks owned and licensed by Ford Motor Company. The Fast and the Furious Drift • Copyright 2007 • Raw Thrills Inc • All rights reserved...
