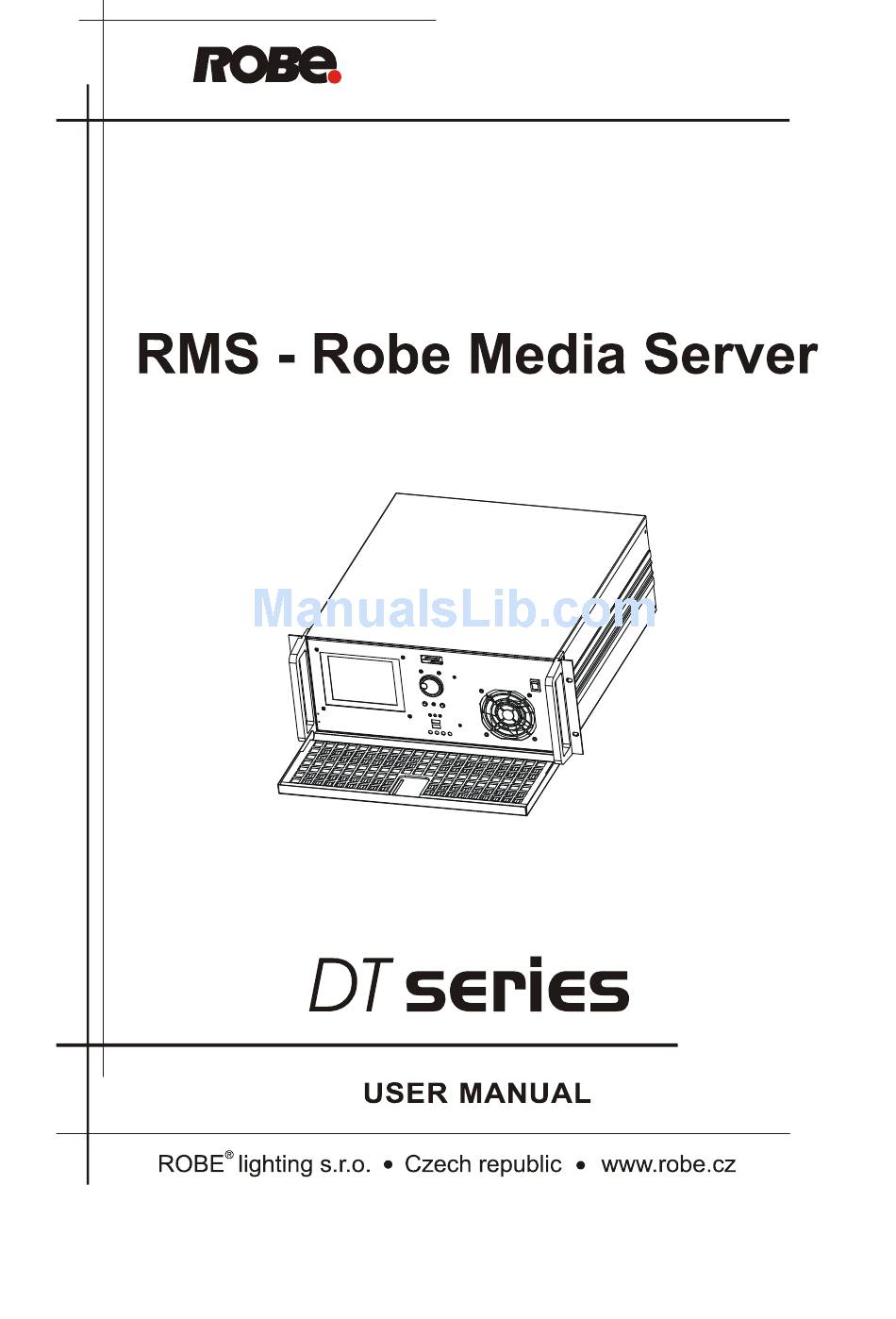

  • Page 1 Version 1.4...

  • Page 2: Table Of Contents

    4. Fixture exterior view ..............................6 5. Video inputs/outputs ..............................7 6. Connection to the mains ............................8 6.1 Powering on the ROBE Media Server ........................8 6.2 Shutting down the ROBE Media Server ........................ 8 7. DMX 512 connection ..............................8 8.
  • Page 3 RMS-Robe Media Server 17.4 Iris effect on layer ............................. 37 17.5 Auto iris effect on layer ............................ 40 17.6 Zoom effects on layer ............................40 17.7 Another graphic effects on layers........................41 18. Media content management ..........................43 18.1 Moving files between the fixture and PC ......................43 18.2 Moving files between networked fixtures ......................

  • Page 4: Safety Instructions

    Please consider that damages caused by manual modifications to the device are not subject to warranty. The ROBE Media Server was designed for indoor use and it is intended for professional application only.It is not for household use.

  • Page 5: Unpacking

    Furthermore, any other operation may lead to dangers like short- circuit, burns, electric shock etc. To switch the ROBE Media Server off, always use either option "Fixture Off" in the main menu of the control board or set a DMX value of the channel 1 (Power/Special Functions) between 240-249.

  • Page 6: Fixture Exterior View

    RMS-Robe Media Server 4. Fixture exterior view 1 - Handle 2 - Covering 3 - Front doors Front panel of the fixture 1 - 5" TFT Display 2 - Escape button 3 - RNS control wheel 4 - Enter button...

  • Page 7: Video Inputs/Outputs

    EDID ( Extended Display Identification Data) is a data-structure, provided by a display, to describe its capabilities to a graphics card (that is connected to the display’s source). The EDID enables the Robe Media Server to “know” what kind of monitor is connected to the output. The EDID includes the manufacturer’s name, the product type, the timing data supported by the display, the display size and luminance data.

  • Page 8: Connection To The Mains

    (control channel 1 ) - see DMX chart. 2. The option "Fixture Off" in main menu of ROBE Media Server shuts down the fixture. After shutting down the fixture switch the power switch on the rear side of the fixture base to the off position in order to save energy.

  • Page 9: Ethernet Connection

    The Universe is a single DMX 512 frame of 512 channels. The the ROBE Media Server is equipped with 8-pin RJ- 45 socket for Ethernet input. Use a network cable category 5 (with four “twisted” wire pairs) and standard RJ-45 plugs in order to connect the fixture to the network.

  • Page 10: Folder Organization

    RMS-Robe Media Server 9. Folder organization The library structure is reflected on the hard drive where all files for the library are stored. The whole library is contained within a special folder called ‘Media’. Inside the Media folder is a collection of folders (000,001...240) each named with a 3-digit number. Each folder following this convention represents a library folder and the 3-digit number represents the name of the folder.
  • Page 11 RMS-Robe Media Server The folder a "Log" serves for saving log files generate by the option "Generate Log File" in a menu "Special Functions" of the control panel.Log file names are deducated from the date when the file has been logged out.

  • Page 12: Control Menu Map

    RMS-Robe Media Server 10. Control menu map Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8 Fixture Set DMX DMX Settings 001-512...
  • Page 13 RMS-Robe Media Server Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8 Screen Display Modes CRT-I: CRT-I 1024x768 Resolution Projection Ceiling On, Off Presetting Projection...
  • Page 14 RMS-Robe Media Server Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8 0.1-25.5 sec. Fade Time Snap DMX Save Start Step 1-99 Save and Copy...
  • Page 15 RMS-Robe Media Server Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8 Allow Yes/No Anonymous HTTP Access Set Account Allow Yes/No Anonymous USB Data USB1...
  • Page 16 RMS-Robe Media Server Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 Menu Level 7 Menu Level 8 DMX Config 5 Pixel Mapper Nearest Type Linear Prewiew LED Mapping Config Mode...

  • Page 17: Operating Modes

    RMS-Robe Media Server 11. Operating modes Before operating the ROBE Media Server from a DMX 512 controller, you need to define the source of DMX data, which may be: DMX 512 - data is transmitted over standard DMX cables. Set a valid DMX start address, which is defined as the first channel from which the ROBE Media Server will respond to the controller.

  • Page 18: Fixture Information

    Product IDs --- Select the function to read the MAC address and the RDM UID code. 12.3 Personality Use this menu to modify ROBE Media Server operating behaviour. Display Adjusting --- This function allows you to change the display settings:...

  • Page 19: Manual Control

    Running program can be paused by pressing the [ENTER] button. Edit Program --- Select this menu to edit or create a program. The ROBE Media Server has 10 freely-programmable programs, each up to 99 steps. Each program step has a step time, during which effects last in a current step.
  • Page 20 RMS-Robe Media Server Procedure: 1. Select the program you want to edit (“Program 1” - “Program 10”) and press the [ENTER] button. 2. Select “Edit Steps” menu and press [ENTER] button. 3. Select the desired program step (“Step 01” - “Step 99”) and press [ENTER] button.

  • Page 21: Preview Mode

    ROBE Media Server has been fabricated. Resetable Hours - The function shows the number of the operation hours that the ROBE Media Server has been powered on since the counter was last reset. In order to reset this counter to 0, press [ENTER] twice.
  • Page 22 You have to download the latest version of the ROBE Media Server software from ROBE website to your hard disk and then use either Ethernet network or the USB stick to move this file to the relevant folder in the ROBE Media Server.

  • Page 23: Pixel Mapping

    This file records events in a certain scope in order to provide an audit trail that can be used to diagnose problems of the fixture. Remote servis --- This menu provides necessary items for remote servis of the ROBE Media Server. 12.10 Pixel mapping The menu serves for pixel mapping of the ArcDots modules.

  • Page 24: Layer Keystone Parameters

    RMS-Robe Media Server use channel the KeyStone X-ratio for correction use the channel KeyStone Y-ratio for correction 13.2 Layer keystone parameters By the global keystone parameters stated above you can control each of the four corners of the graphics output individually to reshape your image to a form that is projected correctly.
  • Page 25 RMS-Robe Media Server 2. Gobo position in X and Y direction. The channels Gobo position X coarse and Gobo position X fine allow 8-bit/16-bit positioning in X-direction. The channels Gobo position Y coarse and Gobo position Y fine allow 8-bit/16-bit positioning in Y-direction.
  • Page 26 RMS-Robe Media Server 4. Layer Squeezing/Stretching along X and Y axis. On the channel Gobo effect 1 selection adjust a DMX value=150 and using the Control Parameters 3 you can squeeze the image in X axis. The channel Gobo effect 1 – Parameter 3 squeezes/stretches the image edges in Y-axis.
  • Page 27 RMS-Robe Media Server 5. Image X-ratio and Y-ratio. On the channel Gobo effect 2 selection adjust a DMX value=150 and the second and third parameter control image X-ratio and Y-ratio. Note. To allows this effect, the channel Gobo effect 1 selection has to be set at DMX=150.

  • Page 28: In Frame And Out Frame Parameters

    The channel Gobo control defines how the current layer will be ‘composed’ with the previous layers and the playback options in each mode .The ROBE Media Server supports the following options: Copy mode (0-17 DMX): In this mode, the pixels of the layer are written on top of the previous layers.

  • Page 29: Playback Speed

    RMS-Robe Media Server Subtraction mode (40-47DMX): In this mode, the pixel values of the current layer are subtracted from the pixel value in the underlying layers. Dark pixel from the current layer won’t alter the pixel of the layers underneath while light pixel will darken them.

  • Page 30: Graphic Effects

    RMS-Robe Media Server 17. Graphic effects There are two gobo effect channels on each gobo layer (Gobo effect 1 selection, Gobo effect 2 selection), which offer amount of effects that can be applied to the current running picture/video. Each effect channels have three control channels - Parameter 1, Parameter 2, Parameter 3 –...
  • Page 31 RMS-Robe Media Server DMX value Mosaic effect Examples Source picture Static Dynamic mode mode Centered Kaleidoscope (rough Note: As the effect does not cover all projection are, the image from the lower layer can be displayed at the sides of the effect.

  • Page 32: Circular Effect (Fish Eye)

    RMS-Robe Media Server 0 - 255 Adjusting density of mosaic segments from large (0 DMX) to small (255 DMX) If the effect “Centered Kaleidoscope (fine) ” is selected, meaning of the Parameter 1 is the following: DMX value Function 0 - 255...
  • Page 33 RMS-Robe Media Server RGB subtract All Pixels (DMX value=50) – the effect reduces colour values across all pixels. Associated control parameters: Control Controlled item Function parameter value Parameter 1 Red colour element 0-255 no adjustment minimum saturation Green colour element...
  • Page 34 RMS-Robe Media Server Swap RGB to GBR (DMX value=56) – the effect swaps red to green, green to blue and blue to red colour in all pixels. Associated control parameters: Control Controlled item Function parameter value Red colour element no adjustment (0 )
  • Page 35 RMS-Robe Media Server Invert and swap RGB to BRG (DMX value=60) – the effect swaps red, green and blue colour to inverted BRG in all pixels. Associated control parameters: Control Controlled item Function parameter value Red colour element no adjustment (0 )
  • Page 36 RMS-Robe Media Server RGB scale (DMX value=68) – the effect changes the output intensity of red, green and blue colour in all pixels. Associated control parameters: Control Controlled item Function parameter value Changes the inclination of conversion line for red colour from max.

  • Page 37: Iris Effect On Layer

    RMS-Robe Media Server 17.4 Iris effect on layer The effect allows to simplify transition effects between layers and it can be activated on each gobo layer. On the effect can be applied layer´s X/Y zoom, X/Y position and rotation parameters. Another possible application of the iris effect is to use it as the mask function to mask unwanted parts of the image.
  • Page 38 RMS-Robe Media Server Gobo Effect 1-Parameter 3: Texture modes applied on the iris surface Parameter 3 Zoom X Zoom X + Position X DMX value (Mode) (Mode 1) 10-19 (Mode 2) 20-29 (Mode 3) 30-39 (Mode 4) The following modes (5-8) include black mask...
  • Page 39 RMS-Robe Media Server Parameter 3 DMX value Zoom X Position X (Mode) 50-59 Dimmer on the layer 3= 255 DMX Dimmer on the layer 3= 255 DMX (Mode 6) Dimmer on the layer 3= 1 DMX Dimmer on the layer 3= 1 DMX...

  • Page 40: Auto Iris Effect On Layer

    RMS-Robe Media Server 17.5 Auto iris effect on layer The effect behaves similar as Iris effect on layer, but it is auto- triggered by gobo changes. The iris effect on layer can be activated on each gobo layer if you set the Gobo Effect 1 Selection channel to a DMX value of 92.

  • Page 41: Another Graphic Effects On Layers

    RMS-Robe Media Server 17.7 Another graphic effects on layers 1. Swirl effect Activation channel Gobo Effect 2 Selection (on each layer) Default value Activation DMX value Control: Parameter 1 Radius: 0-255DMX - min. Angle: 0-127DMX - turning by 360° to the right...
  • Page 42 RMS-Robe Media Server 3. Cross-stitching effect Activation channel Gobo Effect 2 Selection (on each layer) Default value Activation DMX value Control: Parameter 1 Pattern density: 0-255 DMX - max. min. Colour of stitch: 0-127 DMX - coloured Parameter 2 128-255 DMX - black Effect boundary position in X-axis: 0-255 DMX –...

  • Page 43: Media Content Management

    18. Media content management As you seen earlier , the ROBE Media Server uses the root folder named "Media". This folder contains subfolders (000,001...240) and inside each subfolder is the collection of media that the subfolder holds. The files in subfolders are sorted in an alphabetic or numerical order and assigned to DMX.
  • Page 44 RMS-Robe Media Server After network configuration, type the IP address of the ROBE Media Server in address line in your Windows explorer window. Use this format / (e.g. ftp://2.236.2.88/- see picture below). ftp:// 2.X.X.X If all settings are proper, you will see "Media" and "Update" folders in the Windows explorer window and now you can work with them as local folders and files.
  • Page 45 RMS-Robe Media Server 2. FTP client in Mozilla Firefox If you use Mozilla Firefox as your web browser, you can install FTP client into the browser. To install FTP client for Mozilla Firefox on your computer. 1. Run Mozilla Firefox.
  • Page 46 RMS-Robe Media Server After installing FTP client, run Mozilla Firefox and type the IP address of desired fixture in ftp format e. g. ftp://2.126.85.62 and a Fire FTP window will appear. If you do not want to keep in mind IP addresses of all connected fixtures, you can use the Remote configuration program (by typing the IP address of one fixture to the web browser in http format e.

  • Page 47: Moving Files Between Networked Fixtures

    RMS-Robe Media Server 18.2 Moving files between networked fixtures The option "Contents Synchronization" in a "Remote control program" running on your PC offers easy control of file transfer between networked fixtures via web browser. (For detail description of the Remote configuration program see chapter "Remote control of the fixture via web browser"...

  • Page 48: Remote Control Of The Fixture Via Www Browser

    RMS-Robe Media Server 19. Remote control of the fixture via WWW browser The ROBE Media Server offers a remote control of the fixture and diplaying useful information about the fixture including the gobo folders contents via www browser. The fixtures has to be connected via an ethernet (with Art-Net communication protocol) to a network. The PC or light console has to be connected to the same network as the fixtures.
  • Page 49 RMS-Robe Media Server Status Messages -the window under this option displays error and status messages. Special Functions - the window offers several items: "Thumbnails size" - changing the size of the thumbnails. The change takes effect in the item "Content". If you change the thumbnail size, use the button "Update"...
  • Page 50 RMS-Robe Media Server Content - by entering this window a complete overview of all gobo folders is offered, from which the folder to be view can be selected.Click a desired folder to display its content. Click a desired picture to zoom it in.
  • Page 51 RMS-Robe Media Server Remote Graphics Output - preview of the current projecting output. Remote RNS Display - the window shows the fixture´s control panel. You can browse and adjust all items in this fixture menu by means of your keyboard. Use the Up/Down and Enter/Escape keys.

  • Page 52: Picture Merging

    The resulting seamless image consists of the images of the individual projectors. It is possible to create an image field up to 64 segments (non-mirrored configuration). You can display the original ROBE Media Server gobos/videos or custom gobos/videos from user folders. 20.1 Picture merging control channels Global effect 1 DMX values in a range of 1-7 enable the picture merging procedure.
  • Page 53 RMS-Robe Media Server Global effect 1- Parameter 1 The DMX value from the range of 1- 235 allows selection of desired image field configuration according to the tables on the following pages. Image field configuration Non-mirrored configuration Image field Image field...
  • Page 54 RMS-Robe Media Server Image field Total number of Image field Total number of value Configuration fixtures value Configuration fixtures W x H W x H 1 x 7 11 x 1 7 x 2 2 x 11 2 x 7...
  • Page 55 RMS-Robe Media Server Horizontally mirrored configuration Image field Image field Total number of Total number of configuration configuration fixtures in base fixtures in base value of base matrix value of base matrix matrix matrix W x H W x H...
  • Page 56 RMS-Robe Media Server Vertically mirrored configuration Image field Image field Total number of Total number of configuration configuration fixtures in base fixtures in base value of base matrix value of base matrix matrix matrix W x H W x H...
  • Page 57 RMS-Robe Media Server Vertically and horizontally mirrored configuration Image field Image field Total number of Total number of configuration configuration fixtures in base fixtures in base value of base matrix value of base matrix matrix matrix W x H W x H...
  • Page 58 2. By using the picture merging with mirrored configuration you can cover any size of projection area. The total number of used projectors is unlimited. Examples: 4 ROBE Media Servers are used in the picture merging. Source picture Aspect ratio: 4:3...
  • Page 59 RMS-Robe Media Server Global effect 1- Parameter 2 The DMX values from the range of 0-255 are used to step segment by segment throw the image grid. The DMX value of 0 corresponds to the upper left segment of the image grid. The stepping runs from the left to the right and...

  • Page 60: Picture Merging Example

    IP address). The fixture´s IP address consists of four numbers separated by the dot e.g. 002.168.002.010. 2. Select the same gobo/video on the six ROBE Media Server. 3. On all fixtures you are configuring set a DMX value=1 at the channel Global Effect 1.

  • Page 61: Pre-Cut Content Mode For Picture Merging

    RMS-Robe Media Server 21. Pre-cut content mode for Picture Merging The mode is useful when you want to cover large projection area with full resolution for each projector or you don't want to be restricted with limits of matrix configuration.
  • Page 62 RMS-Robe Media Server Size of segments in X-axis: L /[x-(b/100)*(x-1)] partX totalX =1024/ [3-(10/100)*(3-1)] the size of overlapping edges was selected 10% (b=10) partX = 366 pixels partX Since the size of the segments in Y-axis is the same as at the source picture, each of the 3 fixtures will project picture with resolution of 366x768 pixels.

  • Page 63: Effect Video Synchronization

    You have to set the DMX value (ID) of the master fixture on all fixtures that are to be synchronized. If the DMX value= fixture ID, in this case the fixture is set as a master. Example: 4 ROBE Media Servers which are synchronized through the gobo layer 1 to the fixture 3 : IP address...

  • Page 64: Projection Onto Angular, Cylindric Or Spheric Surfaces

    RMS-Robe Media Server 23. Projection onto angular, cylindric or spheric surfaces If a projection on curved surface is required a correction of the shape distortions is necessary. The ROBE Media Server supports projection onto angular screens, cylinders and spheres. 23.1 Curved surface support channels...
  • Page 65 RMS-Robe Media Server Global effect 2- parameter 2 This parameter enables to adjust the horizontal length of the edge. A DMX Value of 128 = no adjustment, values below 128 move the edge to the left, values above 128 move the edge to the right.

  • Page 66: Rectangle Onto Circle (Sphere) Mapping With Picture Merging

    RMS-Robe Media Server Note: If a projection of rectangle (square) on a circle (sphere) is selected on the channel Global Effect 2 (DMX value of 10 or 11), the meaning of the Keystone parameters in a DMX chart will be changed as follows:...

  • Page 67: Video Processing On Gobo Layers From A Streaming Video Server

    RMS-Robe Media Server 24. Video processing on gobo layers from a streaming video server A streaming video is a video that is continuously sent by one device (e.g. PC) and received by another device (ROBE Media Server) over an ethernet network.
  • Page 68 RMS-Robe Media Server 5. Run a Remote control by means of WWW browser at your PC, select option “Remote content” and write IP address of TightVNC server to the Source Address line in the following format : vnc:// xxx.xxx.xxx (e.g.
  • Page 69 RMS-Robe Media Server - Click on the "Properties" button and the following window will open. - Click on the item "Internet Protocol (TCP/IP)" and the Internet Protocol Properties window will open. Set IP address to something like 2.X.X.X with an IP mask of 255.0.0.0...
  • Page 70 RMS-Robe Media Server 3. Install a VLC media player. - click on a VLC media player self-extracting package located on the hard disk and follow the on-screen instructions. After installing it, run this VLC media player. In a horizontal menu "File" click on "Open" and the following window will open.
  • Page 71 PC Desktop streaming. The desktop streaming enables you to sent your presentation directly to the ROBE Media Server via an ethernet network. You do not need extra cables for connecting video inputs of the ROBE Media Server with your PC.
  • Page 72 RMS-Robe Media Server A different setting of VLC media player for streaming of the PC desktop is required. Type the following line in the "Customize" field of the Open window: screen:// screen-fps=10 :screen-caching=100 Space The Stream output window has the same setting like for video streaming except the field "Bitrate (kb/s)" which should be set at the value of 8192.
  • Page 73 RMS-Robe Media Server Control PC (light console) Type the IP address of the ROBE Media Server which is to project data from a remote streaming video source in your WWW browser to run the Remote Control program. Select the option "Remote Content" and the following window will open: Type in the "source Address"...

  • Page 74: Rdm

    RDM allows explicit commands to be sent to a device and responses to be received from it. The ROBE DreamBox allows to utilize all ROBE Media Server RDM functionality.Please read the Robe Univeral Interface user manual for detail description of RDM possibilities.
  • Page 75 RMS-Robe Media Server The CITP protocol allows to report folders for live input and streaming. These icons serves for thumbnails preview on the control console:...

  • Page 76: Pixel Mapping

    There is an example how to use this menu to map ArcDots matrix of 8x8 (the same rules are true for ArcPixes if not stated in a different way). 1. Connect all fixtures as shown on the picture below. In this example, the Robe Media Server and the ArcPixPower are interconnected via ArtNet. The monitor should be connected to the Master VGA output.
  • Page 77 4. Press the [ENTER] and the screen where the size of the ArcDots matrix has to be defined will appear. 5. After setting matrix width and height, go to the menu “Config PM Outputs”. If DMX is used for connection between the Robe Media Server and ArcPixPower set, the number of ArcDots connected to DMX 1 (DMX 2) output.
  • Page 78 RMS-Robe Media Server 7. Go to the menu “Config Dots Address“ , press the [ENTER] and the screen screen with dots configuration modes will appear: Now you have to select option according to the type of ArcDots connection. “Fixed- Wiring Mode” - Position of each ArcDot in matrix is defined in certain order which is kept in entire ArcDot matrix.
  • Page 79 RMS-Robe Media Server Note: For large ArcDots matrix more than one ArcPixPower has to be used. Artnet universes of ArcPixPowers has to be set in ascending order (driver 1 – Universe 1, driver 2 – Universe 2, driver 3 –...
  • Page 80 257-512 ArcDots – >10 test pictures 3. After taking a picture of all test pictures, add all photos into any folder of the Robe Media Server and go again on the item “Test Picture 1” , press the [ENTER] and display the first test picture on...
  • Page 81 RMS-Robe Media Server Now adjust the picture in such a way that the red crosses will be approximately) in the centres of the ArcDots. To reach this aligning , follow the points : 1. Set the global keystone channels 2-9 at DMX value of 128.
  • Page 82 RMS-Robe Media Server The red crosses will change in blue colour. If some crosses stay in red, the adjusting procedure must be repeated. 4. Project the test picture 2-7 and at each picture check positions of the ArcDots and red crosses and repeat instructions stated in the point 9 (if needed).

  • Page 83: Technical Specifications

    Video processing on all gobo layers from a remote streaming video server Pixel mapping Control 5“ TFT LCD display & Robe navigation system Web access for total control of fixture (user library management) Media Content Synchronization in web interface Protocol: USITT DMX 512, Artnet RDM support 148 control channels max.
  • Page 84 RMS-Robe Media Server Standard: 1 x S-Video (Mini Din 4 pin), 1 x Composite video (RCA) Optional:1 x DVI-D, 1 x VGA (Mini D-sub 15 pin) or 1 x SDI/ASI (BNC) Video output: 1x parallel video output splitted with 4 Full HD layers available via 4 VGA outputs (4 x VGA;...

  • Page 85: Maintenance

    RMS-Robe Media Server 28. Maintenance 28.1 Installing the DVI/VGA SDI/ASI ) capture card To install the optional DVI/VGA (SDI/ASI) capture card. 1. Disconnect the fixture from power. 2. Remove top cover (1) of the fixture by unscrewing two screws (2).

  • Page 86: System Restore

    USB ports on the ROBE Media Server. Power on the ROBE Media Server. When the fixture boots, press Delete key on the keyboard to enter the fixture´s computer SETUP and set the boot from USB drive (Path: "Advanced Bios Features" --- >"1st boot device"---->...
  • Page 87 DMX protocol Robe Media Server - DMX protocol v. 1.1, April 6, 2012 DMX Value Function Type of control Channel Power/Special functions 0-39 Reserved To activate following functions,hold DMX value 3 sec. and Digital Iris (channel 17) must be at range of 240-250 DMX...
  • Page 88 DMX protocol DMX Value Function Type of control Channel Cyan continuously (0-white,255-full cyan) 0-255 proportional Magenta Magenta continuously (0-white,255-full magenta) 0-255 proportional Yellow Yellow continuously (0-white,255-full yellow) 0-255 proportional Without CTF step 14000 K step 13000 K step 12500 K step 12000 K step...
  • Page 89 DMX protocol DMX Value Function Type of control Channel Vertical ellipse ,inside-->out,fuzzy edge 2 step Vertical ellipse ,inside-->out,fuzzy edge 3 step Vertical ellipse ,inside-->out,fuzzy edge 4 (maximum) step Clockwise wipe,sharp edge step Clockwise wipe,fuzzy edge 1 step Clockwise wipe,fuzzy edge 2 step Clockwise wipe,fuzzy edge 3 step...
  • Page 90 DMX protocol DMX Value Function Type of control Channel Vertical barn-doors,inside-->out,fuzzy edge 2 step Vertical barn-doors,inside-->out,fuzzy edge 3 step step Vertical barn-doors,inside-->out,fuzzy edge 4 (maximum) Horizontal barn-doors,outside-->in,sharp edge step Horizontal barn-doors,outside-->in,fuzzy edge 1 step Horizontal barn-doors,outside-->in,fuzzy edge 2 step Horizontal barn-doors,outside-->in,fuzzy edge 3 step step Horizontal barn-doors,outside-->in,fuzzy edge 4 (maximum)
  • Page 91 DMX protocol DMX Value Function Type of control Channel Horizontal crossing 8x,inverse step Vertical crossing 8x step Vertical crossing 8x,inverse step Horizontal crossing 16x step Horizontal crossing 16x,inverse step Vertical crossing 16x step Vertical crossing 16x,inverse step Checker wipe 3x4, left-->right step Checker wipe 3x4, right-->left step...
  • Page 92 DMX protocol DMX Value Function Type of control Channel Digital Iris fine 0-255 Iris fine proportional Digital strobe 0 - 30 Open light output step 31 - 80 Digital strobe-effect from slow to fast proportional 81 - 110 Open light output step 111 - 140 Random digital strobe-effect from slow to fast proportional...
  • Page 93 DMX protocol DMX Value Function Type of control Channel Width of overlapping edges -10 % P1, P2, P3 Width of overlapping edges - 0 % P1, P2, P3 Width of overlapping edges - 15 % P1, P2, P3 Width of overlapping edges - 20 % P1, P2, P3 Width of overlapping edges - 25 % P1, P2, P3...
  • Page 94 DMX protocol DMX Value Function Type of control Channel 0-255 Dimmer intensity from 0% to 100% (255-default) proportional Gobo Folder selection 0-20 Factory folders step 21-240 User folders step 241-250 Reserved Live input (grab. card)-see channel 39 step Streaming from remote sources step 253-255 Reserved Gobo selection...
  • Page 95 DMX protocol DMX Value Function Type of control Channel Video stream 2 ( the same functionality as for Video stream 1): step Play forward if dimmer (on layer 1) > 0, looping continuously step Play forward if dimmer (on layer 1) > 0, hold on last frame Pause step Play forward in continuous loop...
  • Page 96 DMX protocol DMX Value Function Type of control Channel 70-77 The same functionality as for Video stream 1 step 78-79 Reserved Minimum mode Video stream 1: step Play forward if dimmer (on layer 1) > 0, looping continuously step Play forward if dimmer (on layer 1) > 0, hold on last frame Pause step Play forward in continuous loop...
  • Page 97 DMX protocol DMX Value Function Type of control Channel Zoom out fade P1-speed Scale xy sinus P1-speed Reserved Reserved Reserved XY pos. circle counter-clockwise P1-speed XY pos. circle clockwise P1-speed XY pos. scroll up P1-speed XY pos. scroll down P1-speed XY pos.
  • Page 98 DMX protocol DMX Value Function Type of control Channel Plane cross tile 2x inverse none Plane cross tile 3x none Plane cross tile 3x inverse none Plane cross tile 4x none Plane cross tile 4x inverse none Plane cross tile 5x none Plane cross tile 5x inverse none...
  • Page 99 DMX protocol DMX Value Function Type of control Channel Triangular 1 - static mode P1, P2, P3 Triangular 1 -dynamic mode P1, P2, P3 Triangular 2 -static mode P1, P2, P3 Triangular 2 - dynamic mode P1, P2, P3 Centered kaleidoscope (rough)-static mode P1, P2, P3 Centered kaleidoscope (rough)-dynamic mode P1, P2, P3...
  • Page 100 DMX protocol DMX Value Function Type of control Channel BW Flash P1-amount Black and white to black and white inverse Flash P1-amount Gradient Wipe X P1-amount Gradient Wipe Y P1-amount 33-39 Reserved Gaussian filter P1-amount Mean filter P1-amount Laplacian filter P1-amount Emboss filter P1-amount...
  • Page 101 DMX protocol DMX Value Function Type of control Channel 201-255 Reserved Gobo effect 2 -Parameter 1 0-255 Effect control depends on effect Gobo effect 2 -Parameter 2 0-255 Effect control depends on effect Gobo effect 2 -Parameter 3 0-255 Effect control depends on effect Gobo Position X coarse 0-127...
  • Page 102 DMX protocol DMX Value Function Type of control Channel If Live input (251 DMX) is selected on channel 66: White screen step 1-20 Video composite input-PAL system step 21-40 SVIDEO input- PAL system step 21-60 Video composite input-NTSC system step 61-80 SVIDEO input- NTSC system step...
  • Page 103 DMX protocol DMX Value Function Type of control Channel Video Stream 1 step Play forward if dimmer (on layer 2) > 0, looping continuously step Play forward if dimmer (on layer 2) > 0, hold on last frame Pause step Play forward in continuous loop step Play forward once and hold on the last frame...
  • Page 104 DMX protocol DMX Value Function Type of control Channel Scrub (Display) the selected Out Frame step 88-89 Reserved Video Stream 2 90-97 the same functionality as for Video stream 1 step 98-99 Reserved Maximum mode Video stream 1 step Play forward if dimmer (on layer 2) > 0, looping continuously step Play forward if dimmer (on layer 2) >...
  • Page 105 DMX protocol DMX Value Function Type of control Channel Right-left diag. down scroll P1-speed Right-left diag. up scroll P1-speed Left-right diag. down scroll P1-speed Left-right diag. up scroll P1-speed X rotate P1-speed Y rotate P1-speed XY rotate P1-speed XY inv. rotate P1-speed X inv.
  • Page 106 DMX protocol DMX Value Function Type of control Channel Plane bar left-righ none Plane bar top-bottom none Reserved Reserved Gobo disc none Gobo disc Flip X none Gobo disc Flip Y none Gobo disc Flip XY none Gobo disc mirror X none Gobo disc mirror Y none...
  • Page 107 DMX protocol DMX Value Function Type of control Channel Layer keystoning P1,P2,P3 P1-skewing in X, P2-skewing in Y, P3-squeezing/stretching in Y 151-255 Reserved Gobo effect 1 - Parameter 1 0-255 Effect control depends on effect Gobo effect 1 - Parameter 2 0-255 Effect control depends on effect...
  • Page 108 DMX protocol DMX Value Function Type of control Channel RGB effects: RGB subtract All Pixels P1, P2, P3 RGB add All Pixels P1, P2, P3 RGB add non-black Pixels P1, P2, P3 RGB substract/add All Pixels P1, P2, P3 Swap RGB to RBG P1, P2, P3 Swap RGB to GRB P1, P2, P3...
  • Page 109 DMX protocol DMX Value Function Type of control Channel Gobo position X fine 0-255 Position X fine proportional Gobo position Y coarse 0-127 Movement down proportional Centre (128-default) step 129-255 Movement up proportional Gobo position Y fine 0-255 Position Y fine proportional Gobo zoom X coarse 0-127...
  • Page 110 DMX protocol DMX Value Function Type of control Channel 201-220 ASI input of SDI/ASI grabber card step 221-255 Reserved In Frame High Defines the beginning of a media file segment as a 0-255 proportional percentage of the movie length (0-default) In Frame Low Defines the beginning of a media file segment as a 0-255...
  • Page 111 DMX protocol DMX Value Function Type of control Channel Substraction mode Video Stream 1 step Play forward if dimmer (on layer 3) > 0, looping continuously step Play forward if dimmer (on layer 3) > 0, hold on last frame Pause step Play forward in continuous loop...
  • Page 112 DMX protocol DMX Value Function Type of control Channel Scrub (Display) the selected In Frame step Scrub (Display) the selected Out Frame step 108-109 Reserved Video Stream 2 110-117 the same functionality as for Video stream 1 step 118-255 Reserved Playback Speed Normal Speed step...
  • Page 113 DMX protocol DMX Value Function Type of control Channel X rot. cylinder P1-speed Y rot. cylinder P1-speed Reserved Kaleidoscope P1-speed Squeeze in P1-speed Squeeze out P1-speed Bend X P1-speed Bend Y P1-speed Tile frame P1-speed Frame P1-speed Plane Flip X P1-speed Plane Flip Y P1-speed...
  • Page 114 DMX protocol DMX Value Function Type of control Channel Plane mirror X bottom inverse none Plane mirror Y left inverse none Plane mirror Y right inverse none Plane mirror XY inverse none Plane mirror X-inverse,Y none Plane mirror X,Y-inverse none 87-89 Reserved Circular effect (Fish eye)
  • Page 115 DMX protocol DMX Value Function Type of control Channel Black and white to black and white inverse P1-amount Inversion P1-amount Black Mask P1-amount Black Mask inverse P1-amount Contrast P1-amount Brightness P1-amount RGB to GBR P1-amount RGB to BRG P1-amount RGB to RBG P1-amount Black and white to black and white inverse timed P1-speed...
  • Page 116 DMX protocol DMX Value Function Type of control Channel Colour to Alpha P1, P2, P3 Colour to Alpha inverted P1, P2, P3 64-67 Reserved RGB scale P1, P2, P3 P1-red, P2-green, P3-blue Brightness scale P1, P2 P1, P2 - inclination of conversion line Swirl effect P1, P2, P3 P1-radius, P2-angle, P3-diagonal position...
  • Page 117 DMX protocol DMX Value Function Type of control Channel Gobo zoom X fine 0-255 Zoom X fine proportional Gobo zoom Y coarse 0-127 Narrowing proportional Centre (128-default) step 129-255 Widening proportional Gobo zoom Y fine 0-255 Zoom Y fine proportional Synchronization to ID No function step...
  • Page 118 DMX protocol DMX Value Function Type of control Channel Defines the beginning of a media file segment as a 0-255 proportional percentage of the movie length (255-default) Gobo control Copy mode Video stream 1 step Play forward if dimmer (on layer 4) > 0, looping continuously step Play forward if dimmer (on layer 4) >...
  • Page 119 DMX protocol DMX Value Function Type of control Channel 50-57 the same functionality as for Video stream 1 step 58-59 Reserved Multiplication mode Video stream 1 step Play forward if dimmer (on layer 4) > 0, looping continuously step Play forward if dimmer (on layer 4) > 0, hold on last frame Pause step Play forward in continuous loop...
  • Page 120 DMX protocol DMX Value Function Type of control Channel 0-63 Clockwise rotation from fast to slow proportional 64-127 Indexing proportional No rotation-centre (128-default) step 129-192 Indexing proportional 193-255 Anticlockwise rotation from slow to fast proportional Gobo fine indexing (rotation) 0-255 Fine indexing (rotation) proportional Gobo effect 1 Selection...
  • Page 121 DMX protocol DMX Value Function Type of control Channel Plane Flip XY none Plane mirror X top none Plane mirror X bottom none Plane mirror Y left none Plane mirror Y right none Plane mirror XY segment 1 none Plane mirror XY segment 2 none Plane mirror XY segment 3 none...
  • Page 122 DMX protocol DMX Value Function Type of control Channel P1-speed, P2-mask type, P3-opening/closing command 93-94 Reserved Zoom In/Move XY P1, P2, P3 P1-zoom, P2-X-movement, P3-Y-movement Zoom In/Auto Move XY P1, P2, P3 P1-zoom, P2-X-speed, P3- Y-speed 97-99 Reserved kaleidoscope - mode and mosaic segment selection: Square -static mode P1, P2, P3 Square -dynamic mode...
  • Page 123 DMX protocol DMX Value Function Type of control Channel Cycle P1-speed Cycle inverse P1-speed Reserved Reserved Colour Key P1-amount Colour Key inverse P1-amount Key Black P1-amount Key Black inverse P1-amount Key White P1-amount Key White inverse P1-amount White flash P1-amount Black flash P1-amount Alpha flash...
  • Page 124 DMX protocol DMX Value Function Type of control Channel P1-pattern density, P2-colour of stitch, P3- position in X-axis Posterization effect P1, P2 P1-number of colours, P2-Gamma correction 74-94 Reserved Zoom In/Move XY P1, P2, P3 P1-zoom, P2-X-movement, P3-Y-movement Zoom In/Auto Move XY P1, P2, P3 P1-zoom, P2-X-speed, P3- Y-speed 97-149...
  • Page 125 DMX protocol DMX Value Function Type of control Channel See chapter "Projection onto angular, cylindric or spheric surfaces" in the User manual. Page 39...
