Summary of Contents for SMI Group NetPrinter NP812

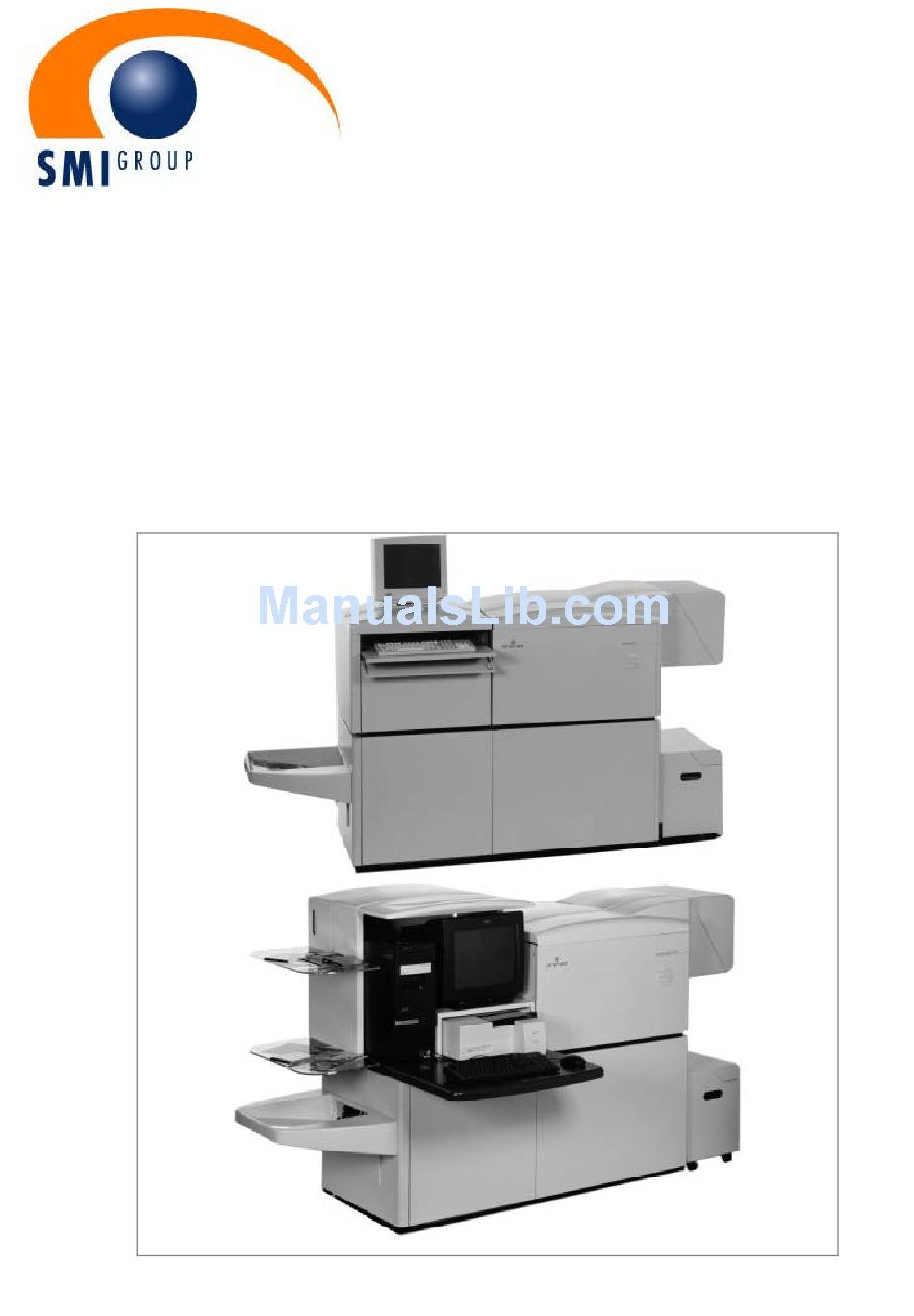

- Page 1 COB (Calibration On Board) Installation instructions NetPrinter NP812 NPDS 17886-022-1...
- Page 3 NETPRINTER THE COB KIT 18955.040.1 IS MADE UP OF: Description Part Number Quantity ArtixScan 1100 002113210 Kit software* 18074.105.9 *The kit software 18074.105.9 is made up of: • N°1 CDROM Netprinter including: - CORE SW W-15 Installation - COB V-50 Installation - SMI1200 3.xx Installation...
-
Page 4: Kit Installation
KIT INSTALLATION Switch OFF the PC and disconnect the plug from the mains power supply. Release the PC front panel by unlocking at the bottom with a finger. Remove the panel Remove screw... - Page 5 Pull off the left lateral panel Remove the metal plate on the PC back panel to insert the SCSI PCI slot board Insert the SCSI board in the PCI slot slot...
- Page 6 Secure the SCSI board with a appropriate screw Reinsert the lateral panel and remount the PC front panel Insert the scanner driver CD in the Suht down the SMI 1200 software From Windows select Start/Settings/Control Panel/SCSI Adapters...
- Page 7 Select Drivers and Add Click on Have Disk With Browse select the CD ROM (F:\ ) In Locate File select Adaptec_NT.inf., click on OPEN and confirm with OK...
-
Page 8: Scsi Cable
Click OK Select the first option (Adaptec HAH290x/……) and confirm with OK.The scanner drive program is installed Click on Yes to restart the PC If no SCSI error messages appear, switch OFF the PC. Connect the SCSI cable to the scanner board connection SCSI cable... - Page 9 Rest the scanner on a side and turn the blocking screw at the bottom, to unlock the optics Position the selector on 6 and the SCSI TERMINATOR at ON (towards the top) ID selector SCSI TERMINATOR selector Insert the SCSI cable connector in the scanner connection Connect the mains cord to the scanner and to the mains...
- Page 10 Press the ON/OFF button to switch ON the scanner The inside of the cover must be white. If black, then cover it with a white paper sheet having the same dimensions and use transparent sticky tape to secure this paper to the inside of the scanner Switch ON the PC Close the SMI 1200 software...
- Page 11 Locate the ScanWizard Pro Software CD-ROM Stop the NetPrinter Software. Load the ScanWizard Pro CD- ROM into the computer The installation wizard will display. Select Microtek ScanWizard Pro Install and press the button On the Welcome screen, press Next. On the Select Program Folder screen, select Next.
- Page 12 The initial setup screen will display. Press the Install button next to the Microtek Scanner ICC Profiler. On the Welcome screen, press Next. On the Select Program Folder screen, select Next. As ICC Profiler is installed, a progress bar is displayed. The final window that displays recommends that the computer be rebooted before using...
- Page 13 Verify that the scanner comes up in the scanner box. Note: You might have to turn the scanner power on, then power down the computer, then reboot to get a confirmed connection to the scanner. Refer to the Microtek scanner documentation to help you through any problems you encounter.
- Page 14 Open ScanWizard Pro. Open the Scanner menu Verify the correct scanner is selected: ArtixScan 1100.ID=x Then Select Scanner Control. Press the Lamp tab Change Idle time to 60 Minutes Change warm up time to 1 Minutes Press the Scanner Calibration tab.
- Page 15 Open the Preferences menu Verify the DCR Color Control is Selected. If there is a check mark on the left of the DCR Color Correction, it is selected. Select Overview Setup. Change Size to Maximum size. Press the OK button. Open the Preferences menu and select More Confirmation Message:...
- Page 16 How to solve certain problems, which may arise when installing the scanner If after the scanner is connected to the PC and the machine restarted it refuses to restart (blocks on the Windows initial screen) it is necessary to force a restart with the PC switch.
- Page 17 If after carrying out step 1 the problem persists, then the scanner is faulty. If after executing a scan the scanner makes pronounced metallic sounds or gear “scraping” sounds, then the scanner is the problem. If after starting a scan the scanner lamp does not switch ON then the scanner is the problem.
